Mounting Frames

Aircraft mounting frames and shock-mount assemblies are indexed here by exact frame designation and associated equipment reference. These components provide the physical interface between a separately identified onboard unit and its approved installation. They should be treated as dedicated parts rather than universal brackets, even when dimensions and attachment points appear similar.

Frames for radio, navigation and control equipment

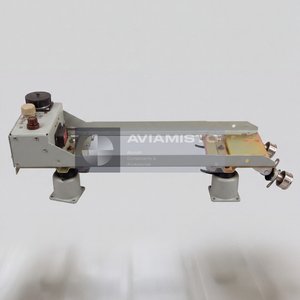

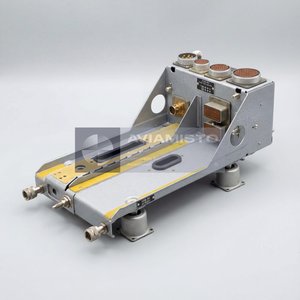

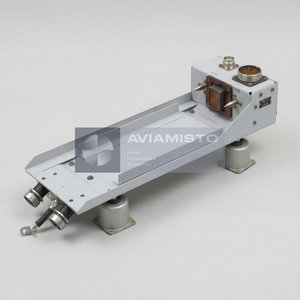

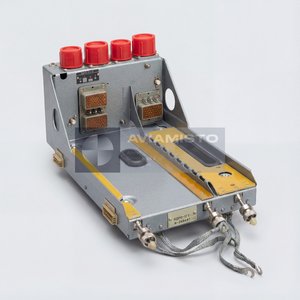

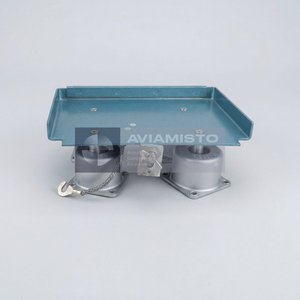

Current records include B10B-YAR1, B10V-YAR1, IZH4.137.027-01 and IZH6.122.534 / Block 5 frames, together with installations for P-503B and other devices. Some positions incorporate shock-isolating elements; others define a mounting and connector interface. The exact drawing number is essential because the supported unit alone may not identify the required execution.

Confirm the mating unit and installation interface

Selection should be checked against the full frame marking, installed equipment, connector alignment, attachment geometry and applicable technical documentation. Include photographs of the label, base and rear interface when available. A frame listed for one unit must not be assumed to fit a related model without documented confirmation.

• record the complete frame designation;
• name the mating onboard equipment;
• retain drawing numbers and suffixes;
• provide interface and mounting photographs;
• specify quantity and delivery-set requirements.

Request a matched mounting assembly

Open the relevant card to request verification of identity, condition, completeness, documentation, price and supply timing. Associated electronic equipment can be searched under Aircraft Electronic Control Units. The main component catalogue provides access to additional installation groups.
