RA-5
shock-mount frame
Description
The RA-5 shock-mount frame is a vibration-damping mounting assembly designed for installation of the RV-5M radio altimeter transceiver unit onboard helicopters and fixed-wing aircraft.
The frame provides mechanical support, secure attachment to the aircraft structure, and vibration isolation, ensuring stable operation of the radio altimeter under normal and intensive flight conditions.
The RA-5 was installed as part of the RV-5M radio altimeter set, which preceded later A-037 variants.

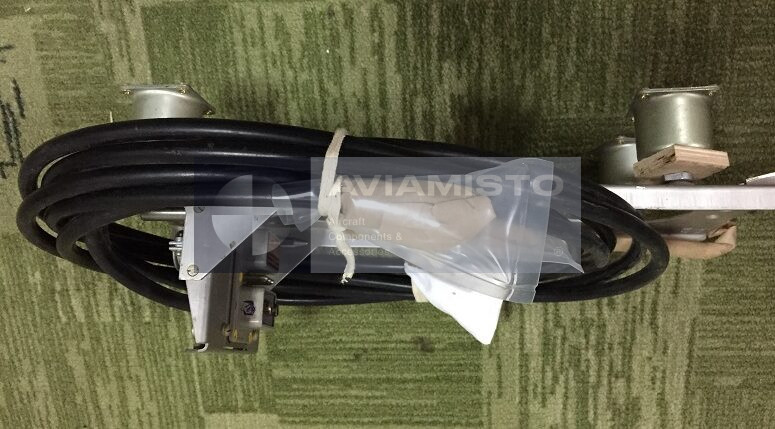

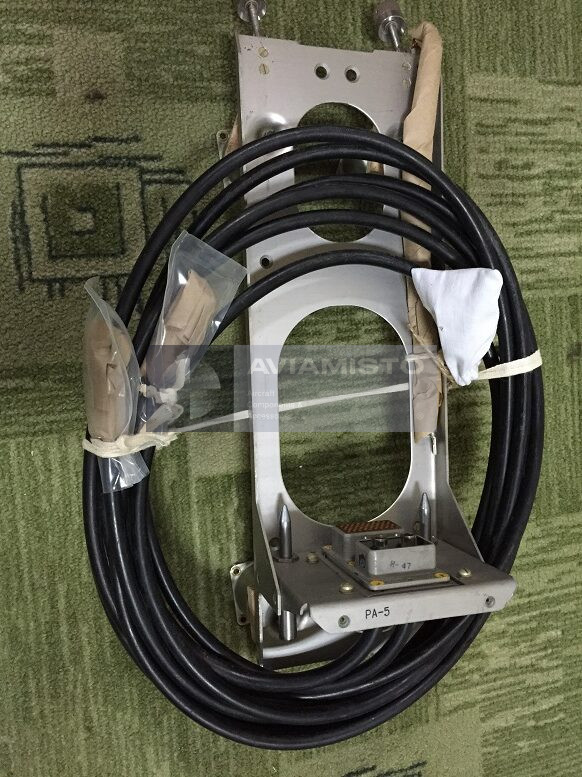

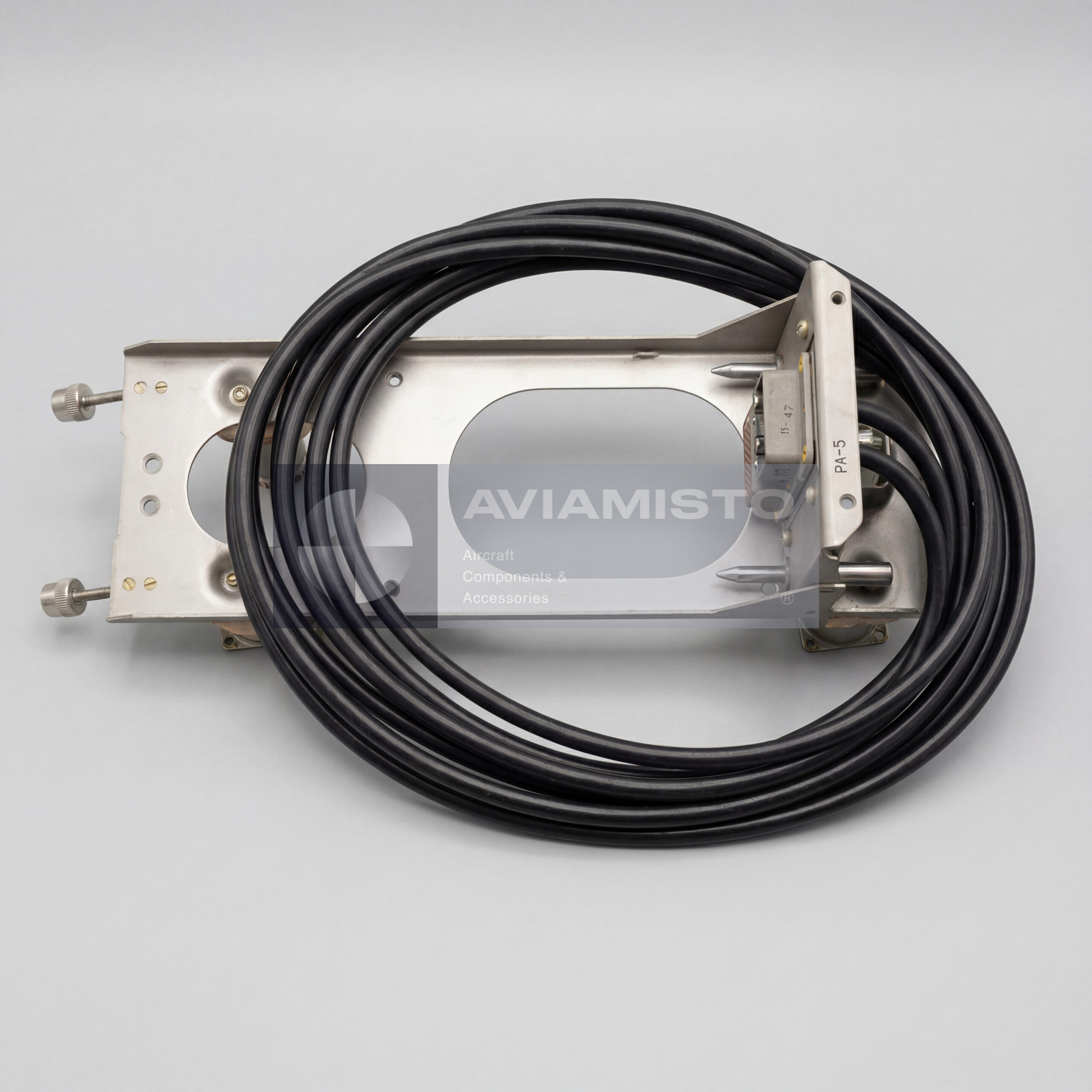

As delivered from the factory, the frame was supplied together with two system cables:
• GU4.850.668-29 — main interface cable
• GU4.850-759 — power/connection cable
The RA-5 mounting frame was standardized across early installations of Mi-8, Mi-2, Mi-14, Mi-24 and other Soviet/Russian aircraft equipped with RV-5M systems.
The assembly ensures proper vibration damping and minimizes the effect of airframe resonance, improving service life and measurement accuracy of the installed equipment.
RA-5, РА-5, mounting frame RA-5, shock frame 5M, RV-5 mounting base
Technical details
Product Name: RA-5 Shock-Mount Frame
System Type: Mounting/vibration isolation frame
Application: RV-5M radio altimeter installations
Supported equipment: Transceiver PP-5M
Compatibility: Mi-8 / Mi-2 / Mi-14 / Mi-24 and other early-fit aircraft
Function: Mechanical mounting and vibration damping
Construction: Metal frame with vibration isolators
Included components: RA-5 frame with GU4.850.668-29 and GU4.850-759 cables
Documentation: Passport and operational manuals available upon request
