RM-5

Mechanical role of the RM-5 in the SO-121VM system

In aircraft systems, a small movement of an electronic block can quickly become a real fault. Vibration, loose mounting, connector stress, or misalignment may lead to unstable contact, damaged wiring, or incorrect operation of the connected equipment. The RM-5 helps avoid these problems by giving the converter a fixed mounting point inside the aircraft structure. For the SO-121VM system, this is especially important because the PE-11M must remain reliably connected to the DSL-40T sensor and the aircraft command circuits.

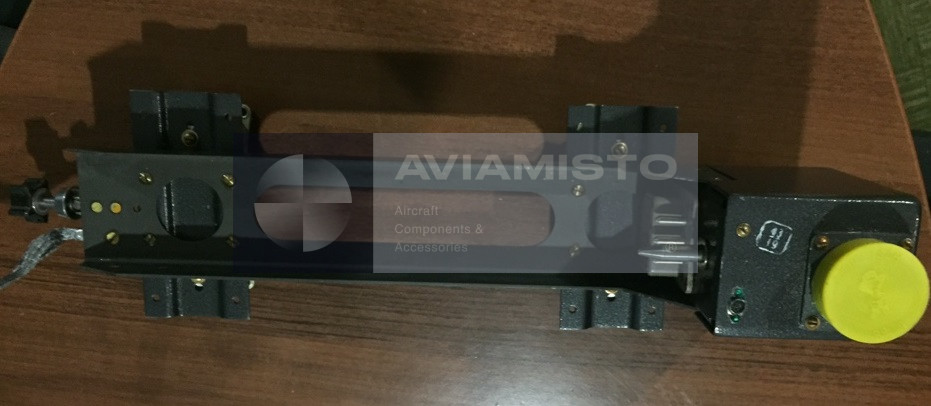

RM-5 with the PE-11M converter

The RM-5 is commonly associated with the PE-11M converter, which processes signals from the DSL-40T icing sensor. The sensor is installed outside the fuselage, while the PE-11M sits inside the aircraft on the RM-5 frame. This arrangement keeps the electronics protected and makes access easier during maintenance. If the converter has to be removed, inspected, or replaced, the frame provides a defined installation position. It also helps technicians avoid improvising the mounting of an electronic block in a vibration-loaded aircraft compartment.

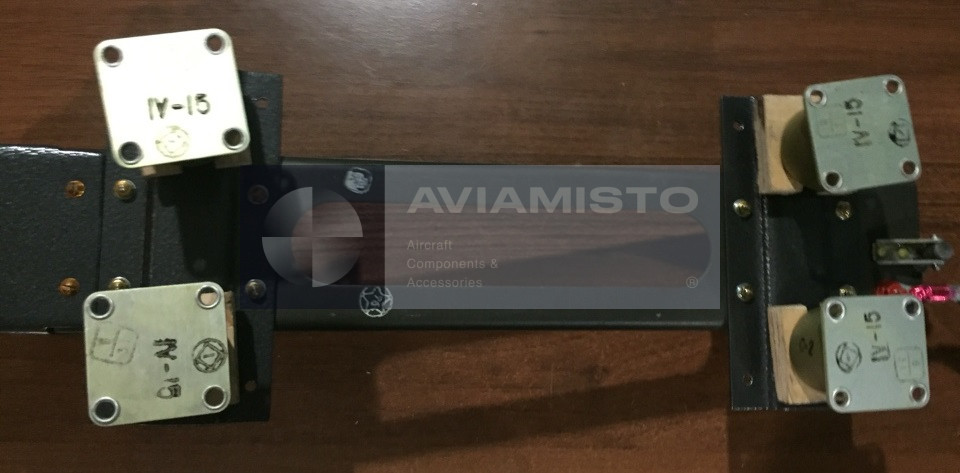

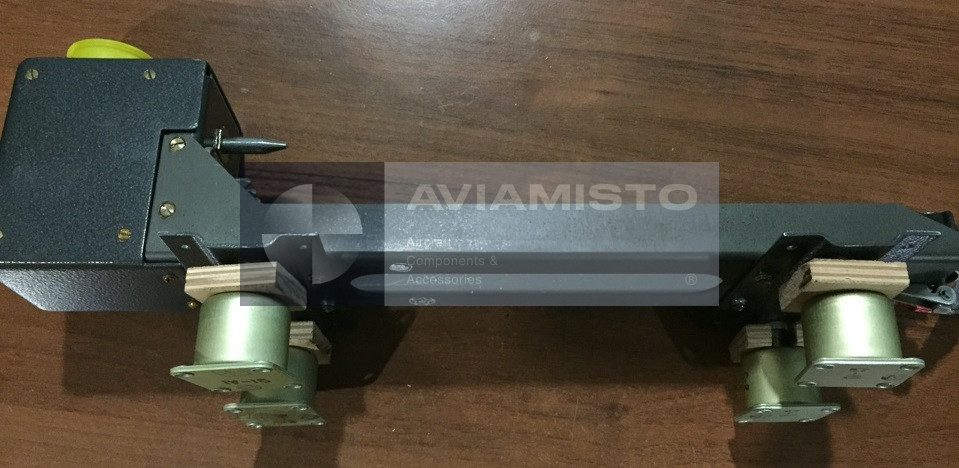

Installation area of the RM-5 frame

The RM-5 is installed inside the aircraft, usually in an equipment bay or another protected internal compartment specified by the aircraft documentation. The exact location depends on the aircraft type and the layout of the SO-121VM or related electronic system. During installation, attention is paid to the mounting points, frame condition, connector access, cable routing, and clearance around the installed converter. The frame should not create stress on the connector or wiring harness, because that can later cause intermittent faults that are difficult to trace.

Inspection and service of the RM-5 mounting frame

Although the RM-5 is a mechanical part, it still needs proper inspection. During maintenance, the frame is normally checked for deformation, cracks, corrosion, loose fasteners, damaged mounting holes, and signs of previous incorrect installation. If the frame is bent or worn, the electronic converter may sit incorrectly, and connector alignment may suffer. In aircraft systems, this kind of “simple” mounting part can cause electrical problems indirectly. For that reason, the condition of the RM-5 should be checked together with the PE-11M and its wiring.

Ordering and identification of RM-5

When ordering the RM-5, the full designation should be stated clearly in Latin or Cyrillic form: RM-5 / РМ-5. It is also important to clarify whether the requirement is for the frame only or for a complete SO-121VM set with the PE-11M converter and DSL-40T sensor. In supply, the frame may be listed separately from the electronic converter. Before installation, it should be checked against the aircraft parts catalog, system layout, and maintenance documentation to confirm that the mounting interface matches the required equipment.

Related system equipment: SO-121VM ver. A, DSL-40T, PE-11M, 8AT-7420. These positions are grouped by system function and installation context, not as interchangeable replacements.

Confirmed installation context includes Mi-8 / Mi-17 family helicopters. The exact execution and installation position must be checked against the illustrated parts catalogue and documentation for the specific aircraft.
