Mounting Frame for P-503B

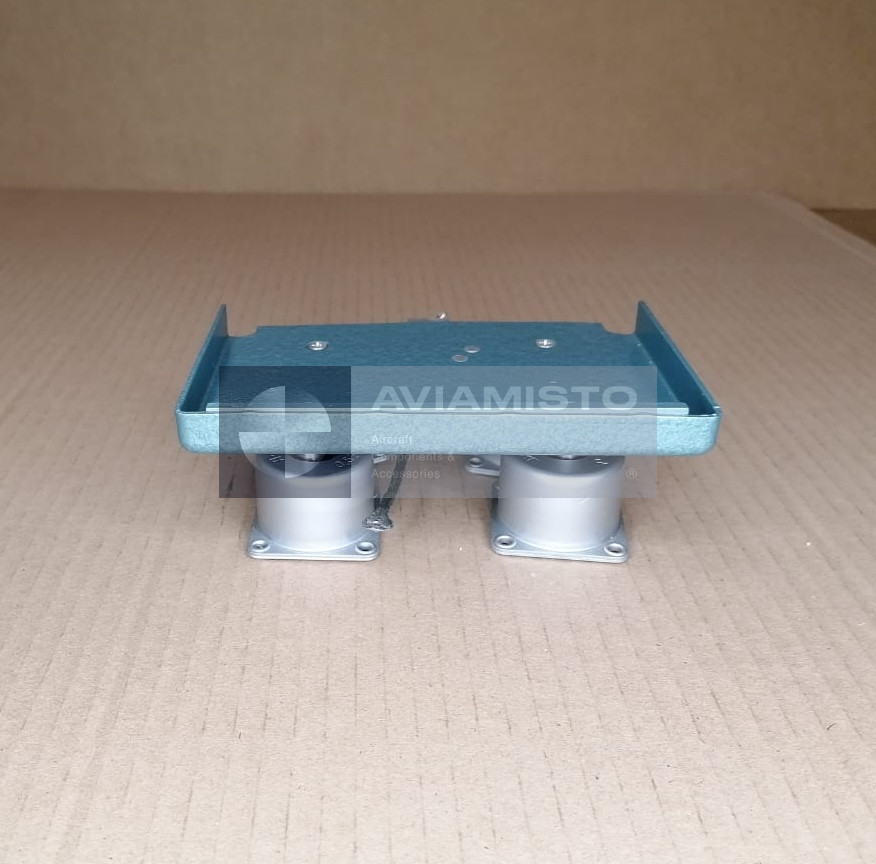

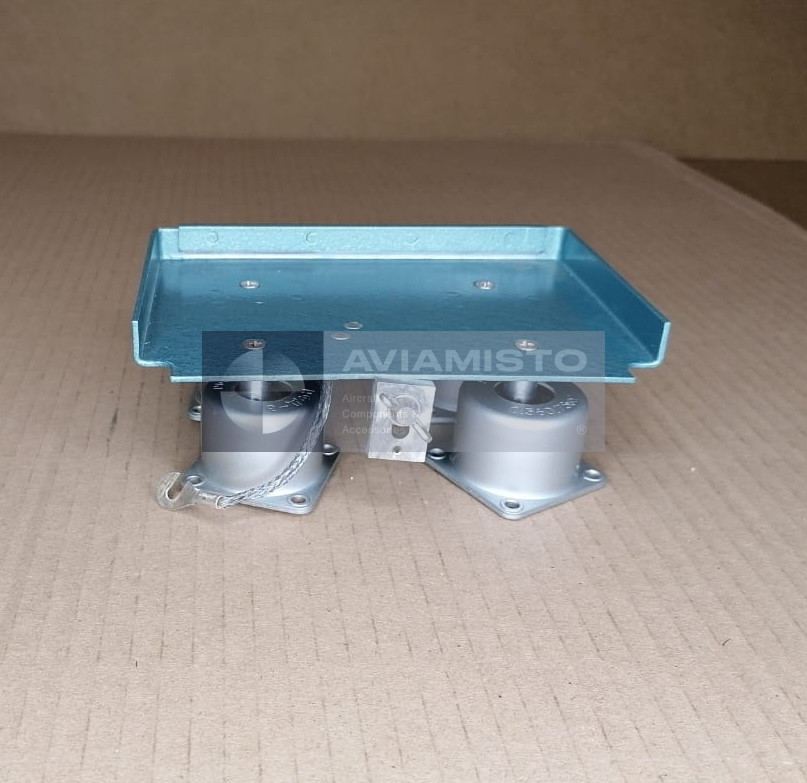

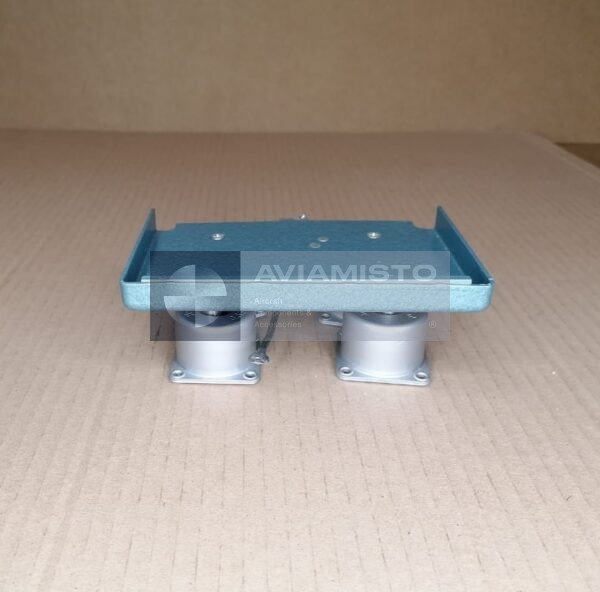

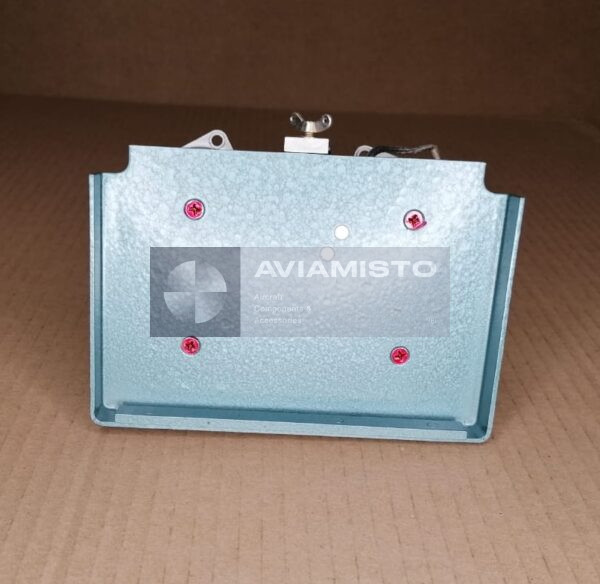

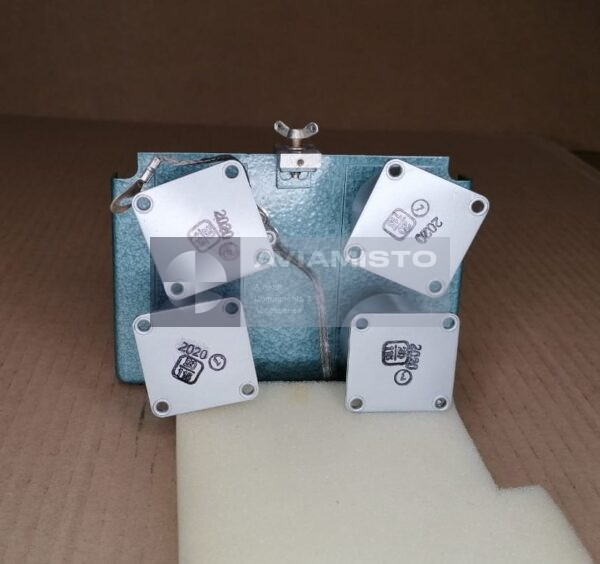

P-503B mounting frame for onboard voice recorder installation

The P-503B mounting frame is a structural installation element designed for secure mounting of P-503B onboard wire voice recorder components inside the aircraft structure. The frame provides a fixed mechanical base for the recorder equipment and supports correct positioning of the installed units according to aircraft installation requirements. It may be supplied as part of the complete P-503B recorder system or separately as a spare part for replacement during maintenance or overhaul.

Mechanical fixation of P-503B recorder components

The mounting frame performs the mechanical fixation function for the P-503B recorder components. It is intended to hold the UZ P-503B recording unit and associated elements in the required position during aircraft operation. Correct fixation is important because the recorder operates in conditions of vibration, shock loads and structural movement typical for aircraft service. The frame helps maintain stable installation of the recording equipment and reduces the risk of displacement or mechanical damage.

P-503B frame in the onboard recorder system

The frame is used as part of the P-503B onboard wire voice recorder system. The P-503B system may include the UZ P-503B recording unit, PU P-503B control panel, wire cassette, spare cassette, cassette case, accessories and aircraft wiring. The mounting frame provides the structural interface between the recorder equipment and the aircraft installation area. It does not perform recording, control or signal processing functions; its role is purely mechanical.

Aircraft installation of P-503B mounting frame

The P-503B installation frame is mounted inside the aircraft according to the technical documentation of the specific aircraft type. The exact installation area may differ depending on helicopter or aircraft configuration, equipment layout and maintenance documentation. In service, the frame should be checked together with the recording unit, attachment points, fasteners, shock-mounting elements where applicable and the surrounding aircraft structure.

Maintenance and replacement of the P-503B frame

The mounting frame may be replaced during scheduled maintenance, repair or overhaul when deformation, corrosion, damaged attachment points or excessive wear are detected. Correct frame condition is important for reliable operation of the recorder system, especially where vibration and shock loads can affect installed equipment. Before installation, the frame should be checked against the recorder configuration, aircraft documentation and applicable maintenance requirements.

Identification and ordering of P-503B mounting frame

The product may be referenced as Frame P-503B, Installation Frame P-503B, Mounting Frame P-503B or Рама П-503Б. These designations refer to the same type of structural installation frame for the P-503B onboard wire recorder system. For correct supply, it is useful to specify the aircraft type, installed recorder configuration, required condition, documentation requirements and whether the frame is required as part of a complete P-503B set or as a separate spare part.

Product Type: Installation frame / mounting frame
Designation: P-503B mounting frame
Alternative Designations: Frame P-503B, Installation Frame P-503B, Mounting Frame P-503B, Рама П-503Б
Function: Mechanical mounting and fixation of P-503B recorder components
Purpose: Secure installation and correct positioning of onboard recorder equipment
Application / Where Used: Onboard voice recording systems
System Compatibility: P-503B wire voice recorder
Associated System: P-503B onboard wire tape recorder system
Installed Equipment: UZ P-503B recording unit and associated elements
System Role: Structural mounting element for recorder installation
Aircraft Installation Area: According to aircraft documentation
Operating Conditions: In accordance with P-503B system requirements
Material / Design: Aircraft-grade structural frame
Supply Format: Supplied as part of P-503B system or separately as spare part
Assigned Resource: According to passport and maintenance documentation
Condition: As applicable
Technical Documentation: Passport / installation documentation, if applicable
