GA-59/1

Backup hydraulic engagement through GA-59/1

In operation, the GA-59/1 reacts to hydraulic pressure, not to a manual cockpit command. When the main system pressure is sufficient, the valve keeps the backup circuit in its normal standby condition. If pressure falls to the engagement range, the spring-loaded spool moves and separates the relevant internal ports. The standby hydraulic system then supplies the hydraulic boosters. When pressure is restored above the disengagement range, the valve returns the circuit to its previous condition. The exact behavior should be checked in the hydraulic system documentation for the aircraft.

Hydraulic circuit work with GA-59/1 installed

Inside the hydraulic system, GA-59/1 works with pumps, hydraulic tanks, pressure lines, return lines, check valves, hydraulic boosters, pressure switches, and related fittings. The valve does not generate pressure and does not repair a failed hydraulic line. It only switches the supply path when main system pressure is no longer sufficient. If the standby system fails to engage, the cause may be the valve, but it may also be low pump output, leakage, blocked lines, contaminated AMG-10 fluid, or a fault in another hydraulic component.

Mi-8 and Mi-17 application of valve GA-59/1

The GA-59/1 is used in helicopter hydraulic systems where the main and backup circuits jointly support the flight control hydraulic boosters. Open technical references link this valve with the Mi-8 hydraulic system, and equipment lists for Mi-171E identify it as an emergency power supply valve. Exact installation should still be checked by aircraft parts catalog and maintenance documentation, because Mi-8 / Mi-17 family helicopters can differ by modification, overhaul history, and hydraulic system layout. A visually similar valve should not be selected without checking the designation.

Identification and ordering checks for GA-59/1

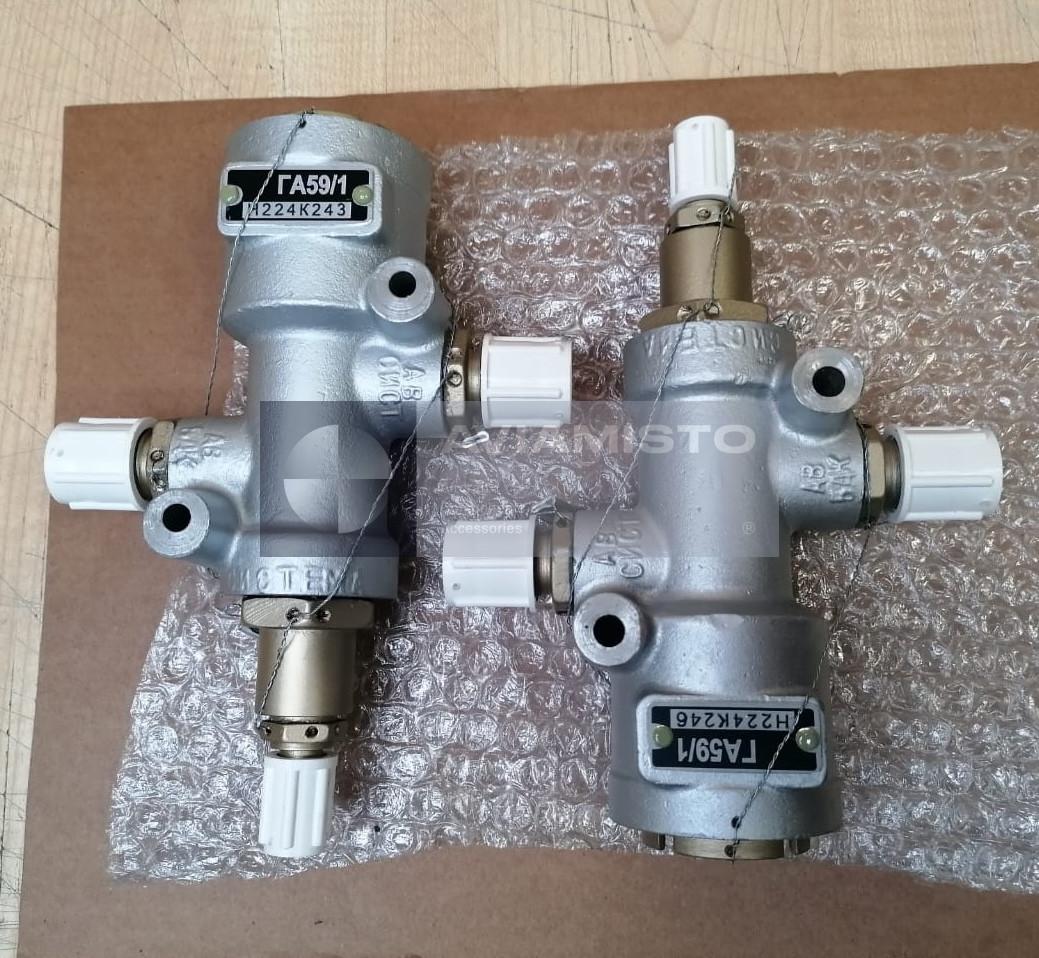

Before ordering, the marking on the installed valve should be compared with the aircraft documentation. In English-language supply documents the unit is usually written as GA-59/1. In Russian documentation it appears as ГА-59/1. For a clear request, it is better to provide the helicopter type, system location, full part number, and a photo of the marking if available. The product is also known under alternative designation ГА-59/1.

Related system equipment: GA-74M/5, GA-77V, NSH-39M (NSH39M), GA-172-00-2/T. These positions are grouped by system function and installation context, not as interchangeable replacements.
