HS-57
White Tail Navigation Light
Description
HS-57 is a white aircraft tail navigation light used in external lighting systems. It marks the rear point of an aircraft and complements the red and green side lights that indicate orientation and direction. The HS-57 is a complete lighting unit with an optical cover, reflector, lamp holder, housing and mounting parts; it is not an electronic tube.
Full descriptionCollapse description
Purpose and installation
The light is intended for a rear-facing installation defined by the aircraft design. Verified aviation parts catalogues list HS-57 as a tail navigation light, including listings for Mi-8 and An-26 equipment. These references confirm the product family, while the exact mounting location and eligibility for a particular aircraft must be checked against its illustrated parts catalogue and maintenance documentation.
Construction and lamp

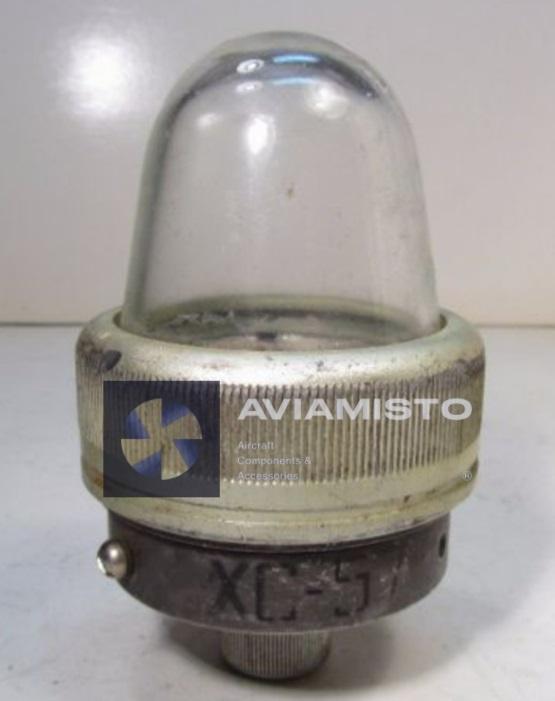

The HS-57 has a clear protective cover over the lamp and reflector, a ribbed retaining section and a metal mounting base. The specified light source is an SM-24 aircraft lamp. Because catalogues do not consistently publish the complete electrical and dimensional specification for every HS-57 execution, voltage, lamp power, connector arrangement and mounting dimensions should be taken from the passport or the marking of the offered unit before installation.
Selection and inspection
Confirm the full designation HS-57, the installed SM-24 lamp execution, electrical contacts, optical cover, mounting base and installation drawing. A similar domed light or a close designation does not establish interchangeability with HS-39, HS-62, OPS-57 or BANO-57. Inspect the clear cover for cracks and loss of transparency, the reflector for damage, the retaining ring for secure engagement and all metal and electrical parts for corrosion or deformation.
Ordering information
Provide the required quantity, aircraft or assembly reference, desired documentation and photographs of the existing marking where available. Aviamisto can compare the requested execution and delivery scope. Related tail lights include HS-2A, HS-39 and HS-62. Browse the aircraft lighting catalogue or read the general navigation-light reference on Wikipedia.
Technical details
- Product type
- White aircraft tail navigation light
- Designation
- HS-57
- Alternative designation
- ХС-57; HS 57; ХС 57
- System
- Aircraft external navigation lighting
- Function
- Rear aircraft position and direction marking
All specificationsCollapse specifications
- Documented listings
- Mi-8 and An-26 parts catalogues; exact installation by aircraft documentation
- Light color
- White
- Optical element
- Clear protective cover and reflector
- Housing
- Metal housing and retaining section
- Lamp
- SM-24 aircraft lamp
- Supply voltage
- Verify by product passport and aircraft circuit
- Lamp power
- Verify for the specific SM-24 execution
- Electrical connection
- Verify terminal arrangement on the offered unit
- Mounting
- Rear-facing installation according to the aircraft drawing
- Selection basis
- Exact designation, lamp execution, contacts and mounting
- Interchangeability
- Not established by similarity to OPS-57, BANO-57 or other tail lights
- Inspection
- Cover, reflector, retaining ring, housing, contacts and mounting
- Documentation
- Product passport and aircraft parts or maintenance documentation
