MU-616

MU-616 in aircraft position feedback systems

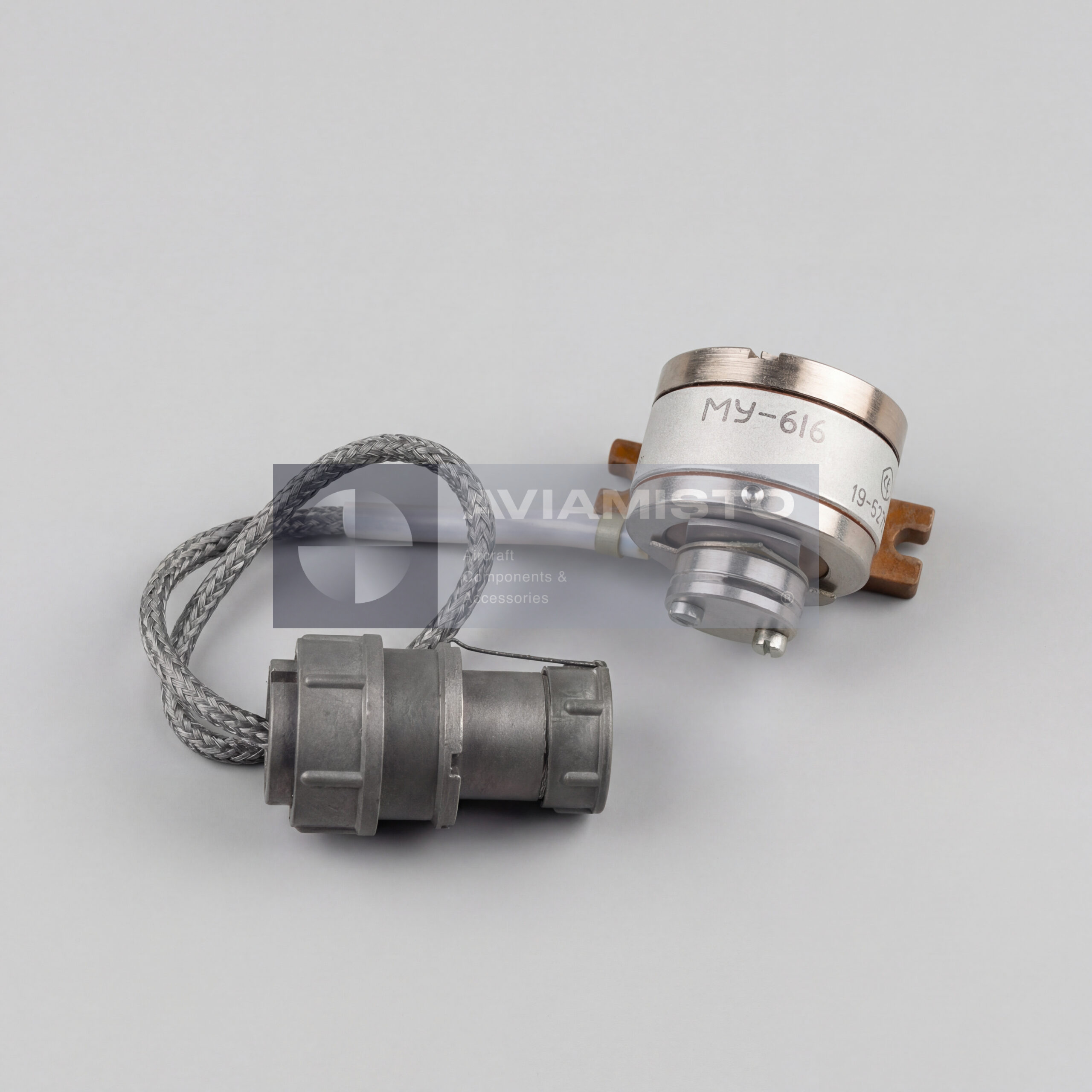

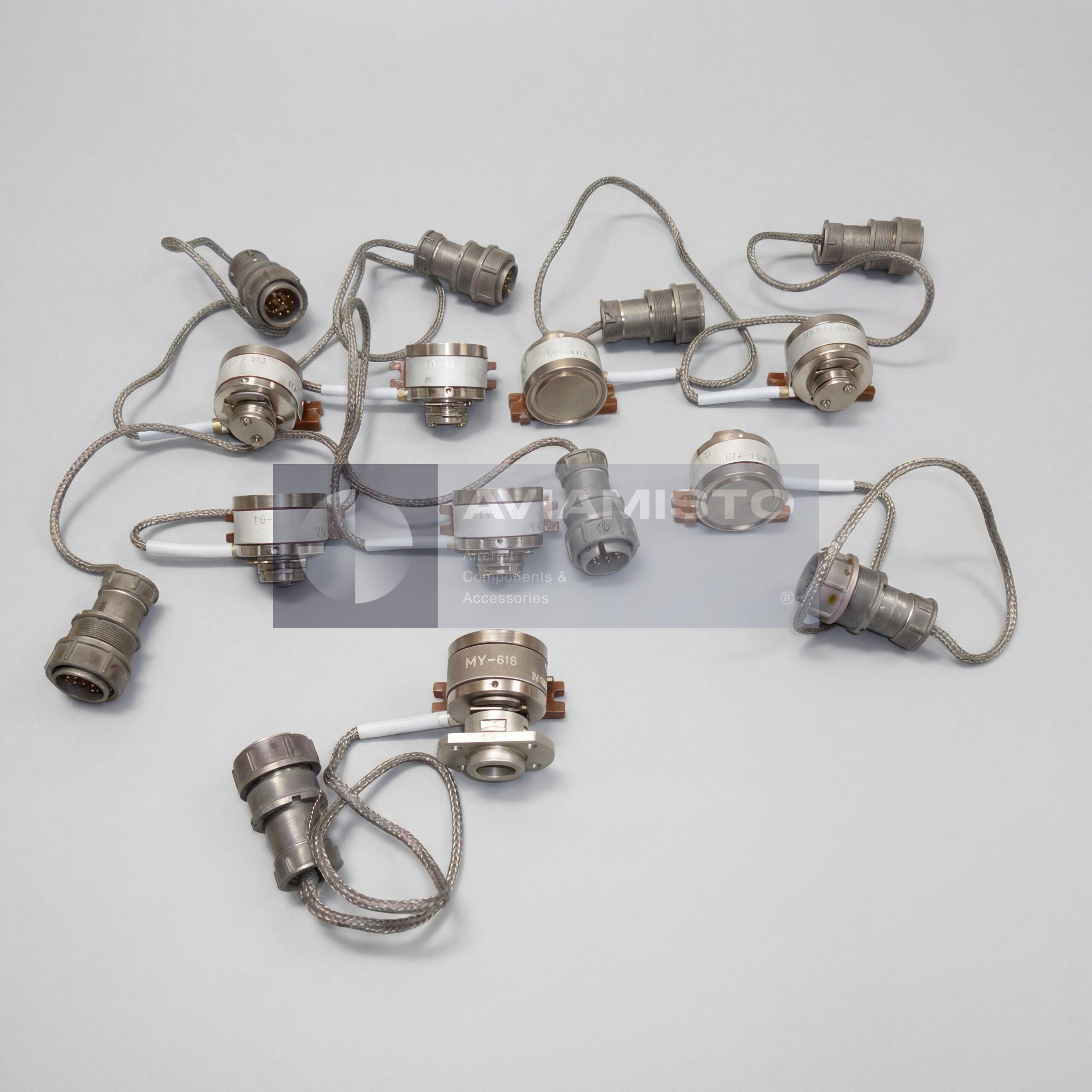

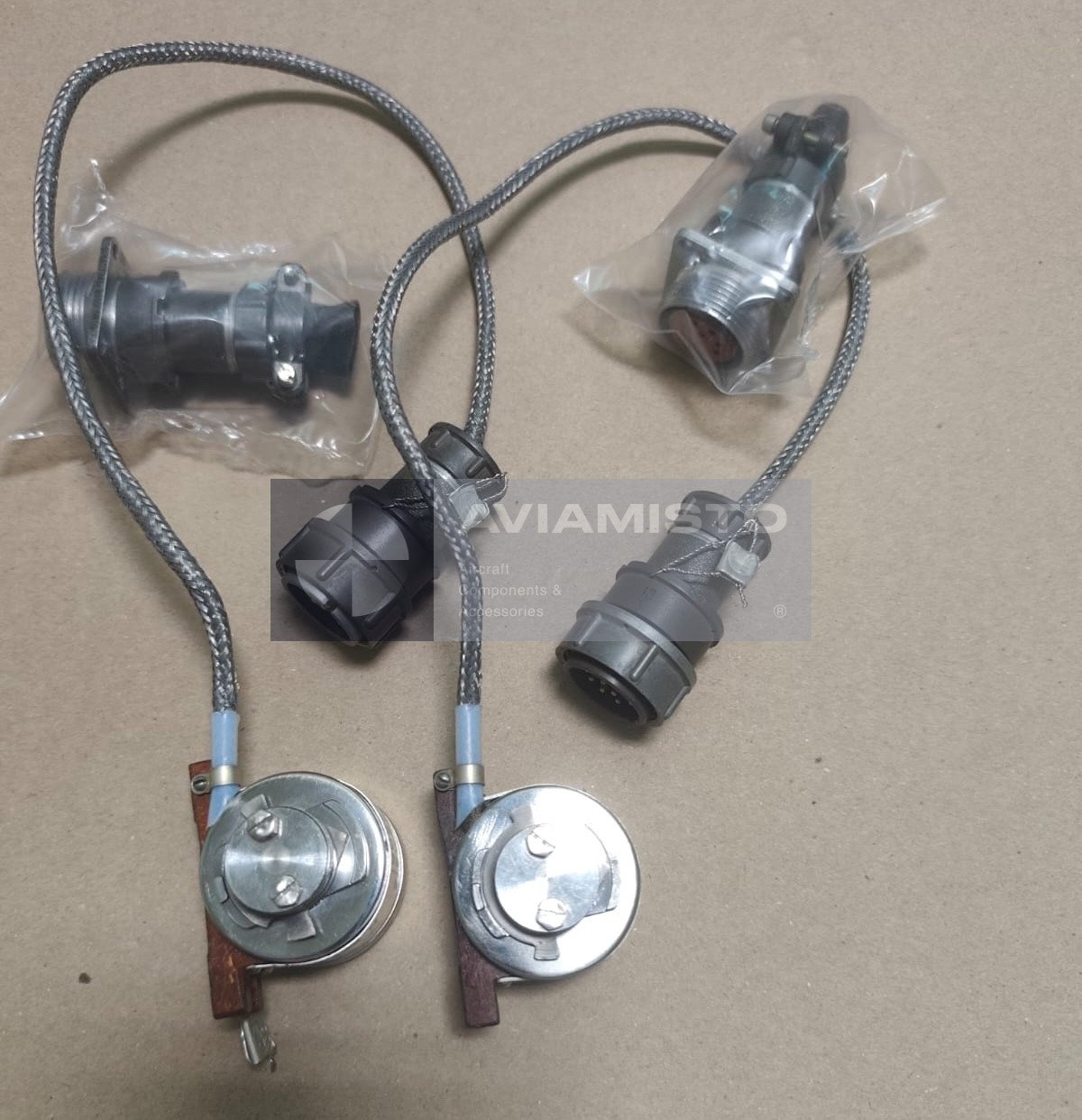

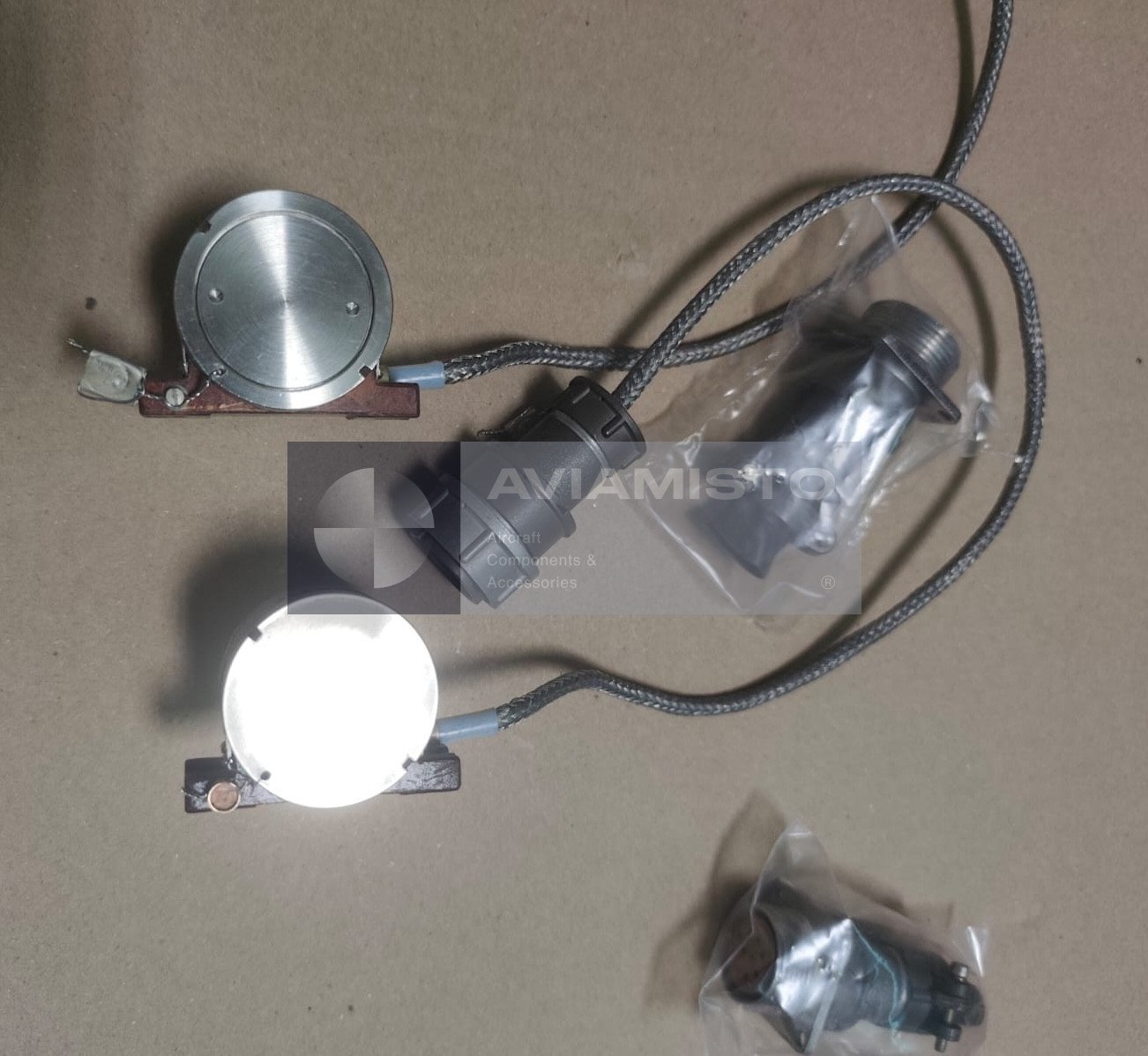

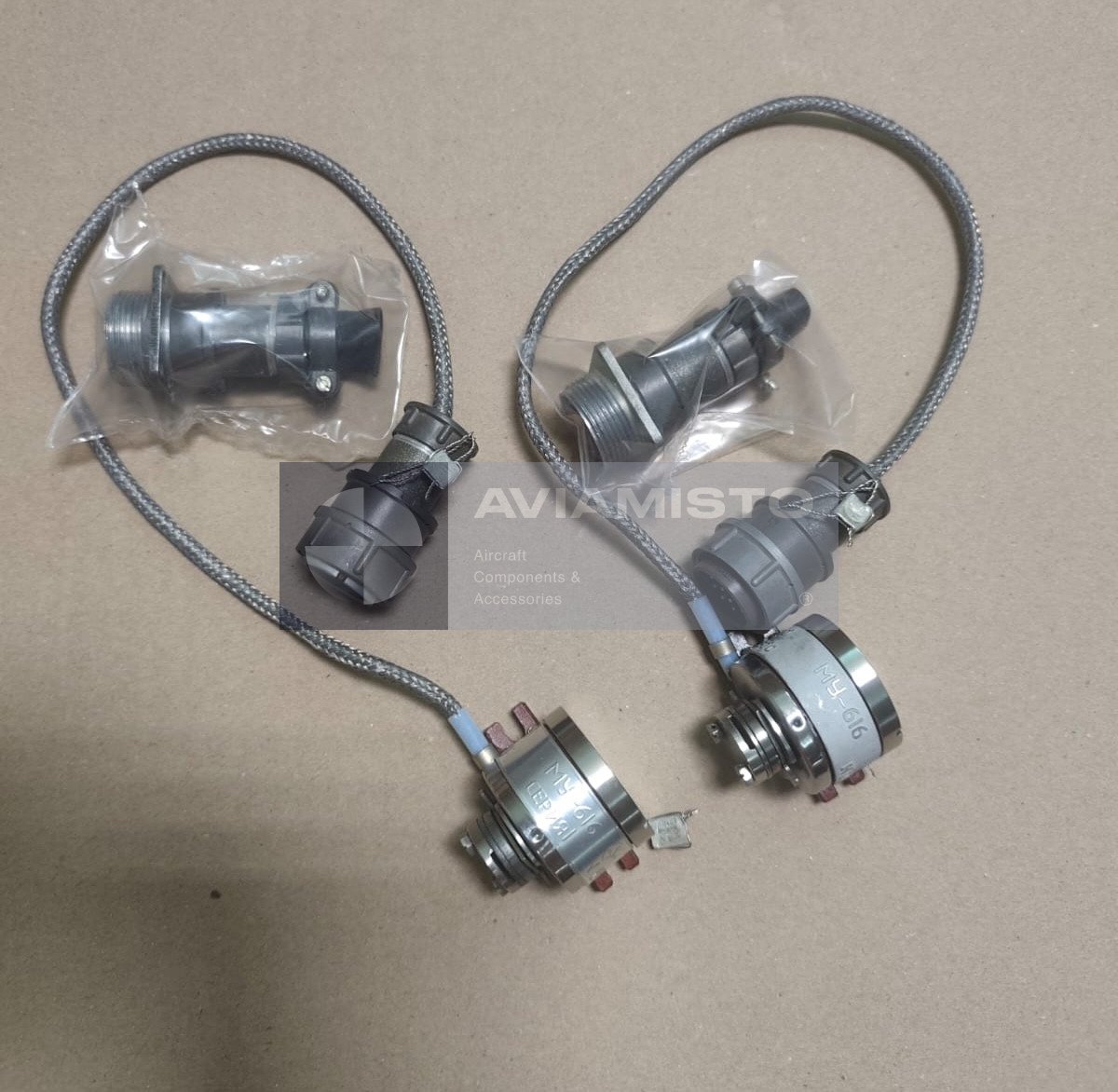

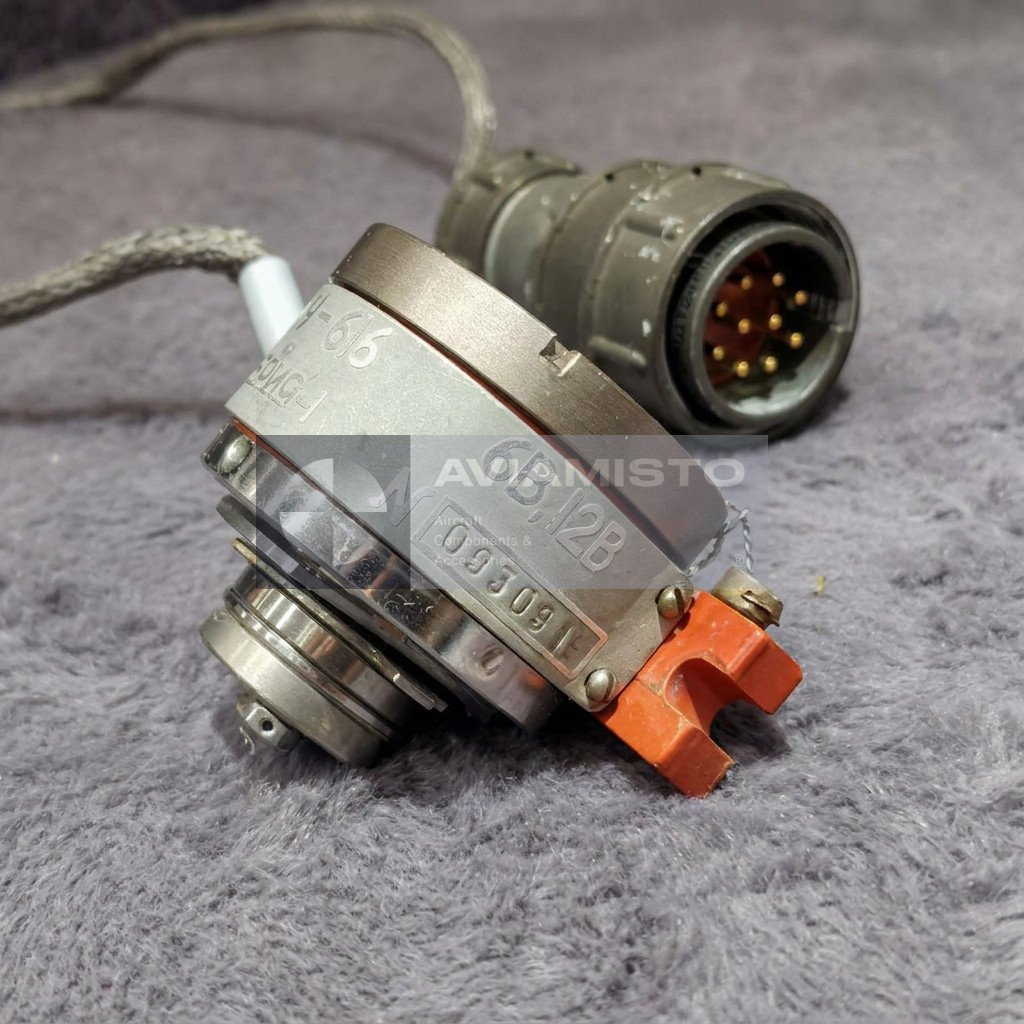

The MU-616 is a potentiometric angular position sensor used in aircraft and helicopter control and monitoring systems. It converts angular movement of a shaft or control mechanism into proportional electrical signals. In onboard equipment, the sensor works as a feedback element, allowing the connected system to monitor the actual position of a mechanical unit. It is used where stable signal output, vibration resistance and reliable operation under aviation conditions are required.

Angular displacement measurement by MU-616

The main function of the MU-616 is to measure angular displacement of a mechanical element. When the input shaft turns, the sensor changes the electrical output according to the angular position. This signal can be used by control systems, monitoring equipment or position indication circuits. The sensor is especially relevant in systems where the position of a linkage, actuator, control unit or mechanical transmission must be transmitted to onboard electronics with predictable accuracy.

Dual-channel design of the MU-616 sensor

The MU-616 has two independent potentiometric measuring channels. This redundant design improves fault tolerance and allows the connected system to compare or use duplicate position signals where required. In aviation systems, redundancy is important because a single feedback failure can affect control logic or system monitoring. When replacing the sensor, both channels should be checked, not only one output. The resistance behavior, signal smoothness, insulation and connector condition must be verified for each channel.

Potentiometric operating principle of MU-616

The MU-616 operates on a potentiometric principle. Rotation of the shaft changes the position of the contact element along the resistive track, producing an electrical value proportional to angular displacement. This type of sensor is simple and robust, but accuracy depends on the condition of the resistive elements, contact groups, shaft assembly and wiring. Wear, contamination, poor contact or incorrect mechanical alignment can cause signal jumps, increased error or disagreement between channels.

MU-616 in helicopter and aircraft applications

The MU-616 is used on aircraft and helicopters where angular position feedback is required under difficult operating conditions. Supplied application data includes Mi-8, Ka-32, Mi-26, Mi-38, Ansat and other aircraft, depending on system configuration. In these installations, the sensor may be part of actuator feedback, control linkage monitoring or other onboard position measurement circuits. Exact applicability should always be confirmed by aircraft documentation, system diagram and equipment list.

Operating conditions of the MU-616 sensor

The MU-616 is designed for operation under aviation environmental loads. It is built as a heat-resistant sensor and is intended to withstand vibration, humidity, temperature changes and reduced atmospheric pressure. The sensor can operate in a wide temperature range and retains performance in demanding helicopter and aircraft equipment zones. Before installation, the housing, cable or harness, connector, shaft movement, insulation resistance and output signals should be checked carefully.

Installation and inspection of MU-616

The sensor is installed in mechanical assemblies where angular position must be monitored. Installation should follow the required neutral position, working angle, shaft alignment and rotation direction stated in the aircraft documentation. Since the full dimensional length may include the lead cable or harness, mounting dimensions should be checked against the actual installation drawing. A mechanically similar unit should not be installed without confirming electrical supply, channel configuration, angular range and documentation.

Supply and documentation for MU-616

For procurement or replacement, the full designation MU-616 / МУ-616 should be specified. The required condition, aircraft application, cable execution and documentation should be confirmed before shipment. For aircraft use, manufacturer technical documentation, acceptance documents or inspection records should be available where possible. Before installation, both potentiometric channels should be tested for output behavior, measurement error, insulation and compatibility with the target onboard system.

Product Type: Dual-channel potentiometric angular position sensor
Designation: MU-616
Alternative Designation: МУ-616
Function: Conversion of angular displacement into electrical signal
Application / Where Used: Aircraft and helicopter control and monitoring systems
System / Installation Area: Control systems, actuator feedback circuits, control linkage monitoring and position measurement channels
Measured Parameter: Angular shaft displacement / angular position of mechanical control element
Operating Principle: Potentiometric
Design Features: Dual-channel redundant design
Number of Channels: 2 independent potentiometric measuring channels
Reliability Features: Redundant measurement channels for fault tolerance
Supply Voltage: 5 ±0.05 V DC from stabilized aircraft power supply
Nominal Angular Range: ±30°
Full Shaft Rotation Range: ±60°
Basic Measurement Error: Not more than ±2% under normal conditions
Measurement Error in Operating Conditions: Not more than ±3% under environmental influence
Insulation Resistance: Not less than 20 MΩ under normal climatic conditions
Thermal Resistance: Heat-resistant aviation design
Operating Temperature Range: −55 to +85 °C
Short-Term Temperature Capability: Higher short-term limit possible for heat-resistant execution, subject to documentation
Relative Humidity: Up to 95% and higher at +65 °C
Atmospheric Pressure Capability: Operable down to 37.6 kPa
Housing Material: High-strength corrosion-resistant metal alloy
Dimensions: 490 × 40 × 40 mm according to supplied data; length may include output harness / cable
Weight: Not more than 0.2 kg
Compatible Aircraft / Equipment: Mi-8, Ka-32, Mi-26, Mi-38, Ansat and other aircraft depending on configuration
Inspection / Testing: Shaft rotation check, two-channel output check, signal smoothness check, insulation check, connector / harness inspection, housing inspection and compatibility verification
Condition: As applicable
Technical Documentation: Manufacturer technical documentation
