Pressure Receiver
PM-15B
Price on request
Pressure Receiver
Available on back-order
Description
Retained product information

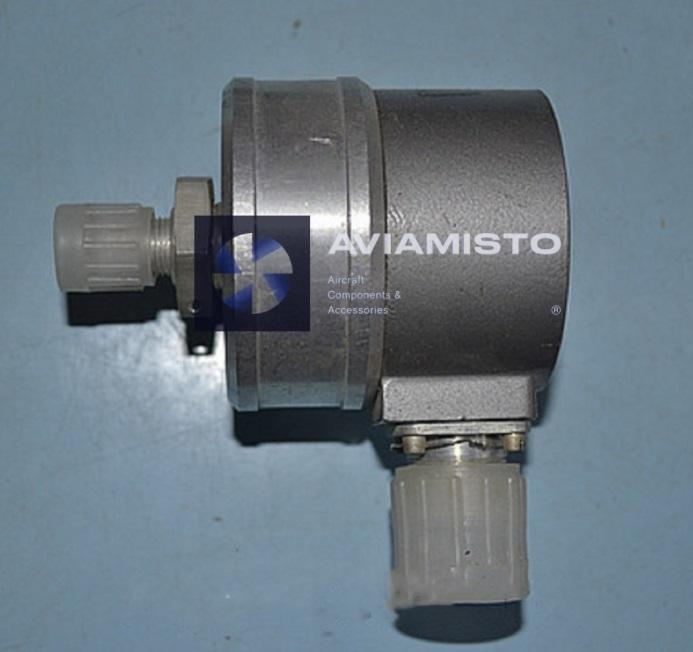

PM-15B is an oil pressure receiver suitable for measuring non-pulsating pressure. The PM-15B oil pressure receiver is distinguished by an upper limit of readings of 15 kgf / cm2, an operating range of measurements from 2 to 15 kgf / cm2, as well as vibration resistance with acceleration up to 10g and a frequency of 20… 80 Hz. The PM-15B oil pressure receiver is used in a set with EDMU-15, UEM-15, TEM-15, UK3-1, UK3-2 and other devices.
PM-15B: purpose and identification
PM-15B is a Oil Pressure Receiver that senses non-pulsating oil pressure for a compatible indicator. The exact execution is determined by the complete marking, series and documentation. A similar housing, common opening characters or a related function does not establish matching ratings.
This category contains different equipment classes: temperature receivers, thermometers, air- and liquid-pressure receivers, regulators and individual measurement units. The actual function of the item is therefore more important than the broad category name. Read the designation with every letter, digit, hyphen, version and series reference preserved.
Function in the measurement system
The item senses non-pulsating oil pressure for a compatible indicator. It is not necessarily a stand-alone indicator; depending on the design, it may operate with a remote indicator, regulator, pressure line or measurement set. The applicable documentation defines the circuit, medium, supply, range and connection arrangement.
For a temperature item, confirm the sensing principle, monitored medium, range and compatible indicator. For a pressure receiver, also confirm pressure type, channel count, ports, heating, drainage and connected lines. An RF measurement receiver must be selected by its own radio-frequency data rather than by requirements intended for an aircraft pressure or temperature sensor.
Selection by designation
Before ordering, compare the primary and alternative designations, execution, range, output, electrical supply, connector or ports, mounting, dimensions and mass whenever documented. Numerical values in Technical Details are retained from the previous card or a supporting source and must be checked against the passport for the actual unit.
Related modifications may differ in channel count, resistance, calibration, working medium, measurement limit, heater voltage or mounting interface. Do not treat them as interchangeable without an explicit documentary reference. General technical background is available under Oil Pressure Receiver.
Pre-installation inspection
Incoming inspection includes checking the marking and documentation and examining the housing, sensing element, connector, pressure ports, drainage holes, mounting points and seals as applicable. Reject or investigate cracks, deformation, corrosion, contaminated passages and damaged contacts. Test the unit under the approved procedure for the exact execution.
After installation, check line tightness or electrical continuity, routing of pressure lines and wiring, and then perform the prescribed functional test. External integrity alone does not establish measurement accuracy. Assign an aircraft application only when supported by a passport, illustrated parts catalogue or maintenance document.
Related catalogue positions
Functionally related products include AD-15, PPD-1, PVD-6M, PVD-7. They are grouped by measurement function for navigation and do not imply interchangeability. More items are listed in the Pressure & Temperature Sensors category.
Enquiry information
An enquiry for PM-15B should state the complete designation, quantity, required condition, marking photograph, delivery scope and required documents. When available, identify the associated indicator, regulator or system. Price, actual availability, condition, lead time and documentation are confirmed separately for the offered unit.
Technical Details
Product Type: Oil Pressure Receiver
Primary Designation: PM-15B
Alternative Designations: PM-15B; PM 15B; ПМ-15Б
Function: senses non-pulsating oil pressure for a compatible indicator
Selection Basis: Complete designation, execution, marking and passport for the specific item
Range and Signal: Only as stated in retained data and documentation for the exact execution
Interface: Confirm connector, ports, channel count, supply or heating before installation
Application: Only as supported by the passport, parts catalogue or approved installation documentation
Interchangeability: Not established by a similar index, housing or function
Inspection: Inspect marking, housing and interfaces; bench-test under the approved procedure
Documentation: Product passport and approved operating or repair documentation
Category: Pressure & Temperature Sensors
Retained Technical Data:
1. The upper limit of readings 215 kgf / cm.
2. Checked values 22; 4; eight; 13; 15 kgf / cm.
3. Vibration resistance, acceleration up to 10g, frequency 20 … 80 Hz.
