PT-125Ts-4S

PT-125Ts-4S in backup instrument power circuits

One of the important roles of the PT-125Ts-4S is power supply for flight and navigation instruments during abnormal electrical system conditions. When the aircraft loses normal AC generation, the converter can keep selected consumers powered from the DC battery bus. This is especially relevant for instruments such as attitude indicators and related pilotage equipment that require three-phase 400 Hz power. In this role, the converter is not just a general electrical accessory; it is part of the backup power logic that helps preserve essential cockpit information.

Three-phase output of the PT-125Ts-4S

The PT-125Ts-4S produces three-phase AC power with a star connection. The output parameters are intended for equipment designed for low-voltage aircraft AC supply. The converter’s nominal power is enough for selected instrument loads, not for high-power consumers. During operation, the connected load must remain within the permitted current and power limits. If the converter is overloaded, installed in the wrong circuit, or used with unsuitable equipment, voltage stability and frequency quality may be affected, which can lead to unreliable operation of sensitive flight instruments.

Electromechanical design of PT-125Ts-4S

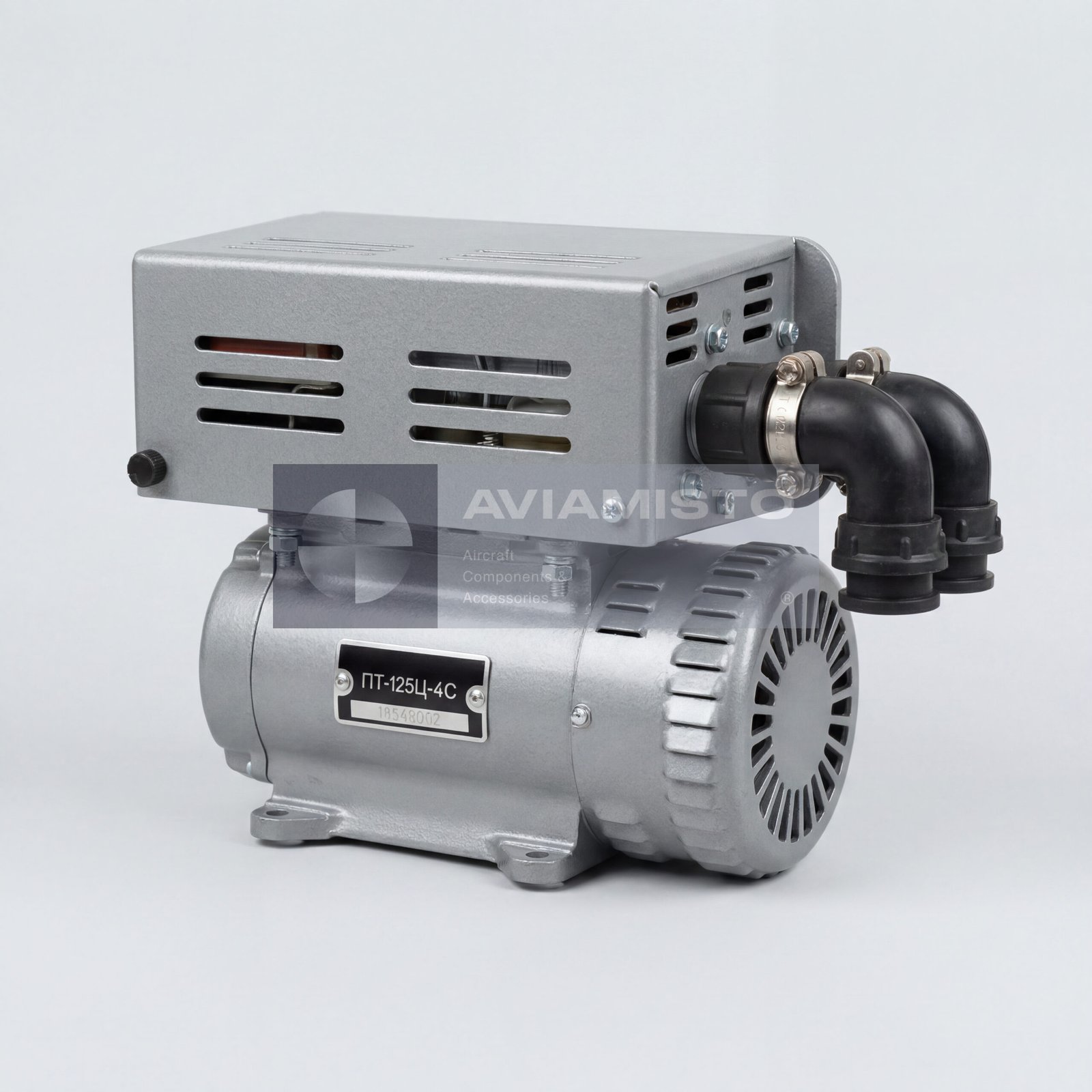

The PT-125Ts-4S is an electromechanical converter, also known as a rotary converter or umformer. Its operation is based on a DC motor section mechanically coupled with an AC generator section. The rotor operates at high speed, which allows the unit to generate the required 400 Hz output. This design is older than modern static converters, but it remains common in aircraft originally built with electromechanical power-conversion architecture. For maintenance, both electrical and mechanical condition matter: bearings, rotor rotation, commutator condition, insulation, vibration, and output parameters should all be checked.

Aircraft application of the PT-125Ts-4S unit

The PT-125Ts-4S is used on Soviet and Russian-designed passenger, transport, military, and special-purpose aircraft. It is associated with platforms such as Il-62M, Il-76, Il-78, Tu-134, Yak-40, An-22, An-24, An-26, An-30, and Mi-24 helicopters, depending on aircraft configuration. On these aircraft, the converter may supply flight-navigation instruments and other low-power AC consumers. Exact applicability should always be checked against the aircraft parts catalog and electrical system documentation, because the same aircraft family may have different equipment sets and modification standards.

PT-125Ts-4S maintenance and replacement

When replacing or ordering the PT-125Ts-4S, the full designation should be checked carefully. Aircraft rotary converters can be similar in appearance but differ in output voltage, power rating, current, phase layout, mounting points, or connector arrangement. Before installation, the unit should be inspected for mechanical damage, free rotor rotation, connector condition, signs of overheating, storage condition, and availability of documentation. In aircraft service, performance verification normally includes input current, output voltage, output frequency, operation under load, noise, vibration, and heating during continuous operation.

Supply and documentation for PT-125Ts-4S

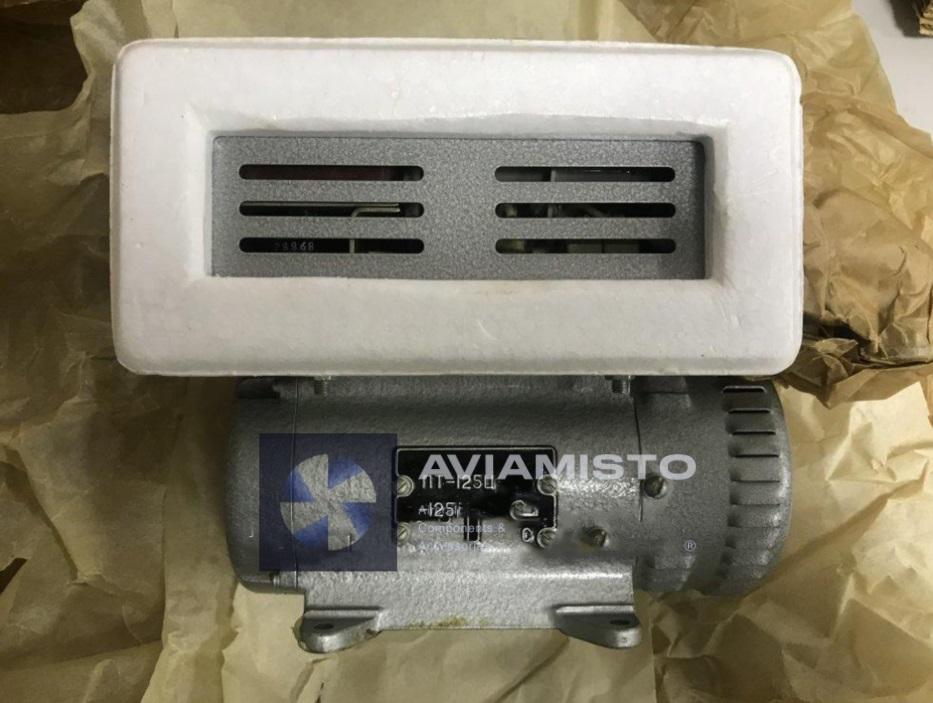

The PT-125Ts-4S may be supplied as new production, from storage, repaired, or overhauled depending on availability. For aviation use, the buyer should confirm passport availability, acceptance records, storage history, and test results where applicable. If the unit is intended for installation on an aircraft, documentation is not a formality: it helps confirm the part number, production or repair status, and suitability for the required system. For export or maintenance supply, it is also useful to specify whether the request is for a single unit, a tested unit, or a unit with recent bench-check documentation.
