YADRO-1A1

Yadro-1A1 onboard HF radio station

Yadro-1A1 is an onboard HF aircraft radio station designed for long-range simplex radiotelephone communication between aircraft and ground control stations. The system is used in civil and military aviation where reliable voice communication is required over extended distances, including routes beyond direct line-of-sight coverage. It operates as a complete aircraft radio communication complex and includes separate functional units for signal formation, RF power amplification, antenna matching, cockpit control, mechanical installation and cooling support.

Long-range HF communication through Yadro-1A1

The Yadro-1A1 radio station provides communication in the HF band, allowing aircraft to maintain contact with ground stations and other aircraft over long distances. HF operation supports communication on routes where VHF coverage may be limited or unavailable. The station provides simplex radiotelephone communication and supports preset, channelized operation without manual frequency search or receiver tuning during normal use. Communication quality depends on the selected frequency, propagation conditions, antenna condition, aircraft altitude, time of day and correct operation of the antenna matching system.

Frequency operation and receiver performance of Yadro-1A1

Yadro-1A1 operates in the shortwave frequency range used for long-range aviation radio communication. The system uses fine frequency spacing and supports voice operation in AM and single-sideband modes depending on radio configuration and operating documentation. The transmitter provides the required peak power through the radio station power amplifier, while the receiver section provides sensitivity suitable for HF voice communication. Stable operation depends on the receiver-transceiver unit, power amplifier, antenna tuning unit, control panel, feeder line and external HF antenna installation.

Yadro-1A1 system composition

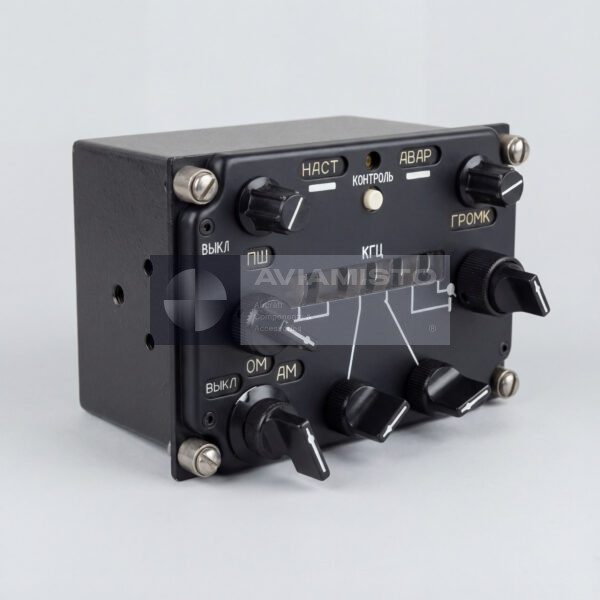

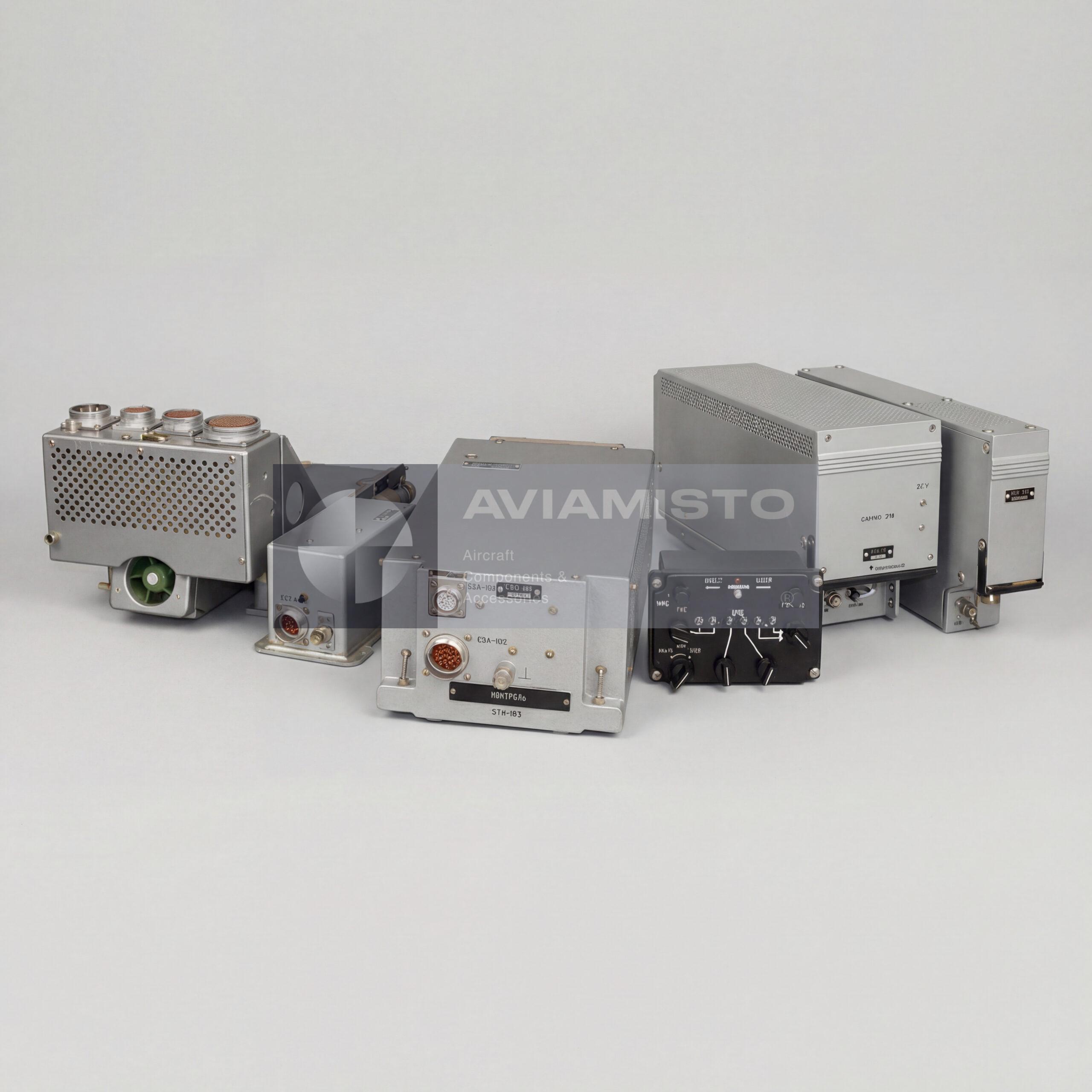

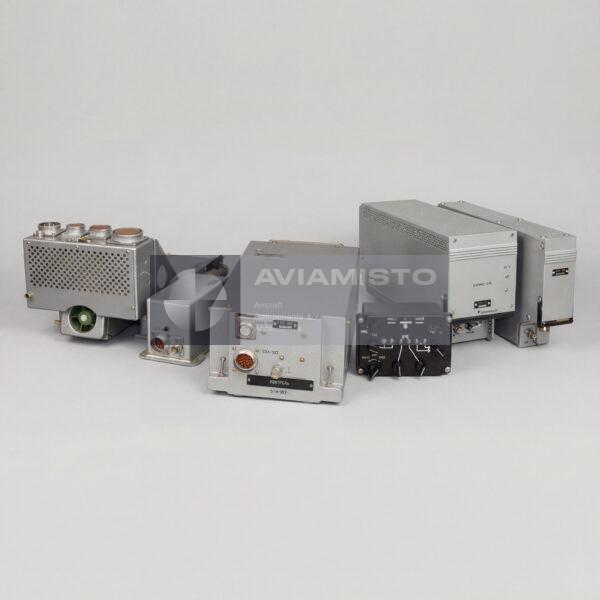

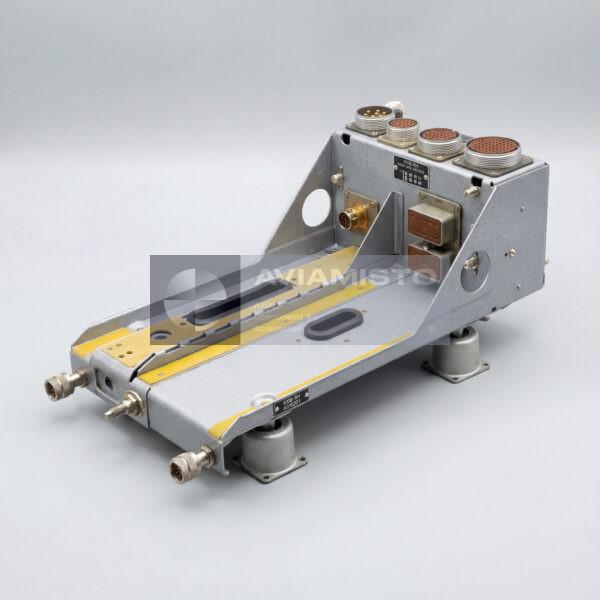

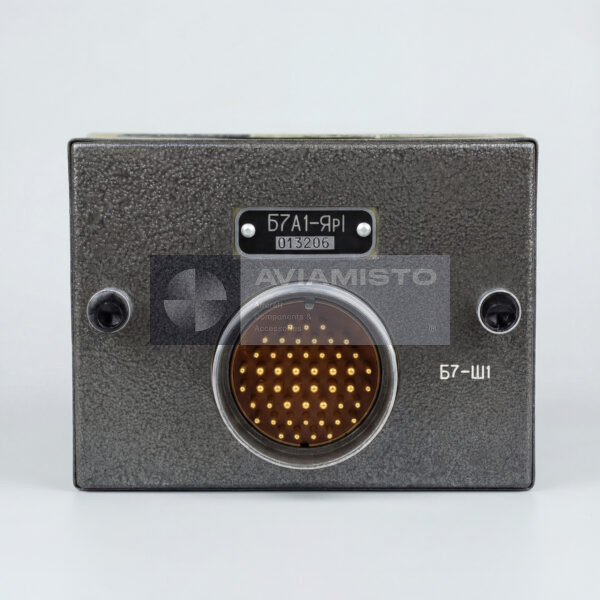

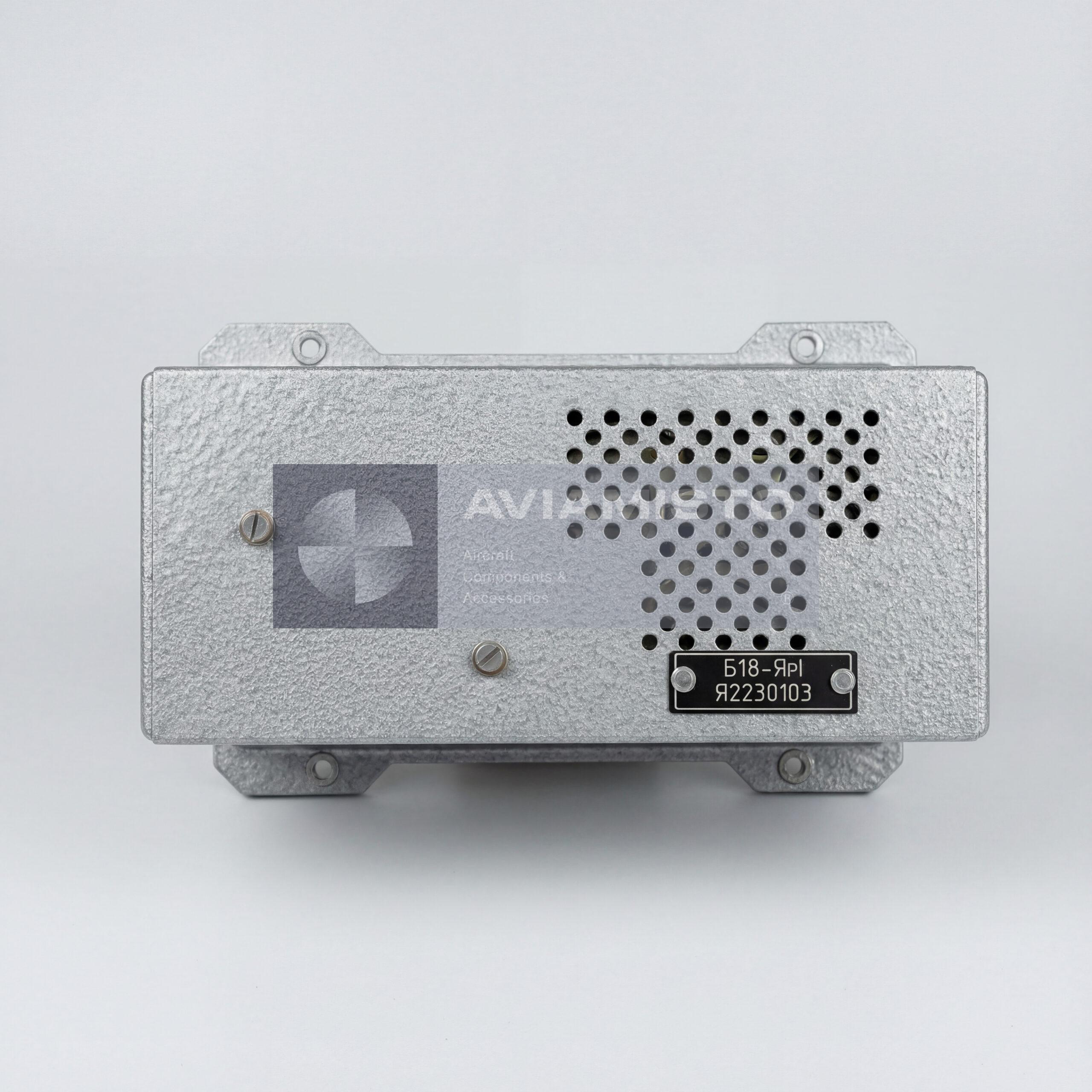

The Yadro-1A1 radio station is supplied as a multi-block system. The main functional elements include the B1-YAR2-1A / B1-YarII-1A transceiver-exciter, B4-IAR1 / B4-YaR1 power amplifier, B5A-IAR1 / B5A-YaR1 antenna tuning unit, B7A1-YAPL / B7A1-JAPI control panel, B10B-JAPI shock-mount frame and B18-IAR1 fan power unit. Depending on aircraft configuration, the system may also include auxiliary units, wiring, installation hardware and antenna-feeder components. Exact set composition should always be checked against the aircraft documentation and supply specification.

Aircraft application of Yadro-1A1

Yadro-1A1 is installed on helicopters such as Mi-8 and Mi-17, as well as on other aircraft equipped with compatible HF antenna systems. The main radio blocks are normally installed in the aircraft radio equipment compartment, while the control panel is mounted in the cockpit for crew access. The antenna tuning unit works with the external HF antenna system, and the cooling system supports operation of heat-generating radio blocks. Since aircraft radio installations differ by type, modification and modernization status, applicability should be confirmed through the aircraft equipment list and technical documentation.

Identification and ordering of Yadro-1A1

The system may be referenced as Yadro-1A1, Yadro-1A or Ядро-1А1 / Ядро-1А in Russian documentation and export catalogs. Before ordering, the required configuration, aircraft type, system completeness, condition and documentation set should be confirmed. For accurate supply, it is useful to specify whether the request concerns a full radio station set or selected blocks, such as the transceiver-exciter, power amplifier, antenna tuning unit, control panel, mounting frame or fan power unit. Technical description and operating documentation may be referenced as Yadro-1-RTE.

Product Type: Onboard HF aircraft radio station
Designation: Yadro-1A1
Alternative Designations: Yadro-1A, Ядро-1А1, Ядро-1А
Function: Long-range simplex HF radiotelephone communication
Purpose: Voice communication between aircraft and ground control stations over extended distances
Application / Where Used: Civil and military aircraft radio communication systems
System / Installation Area: Aircraft radio equipment compartment, cockpit control area and external HF antenna installation
Compatible Aircraft / Equipment: Mi-8, Mi-17 and other aircraft equipped with compatible HF antenna systems
Operating Mode: Simplex radiotelephone communication
Operating Principle: Channelized, preset, non-tuned HF communication without manual frequency search during normal operation
Frequency Range: 2.000–17.999 MHz
Frequency Step: 100 Hz
Transmitter Peak Power: Not less than 100 W
Receiver Sensitivity, A3E: Not more than 5 µV
Receiver Sensitivity, J3E: Not more than 3 µV
Power Supply: 27 V DC ±2.7 V
System Weight: Not more than 20.5 kg
Main System Composition: B1-YAR2-1A / B1-YarII-1A transceiver-exciter; B4-IAR1 / B4-YaR1 power amplifier; B5A-IAR1 / B5A-YaR1 antenna tuning unit; B7A1-YAPL / B7A1-JAPI control panel; B10B-JAPI shock-mount frame; B18-IAR1 fan power unit; auxiliary units according to aircraft configuration
Associated Antenna Equipment: External HF wire or cable-type antenna, antenna feeder and related installation components according to aircraft configuration
Control Location: Cockpit control panel
Main Block Location: Aircraft radio equipment compartment
Condition: As applicable
Technical Documentation: Technical description and operating manual Yadro-1-RTE, manufacturer passports, aircraft technical documentation and test records upon request
