UZ P-503B

UZ P-503B recording unit in the P-503B system

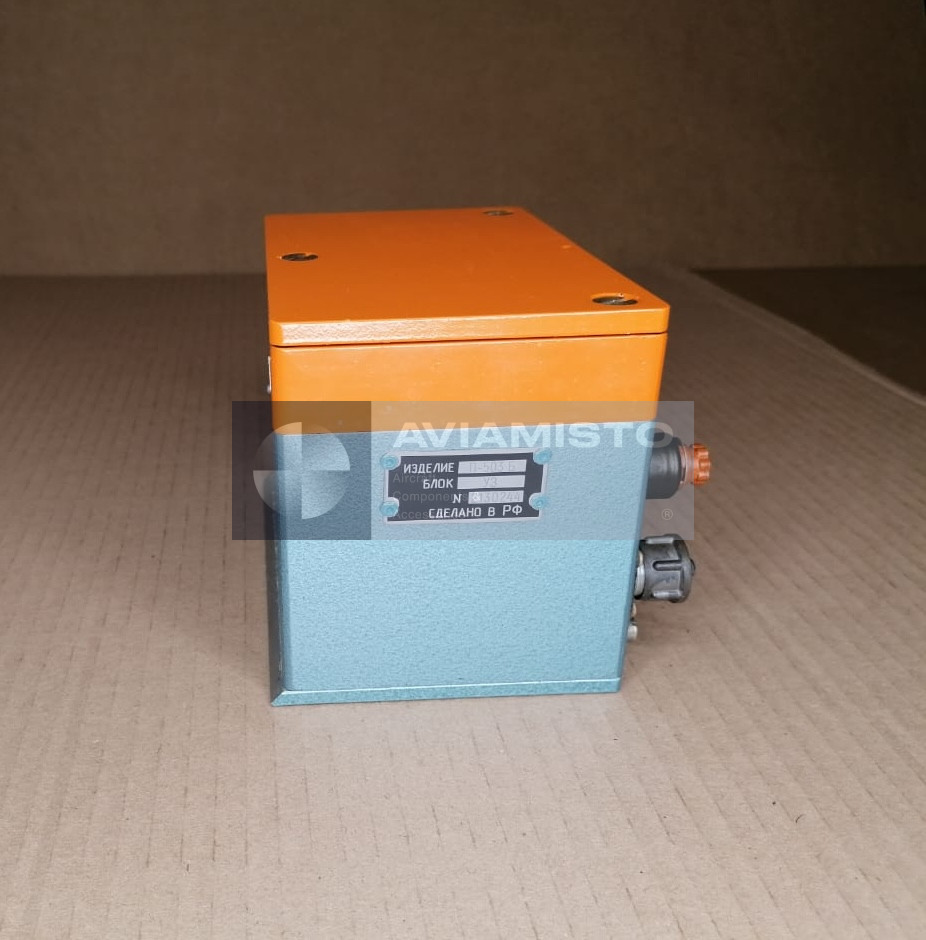

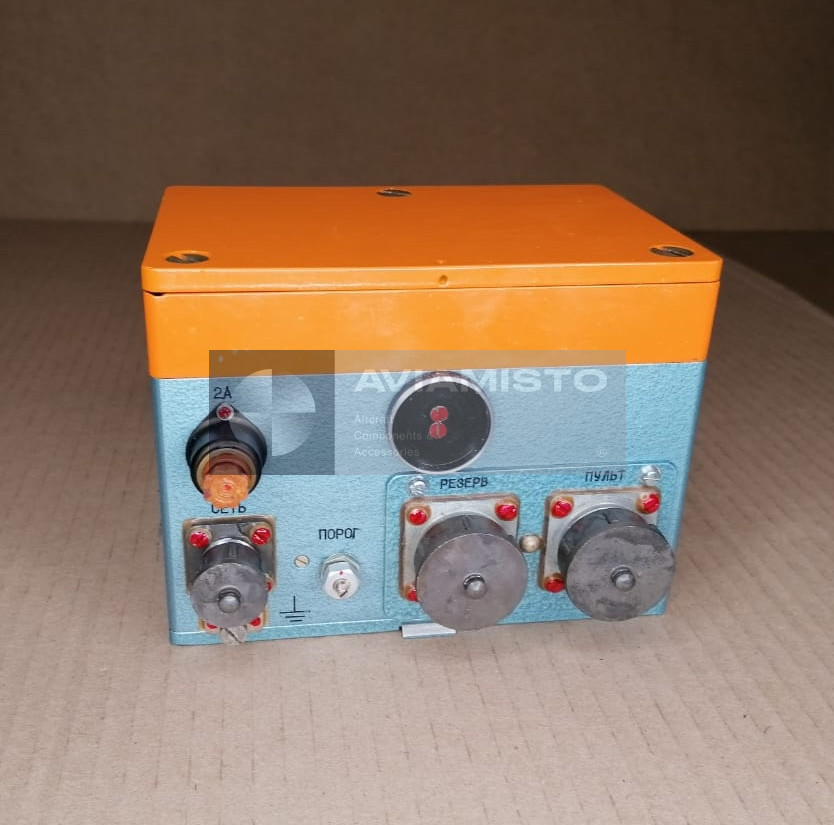

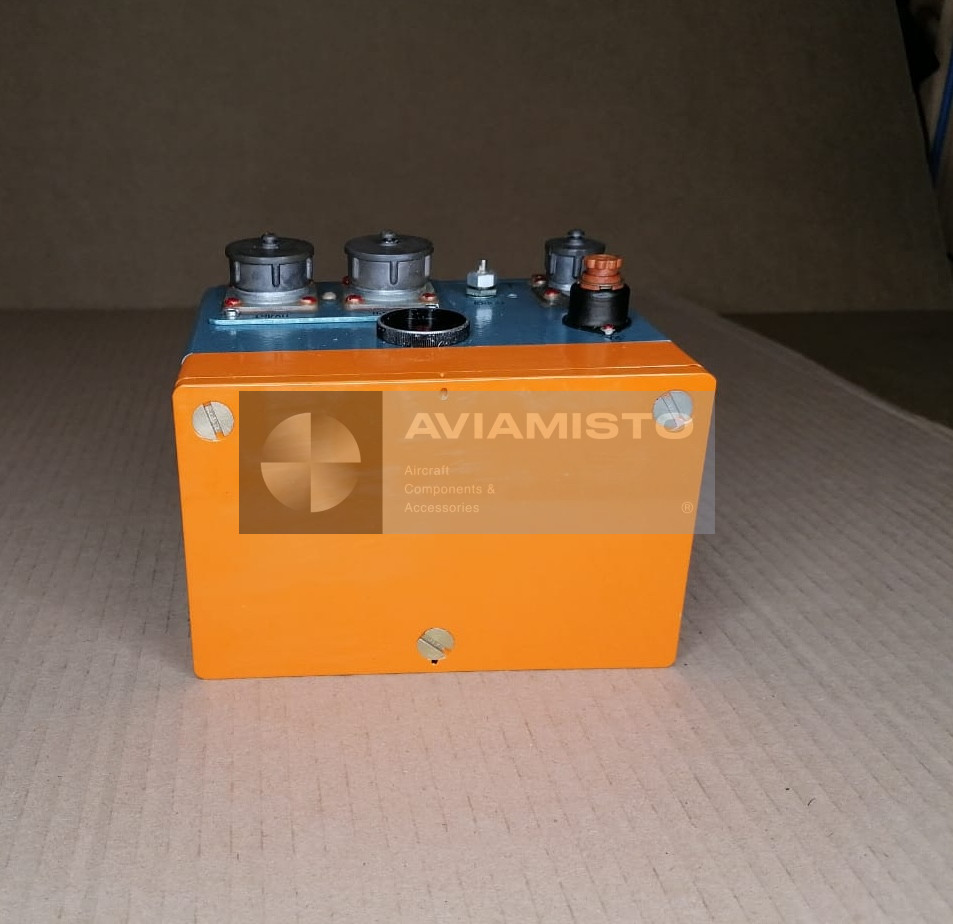

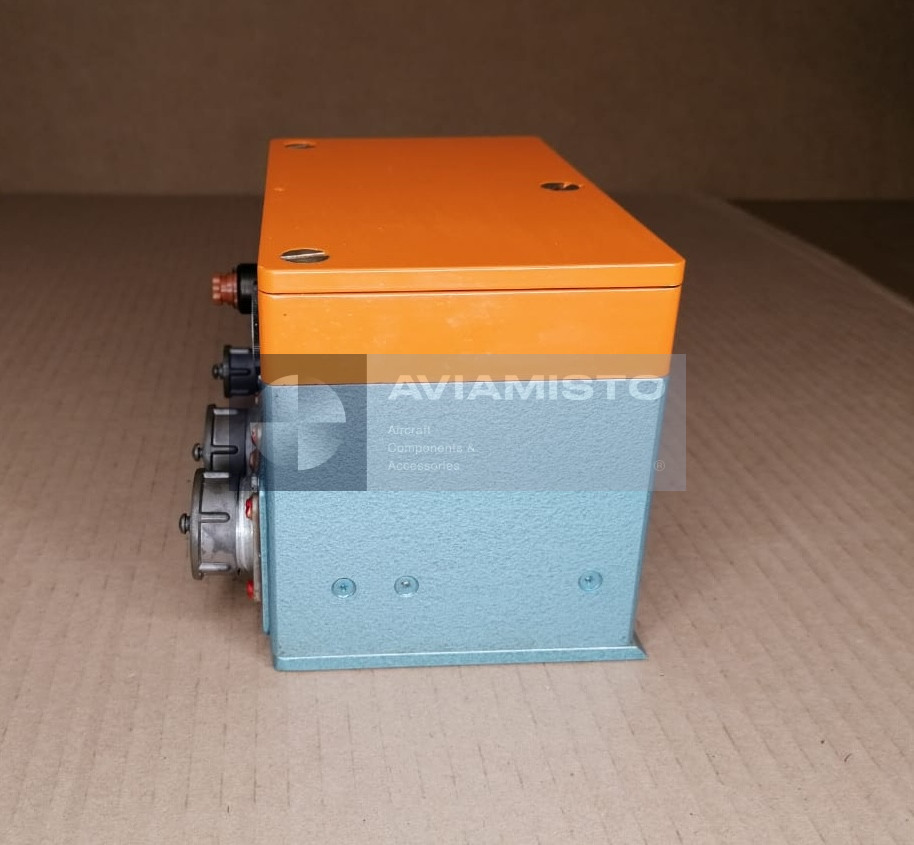

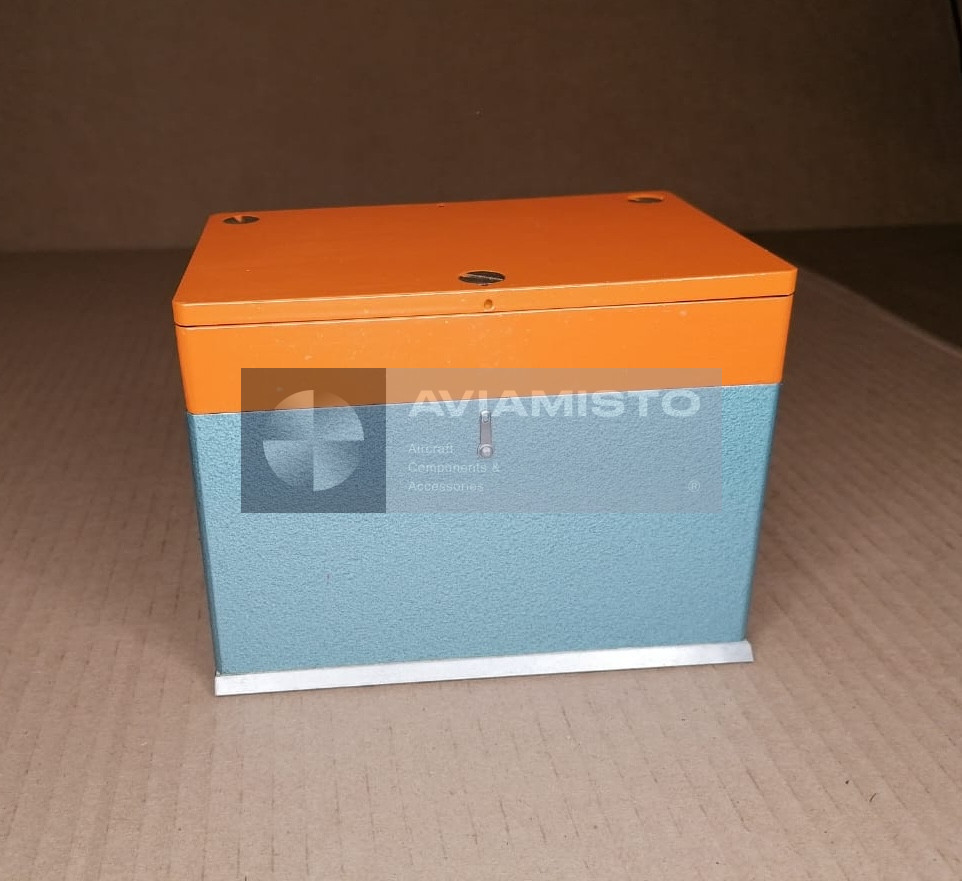

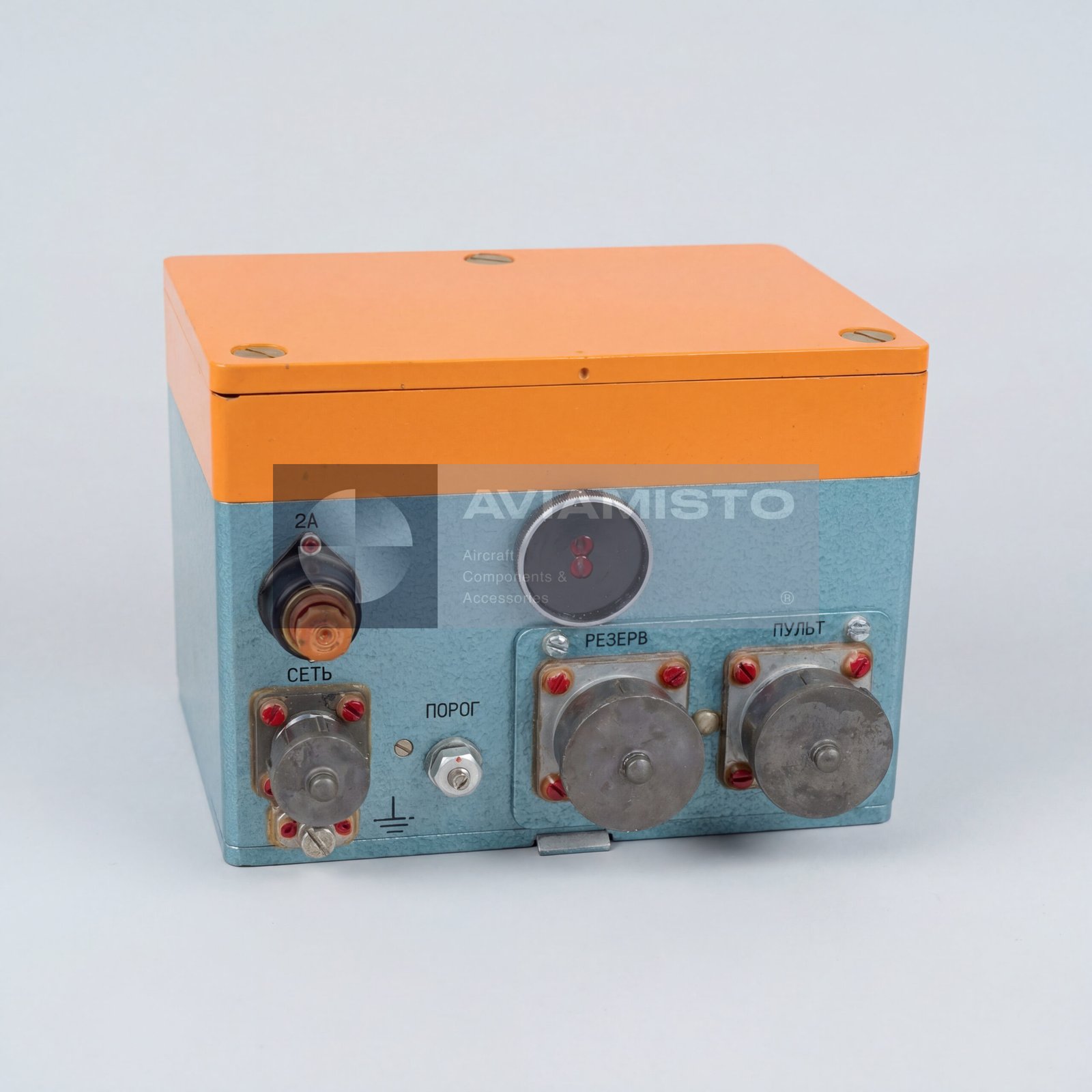

UZ P-503B is an onboard aircraft recording unit designed for magnetic wire recording of voice communications and time code signals as part of the P-503B aircraft voice recorder system. The unit is used for automatic recording of crew voice information received from onboard intercom and radio communication systems. It operates together with the PU P-503B control panel and related installation components as part of the complete onboard wire tape recorder system.

Voice and time signal recording through UZ P-503B

The UZ P-503B performs direct recording of audio signals from the aircraft intercom system, radio communication channels and pilot-transmitted information. It records service conversations, voice signals supplied to crew headsets and time code signals used for event timing. The time code may be recorded as tone pulses, depending on the system configuration and documentation. The recorder is intended to preserve operational voice information during flight for later analysis, maintenance review or incident investigation.

Magnetic wire recording medium of UZ P-503B

The UZ P-503B uses a thin magnetic wire recording medium rather than magnetic tape or solid-state memory. Recording is performed continuously in cyclic mode, with older information overwritten as the recording cycle continues. The wire transport mechanism, wire spools, magnetic head assembly, automation circuitry, amplifier section and erase / bias generator are part of the recording unit design. This construction reflects the older generation of onboard voice recording equipment used before widespread transition to modern solid-state recorders.

UZ P-503B system composition and operation

The UZ P-503B recording unit is part of the P-503B onboard wire tape recorder system. A complete installation may include the UZ recording unit, PU control panel, installation frame, wire cassettes and associated aircraft wiring. In operation, the system receives voice and time signals from aircraft communication circuits and records them on the wire medium. The control panel provides system control, while the recording unit performs the mechanical and electrical recording process.

Aircraft installation of UZ P-503B

The UZ P-503B is installed on helicopters and other aircraft equipped with the P-503B system. On Mi-8 / Mi-17 family helicopters, the recording unit may be installed in the radio equipment compartment or on the rear cockpit wall, depending on aircraft documentation. In aircraft installations such as An-24, An-26, Tu-134, Il-76 and related types, recorder equipment may be located in technical compartments, equipment areas or rear fuselage zones depending on the protected or non-protected configuration. Exact installation must be confirmed by aircraft documentation.

Identification and ordering of UZ P-503B

The unit may be referenced as UZ P-503B, УЗ П-503Б or P-503B Recording Unit. The Russian abbreviation УЗ П-503Б stands for “recording unit of the P-503B onboard tape recorder”. For correct supply, it is useful to specify the aircraft type, installed recorder configuration, required condition, cassette or frame requirements, documentation set and whether the request concerns the UZ recording unit only or the complete P-503B system.

Product Type: Recording unit
Designation: UZ P-503B
Alternative Designations: УЗ П-503Б, P-503B Recording Unit
Function: Magnetic wire recording of voice and time information
Purpose: Automatic recording of crew voice communication and time code signals
Application / Where Used: Onboard voice recording systems
Associated System: P-503B onboard wire tape recorder
Part of System: P-503B system with UZ recording unit, PU control panel, installation frame and wire cassettes
Compatible Aircraft / Equipment: Helicopters and aircraft equipped with the P-503B system
Typical Aircraft Application: Mi-8 / Mi-17, An-24, An-26, Tu-134, Il-76 and other aircraft according to documentation
Recording Medium: Wire recording medium, Ø 0.05 mm
Recording Type: Continuous cyclic recording with overwrite of earlier data
Continuous Recording Duration: Not less than 9 hours
Linear Speed of Recording Medium: 100 ± 10 mm/s
Recorded Signals: Crew intercom audio, radio communication audio, pilot-transmitted voice information and time code signals
Time Code Signal: Tone pulses, approximately 133 Hz; 400 Hz where specified by configuration
Audio Frequency Range: 0.3–3.4 kHz
Power Supply: 27 V DC, operating range 18–31 V
Power Consumption: Not more than 20 VA
System Composition: UZ recording unit, PU control panel, mounting / shock-mount frame, wire cassettes and aircraft wiring according to installation
Installation Location: Aircraft radio equipment compartment, rear cockpit wall or technical equipment compartment according to aircraft documentation
Protected Version: P-503BS configuration may be installed inside a protected thermal crash container, where applicable
Underwater Beacon Compatibility: Underwater acoustic beacon such as PAM-6k may be connected where specified by system configuration
Assigned Resource Before Overhaul: According to passport
Assigned Service Life: According to passport
Condition: As applicable
Technical Documentation: Passport UZ P-503B, aircraft technical documentation and system operating documentation upon request
