P-503B

P-503B onboard aircraft wire tape recorder

P-503B is an onboard aircraft wire tape recorder designed for magnetic recording of audio signals received by the left pilot’s headset from internal and external communication circuits of helicopter radio equipment, as well as speech transmitted by the pilot. The recorder is used as part of airborne voice recording equipment and provides continuous capture of crew communication during flight. It records voice information and associated time signals on a wire recording medium for later playback, technical analysis or investigation.

Voice recording function of P-503B

The P-503B recorder captures audio information from onboard communication circuits, including signals received through the aircraft intercom and radio communication systems. It records speech transmitted by the pilot and audio received in the pilot’s headset, allowing the system to preserve operational communication during flight. This makes the recorder part of the aircraft voice registration system, where the main purpose is to document crew communication and time-related information during aircraft operation.

Wire recording medium in the P-503B system

The P-503B uses a thin wire recording medium rather than magnetic tape or solid-state memory. Recording is performed on a wire medium with a specified diameter and recording speed. The system operates in continuous mode and provides not less than 9 hours of recording duration. This wire-based recording principle is characteristic of earlier onboard voice recorder systems used on helicopters and other aircraft before the wider adoption of modern solid-state recorders.

P-503B system composition

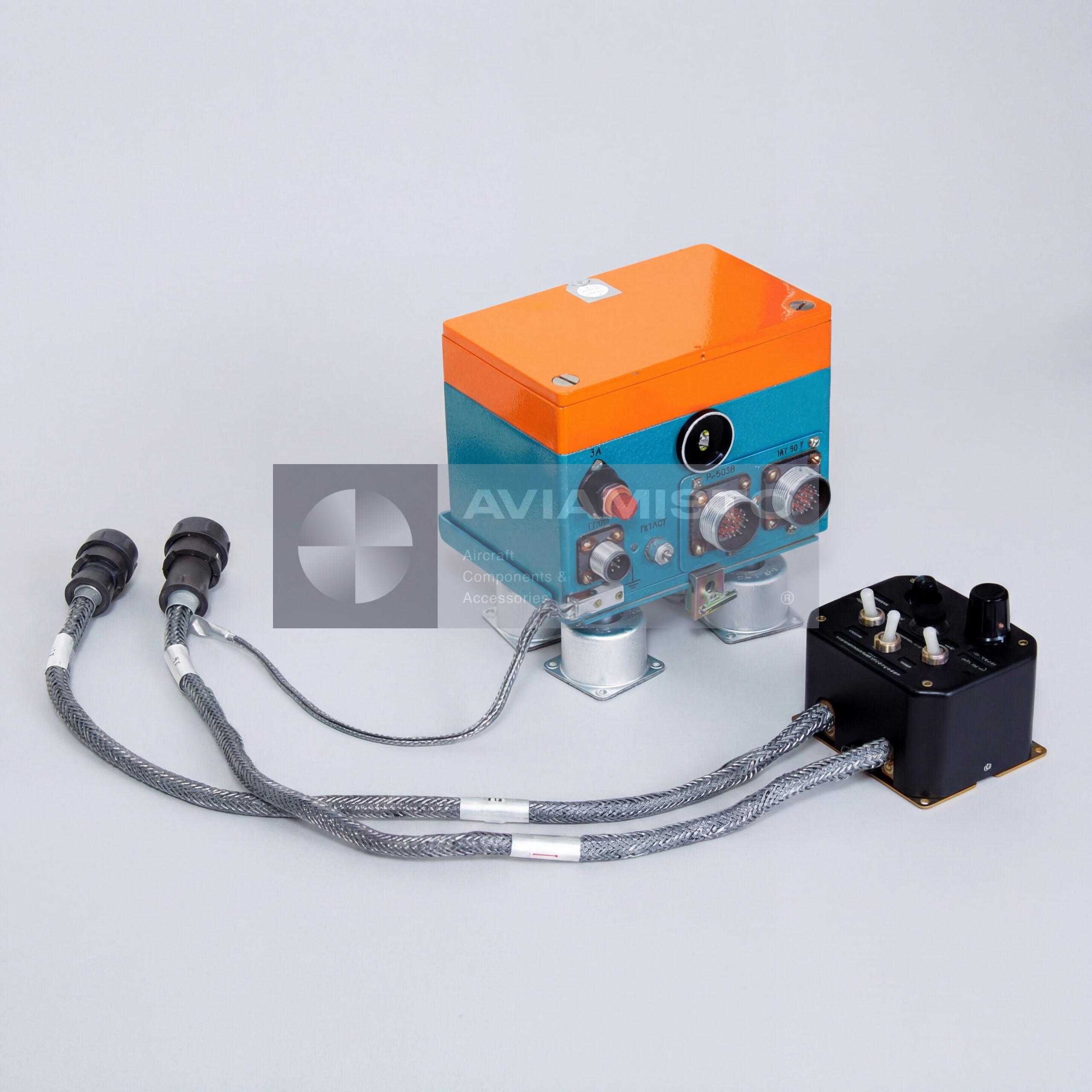

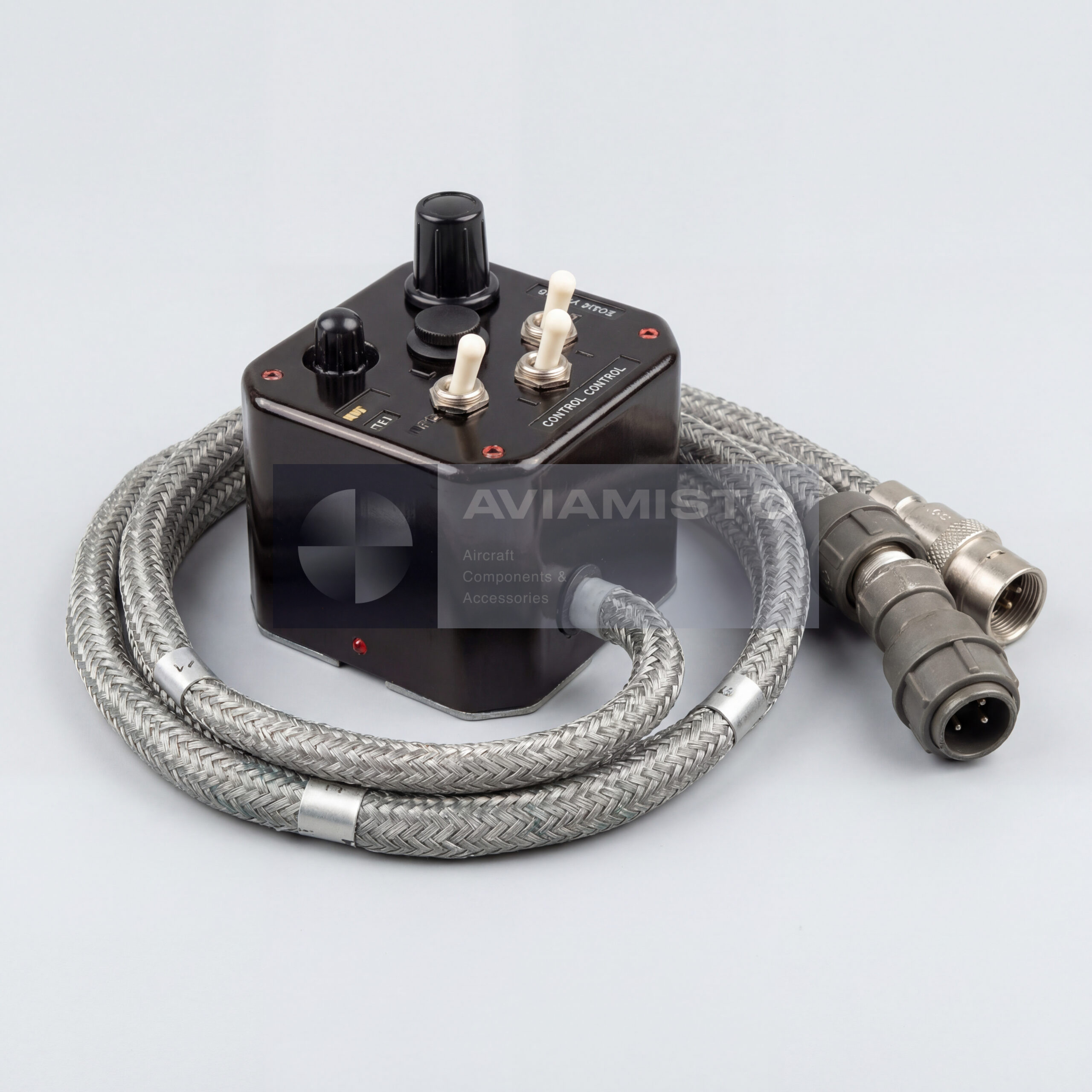

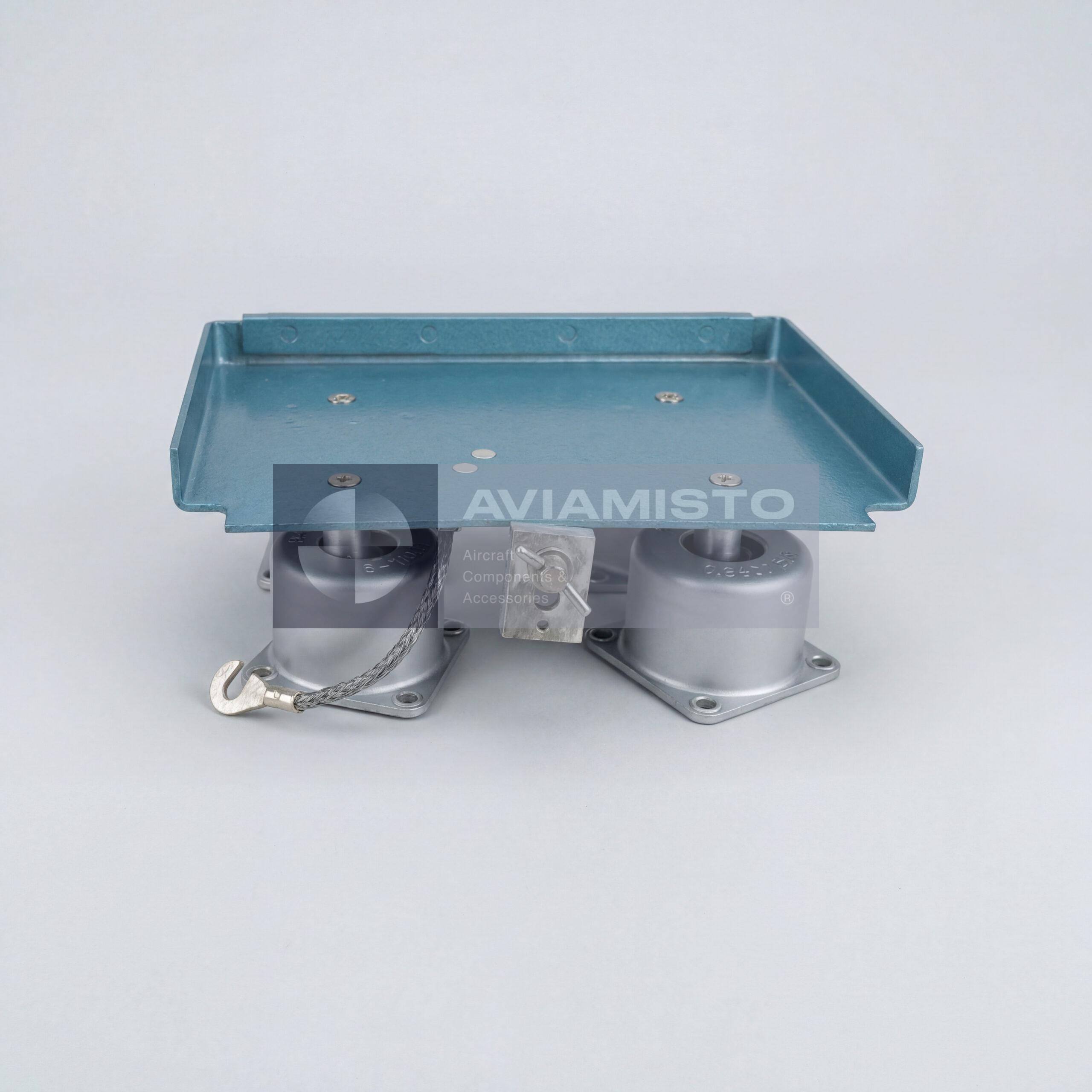

The P-503B is supplied as a system that includes the UZ P-503B recording unit, PU P-503B control panel, mounting frame, wire cassette and related accessories. The recording unit performs the actual magnetic wire recording process, while the control panel provides operational control of the system. The cassette contains the recording wire, and the mounting frame provides mechanical installation of the equipment on the aircraft. The exact scope of supply should be checked against the product passport and supply specification.

Installation and aircraft application of P-503B

The P-503B recorder is installed on helicopters equipped with onboard radio communication systems. It operates as part of helicopter onboard communication and voice recording equipment. The installation area and mounting arrangement depend on the aircraft type, modification and technical documentation. In service, the recorder should be checked together with the aircraft intercom system, radio communication circuits, recording unit, control panel, wire cassette, power supply and installation hardware.

Identification and ordering of P-503B

The recorder may be referenced as P-503B or П-503Б. These designations refer to the same onboard wire tape recorder system. For correct supply, it is useful to specify the aircraft type, installed recorder configuration, required condition, completeness of the set, cassette requirements and documentation availability. If individual components are required, the request should identify whether the required item is the complete P-503B recorder, UZ P-503B recording unit, PU P-503B control panel, wire cassette or spare parts kit.

Product Type: Onboard wire tape recorder
Designation: P-503B
Alternative Designations: П-503Б
Function: Recording of voice signals and time information
Purpose: Magnetic recording of pilot headset audio, crew communication and time code signals
Application / Where Used: Helicopter onboard communication and voice recording systems
System / Installation Area: Onboard voice recording system
Compatible Aircraft / Equipment: Helicopters equipped with onboard radio communication systems
Operating Voltage: 27 ± 2.7 V DC
Power Consumption: Not more than 20 VA
Recording Medium: Wire recording medium
Wire Diameter: 0.05 mm
Wire Type: Type 5.4
Continuous Recording Duration: Not less than 9 h
Linear Recording Speed: 100 ± 10 mm/s
Time Code Signal: Tone pulses 133 ± 4 Hz
Recording Current: 1.30 to 2.2 mA
Microphone Power Supply: 4 to 6 V
Weight: Not more than 4 kg
Part of System / Included in Set: Recording unit UZ P-503B; control panel PU P-503B; mounting frame; wire cassettes and accessories

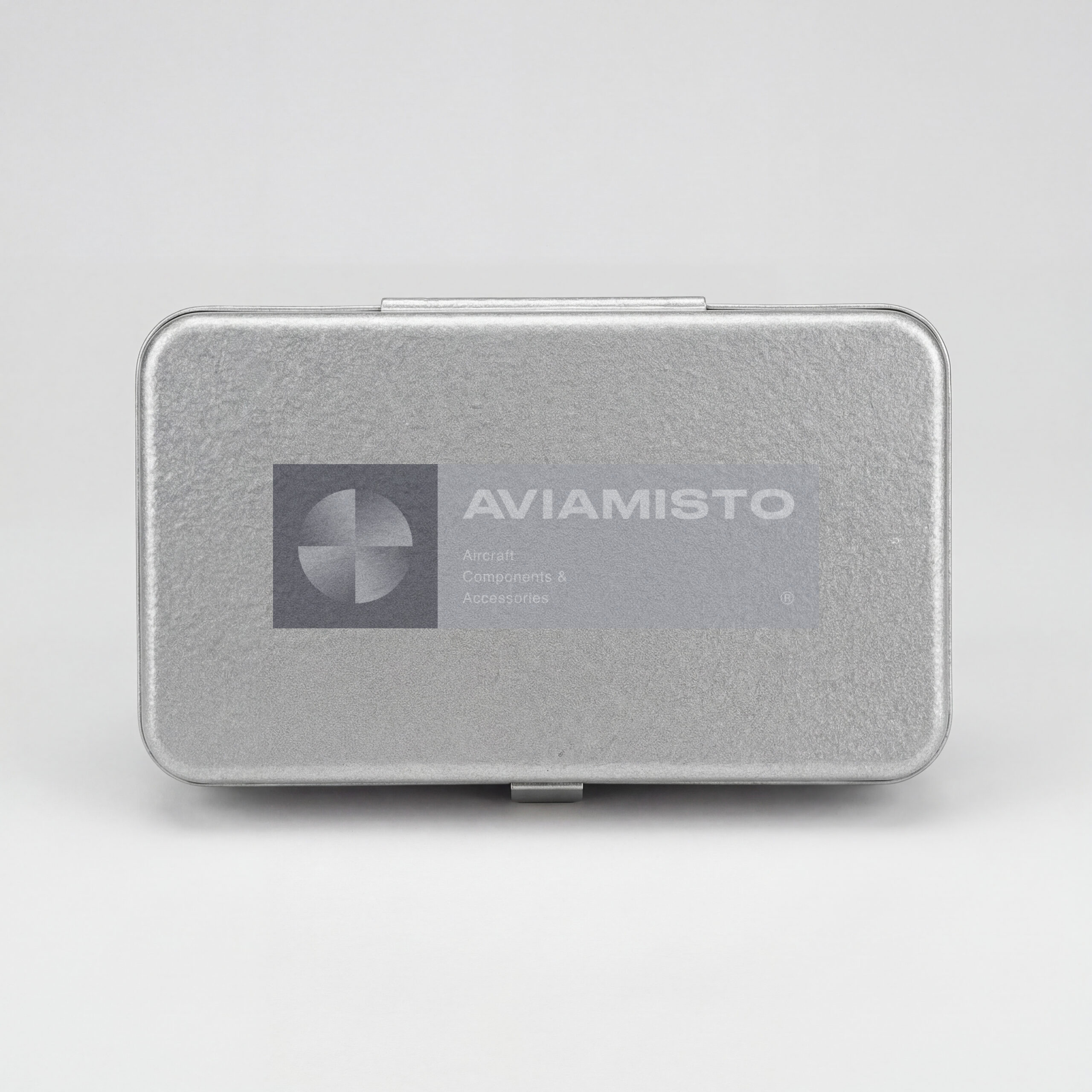

Scope of Supply: Recording unit UZ P-503B; control panel PU P-503B; mounting frame; wire cassette SY5.960.035; empty cassette XS5.960.003; case SY6.875.047; documentation
Condition: As applicable
Technical Documentation: Product passport P-503B
