B7A1-YAR1

Radio station control through B7A1-YAR1

The B7A1-YAR1 panel allows the crew to manage the operating modes of the Yadro HF radio station. Through its controls, the pilots can set the required working frequency, select operating parameters and send control commands to the radio equipment installed outside the cockpit. The panel forms coded commands for automatic retuning of the transceiver and antenna matching unit to the selected frequency. This makes it an important cockpit control element for long-range HF communication during flight.

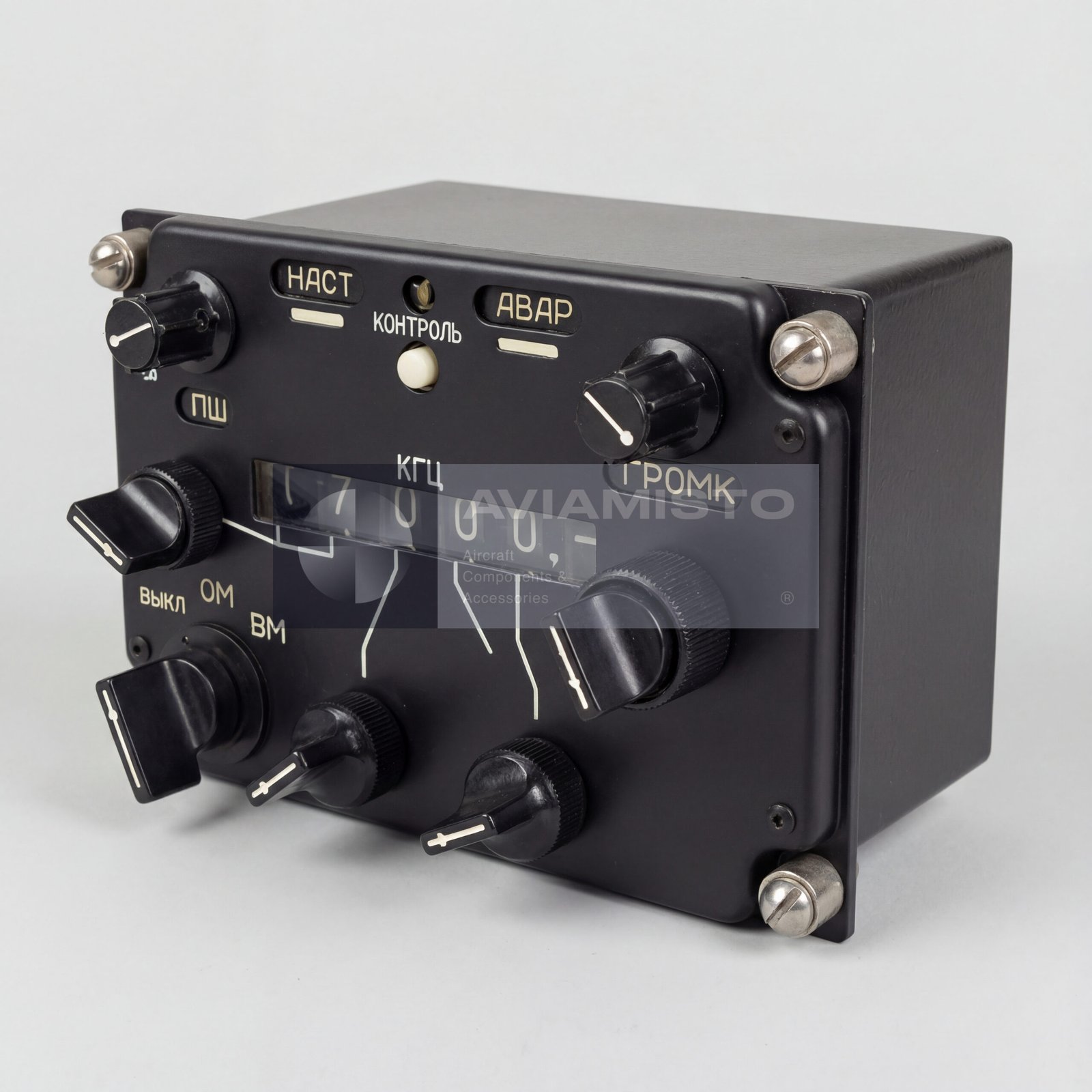

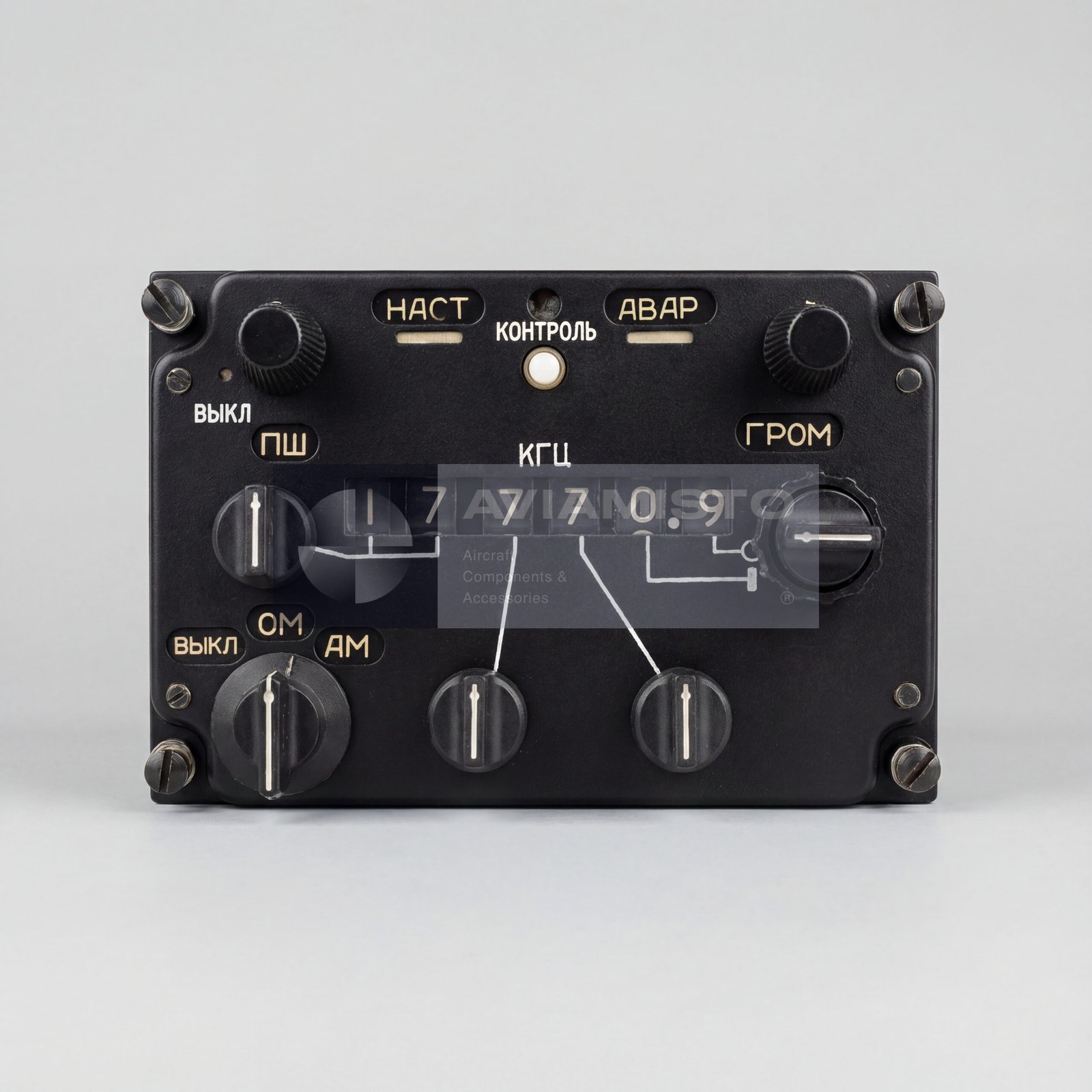

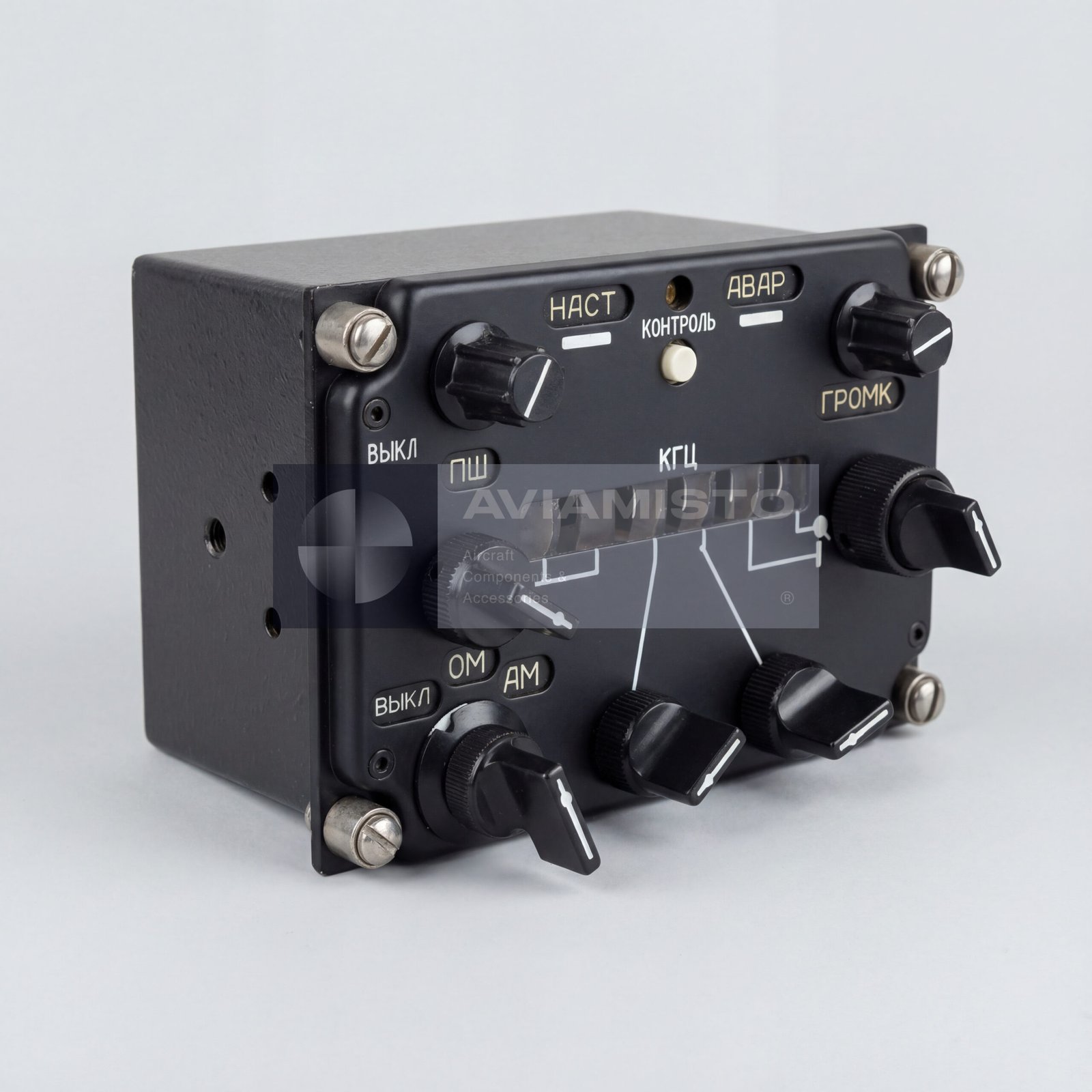

Frequency setting and control layout of B7A1-YAR1

The B7A1-YAR1 provides frequency selection within the operating range of the connected Yadro radio station. The panel uses drum-type or decade-type selectors with numerical indication of the selected frequency. This arrangement allows the crew to set the radio frequency directly from the cockpit without accessing the radio equipment compartment. The final communication performance depends on the condition of the control panel, transceiver-exciter, power amplifier, antenna matching unit, feeder line and external HF antenna installation.

Installation of B7A1-YAR1 in the cockpit

The B7A1-YAR1 control panel is installed in the aircraft cockpit, usually on the instrument panel, overhead electrical panel or communication control area depending on aircraft type. On Mi-8 / Mi-17 helicopters, the panel may be installed on the right side of the upper cockpit electrical panel, close to other communication and navigation controls. Heavy radio station blocks such as the transceiver, antenna matching unit and power supply are normally installed outside the cockpit in the radio equipment compartment, while the panel remains accessible to the crew.

Aircraft application of B7A1-YAR1

The B7A1-YAR1 panel is used on helicopters and aircraft equipped with Yadro-family HF radio stations. Typical application includes Mi-8 and Mi-17 helicopters and other aircraft fitted with compatible shortwave communication systems. The unit is designed for operation under aircraft conditions, including vibration, temperature variation and onboard electrical loads. Since aircraft radio installations may differ by modification, equipment set and modernization status, applicability should be confirmed through the aircraft equipment list, wiring documentation and Yadro radio station maintenance manual.

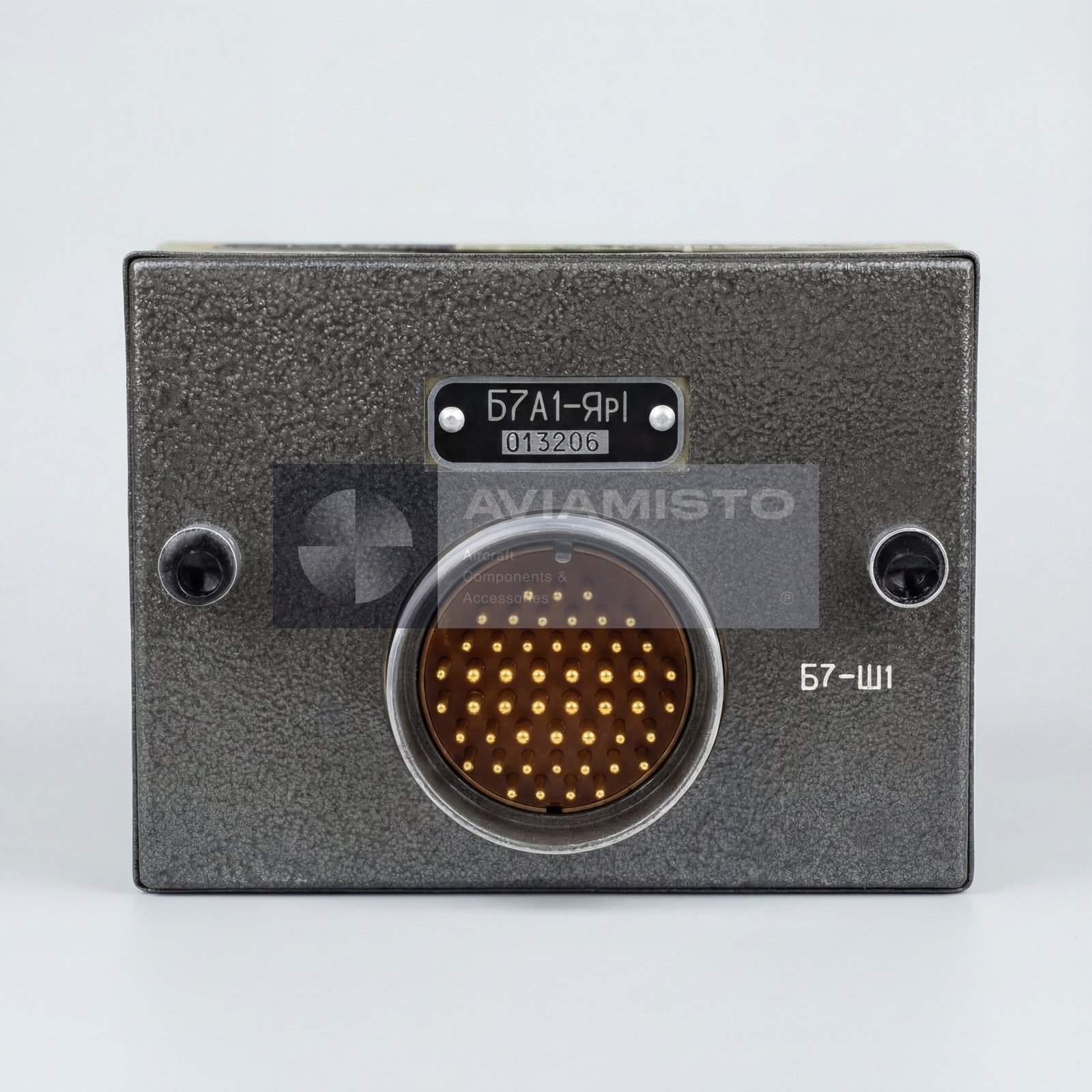

Identification and ordering of B7A1-YAR1

The control panel may be referenced as B7A1-YAR1, B7A1-YAR1, B7A1-YAR1, B7A1-YAR1, B7A1-YAR1, B7A1-YAR1, B7A1-YAR1, B7A1-YAR1, B7-A1-YAR1, B7A1YAR1 or Control Panel B7A-YAR1. In some inventories and English-language lists, the unit may appear as “Control Panel” or “Control Unit HF”. These designations should be checked carefully against the actual marking plate and aircraft documentation before ordering. For correct supply, it is useful to specify the aircraft type, installed Yadro radio version, required condition, connector configuration and documentation requirements.
