Yadro-1G1 onboard HF aircraft radio station
Yadro-1G1 is an onboard HF aircraft transceiver radio station designed for simplex radiotelephone communication with ground HF radio stations and between aircraft in flight. The system provides preset, non-search and non-tuned operation, which removes the need for manual frequency search and receiver tuning during normal use. It is used as part of the aircraft radio communication system and supports long-range two-way HF voice communication beyond line-of-sight coverage.
Full descriptionCollapse description
Simplex HF communication through Yadro-1G1
The Yadro-1G1 radio station provides communication in the HF band, where radio signals can support extended-range communication depending on flight altitude, frequency selection, propagation conditions and antenna condition. The system is suitable for aircraft routes where ground communication infrastructure may be limited or where VHF coverage is not sufficient. At a flight altitude of 1000 m, the communication range is specified as not less than 400 km under applicable operating conditions.
Frequency operation and radio performance of Yadro-1G1
Yadro-1G1 operates within the shortwave aviation communication band and uses fine frequency spacing for preset channel operation. The radio station supports simplex voice communication modes, including OMB and AM modes according to the operating documentation. The transmitter output power is provided through the power amplifier, while the receiver section supports reliable HF signal reception. Correct operation depends on the transceiver assembly, power amplifier, antenna tuning unit, control panel, power supply, feeder line and external antenna installation.
Yadro-1G1 system composition

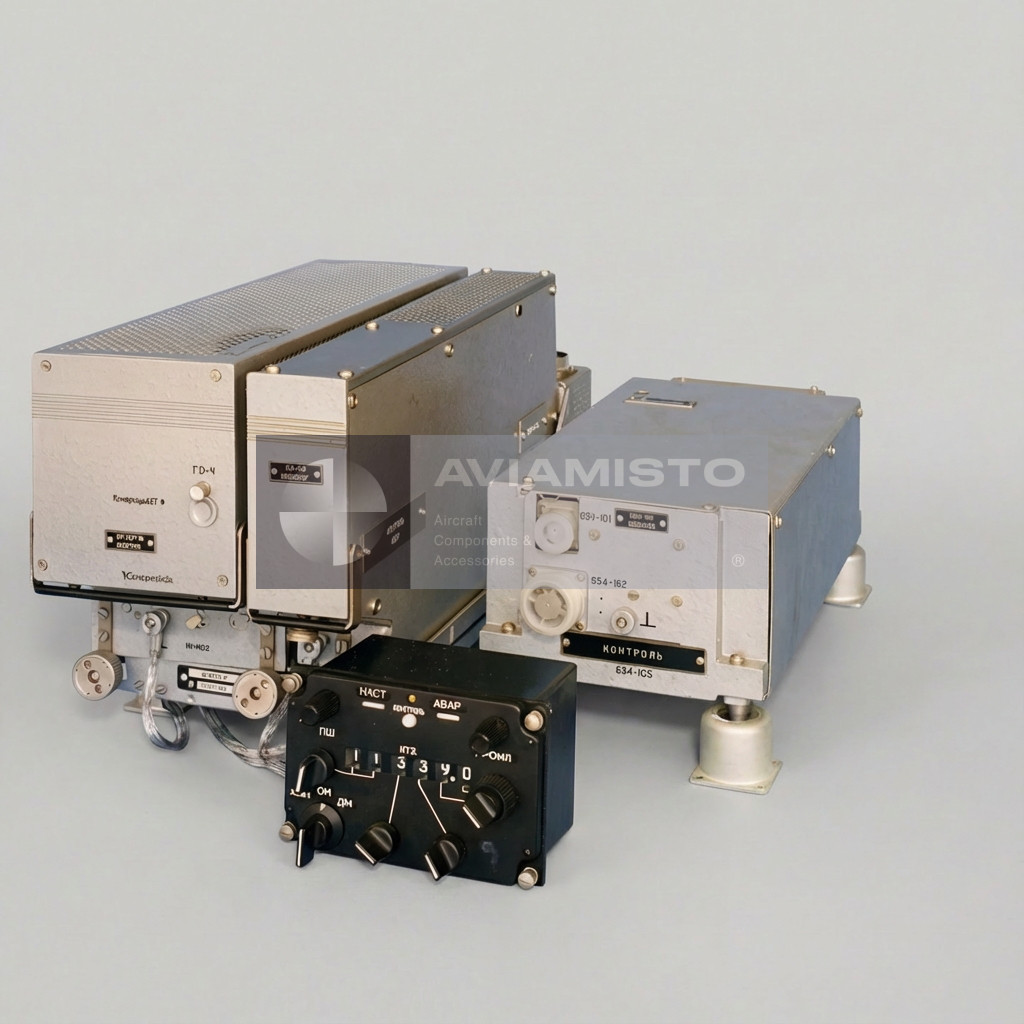

The Yadro-1G1 radio station is supplied as a complete multi-block communication system. The main set may include the B1-YARII-1A exciter-receiver, B4-YAR1 power amplifier, B5A-YAR1 antenna tuning unit, B7A2-YAR1 control panel, B10V-YAR1 shock-mount frame and auxiliary power or cooling units such as the B18-YAR1 fan power unit, depending on aircraft configuration. Exact set composition should be confirmed against the aircraft documentation and supply specification.
Antenna and installation layout of Yadro-1G1
The Yadro-1G1 system operates with an aircraft HF antenna installation, including a trailing wire or cable-type antenna arranged along the aircraft tail boom where specified by the aircraft documentation. The main radio blocks are normally installed in the radio equipment compartment, while the control panel is mounted in the cockpit for crew access. The antenna tuning unit matches the antenna-feeder system to the transmitter path and supports operation across the selected HF frequency range.
Identification and ordering of Yadro-1G1
The radio station may be referenced as Yadro-1G1, Yadro-1G, YAdro-1G1 or YAdro-1G. Before ordering, the required configuration, aircraft type, antenna installation, condition and documentation set should be confirmed. It is also important to clarify whether the request is for a complete radio station set or for separate system blocks, such as the exciter-receiver, power amplifier, antenna tuning unit, control panel, shock-mount frame or auxiliary power unit.
Technical details
- Product Type
- Onboard HF aircraft radio station
- Designation
- Yadro-1G1
- Alternative Designations
- Yadro-1G, YAdro-1G1, YAdro-1G
- Function
- Simplex HF radiotelephone communication with ground stations and between aircraft
- Purpose
- Long-range two-way HF voice communication beyond line-of-sight coverage
All specificationsCollapse specifications
- Application / Where Used
- Onboard aircraft radio communication systems
- System / Installation Area
- Aircraft radio equipment compartment, cockpit control area and HF antenna installation
- Compatible Aircraft / Equipment
- Helicopters and other aircraft equipped with compatible HF communication systems
- Operating Mode
- Preset, non-search, non-tuned simplex communication
- Communication Range
- Not less than 400 km at a flight altitude of 1000 m
- Operating Frequency Range
- 2.000–17.9999 MHz
- Frequency Step
- 100 Hz
- Transmitter Output Power
- 50–100 W
- Receiver Sensitivity
- 3 µV
- Power Consumption, Reception
- Up to 200 W
- Power Consumption, Transmission
- Up to 600 W
- Power Supply Voltage
- 27 V DC ±10%
- Operating Modes
- OMB / A3J, AM / A3
- Warm-Up Time to Nominal Frequency Stability
- Not less than 15 min
- Nominal Frequency Stability
- ±3×10⁻⁷
- Recommended TX/RX Duty Cycle
- 3 min transmission / 1 min reception
- Tuning Time
- Not less than 5 s
- Operating Temperature Range
- −55 °C to +55 °C
- Antenna Type
- Trailing wire antenna along tail boom, according to aircraft installation
- Main System Composition

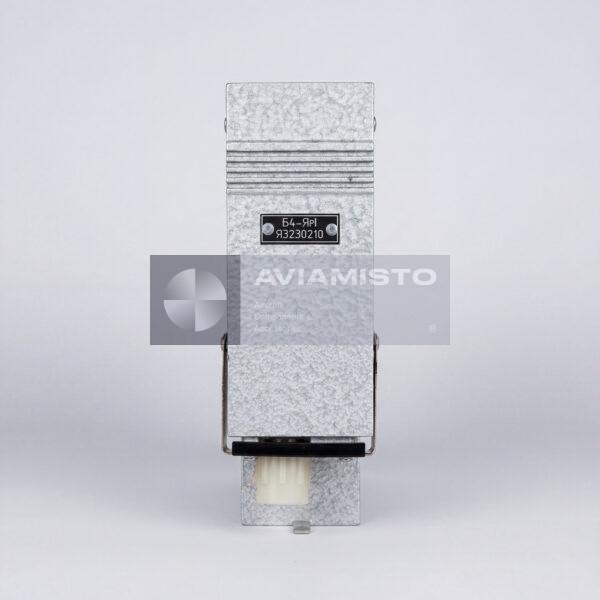

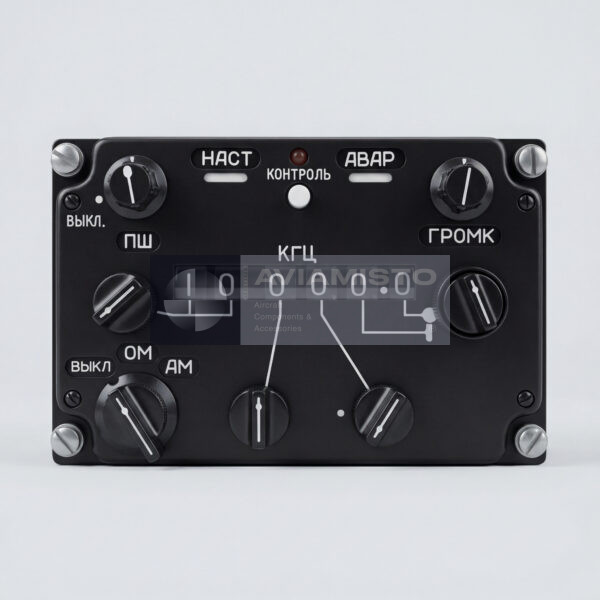

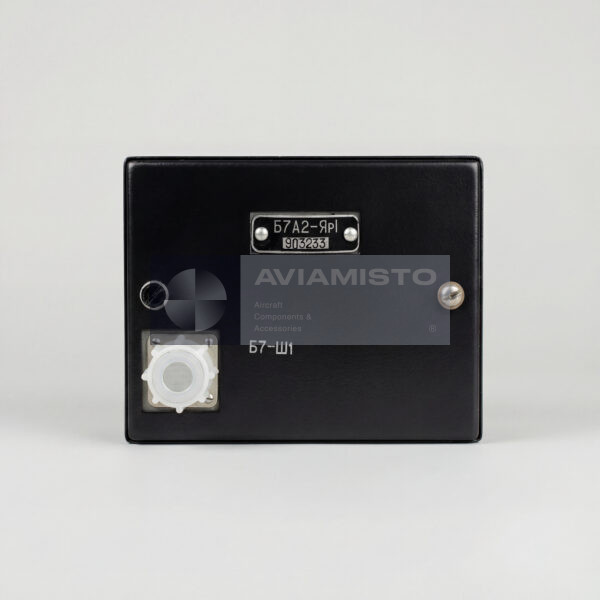

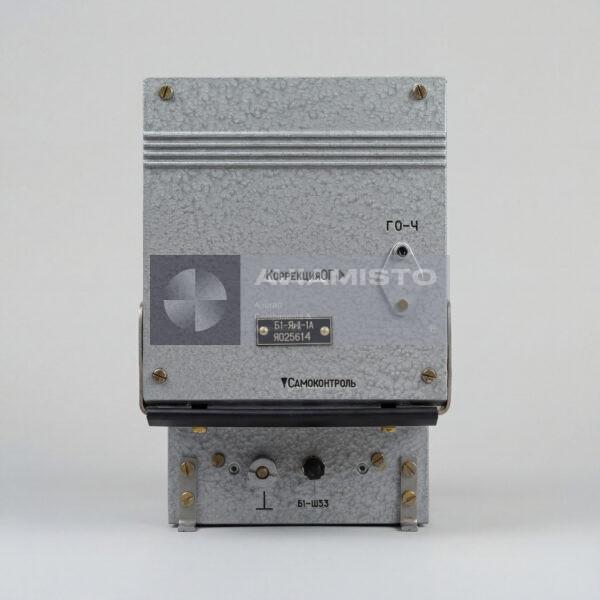

- B1-YARII-1A exciter-receiver; B4-YAR1 power amplifier; B5A-YAR1 antenna tuning unit; B7A2-YAR1 control panel; B10V-YAR1 shock-mount frame; auxiliary power and cooling units according to aircraft configuration
- Equipment Installation
- Radio compartment and cockpit according to aircraft configuration
- Technical Documentation
- Technical and operational documentation, manufacturer passports, aircraft documentation and test records upon request
