Air Control Valve
1919T
Price on request
Air Control Valve
Description

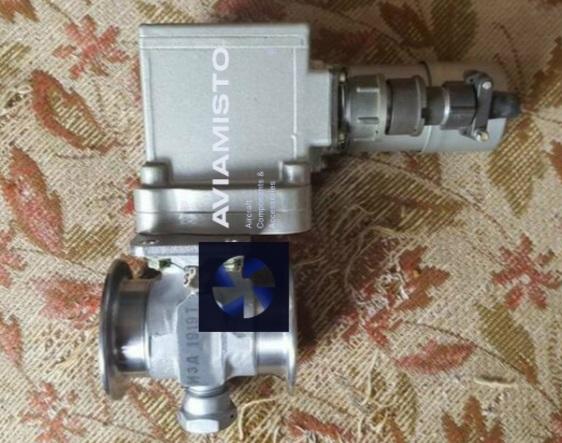

1919T air control valve in aircraft air systems
The 1919T is an aircraft air control valve used for controlled regulation of hot air flow in onboard pneumatic and air-heating systems. The unit is installed in air ducts where hot bleed air must be directed, limited, or shut off depending on system demand. Its main function is to support stable operation of aircraft anti-icing and air distribution circuits by controlling the air flow supplied to protected areas of the aircraft structure.
Anti-icing operation with the 1919T valve
In helicopter applications, the 1919T is commonly used in the air-thermal anti-icing system of engine air intakes. The valve regulates hot air delivery to intake lips, ducts, tunnels, and dust protection unit areas that require heating during icing conditions. This helps maintain the required thermal condition of the intake system and reduces the risk of ice formation in zones that are exposed to cold airflow, moisture, and variable operating regimes.
1919T pressure control in hot-air lines
The 1919T also helps prevent excessive pressure in air lines when engine bleed air is available but downstream consumers are not operating. In this role, the valve supports correct distribution and limitation of hot air flow within the aircraft system. The unit is therefore not only a shut-off component but also a regulating element used to keep the air system within its intended operating range during different flight and ground conditions.

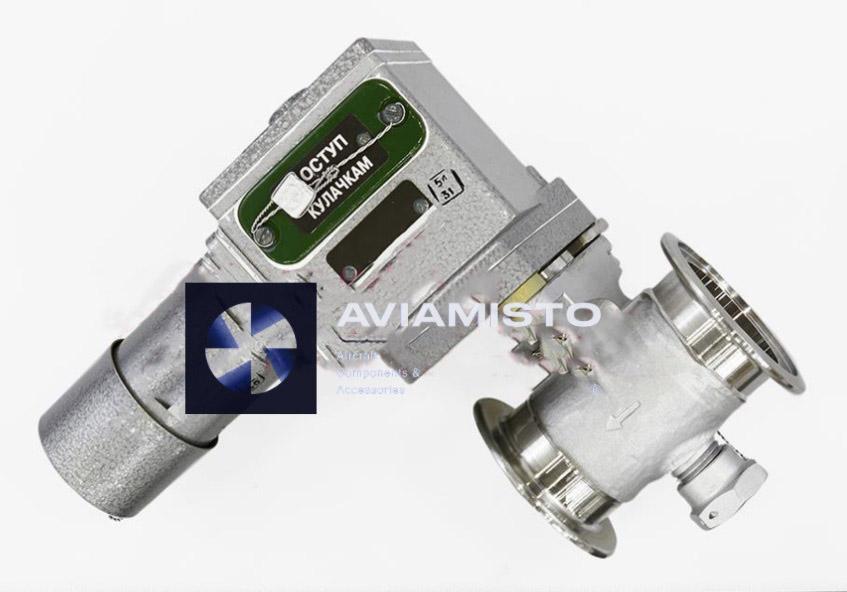

System integration of the 1919T with EPV-50BT
The 1919T operates together with the EPV-50BT electromechanical rotary actuator. This actuator moves the valve flap between operating positions and allows remote control from the aircraft system. The valve design includes position signaling through internal microswitches, which provide feedback on the end positions of the flap. This allows the aircraft control circuit to monitor whether the valve has reached its commanded open or closed position.
Aircraft application and identification of 1919T
The 1919T is used on helicopters of the Mi-8 family and related modifications, including Mi-17, Mi-171, and Mi-172 applications. It may also be used in certain fixed-wing aircraft air systems, depending on the aircraft configuration and installed equipment. When ordering or replacing the unit, the designation 1919T should be checked against the aircraft parts catalog, system documentation, and the required actuator configuration.
Details
Product Type: Air control valve with electromechanical actuator
Function: Regulation of airflow in aircraft systems
Application / Where Used: Anti-icing and air distribution systems
System / Installation Area: Aircraft air supply systems
Compatible Aircraft / Equipment: Mi-8, Mi-17, Mi-171, Mi-172, An-26
Part of System / Included in Set: Electromechanical actuator EPV-50BT, Series 2
Maximum Inlet Air Pressure: Not more than 8 kgf/cm²
Inlet Air Temperature at 8 kgf/cm²: Not more than +300 °C
Inlet Air Temperature at 1 kgf/cm²: Not more than +400 °C
Ambient Temperature Range: −60 to +70 °C
Air Leakage at Closed Valve: Not more than 10 kg/h at 8 kgf/cm² and +20±5 °C
Internal Leakage: Not more than 2.5 kg/h at 8 kgf/cm² and +20±5 °C
Full Opening / Closing Time: 29 ± 8 s
Operating Voltage: 27 ± 2.7 V DC
Weight: 1.35 ± 0.25 kg
Technical Documentation: Product passport and manufacturer documentation
Payment & delivery
All shipments are carried out from our international warehouse in Dubai (UAE), as well as from our partners’ remote warehouses.
In Stock — items available in stock at the Dubai warehouse are dispatched within 5–10 business days after receiving 100% prepayment.
Remote Stock — items available at our partners’ remote warehouses are supplied within an average of 30–45 business days after receiving 100% prepayment.
Pre-Order — made-to-order products are manufactured and delivered within an average of 45–60 business days. Payment terms: 50% advance payment to start production, with the remaining 50% paid before dispatch from the Dubai warehouse after full readiness for shipment.
Returns & Changes (Restocking Fee)
For selected items, a RESTOCKING FEE of 10% may apply in case of return, order cancellation, or changes to the order specifications. This condition applies only to certain products and is confirmed at the order approval stage.
Warranty
All products are covered by a standard 6-month warranty.
Extended warranty is available upon request and is agreed individually; it may affect the final product price.
