SO-121VM ver. A

Ice detection principle of the SO-121VM sensor

The SO-121VM works through a sensor that reacts to ice build-up on its sensitive element. The detection principle is based on a change in the resonant frequency of the membrane sensor when ice forms on its surface. Once the system identifies the required change, the electronic unit processes the signal and generates the corresponding output commands. This allows the aircraft to receive a clear warning or control signal without waiting for significant ice accumulation on airframe parts. Early detection is especially important during flight in visible moisture and low-temperature conditions.

SO-121VM in anti-icing and warning circuits

The SO-121VM is connected with aircraft anti-icing, warning, and flight data recording systems. When icing is detected, the system can generate warning signals for the crew and control commands for the onboard equipment. Depending on the aircraft configuration, these signals may be used to activate anti-icing logic, record icing conditions, or inform the crew through cockpit indication. The system is therefore part of the wider aircraft protection chain: the detector identifies the condition, while the aircraft systems and crew actions determine the next steps.

SO-121VM equipment set and installation layout

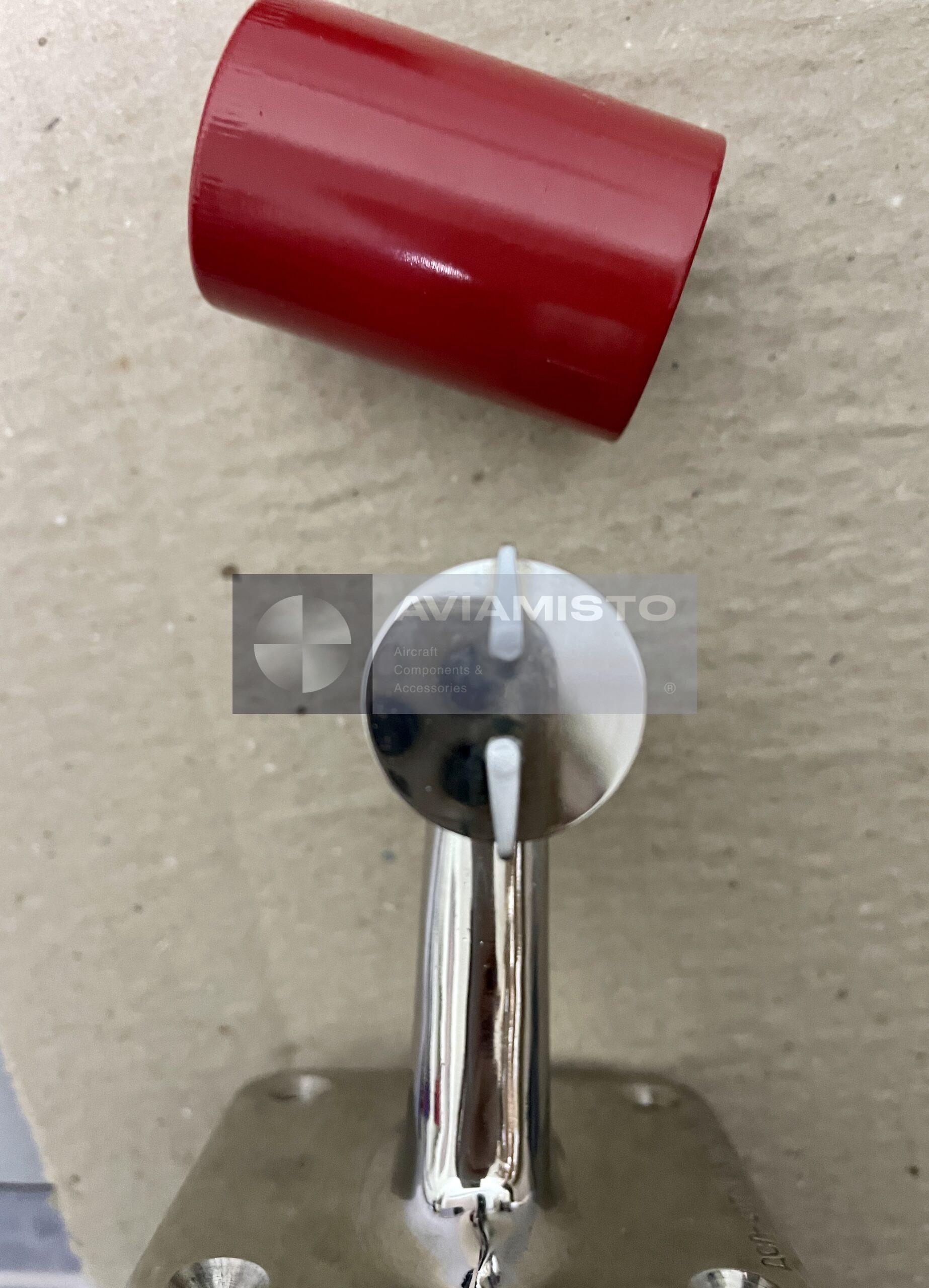

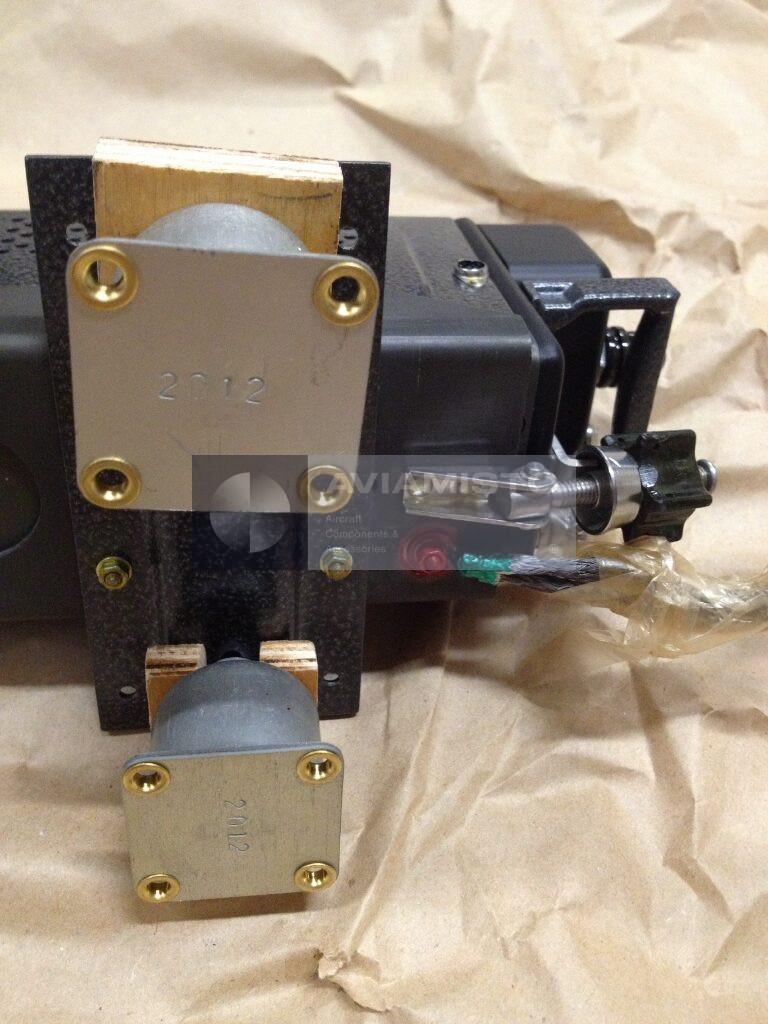

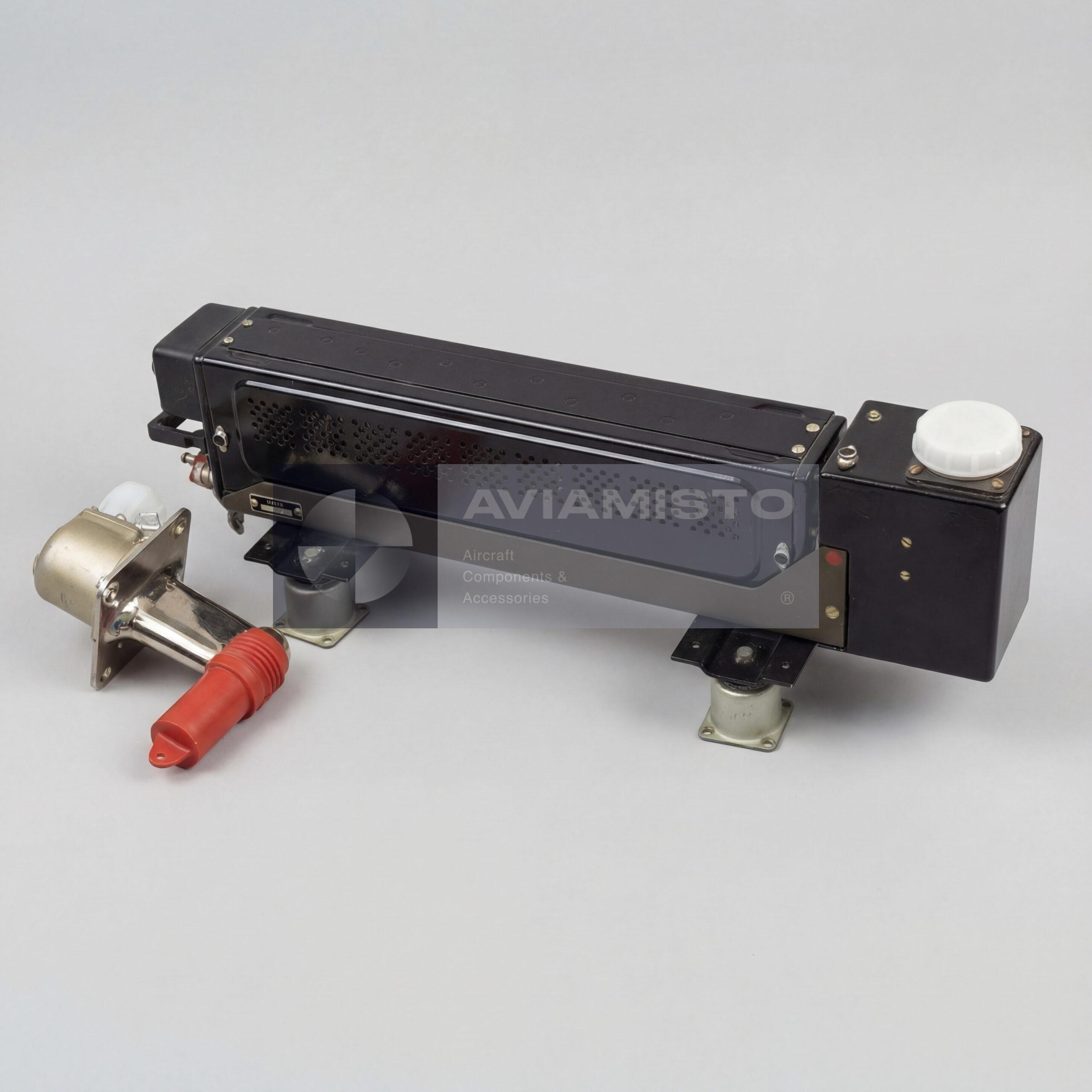

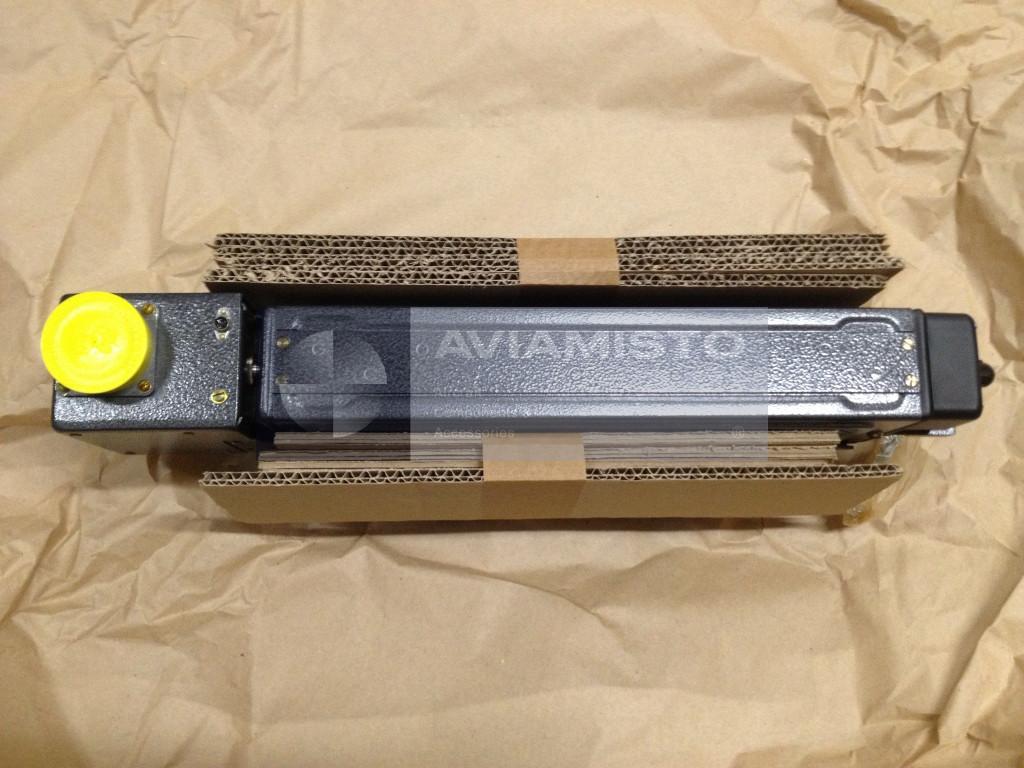

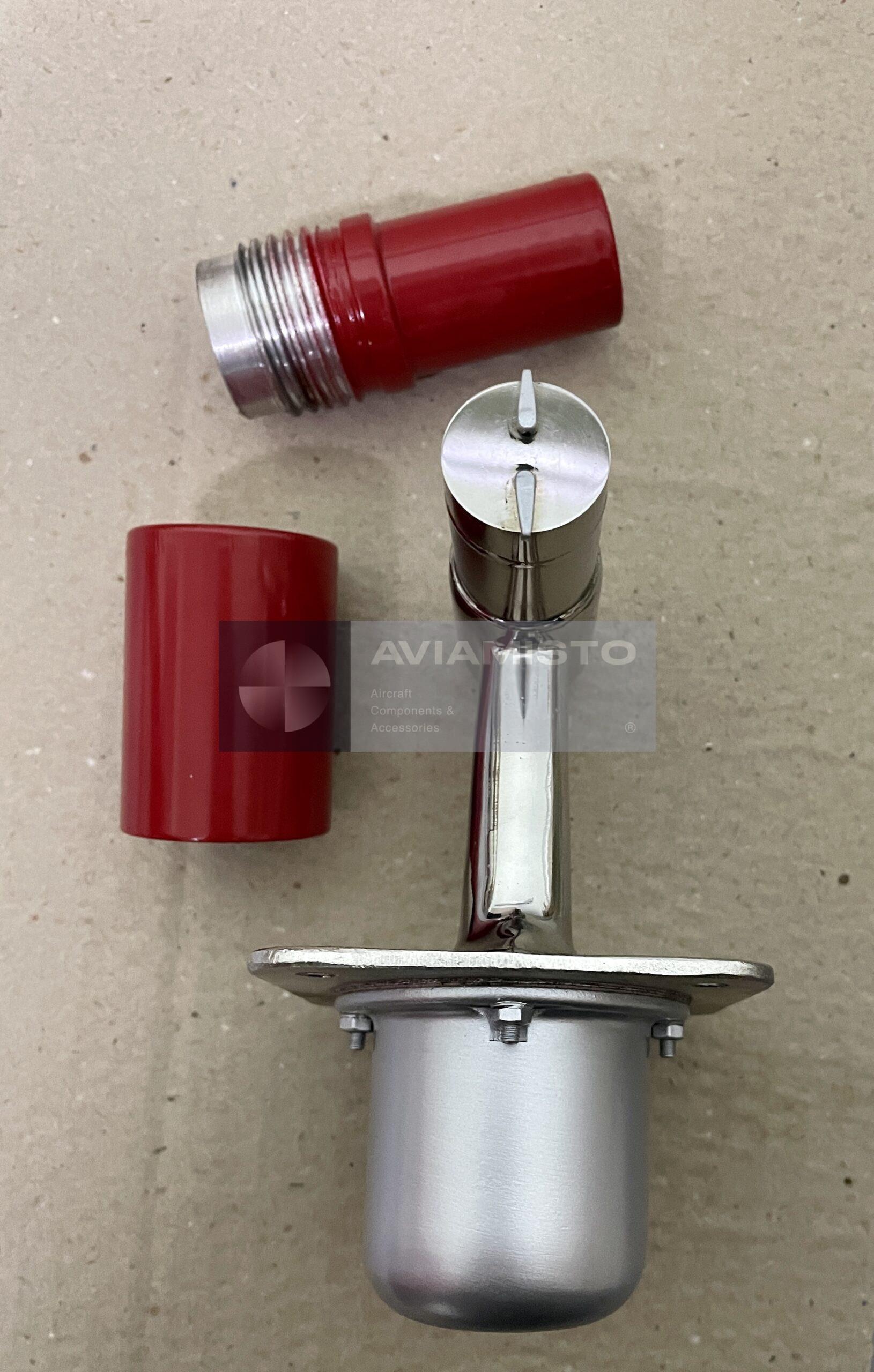

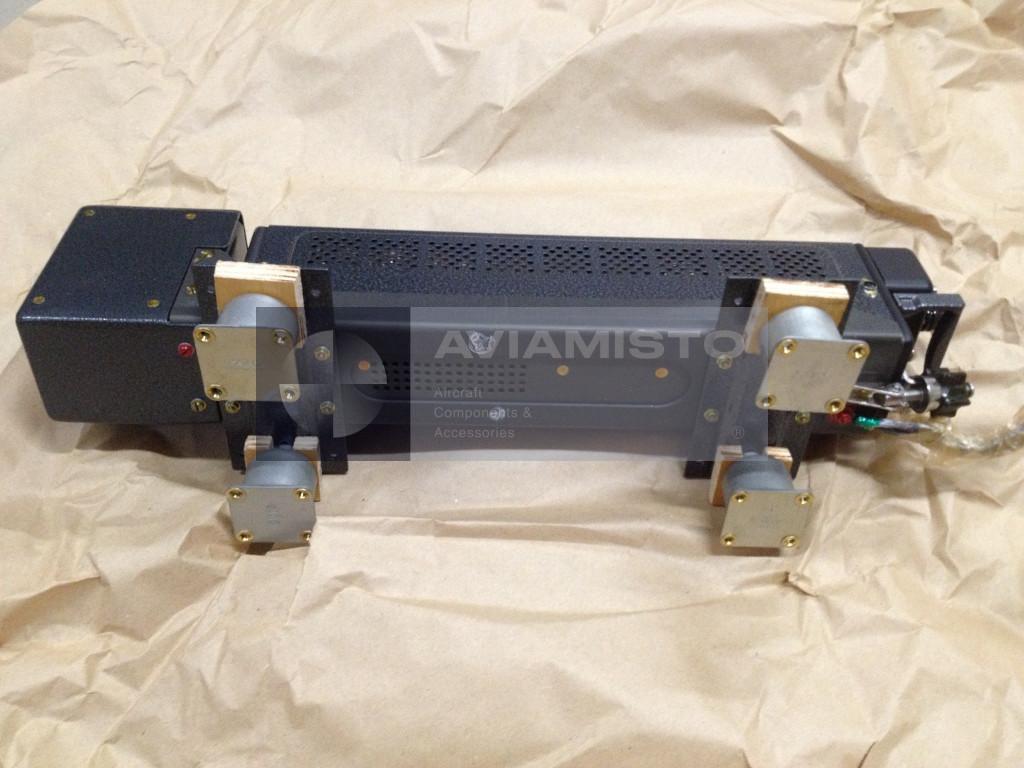

A standard SO-121VM set includes the DSL-40T ice detection sensor, the PE-11M electronic converter, and the RM-5 mounting frame. The sensor is mounted externally on the fuselage, typically in the left or right cockpit area depending on aircraft type. The electronic converter is installed inside the aircraft on the RM-5 frame. One or two sets may be installed on an aircraft, depending on the design and redundancy requirements. This separation between the external sensor and internal electronics helps protect the processing unit while keeping the sensing element exposed to airflow.

Aircraft application of the SO-121VM system

The SO-121VM is used on aircraft and helicopters including Mi-8, Ka-32, An-38, An-74, Il-96-300, and Mi-26, depending on modification and installed equipment. On helicopters, the system is especially relevant because icing can affect rotorcraft operation quickly and may influence air intakes, rotor blades, engine performance, and general flight safety. On fixed-wing aircraft, the detector supports warning and anti-icing control logic in the same way: it provides the system with confirmed information that icing has started or has disappeared.

SO-121VM command outputs and system behavior

After detecting icing, the SO-121VM generates defined output commands used by the aircraft electrical and warning systems. The system also includes a delay after ice disappears, which prevents commands from being removed too abruptly during unstable or intermittent icing conditions. This behavior is important in real operation, where ice may form, melt, or break away unevenly. The detector must avoid random switching and provide the aircraft with a reliable signal that reflects the actual state of icing exposure. Correct operation depends on sensor condition, heating logic, wiring, and electronic converter performance.

Identification and supply of SO-121VM components

When ordering or replacing SO-121VM equipment, it is important to clarify whether the requirement is for the full system set or for individual components such as the DSL-40T sensor, PE-11M converter, or RM-5 frame. These parts are not always supplied together unless the order specifies a complete set. The designation should also be checked in both Latin and Cyrillic forms: SO-121VM and СО-121ВМ. For aircraft use, the item should be matched with the aircraft parts catalog, wiring diagram, anti-icing system documentation, and available passport or technical documentation.

Related system equipment: DSL-40T, PE-11M, RM-5, 8AT-7420. These positions are grouped by system function and installation context, not as interchangeable replacements.
