2IA-6
temperature measuring system
Description
Dual temperature measuring system 2IA-6
2IA-6 is an aircraft onboard measuring system used for continuous monitoring of exhaust gas temperature on helicopter engines. The system is built as a dual-channel set, with one independent measuring channel for each engine. It is used with TV3-117 family engines installed on Mi-8MT / Mi-17, Mi-24 and related helicopter types. In the cockpit, the system gives the crew direct visual control of engine gas temperature during start, warm-up, takeoff and flight operation.
Full descriptionCollapse description
Measurement principle of 2IA-6
The 2IA-6 system works with thermoelectric sensors installed in the exhaust gas path. The T-102 thermocouple sets generate a low-level thermoelectric signal proportional to gas temperature. This signal passes through PK-6 transition units and goes to the 2UE-6B Series 2 electronic amplifier. After amplification and conversion, the signal drives the dual-pointer 2UT-6K cockpit indicator. The crew sees separate readings for the left and right engines, which makes it possible to compare engine temperature behavior in real time.
2IA-6 system components

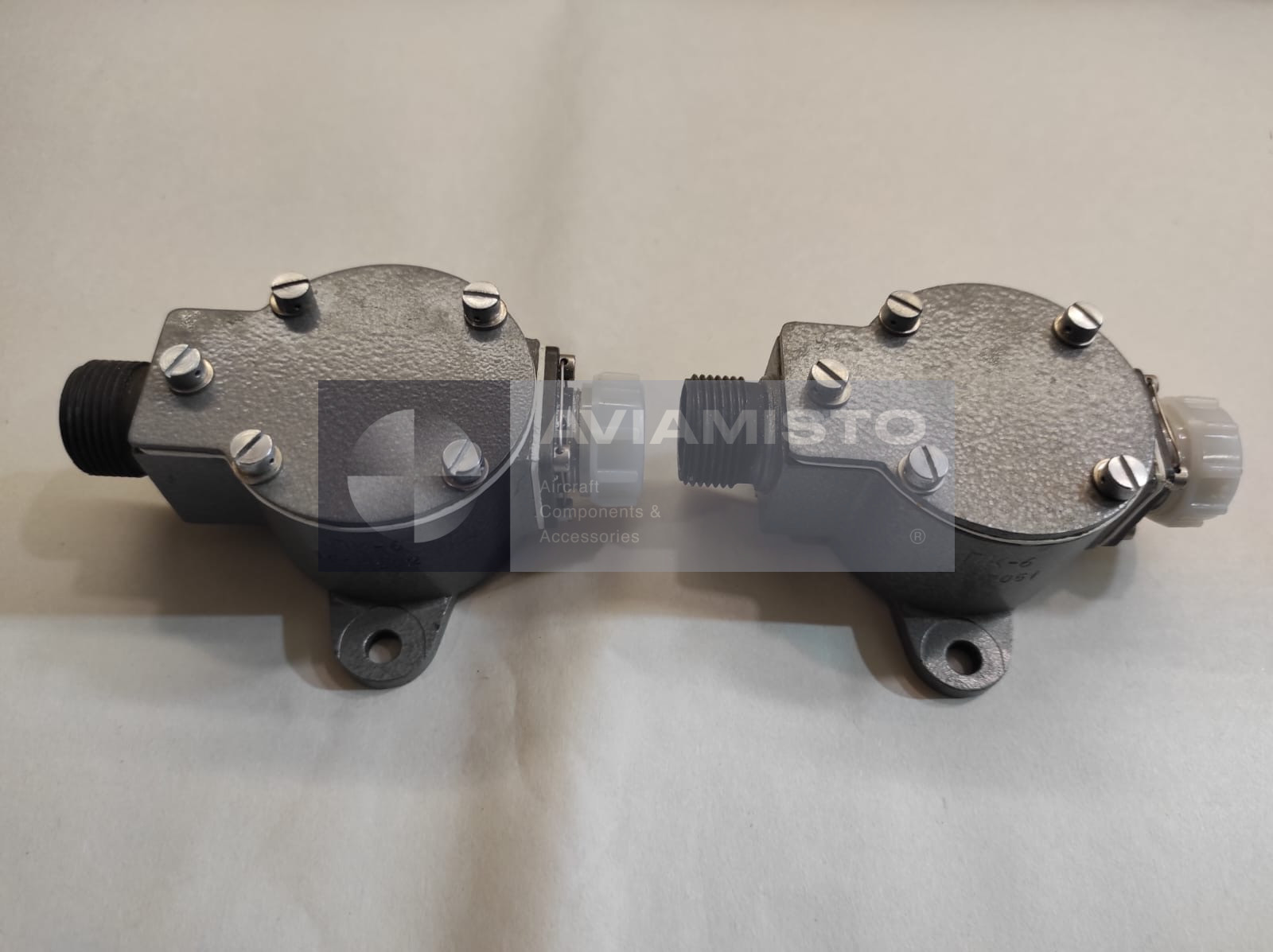

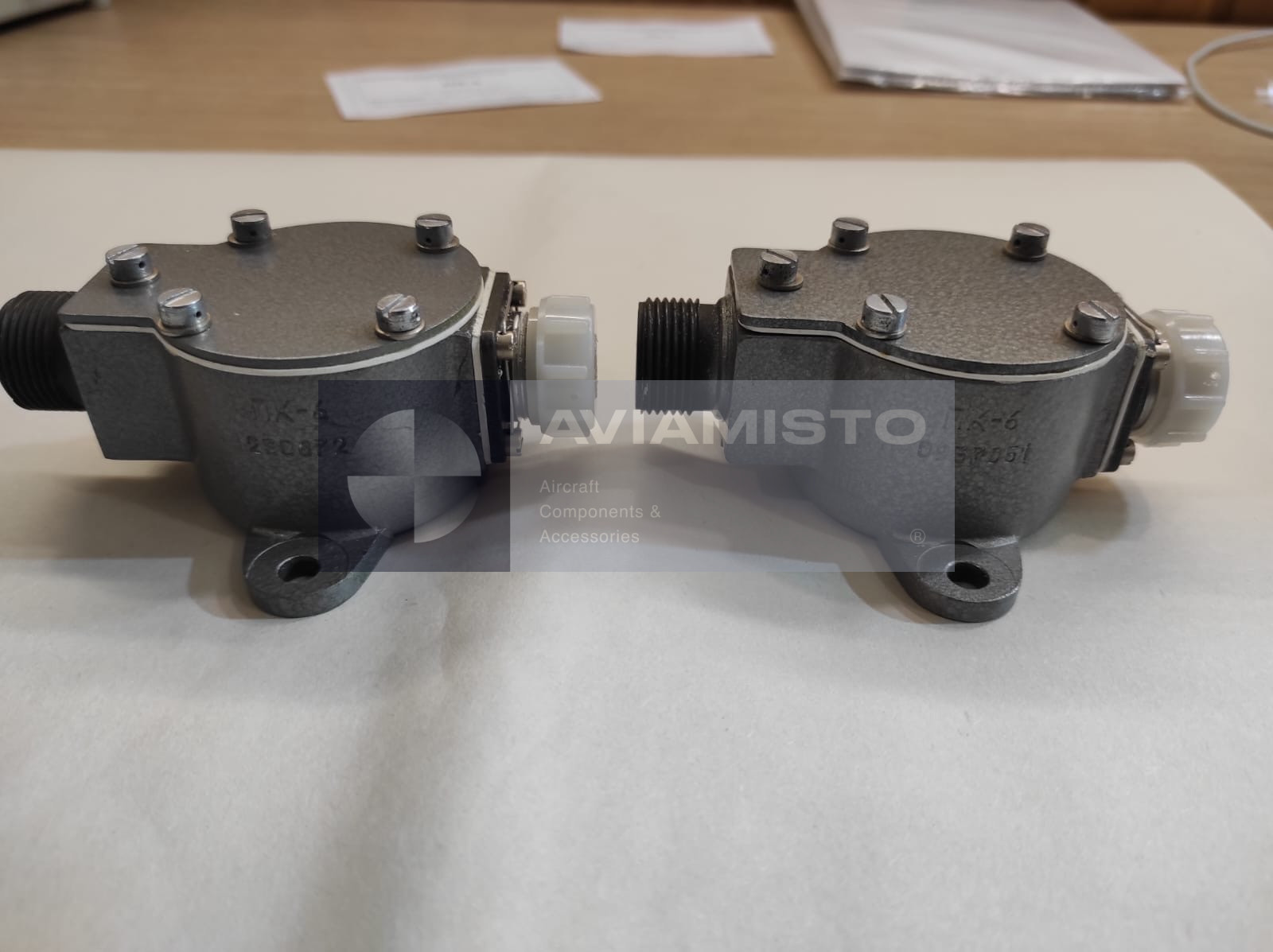

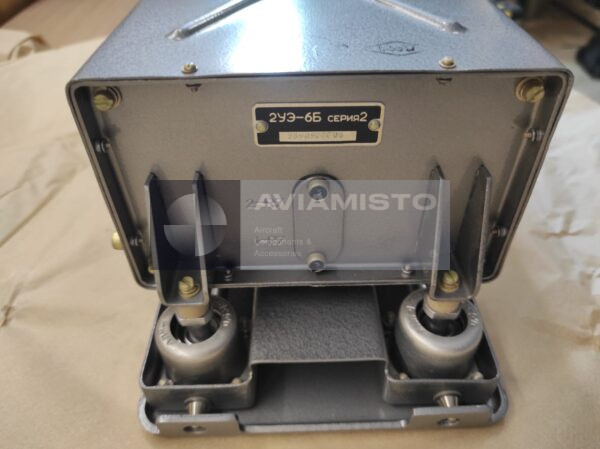

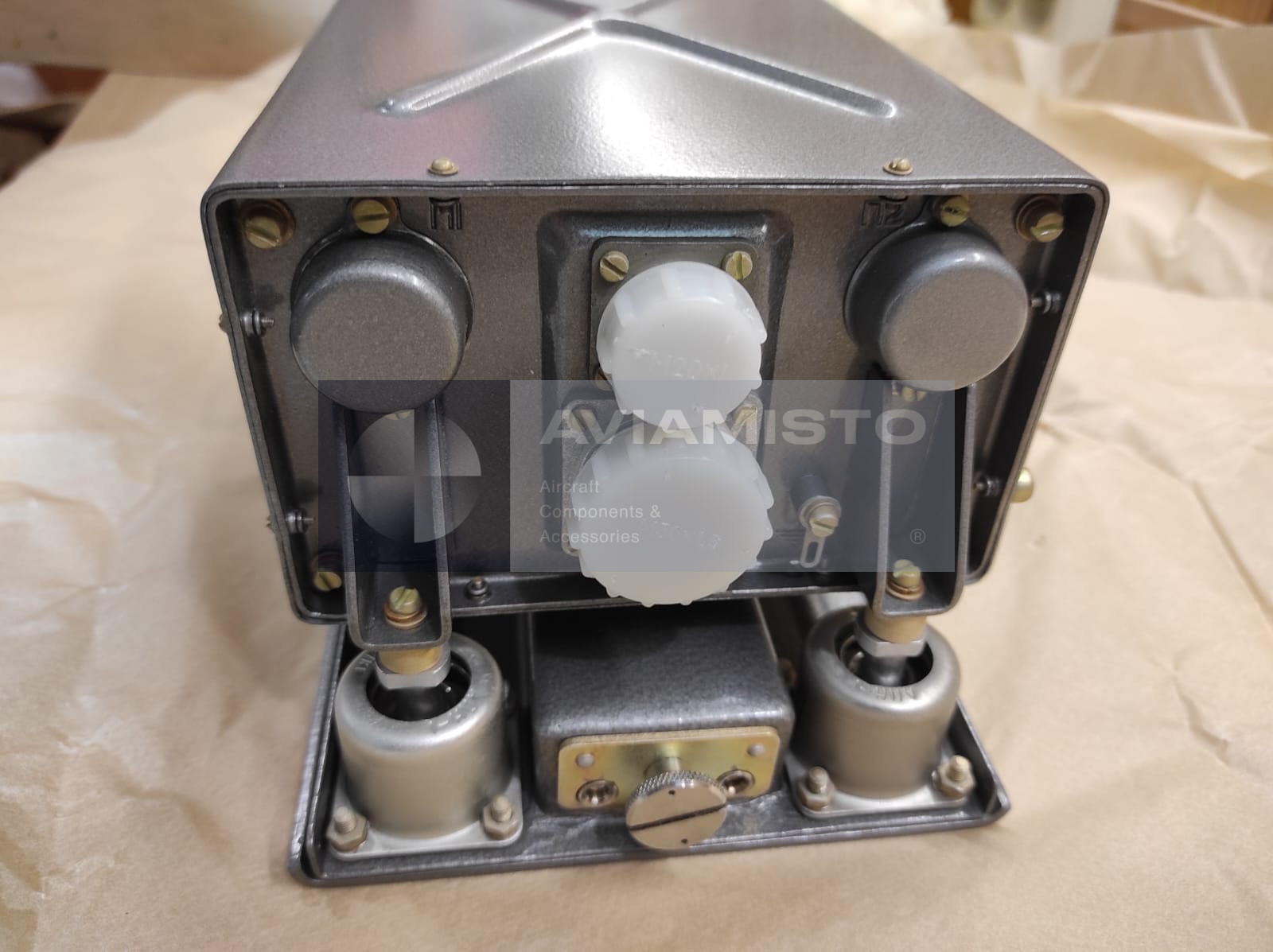

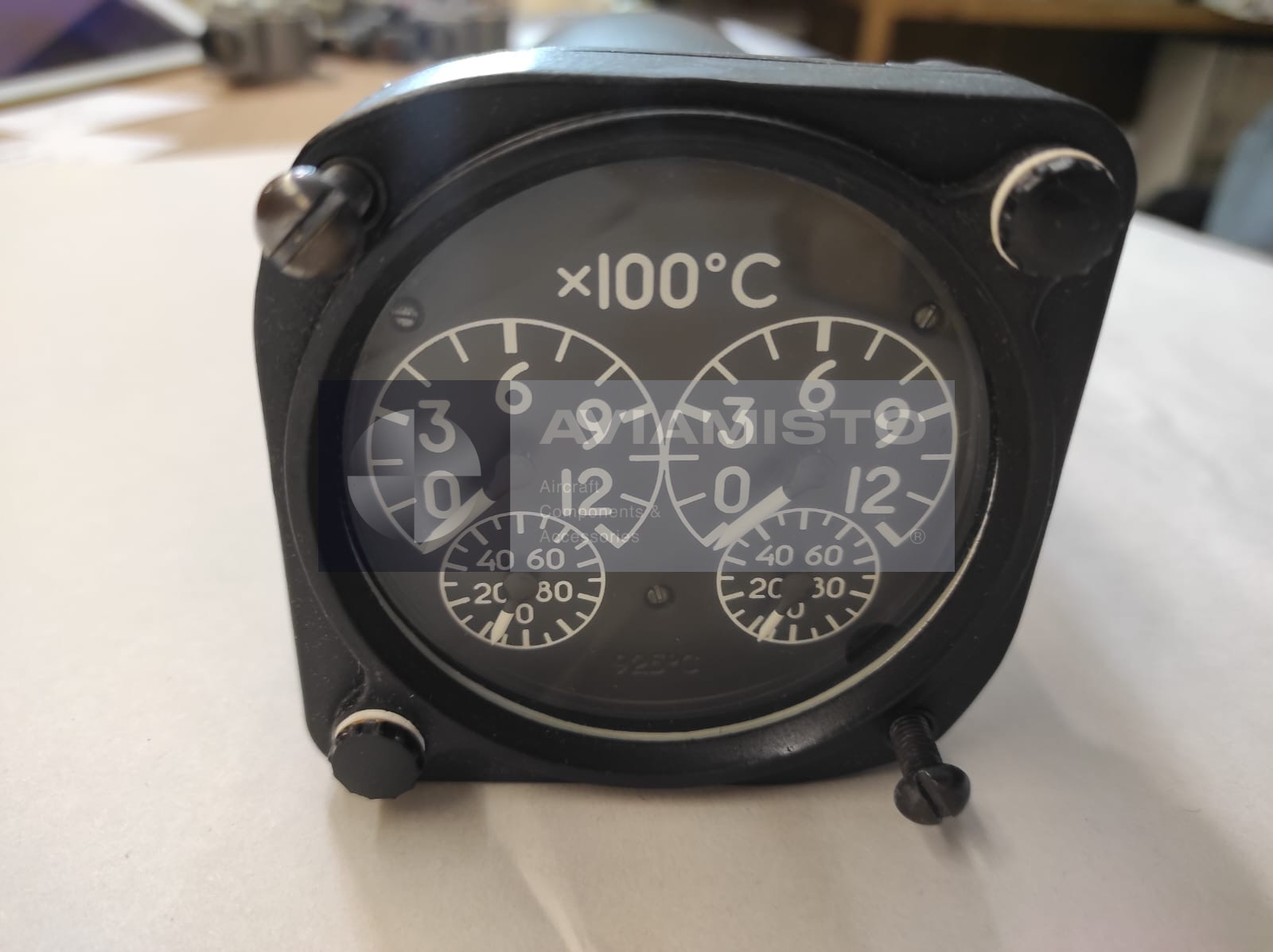

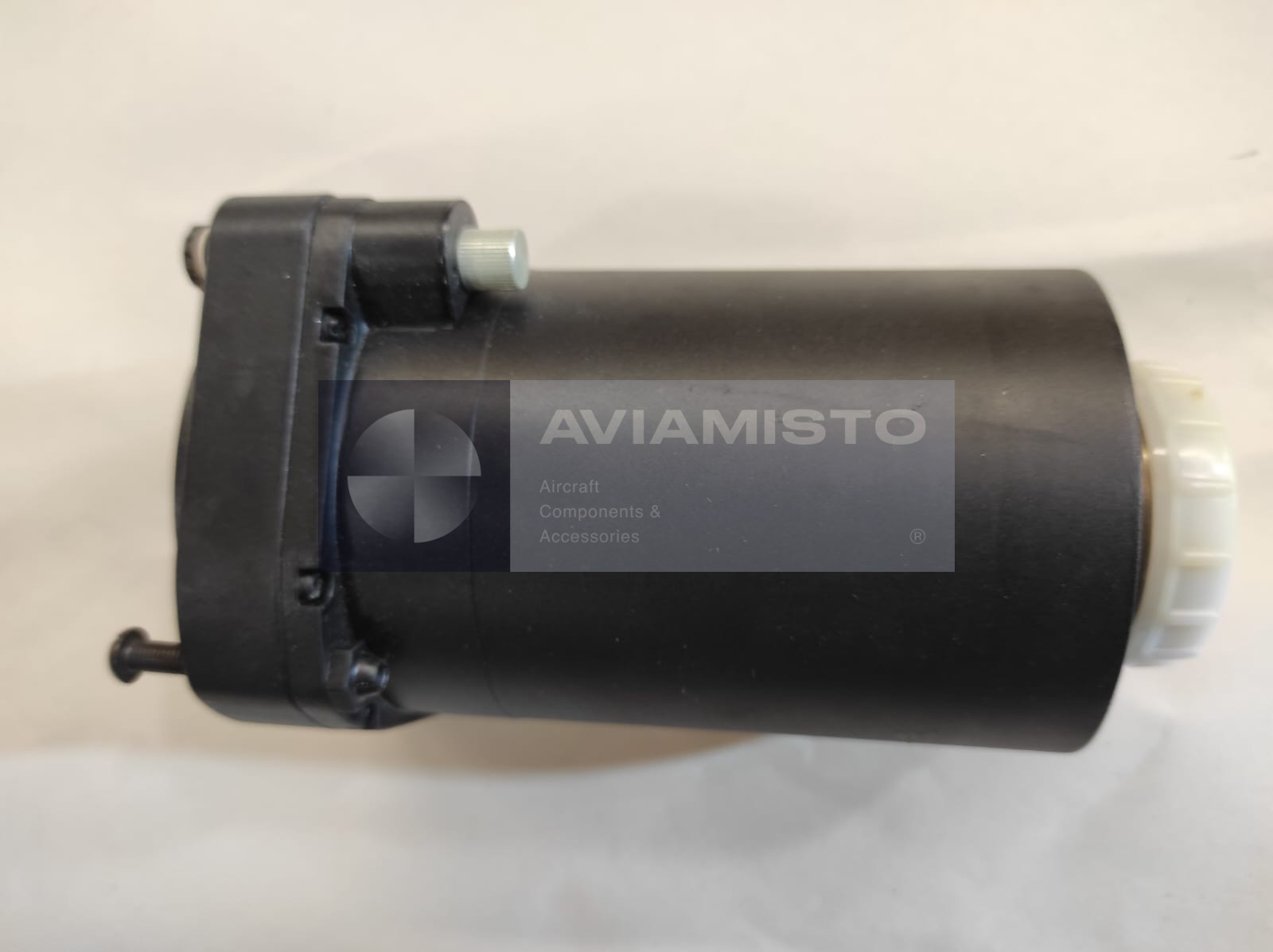

A complete 2IA-6 set includes several units rather than one single instrument. The 2UT-6K dual pointer indicator is installed on the cockpit instrument panel. The 2UE-6B Series 2 amplifier is usually installed in the radio equipment rack area. Two PK-6 transition blocks connect the sensor lines with the measuring circuit and associated temperature regulator circuits. The T-102 thermocouple set includes chromel-alumel sensors, arranged by engine to measure average exhaust gas temperature.
2IA-6 with TV3-117 engine control equipment
The 2IA-6 system is part of the engine monitoring chain and works alongside temperature regulation equipment such as RT-12-6 electronic temperature regulators. It does not control fuel flow by itself and does not limit engine temperature directly. Its role is measurement and indication. Still, its readings are important for the crew and maintenance personnel, because abnormal temperature indication may point to engine condition, thermocouple failure, wiring faults, amplifier issues or indicator malfunction.
Identification and ordering of 2IA-6
Before ordering 2IA-6 components, the aircraft documentation should be checked carefully. Complete systems and individual blocks are often requested separately, especially 2UT-6K indicators, 2UE-6B amplifiers, PK-6 transition units and T-102 thermocouple sets. For correct selection, provide the helicopter type, engine type, installed system configuration and the required unit number from the parts catalog or logbook. The product is also known under alternative designations 2IA-6 and 2ИА-6.
Technical details
- Product Type
- Dual exhaust gas temperature measuring system
- Function
- Continuous measurement and cockpit indication of engine exhaust gas temperature
- Application / Where Used
- Aircraft engine monitoring systems
- System / Installation Area
- TV3-117 engine exhaust gas temperature measurement system
- Compatible Aircraft / Equipment
- Mi-8MT, Mi-17, Mi-24 and other helicopters with TV3-117 family engines
All specificationsCollapse specifications
- Measurement Range
- 0 to 1200 °C
- Operating Measurement Range
- 300 to 1000 °C
- Accuracy in Operating Range
- ±6 °C
- Accuracy Outside Operating Range
- ±8 °C
- Pointer Drift and Oscillation
- Not more than ±6 °C
- Time to Readiness
- 1 min after power-on
- Input Signal
- Thermoelectromotive force from T-102 chromel-alumel thermocouples, XA characteristic
- DC Power Supply
- Aircraft DC power supply
- AC Power Supply
- 115 V, 400 Hz AC
- System Channels
- Two independent measuring channels
- Included Components
- 2UT-6K dual pointer temperature indicator; 2UE-6B Series 2 dual electronic amplifier; two PK-6 transition units; T-102 thermocouple set
- Thermocouple Set
- 28 T-102 thermocouples, 14 per engine, connected in parallel for average gas temperature measurement
- Associated Equipment
- RT-12-6 electronic engine temperature regulators
- Technical Documentation
- Product passport, aircraft maintenance manual, wiring diagrams, test and calibration documentation
