BUR-SL-1 Series 7
Onboard data recording unit
Description

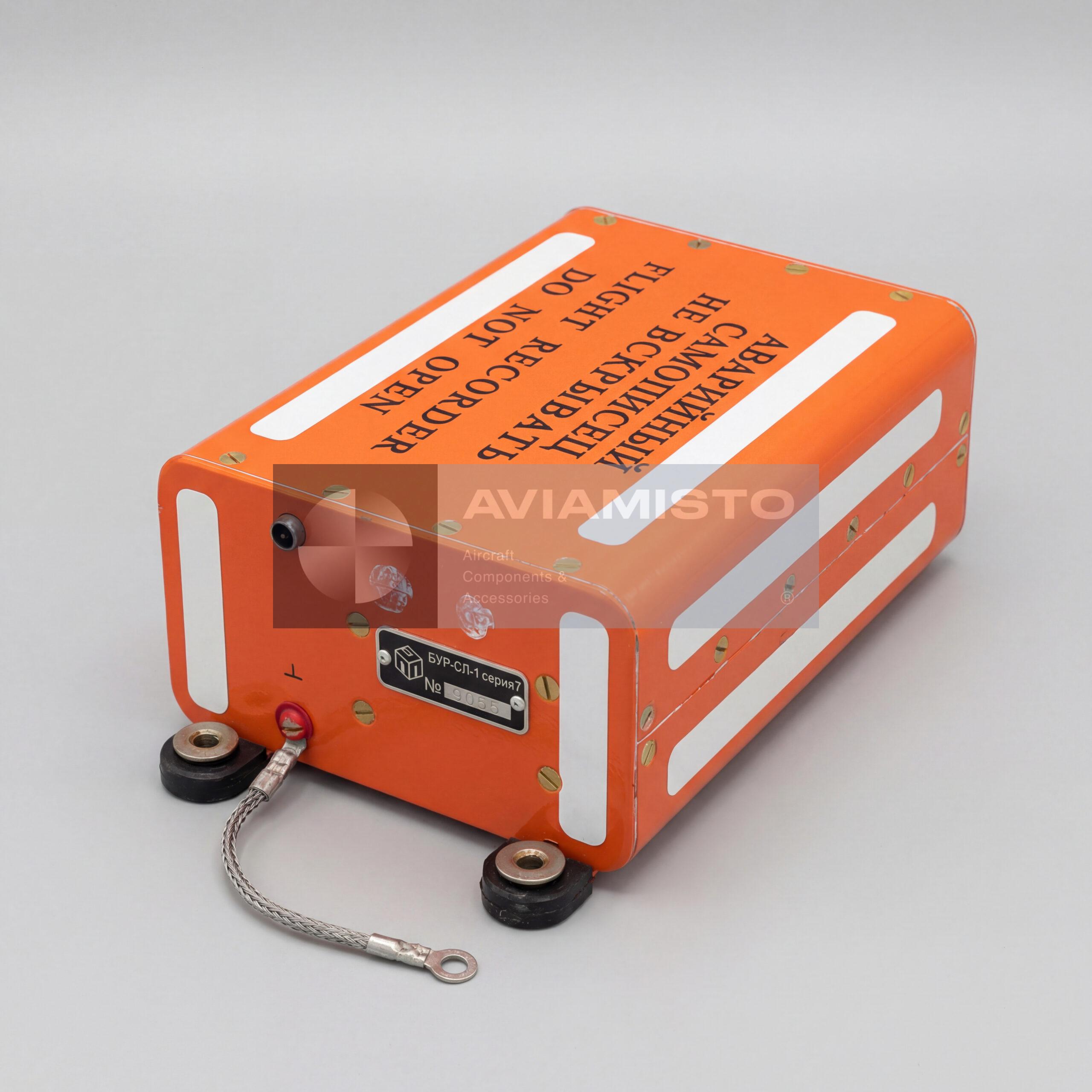

BUR-SL-1 Series 7 onboard solid-state recorder
BUR-SL-1 Series 7 is an onboard recording unit intended to collect, process and preserve operational and flight information. It supports accident and incident investigation as well as routine monitoring of aircraft operation. The solid-state design eliminates magnetic recording media and allows the unit to record multiple signal types in a programmed configuration. The exact Series 7 execution must be confirmed because other BUR-SL-1 series can differ in interfaces, channel capacity and system integration.
Full descriptionCollapse description
Signals and recording capacity
The recorder accepts analog signals, programmable discrete commands and navigation code signals through an RS-232 interface. It also records service information such as current time, power-on number and aircraft identification number. Recording duration depends on the selected word rate: the stored interval changes as the number of words recorded per second increases. Channel assignment, polling frequencies and the data frame are therefore part of the aircraft-specific configuration and must match the installed system documentation.
Readout and processing of BUR-SL-1 data
Recorded information can be transferred through RS-232 to an IBM-compatible computer or notebook and processed with the Dozor or Topaz-M ground systems identified for this equipment. This allows post-flight review without opening the protected memory section. When acquiring a unit, compatibility must be checked not only by connector appearance but also by software configuration, supported signal formats and the available ground readout equipment.
Aircraft use and protected construction
Documented applications for BUR-SL-1 Series 7 include the Mi-35 helicopter, M-101T Gzhel and Su-38 aircraft. The recorder is designed for use in aviation recording and operational-monitoring systems and is rated for vibration, shock, reduced pressure, humidity and temperature exposure. Its protected construction also specifies resistance to impact, static load, fire, sea water, fuel and extinguishing fluids. These characteristics describe survivability; they do not replace the installation approval for a particular aircraft.
Identification and related recording equipment
The requested unit should be specified as BUR-SL-1 Series 7, with the series, connector arrangement, software configuration and documentation confirmed before supply. Related catalogue positions include BUR-LKV-01 and RZBN-1, shown for navigation rather than interchangeability. The complete section is available in the flight recorders and tape devices category. General background on the purpose and operation of this equipment class is available in the flight recorder reference article.
Technical details
- Product Type
- Onboard data recording unit
- Function
- Collection, recording, and preservation of operational and flight data
- Application / Where Used
- Flight data and operational monitoring systems
- System / Installation Area
- Onboard data recording system
- Compatible Aircraft / Equipment
- Mi-35 helicopter; M-101T “Gzhel”; Su-38
All specificationsCollapse specifications
- Operating Voltage
- 27 V DC (18 to 31 V)
- Power Consumption
- 3 W
- Weight
- 1.95 kg
- Dimensions
- 209 × 130 × 70 mm
- Recorded Signal Types
- Analog signals; discrete commands; RS-232 navigation code signals
- Analog Input Channels
- 15
- Discrete Command Inputs
- 17 programmable
- Polling Frequency
- 1, 2, 4, 8, 16 Hz
- Service Data Recorded
- Current time; power-on number; aircraft identification number
- Recording Duration
- 32 h at 32 words/s; 16 h at 64 words/s; 8 h at 128 words/s
- Data Readout Interface
- RS-232 to IBM-PC/Notebook
- Data Processing Systems
- Dozor; Topaz-M
- Shock Overload Resistance
- 1000 g, 5 ms
- Static Load Resistance
- 750 kg for 5 min along three axes
- Fire Resistance
- +750 °C for 15 min (50 % surface)
- Sea Water Resistance
- 72 h
- Fuel and Extinguishing Fluids Resistance
- 30 min
- Operating Temperature Range
- −55 to +55 °C
- Relative Humidity
- Up to 98 % at +35 °C
- Reduced Pressure Resistance
- 41.1 mm Hg
- Vibration Resistance
- 5 to 2000 Hz, 5 g
- Shock Resistance
- Up to 15 g
- Linear Acceleration Resistance
- Up to 5 g
- Mean Time Between Failures
- 20,000 h
- Technical Documentation
- Product passport; certificate of airworthiness SGKI 142-180-BUR-SL-1 dated 19.09.2005
