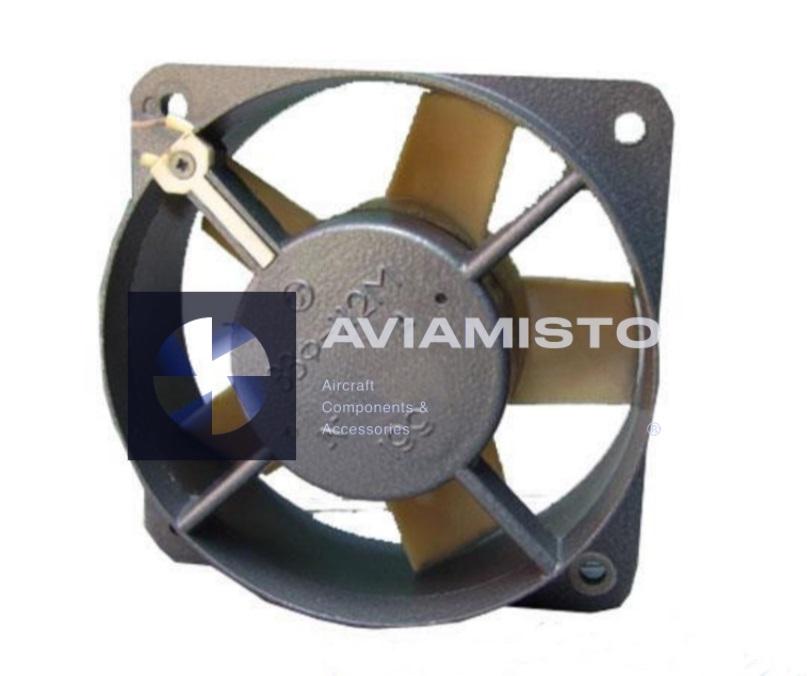

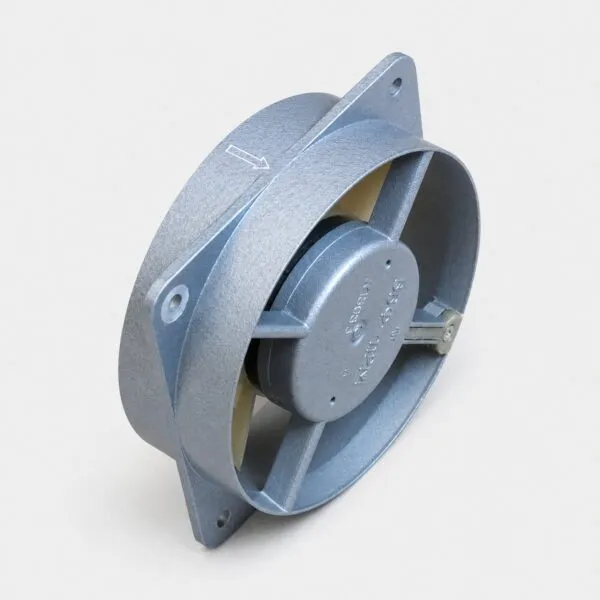

VVF-112M

Function and construction of VVF-112M

The rotating impeller creates forced airflow through or around the cooled equipment. The fan is designed for equipment thermal control rather than general room ventilation. Actual performance after installation depends on inlet and outlet resistance, guards, enclosure geometry and the correct direction of airflow.

The fan is a component of the cooled equipment, not a self-contained ventilation system. Performance after installation depends on the resistance of the airflow path, unobstructed inlet and outlet, correct rotation and the electrical supply specified for the exact execution.

Electrical and airflow parameters

Nominal airflow at zero static pressure is 2.3 m³/min and the minimum airflow is 2.07 m³/min. Nominal static pressure at zero airflow is 4.6 kgf/m², with a stated minimum of 4 kgf/m². Nominal speed is 2,720 rpm and power consumption is not more than 20 W.

Free-air airflow, total pressure and static pressure describe different operating points. They must be interpreted together and checked against the equipment passport rather than compared by one number alone.

Operating conditions and inspection

VVF-112M is rated for continuous S1 duty according to GOST 183-74 and climatic version UHL category 4.2 according to GOST 15150-69. It remains operational with supply-voltage deviation from +10% to −15%, at ambient temperature up to +55 °C and under vibration from 1 to 55 Hz with amplitude not more than 0.1 mm.

Incoming inspection should cover the marking, housing, impeller, connector or leads, mounting points and free rotation. During operation, unusual noise, vibration, overheating, current deviation or reduced airflow requires investigation according to approved maintenance documentation.

Related cooling fans and selection

Functionally related products include VVF-71M and VVF-71. These links are provided for navigation within the cooling family and do not establish electrical, mechanical or installation interchangeability.

Application to a particular aircraft, helicopter, ground unit or electronic block must be confirmed by its illustrated parts catalogue, wiring diagram or approved maintenance documentation. Category placement alone is not evidence of installation on a specific platform.

Identification and ordering

The designation may be encountered as VVF-112M; VVF112M; ВВФ-112М; ВВФ112М. These are writing and search variants; any suffix, acceptance mark or execution code visible on the nameplate remains significant.

An inquiry should state the complete marking, quantity, required condition, delivery set and documentation requirements. Other models are listed in the Cooling & Ventilation Fans category. Availability and the presence of a passport or test record are confirmed for the offered item.
