50VTS-18-2AL
Centrifugal fan
Description

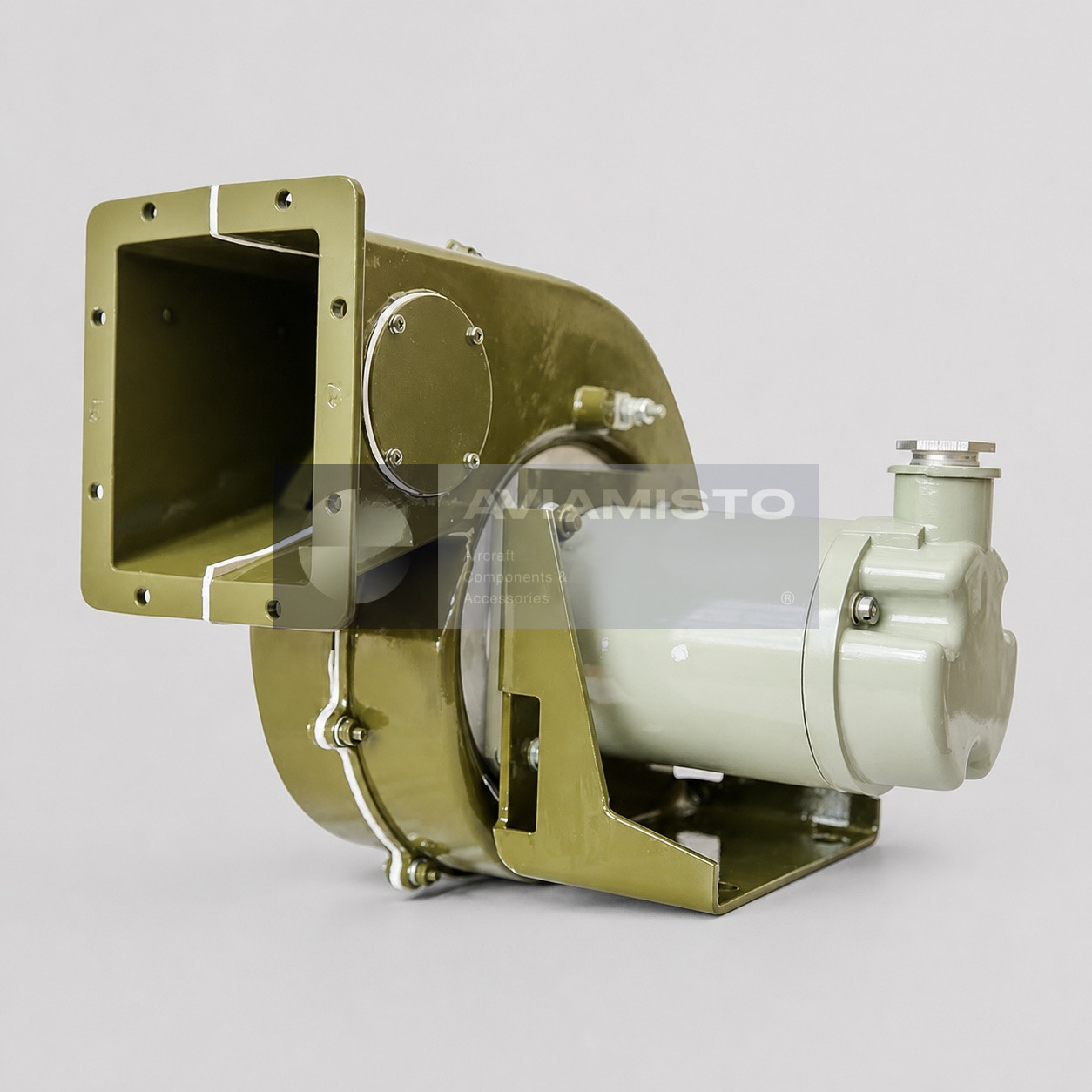

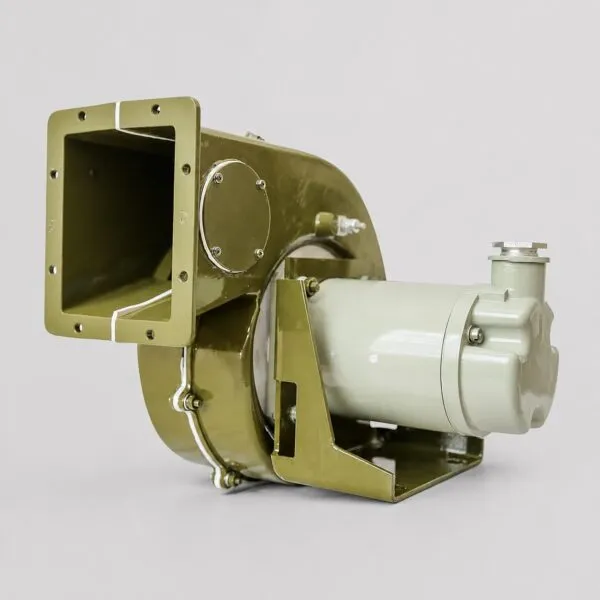

50VTS-18-2AL aviation fan
50VTS-18-2AL is a centrifugal equipment-cooling fan used to create controlled airflow in the installation specified by the applicable aircraft or equipment documentation. The complete designation is the primary identification key: housing size, motor appearance or a shared voltage does not establish interchangeability.
A fan converts motor power into airflow, but the installed result depends on pressure, duct resistance, mounting and operating conditions. This card separates confirmed data for 50VTS-18-2AL from general family information.
Full descriptionCollapse description
Function and documented application
Application: Forced cooling of radio-electronic equipment where a compact centrifugal airflow path is specified. The source basis is KRZED catalogue. Where an aircraft type is named, it describes documented use and does not make every modification or installation automatically compatible.
In operation the fan works together with the power circuit, protection devices, wiring or connector, mounting hardware and the airflow path. Correct polarity or phase sequence, clear inlet and outlet paths and secure mounting are necessary for a meaningful functional check.
Identification and related equipment
The original designation uses Cyrillic ВЦ and АЛ. VTS and VC are search transliterations only; the data plate and passport remain decisive. Closely related catalogue positions include 40VO-6.5-2A and 59VO-6-2A. These links support navigation and system comparison; they do not state that the products are interchangeable.
When checking a removed unit, record the complete nameplate, suffix, serial or drawing reference, connector, airflow direction and mounting dimensions. Photographs of the label and installation position are useful when several visually similar executions exist.
Installation and maintenance checks
Before installation, inspect the housing, impeller or propeller, motor, fasteners, connector or leads and mounting points. The rotating assembly must move freely without contact, deformation or foreign objects. Electrical tests must use the documented supply and protection limits.
Maintenance checks normally cover contamination, unusual noise, vibration, current draw, temperature and actual airflow. Disassembly, lubrication, balancing or component replacement should be performed only under an approved procedure for the exact execution.
Ordering 50VTS-18-2AL
An enquiry should state the complete 50VTS-18-2AL marking, quantity, required condition, delivery set and documentation. Condition, test scope, production date and included accessories are confirmed for the offered unit. More products are listed in the Cooling & Ventilation Fans category.
Technical details
- Product Name
- 50VTS-18-2AL
- Product Type
- Centrifugal equipment-cooling fan
- Primary Designation
- 50VTS-18-2AL
- Alternative Designations
- 50VTS-18-2AL; 50VC-18-2AL; 50VTS18-2AL; 50ВЦ-18-2АЛ
- Application
- Forced cooling of radio-electronic equipment where a compact centrifugal airflow path is specified
All specificationsCollapse specifications
- Technical Basis
- AMIV.630250.002 TU
- Airflow
- 500 m³/h
- Total pressure
- 180 kgf/m²
- Input power
- Not more than 500 W
- Rotational speed
- Not less than 11,400 rpm
- Current
- Not more than 1.70 A
- Mass
- Not more than 5.00 kg
- Sound level
- Not more than 82 dBA
- Dimensions
- 231 × 238 × 214 mm
- Mounting holes
- 4.8 mm diameter
- Operating temperature
- −60 to +100 °C
- Selection Basis
- Complete marking, suffix, electrical ratings, airflow path, connector and mounting geometry
- Interchangeability
- Only when confirmed by the applicable parts catalogue or approved documentation
- Documentation
- Product passport and applicable installation or maintenance documentation
- Category
- Cooling & Ventilation Fans
