MPK-15-5 Series 2

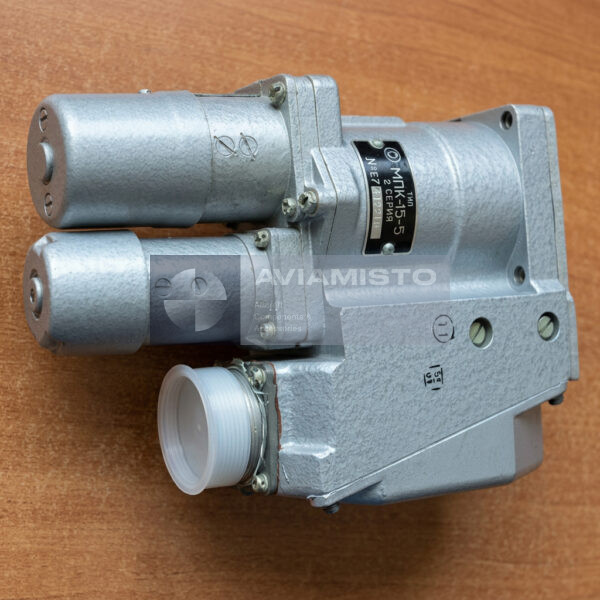

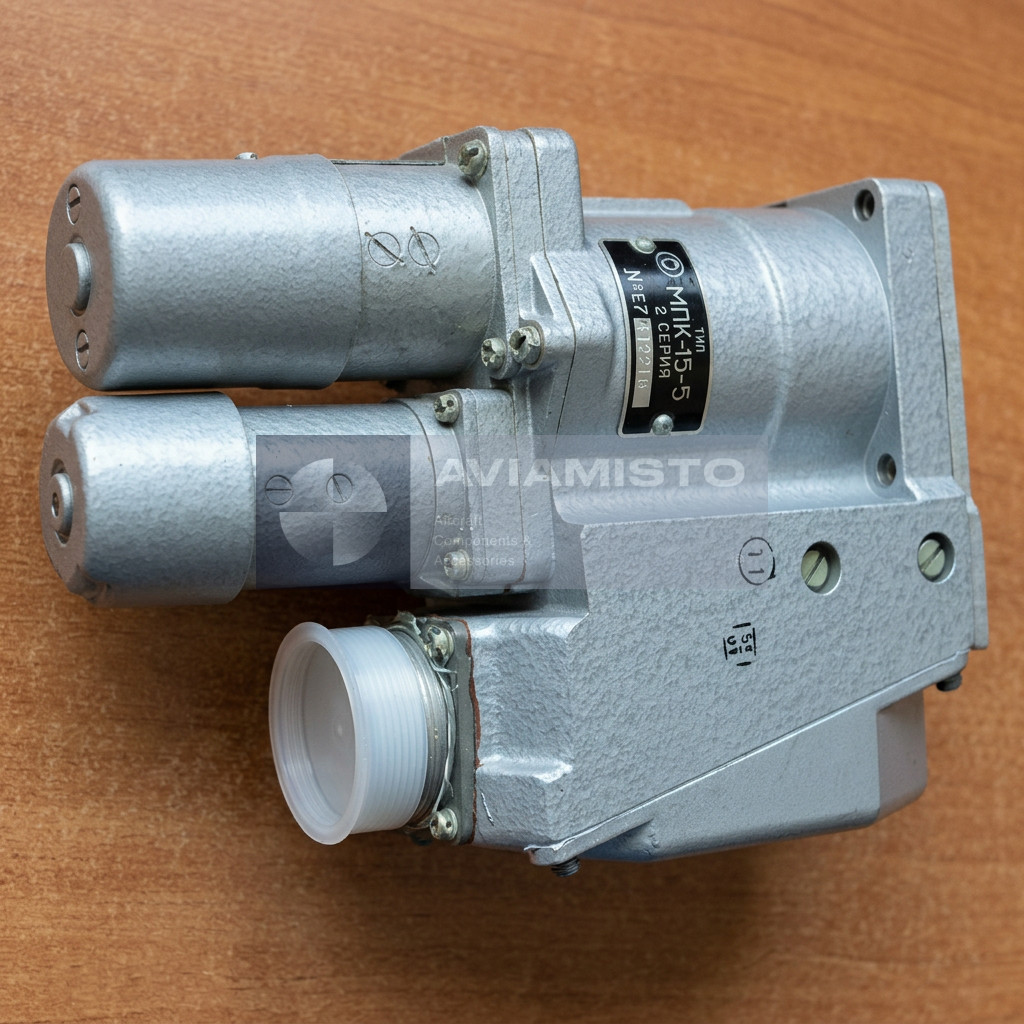

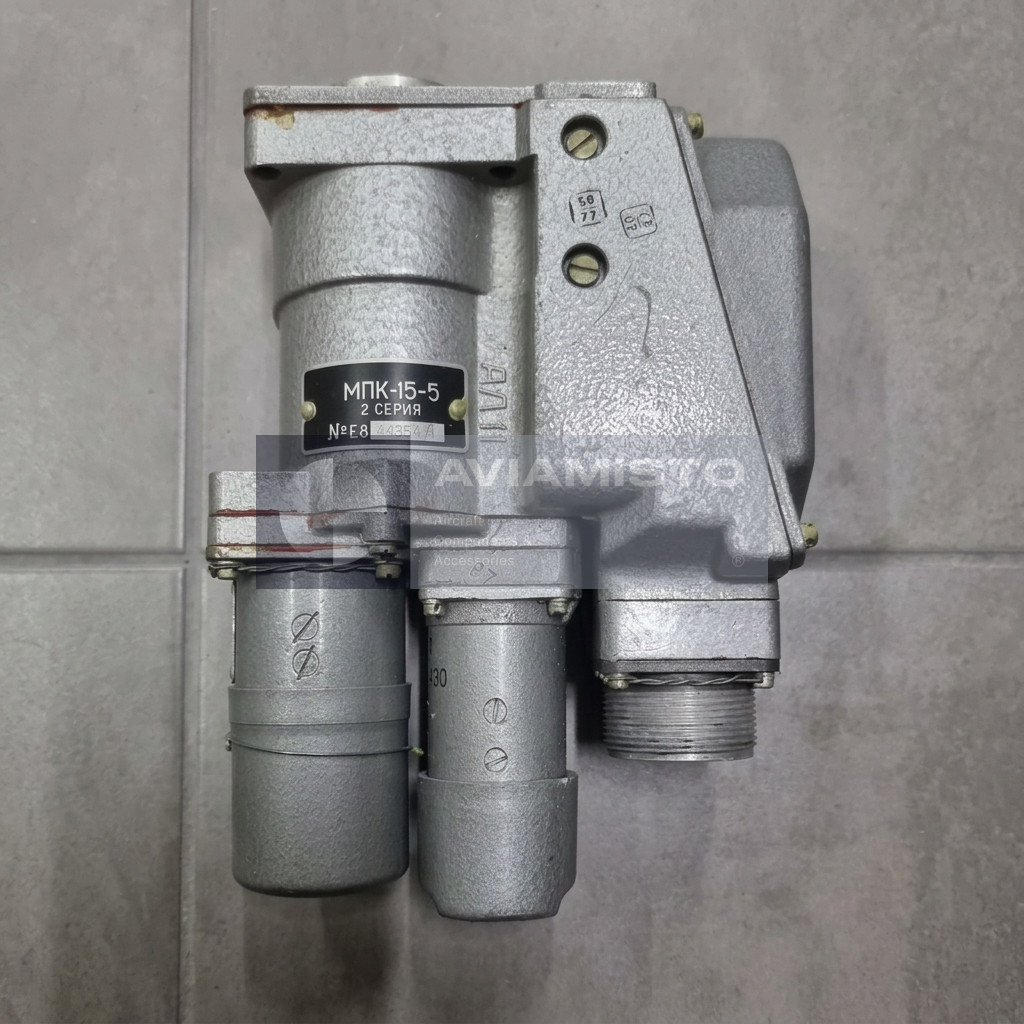

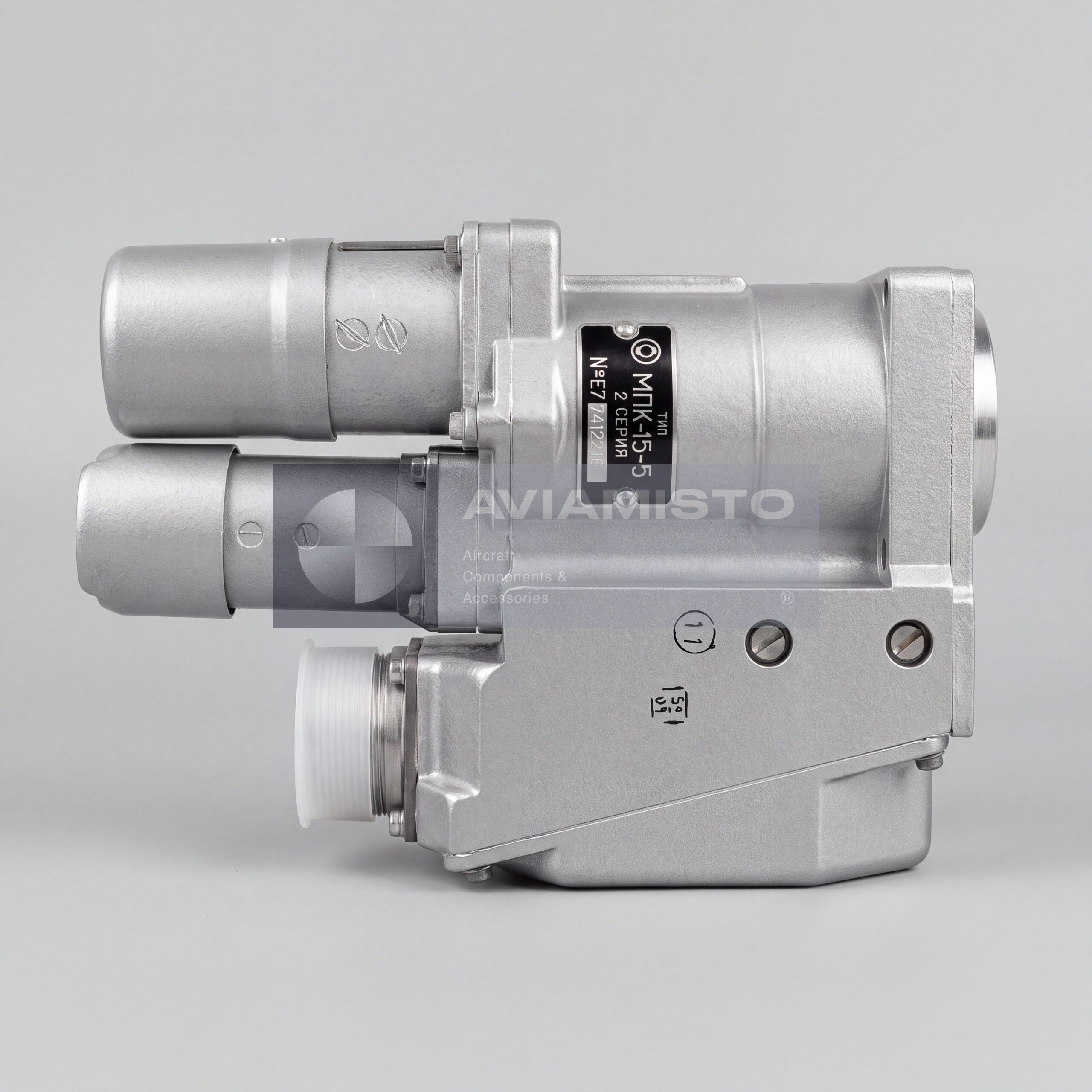

MPK-15-5 Series 2 rotary electromechanism

MPK-15-5 Series 2 is an aviation rotary electromechanism with limited output shaft travel. The unit is used for remote actuation of fuel valves, air-system shutters, anti-icing system dampers and other controlled devices in aircraft and industrial equipment. It operates from a 27 V DC power supply and provides reversible rotation of the output shaft through a set angle. The mechanism is designed for installations where a valve or shutter must be moved electrically and held in a defined position.

Function of MPK-15-5 Series 2

The main function of MPK-15-5 Series 2 is remote control of rotary actuating elements. The mechanism receives an electrical command and turns the output shaft to open, close or regulate the connected valve or damper. It can be used in fuel, air conditioning, ventilation, anti-icing and other systems where cockpit or automatic control is required. The built-in drive system converts motor rotation into controlled shaft movement, while the limited-travel design prevents unrestricted rotation of the connected equipment.

Two-motor design and torque limiting clutch

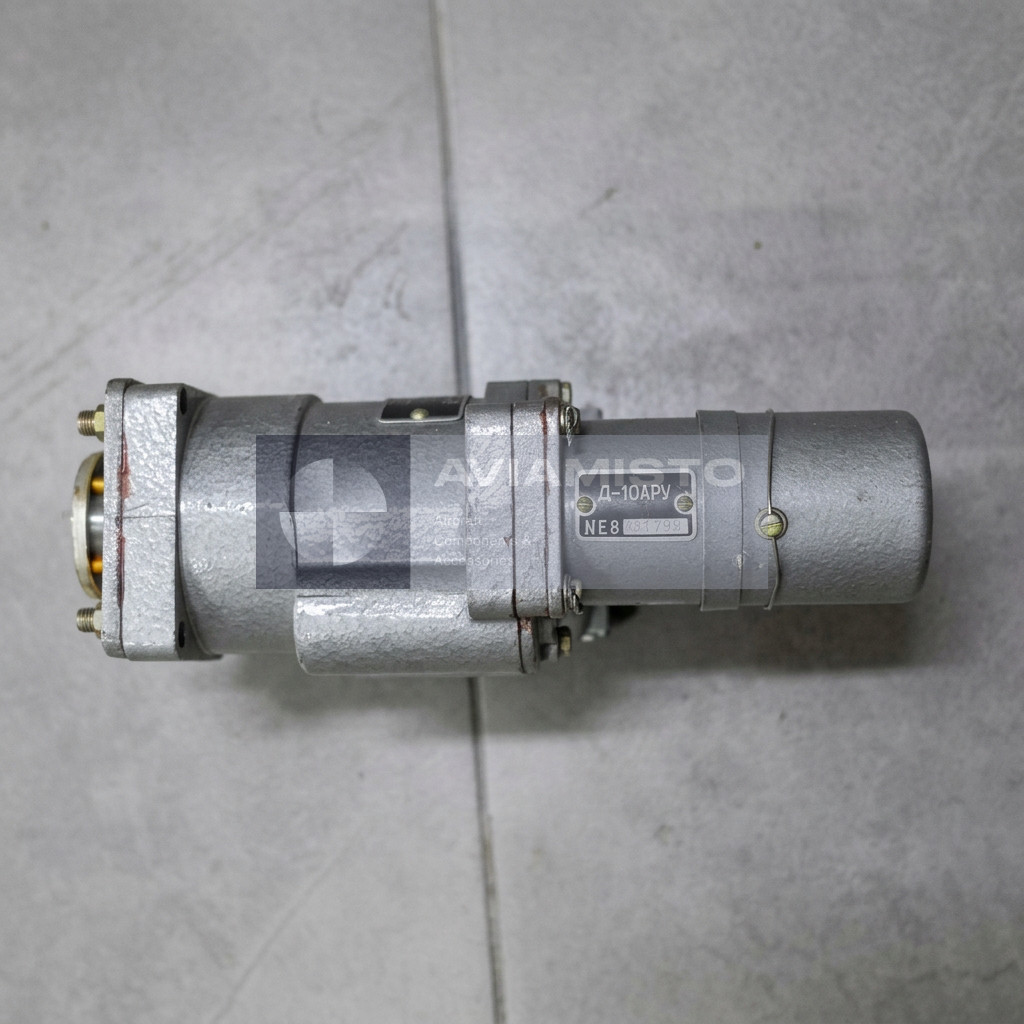

MPK-15-5 Series 2 is described as a two-motor mechanism using D-10ARU type electric motors. The two-motor layout allows normal and backup / emergency operation depending on the aircraft system logic. A friction torque-limiting clutch protects the mechanism and connected valve or shutter from overload at end positions or if the driven element jams. This construction is useful for aircraft systems where reliable actuation is required, but mechanical damage from excessive torque must be avoided.

Adjustable output shaft travel

The MPK-15-5 Series 2 mechanism has a limited and adjustable output shaft angle. In the supplied context, the working travel is described as adjustable by external rigid stops, with values from 25° to 95° for MPK-15-5 and up to 180° in broader MPK-15 references. For this reason, the exact required travel angle must be checked before replacement. During installation or maintenance, technicians should confirm end-stop adjustment, limit switch operation, travel time, shaft alignment and the condition of the connected valve or damper.

Aircraft application of MPK-15-5 Series 2

MPK-15-5 Series 2 is associated with several Soviet and Russian aircraft types. The supplied context identifies Tu-22M aircraft as one of the most known applications, especially in cabin air conditioning control and emergency air shut-off functions. It also mentions Il-76, Yak-40 and Mi-8 / Mi-17 / Mi-171 family helicopters in applications related to air lines, anti-icing systems, life-support systems, ventilation and fuel shut-off valves. Exact applicability must be confirmed through the aircraft equipment list and system documentation.

Identification and ordering of MPK-15-5 Series 2

Before ordering MPK-15-5 Series 2, the buyer should confirm the aircraft type, installation system, required shaft travel, connector type, motor configuration, condition and documentation set. It is also important to clarify whether the unit is required as a standalone electromechanism or together with a valve, damper or shut-off assembly. The mechanism may be needed for aircraft system repair, replacement of a failed valve actuator, overhaul stock or industrial equipment support. Product passport, year of manufacture, storage condition and test records should be checked before shipment.

Product Type: Rotary aircraft electromechanism / limited-angle actuator
Designation: MPK-15-5 Series 2
Russian Designation: МПК-15-5 2 серия
Alternative Designations: MPK-15-5 2nd Series, МПК-15-5 2-й серии, МПК15-5, MPK15-5
Function: Remote actuation of fuel valves, air-system shutters, anti-icing dampers and regulating devices
Application / Where Used: Aircraft fuel, air conditioning, ventilation, anti-icing and life-support systems
System / Installation Area: Fuel shut-off valves, air dampers, anti-icing system shutters, cabin air conditioning valves and related actuating devices
Compatible Aircraft / Equipment: Tu-22M, Il-76, Yak-40, Mi-8, Mi-17, Mi-171 and other aircraft or industrial equipment according to source context and documentation
Drive Type: Reversible rotary electromechanism with limited output shaft travel
Motor Type: D-10ARU electric motor, two-motor configuration according to source context
Power Supply: 27 V DC
Current Consumption: Not more than 1.7 A
Output Torque Reference: 255 kgf·cm according to one source context; 14.7 N·m / approximately 150 kgf·cm according to another source context
Friction Clutch Actuation Torque: 34.3 to 49 N·m, referenced to output shaft
Output Shaft Travel: Adjustable; 25° to 95° for MPK-15-5 context; up to 180° in broader MPK-15 references
Travel Time for 95°: Not more than 7 seconds with two motors; approximately 14 seconds with one motor, according to source context
Duty Mode: Intermittent / repeated short-time operation
Power System: Two-wire system
Dimensions: 69 × 138 × 195 mm; alternative reference 74 × 135 × 190 mm
Weight: 2.75 kg; maximum reference up to 3.1 kg depending on configuration
Construction Features: Two-motor drive, reduction gearbox, output shaft, friction torque-limiting clutch, limit / stop adjustment elements and plug connector
Climatic Design: All-climate execution according to source context
Related Components: Valves, shutters, end stops, connector wiring and mounting hardware depending on installation
Condition: New / As-Stored / Overhauled / Serviceable, depending on availability

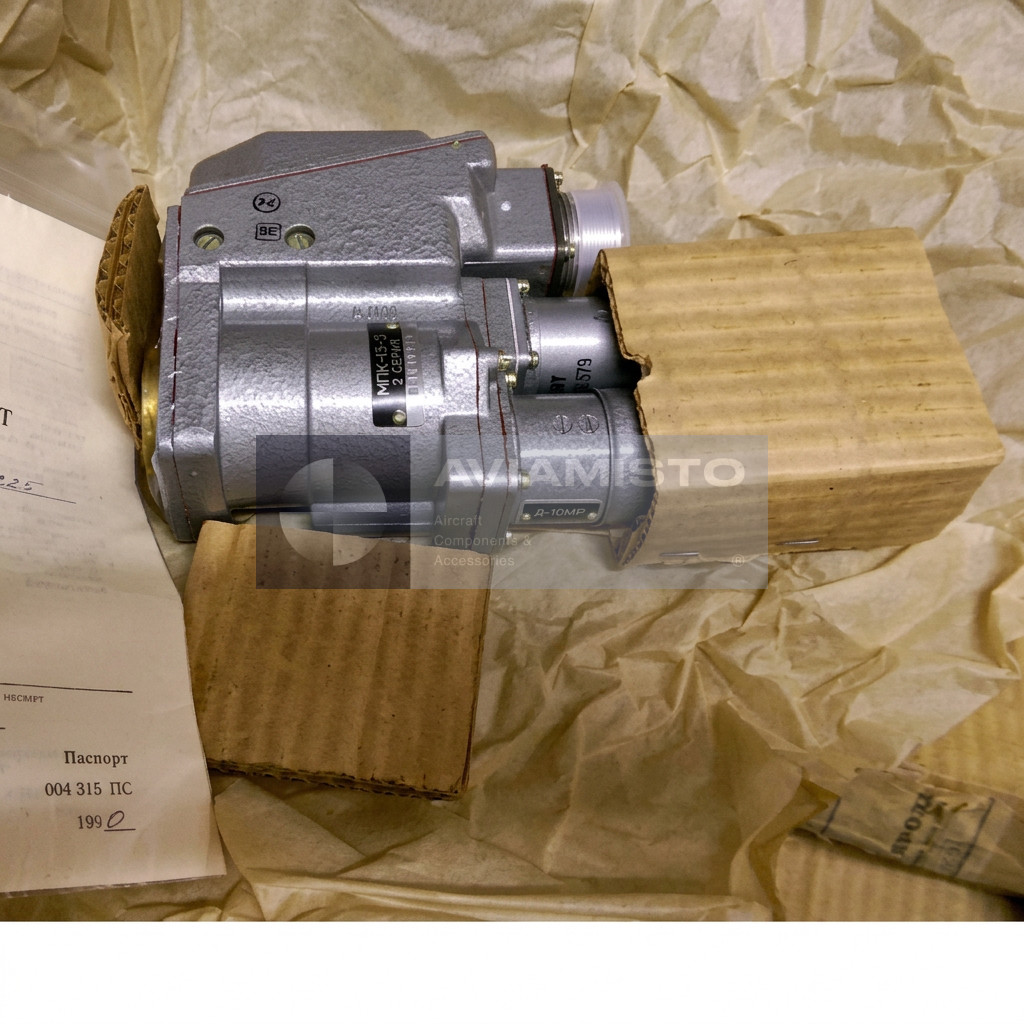

Technical Documentation: Product passport, aircraft maintenance documentation, wiring diagram, connector pinout, test records and inspection documents if available
