KZV-0-15

KZV-0-15 altitude corrector-setter in autopilot systems

KZV-0-15 is an aircraft altitude corrector-setter used for setting, measuring and automatic stabilization of a selected flight altitude. The unit works in pilot-navigation complexes and automatic flight control systems, where it forms an altitude deviation signal for the autopilot. It is installed on aircraft and helicopters that use compatible Soviet and Russian automatic control systems. The device is associated with altitude hold and altitude correction functions and operates through the aircraft static pressure system and electrical control circuits.

Altitude stabilization function of KZV-0-15

The KZV-0-15 is used in the altitude stabilization loop of the aircraft automatic control system. When the autopilot altitude stabilization mode is engaged, the instrument fixes the current barometric pressure reference and reacts to later deviations from that level. If the aircraft moves away from the selected altitude, the unit generates an electrical altitude deviation signal. This signal is then used by the autopilot system to return the aircraft to the selected altitude or flight level. The device therefore works as a sensing and command-forming element in the automatic altitude control channel.

Aneroid-membrane principle of KZV-0-15

The KZV-0-15 belongs to aneroid-membrane instruments that respond to changes in static air pressure. The sensitive element is an aneroid capsule connected to the aircraft static pressure line. As static pressure changes with altitude, the instrument detects the deviation from the fixed reference condition and converts it into an electrical signal. The unit operates in modes such as zeroing, where it follows current altitude, and correction, where it supports stabilization at the selected altitude. This electromechanical operating principle makes the instrument part of both the air data and autopilot control chain.

KZV-0-15 in aircraft control and navigation systems

The KZV-0-15 interacts with the air data / static pressure system, the pilot-navigation complex and the automatic flight control system. It receives static pressure information and sends the altitude deviation signal to the autopilot computer or control unit. In this role, the unit supports operation of altitude hold circuits used in aircraft flight-control automation. Depending on aircraft type, it may work with systems such as SAU, ABSU or other automatic control arrangements. Installation, adjustment and electrical connection must follow the aircraft technical documentation.

Aircraft application of the KZV-0-15 unit

The KZV-0-15 altitude corrector-setter is used on several Soviet and Russian aircraft and helicopter types with compatible automatic control systems. Application references include Il-76, Tu-154B / Tu-154M, Il-62M, Il-86, An-124 and Mi-26, depending on system configuration and documentation. It may also be referenced for Ka-32 and other aircraft where compatible altitude stabilization equipment is installed. Since automatic control systems differ by aircraft type and modification, applicability should be confirmed through the aircraft parts catalog, autopilot documentation and installation records before supply.

Identification and ordering of KZV-0-15

Before ordering KZV-0-15, the customer should confirm the aircraft type, automatic control system, required condition, connector version, documentation set and service status. The designation indicates the working altitude range from 0 to 15,000 m. Since the unit forms signals used by the autopilot altitude channel, acceptance normally depends on both physical condition and documentation. For correct supply, it is useful to specify whether the unit is required for operational replacement, repair stock, bench testing or overhaul support.

Product Type: Aircraft altitude corrector-setter
Designation: KZV-0-15
Alternative Designations: КЗВ-0-15, KZV 0-15, КЗВ 0-15
Function: Measurement, setting and automatic stabilization of selected flight altitude
Application / Where Used: Automatic flight control systems and pilot-navigation complexes
System / Installation Area: Altitude stabilization channel of autopilot / automatic control system
Compatible Aircraft / Equipment: Il-76, Tu-154B, Tu-154M, Il-62M, Il-86, An-124, Mi-26, Ka-32 and other compatible aircraft depending on documentation
Operating Principle: Aneroid-membrane pressure sensing with electromechanical signal generation
Measured Input: Static air pressure
Output Signal: Electrical altitude deviation signal ΔH
Altitude Range: 0–15,000 m
Operating Modes: Zeroing / tracking current altitude; correction / altitude stabilization
Power Supply, AC: 36 V, 400 Hz
Power Supply, DC: 27 V DC
Sensitive Element: Aneroid capsule

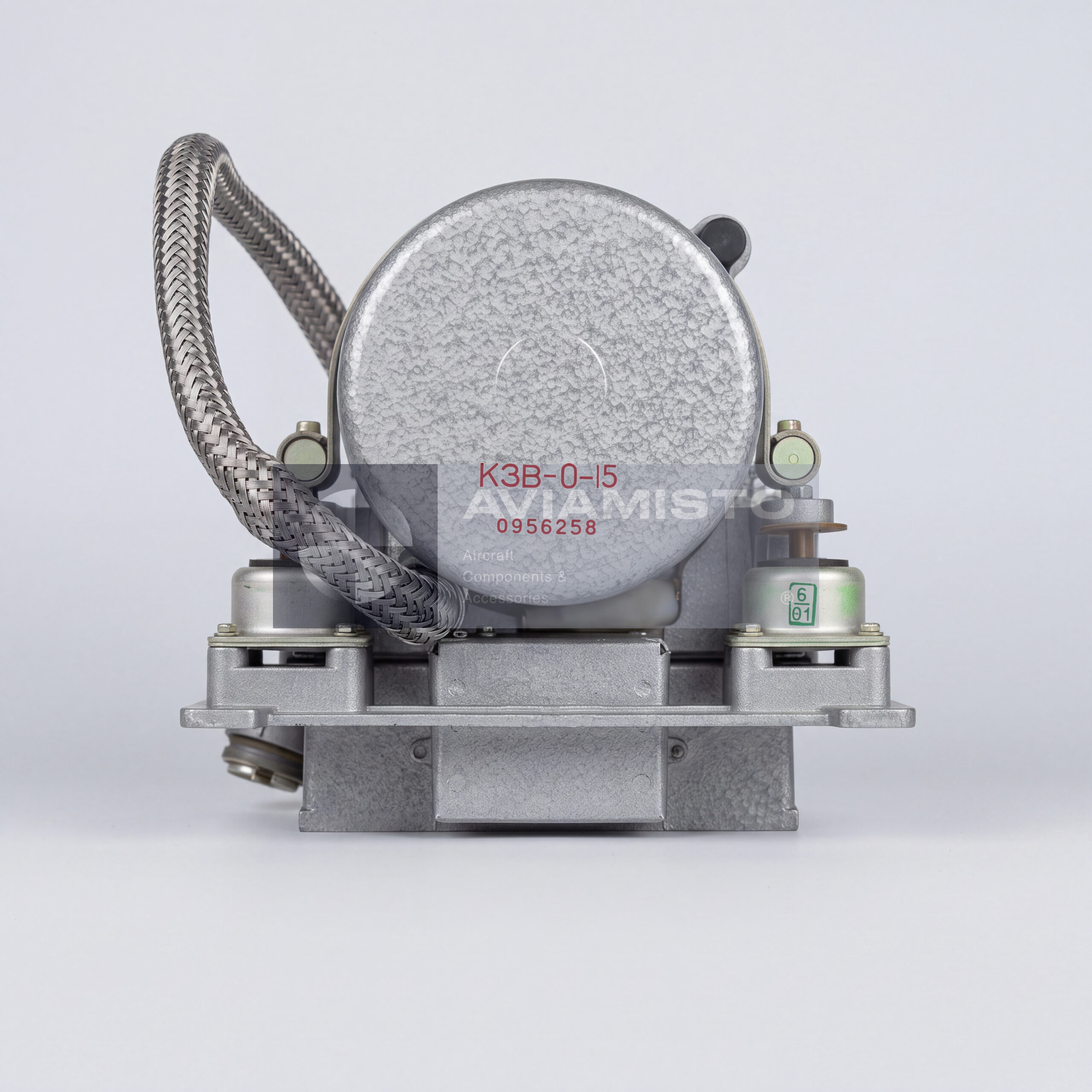

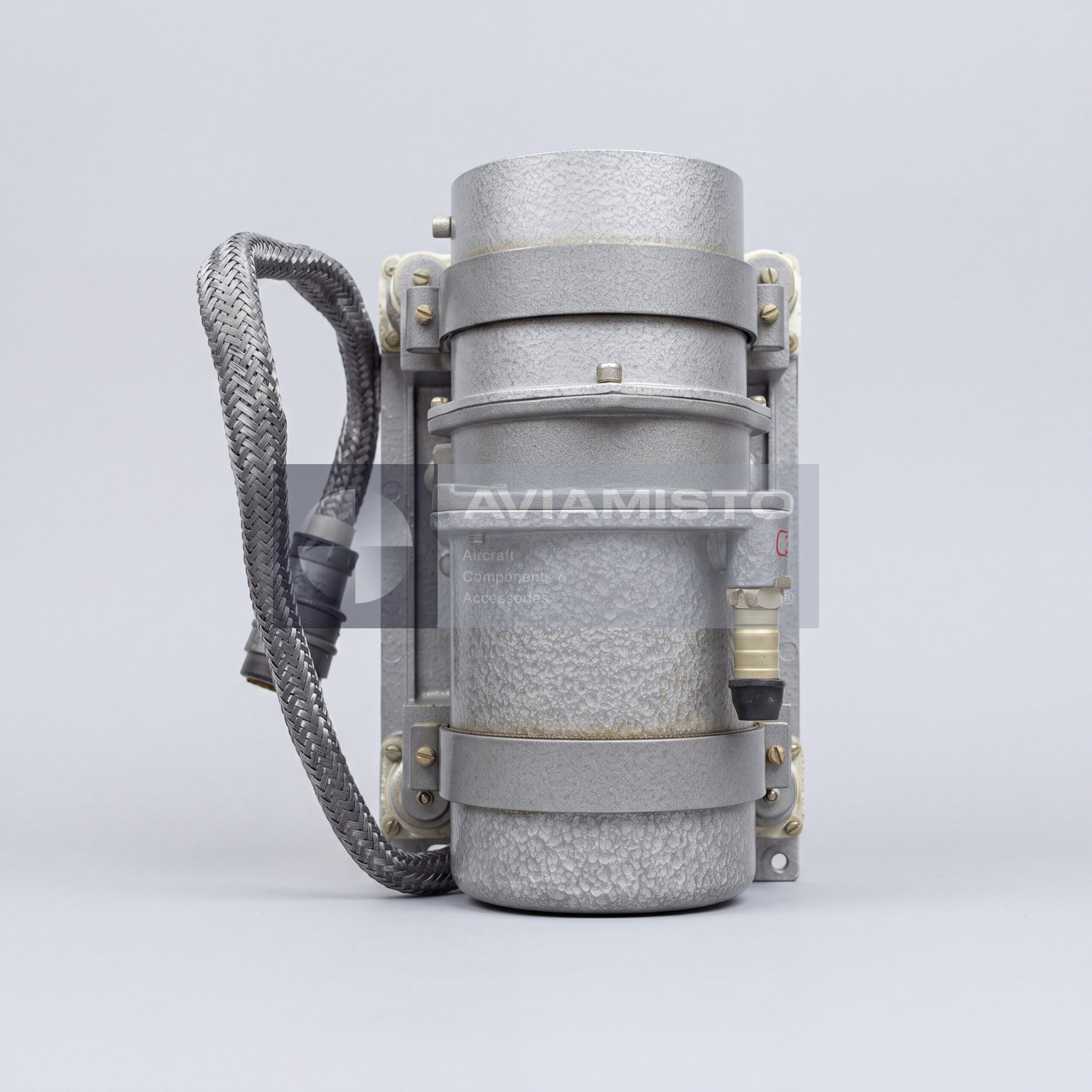

Construction: Electromechanical unit in closed metal protective housing with static pressure connection
Approximate Dimensions: 140 × 165 × 255 mm
Weight: Not more than 3.2 kg
Associated Systems: Air data system, static pressure line, SAU / autopilot, pilot-navigation complex
Condition: As applicable
Technical Documentation: Passport, operating documentation, aircraft maintenance documentation, autopilot system documentation
