GMI-42B
Pulse modulator triode with protective grid
Description
Purpose and application
GMI-42B is a pulse modulator triode with a protective grid for switching pulse power in modulators of stationary and mobile radio equipment. It is rated for anode voltage up to 30 kV and pulse anode current up to 30 A.
Full descriptionCollapse description
Construction

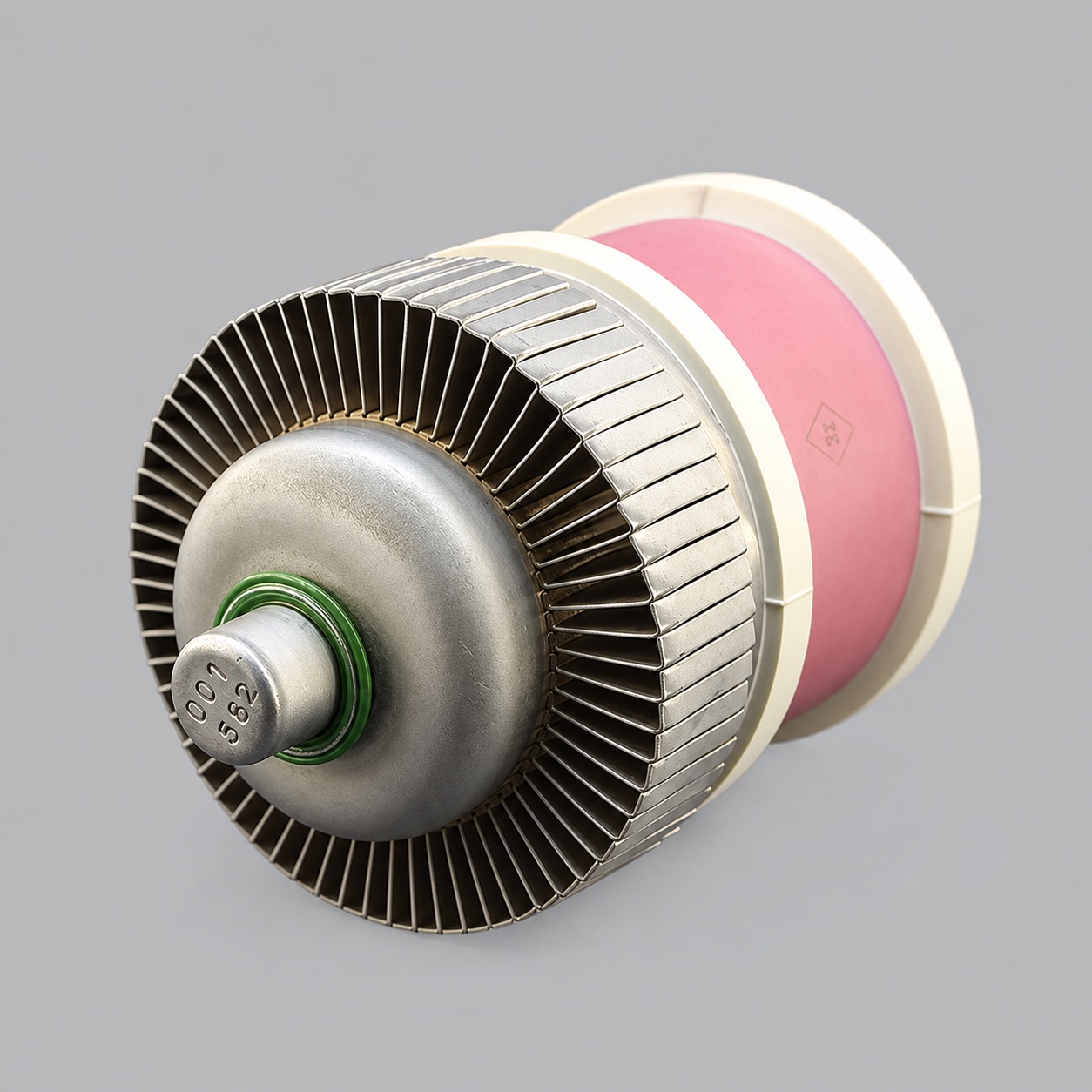

The metal-ceramic tube uses an indirectly heated oxide cathode and a radial external radiator. Heater voltage is 24.2–27.8 V and current is 3.2–3.6 A. The ceramic insulator, radiator and contact geometry are important identification features.
Operating data
Input capacitance is 130 pF, output capacitance 25 pF and transfer capacitance no more than 2 pF. Maximum anode dissipation is 500 W and grid dissipation 25 W. Readiness time depends on the mode and is approximately two to three minutes.
Cooling and selection
Forced-air cooling is mandatory. Maximum envelope temperature is 150 °C, dimensions are no more than approximately 135 × 92 mm, mass is no more than 1.2 kg and minimum service life is 1000 hours. Before installation, check airflow, ceramic surfaces and terminals.
Vacuum device construction is outlined in the vacuum tube article. Related devices are listed under generator and modulator tubes.
Technical details
- Designation
- GMI-42B
- Device type
- Pulse modulator triode with protective grid
- Purpose
- Pulse-power switching in modulators
- Construction
- Metal-ceramic with radial radiator
- Cathode
- Indirectly heated oxide cathode
All specificationsCollapse specifications
- Heater voltage
- 24.2–27.8 V
- Heater current
- 3.2–3.6 A
- Maximum anode voltage
- 30 kV
- Pulse anode current
- 30 A
- Input capacitance
- 130 pF
- Output capacitance
- 25 pF
- Maximum transfer capacitance
- 2 pF
- Maximum anode dissipation
- 500 W
- Maximum grid dissipation
- 25 W
- Readiness time
- Approximately 2–3 min
- Cooling
- Forced air
- Maximum envelope temperature
- 150 °C
- Maximum dimensions
- Approximately 135 × 92 mm
- Maximum mass
- 1.2 kg
- Minimum service life
- 1000 h
