GMI-32B
Pulse modulator tetrode
Description
Purpose and application
GMI-32B is a pulse modulator tetrode for high-current switching in pulse modulators. It is used where a short high-voltage pulse must be applied to the generator stage with repeatable current and timing.
Full descriptionCollapse description

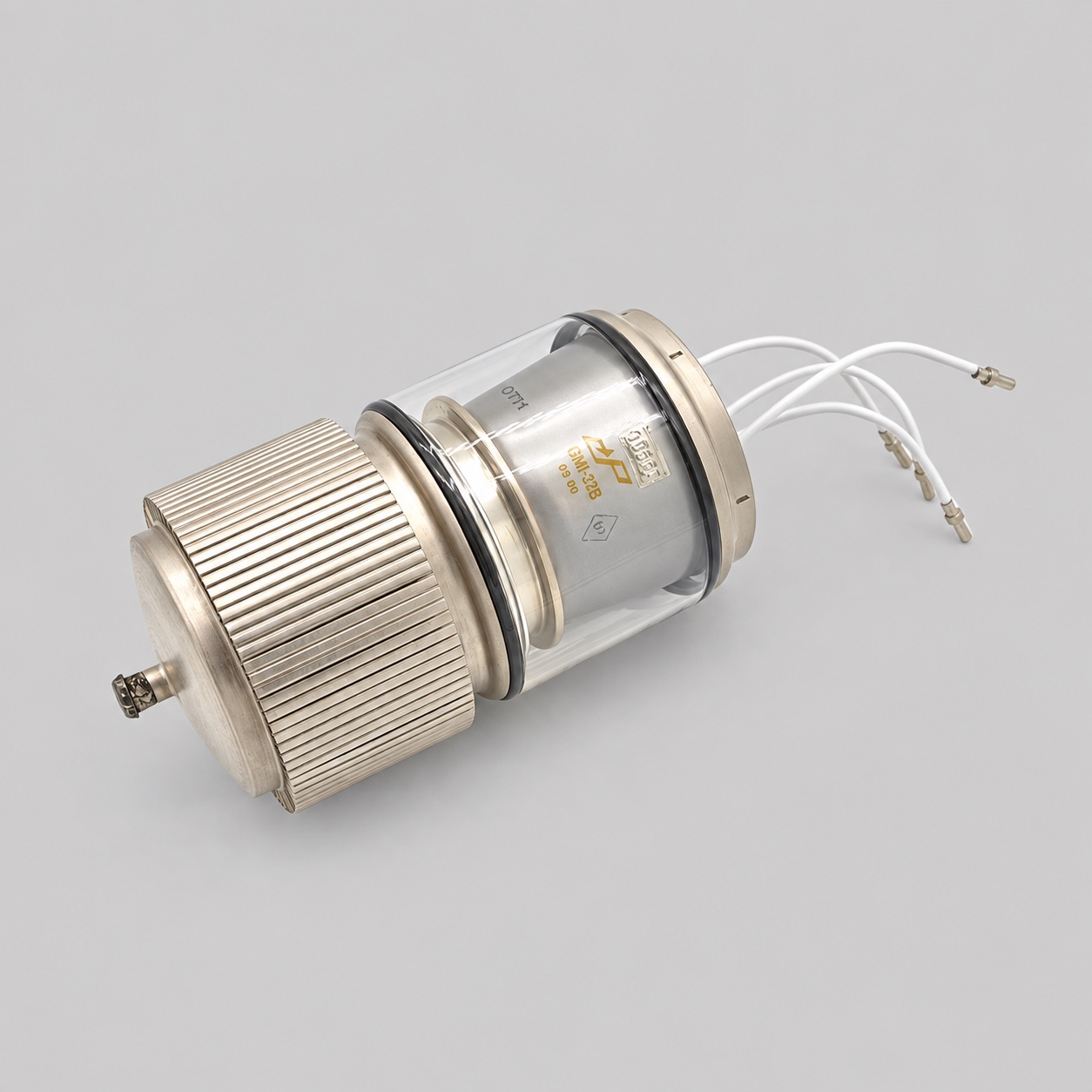

Construction
The tube has a glass envelope, a visible electrode assembly, a finned metal lower section and separate insulated electrode leads. Heater voltage is 24.2–29.7 V and current is 10 ± 0.7 A. The lead arrangement must match the equipment wiring.
Operating data
Pulse anode current is at least 40 A at a heater voltage of 24.3 V and at least 50 A at 27 V. Input capacitance is 160 pF, output capacitance 20 pF and transfer capacitance no more than 1 pF. Readiness time is no more than three minutes.
Cooling and selection
Forced-air cooling is required: approximately 110 m³/h for the anode section and 30 m³/h for the stem. The specified ambient range is −60 to +85 °C, mass is no more than 4 kg and minimum service life is 1000 hours.
Vacuum device construction is outlined in the vacuum tube article. Related devices are listed under generator and modulator tubes.
Technical details
- Designation
- GMI-32B
- Device type
- Pulse modulator tetrode
- Purpose
- High-current switching in pulse modulators
- Envelope
- Glass with finned lower section
- Heater voltage
- 24.2–29.7 V
All specificationsCollapse specifications
- Heater current
- 10 ± 0.7 A
- Minimum pulse anode current at 24.3 V heater voltage
- 40 A
- Minimum pulse anode current at 27 V heater voltage
- 50 A
- Maximum pulse first-grid current
- 6 A
- Maximum pulse second-grid current
- 3 A
- Maximum readiness time
- 3 min
- Input capacitance
- 160 pF
- Output capacitance
- 20 pF
- Maximum transfer capacitance
- 1 pF
- Anode airflow
- Approximately 110 m³/h
- Stem airflow
- Approximately 30 m³/h
- Ambient temperature
- −60 to +85 °C
- Maximum mass
- 4 kg
- Minimum service life
- 1000 h
