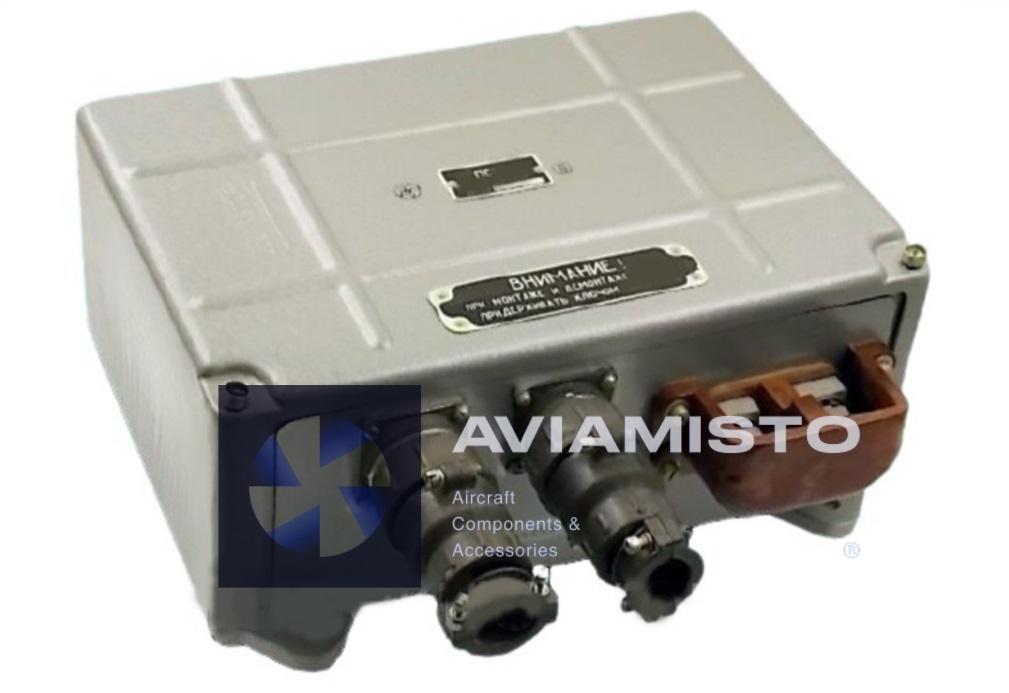

PSG-2B-400
Starter-Generator Control Panel
Description
PSG-2B-400 System Overview
The PSG-2B-400 is an aircraft starter-generator control panel designed for automated control of engine start processes using DC starter-generators within helicopter onboard systems. The unit functions as a control interface integrated into the engine starting system architecture.
Full descriptionCollapse description
PSG-2B-400 Control Function
The panel controls the sequence of activation of starter and ignition systems during engine start and ensures coordinated operation of system components according to a predefined start cycle. It also manages switching of the starter-generator from start mode to power generation mode.
PSG-2B-400 Aircraft Application
The unit is widely used on helicopters equipped with turboshaft engines, including Mi-8, Mi-17, and Mi-24, where it supports reliable engine start procedures and subsequent electrical power generation.
PSG-2B-400 System Integration
The control panel operates in conjunction with onboard electrical and engine systems, providing protection functions such as prevention of starter engagement on a running engine and limitation of starter operating time. The product is also known under alternative designation ПСГ-2Б-400.
Technical details
- Product Type
- Starter-generator control panel
- Function
- Control of engine start cycle and starter-generator mode switching
- Application / Where Used
- Helicopter engine start and electrical power systems
- System / Installation Area
- Starter-generator control system
- Compatible Aircraft / Equipment
- Mi-8, Mi-17, Mi-24 helicopters
All specificationsCollapse specifications
- Compatible Engines
- TV3-117 series
- Operating Voltage
- 27 V DC
- Current Type
- Direct current (DC)
- Control Functions
- Starter activation; ignition control; mode switching (start/generation); system protection
- Protection Functions
- Prevention of starter engagement on running engine; limitation of start mode duration
- Operating Modes
- Start mode; generator mode
- System Integration
- Interfaces with onboard electrical and engine systems
- Technical Documentation
- Product passport and operational documentation
