PTS-500S
Static Inverter
Description
Electrical conversion with PTS-500S

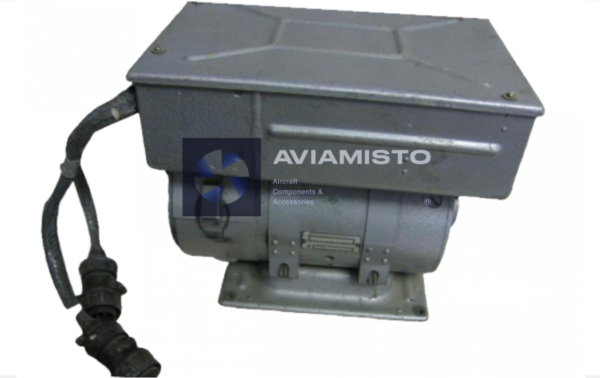

PTS-500S is a three-phase static converter used to supply a defined alternating-current output from a 48 V DC onboard source. Its published output is 36 V AC, three phase, without a neutral point, at 1,000 Hz. The unit is part of the aircraft electrical power system rather than an independent avionics instrument: it converts available DC power into the form required by connected consumers and associated equipment.
A static converter performs this task without a rotating machine. The input DC power is electronically converted into a controlled three-phase AC output. In service, the quality of the output depends on the converter itself, the incoming supply, the wiring, protective devices and the load connected to the system. The unit should therefore be selected and tested only against the applicable aircraft documentation.
Full descriptionCollapse description
Power supply role in the SEP-U system
The PTS-500S is identified in the SEP-U electrical power system together with the PPS-1000S converter. Existing documentation describes the PPS-1000S as the associated unit that provides the 48 V DC supply and ±12 V circuits for the PTS-500S installation. The PTS-500S then produces the required three-phase alternating supply for the relevant part of the onboard network.
This association does not mean that the two units are an inseparable delivery set. Before ordering a replacement, confirm the aircraft wiring diagram, required converter index, connector configuration and the role of the PPS-1000S in the particular installation. This is especially important on aircraft that have been repaired, modernised or modified during service.
PTS-500S output parameters
Published data for the converter specifies a nominal output of 500 VA with a load power factor of 0.6 lagging. The maximum current is stated as 8 A. The stated input supply is 48 V DC with a tolerance of ±12 V; the output frequency is 1,000 Hz. These parameters describe the unit’s intended electrical environment and should not be treated as a substitute for an aircraft acceptance or bench-test procedure.
The converter is listed with a maximum mass of 5.5 kg without the vibration-isolation mount. Overall dimensions are stated as 268.5 × 94 × 195 mm. No reliable open-source information was found for connector part numbers, environmental limits, overhaul life or permissible installation positions, so these items are not claimed here.
Documented airframe references
The existing Aviamisto card identifies T6M2, C54, T-8, T-8K, T-8M, T-8UB and T-8UBK as the aircraft references associated with this converter. The T-8 designation is associated with the Sukhoi Su-25 development family. The exact applicability must be verified against the illustrated parts catalogue and electrical schematic for the individual airframe and modification. The current quick external search did not independently confirm every one of these installation references, so they should be used as a starting point for identification, not as universal interchangeability approval.
For a replacement request, provide the part number from the installed unit, aircraft type and modification, serial or passport data when available, and photographs of the connectors and mounting arrangement. This allows the supply to be checked against the actual installation rather than only against the family designation.
Ordering PTS-500S
PTS-500S is listed in the Aviamisto power transducers category. The product is offered on a pre-order basis. Request the current delivery terms, condition, included documentation and whether the vibration-isolation mount is included before placing an order. If a serviceable unit is required for a specific aircraft, compatibility and functional condition must be confirmed through the applicable maintenance documentation and inspection records.
PTS-500S identification
PTS-500S is a static inverter; it converts aircraft DC power into AC with the required parameters without a rotating motor-generator. Verify the exact type and execution from the complete marking.
Selection
Confirm ratings, interfaces, mounting and documentation before replacement.
Inspection
Complete incoming inspection and functional testing under the approved procedure before installation.
Related products
PTS-250AM, PTS-800AM, PTS-250, PTS-800BM. These links do not imply interchangeability.
Reference
Technical details
Product Type: Static Inverter
Primary Designation: PTS-500S
Alternative Designations: PTS-500S; PTS 500S; ПТС-500С
Function: converts aircraft DC power into AC with the required parameters without a rotating motor-generator
Selection Basis: Exact designation, execution, marking and documentation for the specific equipment
Application: Only as supported by the passport, illustrated parts catalogue or approved installation documentation
Interchangeability: Not established by a related designation, matching base, housing or appearance alone
Inspection: Verify electrical ratings, contacts or connector, mounting, construction and required operating mode
Enquiry Data: Designation, quantity, condition, marking photograph, delivery scope and required documents
Documentation: Product passport and approved operating or repair documentation
Category: Power Transducers
All specificationsCollapse specifications
Retained Technical Data:
Product Type: Three-phase static converter
Designation: PTS-500S
Alternative Designations: ПЦС-500С, PTS 500S, ПЦС 500С
Function: Conversion of 48 V DC onboard power into three-phase 36 V AC power
Input Power Supply: 48 V DC, tolerance ±12 V
Output Voltage: 36 V AC, three phase, without neutral point
Output Frequency: 1,000 Hz
Nominal Output Power: 500 VA
Maximum Current: Not more than 8 A
Load Power Factor: 0.6 lagging
System: SEP-U aircraft electrical power system
Associated Equipment: PPS-1000S converter
Aircraft Family: Sukhoi Su-25 / T-8 family; current card references T-8, T-8K, T-8M, T-8UB and T-8UBK, with confirmation by aircraft documentation required
Mass: Not more than 5.5 kg without vibration-isolation mount
Overall Dimensions: 268.5 × 94 × 195 mm
Connector Information: Reliable open-source data not found
Operating Conditions: Reliable open-source data not found
Technical Documentation: Aircraft electrical system documentation, wiring diagram and test records if available
