LFSM 27-1000+450 (LFL 27-1000+450)
Aircraft lamp-light
Description

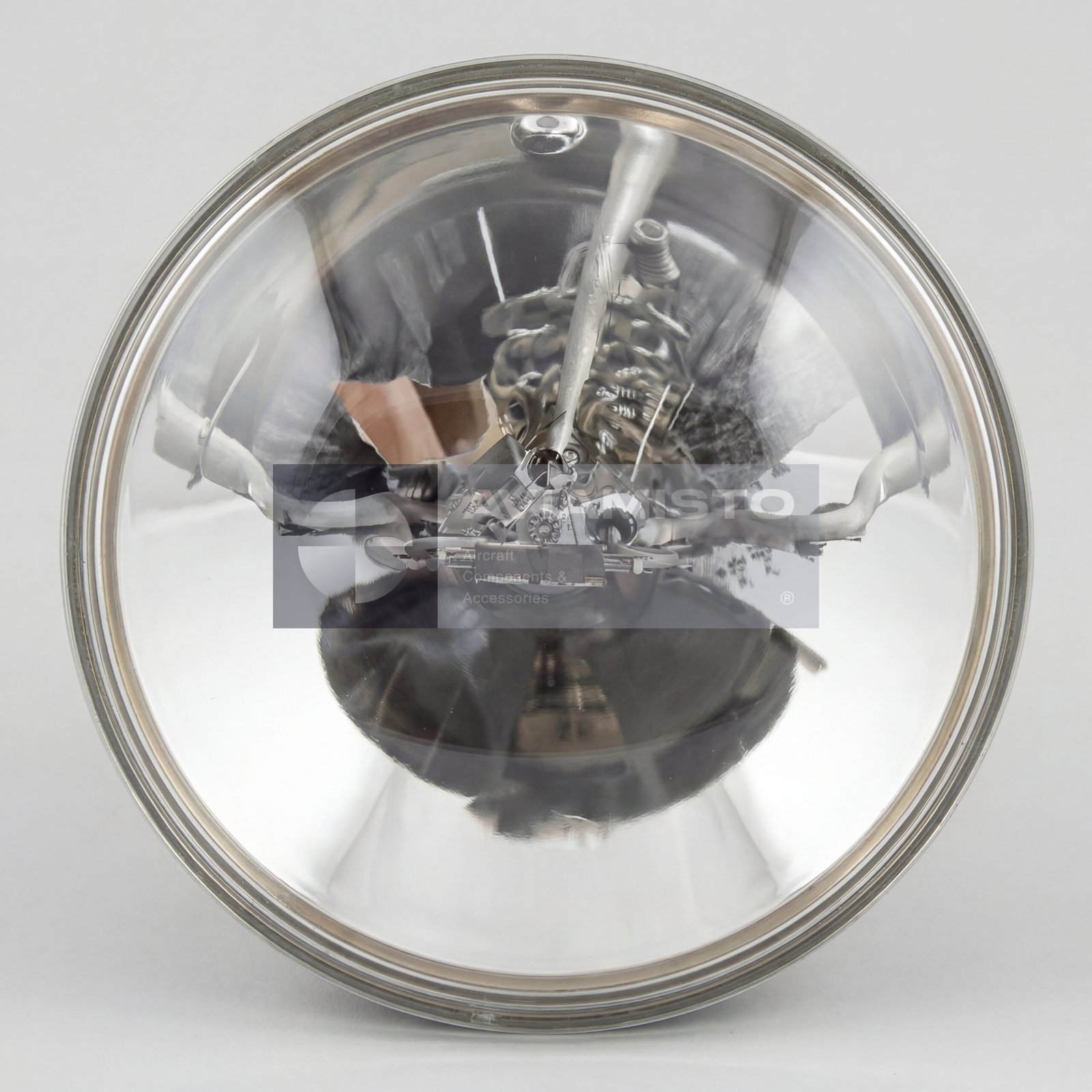

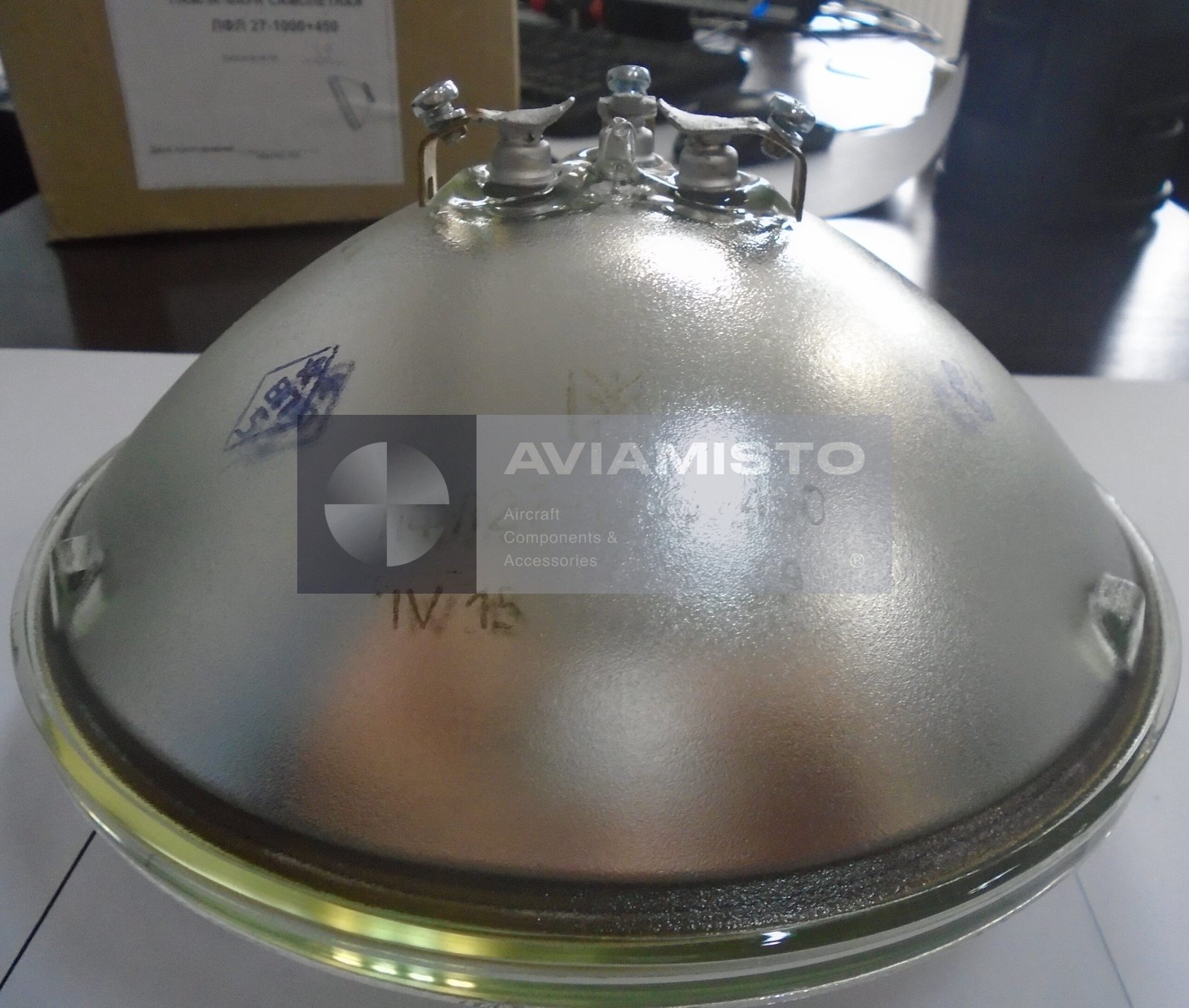

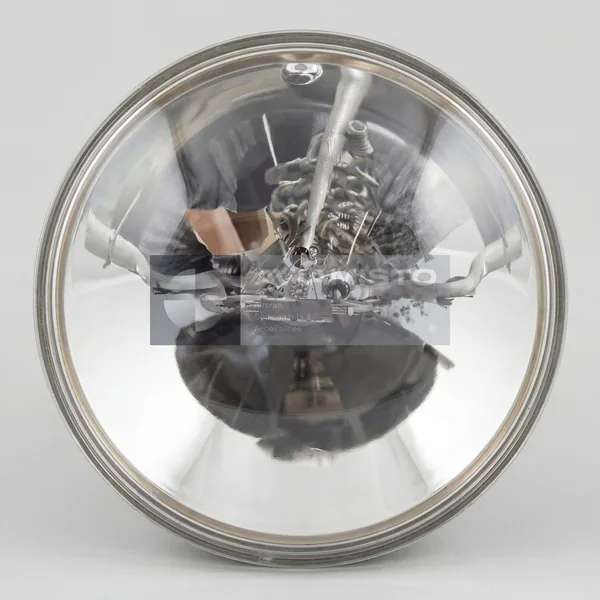

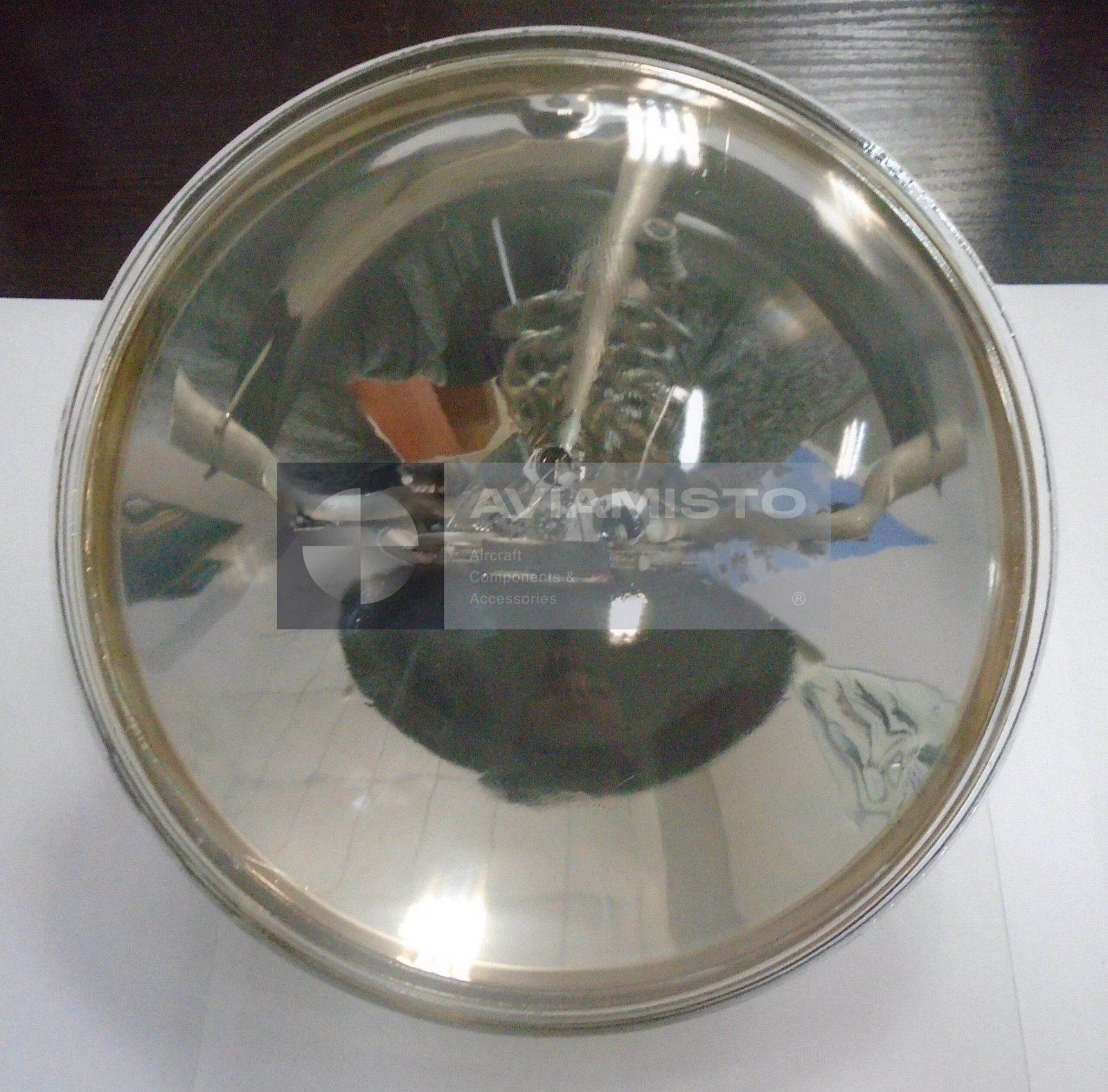

LFSM 27-1000+450 aircraft lamp-light
LFSM 27-1000+450, also designated LFL 27-1000+450, is a PAR64 aircraft lamp-light. Its sealed optical assembly combines the filament, reflector and front glass to form a directional beam for compatible aircraft lighting equipment.
Full descriptionCollapse description
Purpose and execution selection
The unit is used in external light assemblies designed for its electrical and optical data. The exact light unit and aircraft application must be checked in the parts catalogue and maintenance documentation. Selection requires the complete marking, filament arrangement, power, beam pattern, dimensions and terminal configuration.
Electrical and optical data
Rated voltage is 27 V. Its 1000 W and 450 W filaments provide separate optical modes: 600 kcd at 12° × 12°, and 80 kcd at 40° × 10°. Recorded average life is 6.15 h for the 1000 W filament and 61.25 h for the 450 W filament. These values apply to the 27-1000+450 execution; nearby family members should not be selected by appearance alone.
Dimensions and identification
The lamp-light uses the PAR64 format, measures 205 × 120 mm and weighs not more than 1.00 kg. LFSM 27-1000+450 is the primary search designation and LFL 27-1000+450 is retained as the confirmed alternative. Every number, plus sign and final suffix forms part of the product identifier.
Checks before ordering
Inspect the glass, reflector, terminals and marking before installation. State the complete designation, quantity and document requirements in the enquiry. Related products provide family navigation and do not establish interchangeability without documentary verification.
Technical details
- Product Type
- Aircraft lamp-light
- Primary Designation
- LFSM 27-1000+450
- Alternative Designation
- LFL 27-1000+450
- Format
- PAR64
- Rated Voltage
- 27 V
All specificationsCollapse specifications
- Dimensions
- 205 × 120 mm
- Weight
- Not more than 1.00 kg
- Application
- Compatible aircraft lighting equipment
- Selection Basis
- Complete marking, electrical and optical data, dimensions and terminal configuration
- Rated Power 1
- 1000 W
- Luminous Intensity 1
- 600 kcd
- Beam Spread 1
- 12° × 12°
- Average Operating Life 1
- 6.15 h
- Rated Power 2
- 450 W
- Luminous Intensity 2
- 80 kcd
- Beam Spread 2
- 40° × 10°
- Average Operating Life 2
- 61.25 h
