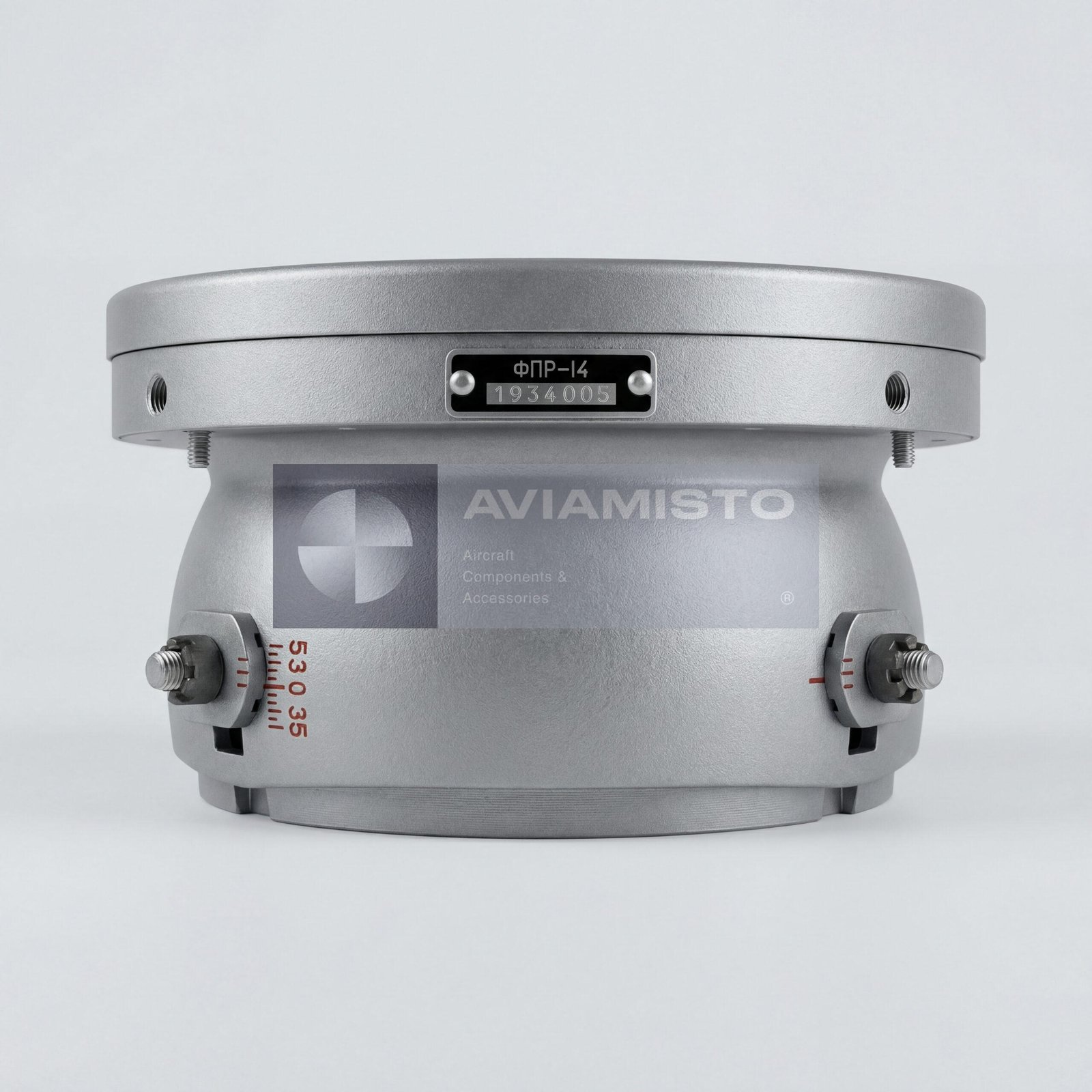

FPR-14
Fixed aircraft external inspection light.
Description
Purpose of the FPR-14
The FPR-14 is a fixed aircraft external light. It is listed within the landing and taxi light family, while on the Il-76 it is used for short-term illumination of the stabilizer and engine nacelles.
Full descriptionCollapse description
In-flight inspection
The directed beam allows the crew to inspect external surfaces at night and identify visible signs of ice. This Il-76 application distinguishes the FPR-14 from a conventional taxi light because it illuminates specific airframe and powerplant areas for observation.
Light source and beam
The assembly uses an LFSM 27-450+250 dual-filament lamp-light. One filament produces a higher-intensity narrow beam and the second provides broader illumination. The unit operates from the 27 V aircraft electrical system and must be used according to the aircraft operating documentation.
Selection and installation
Before ordering, compare the FPR-14 designation, mounting arrangement, dimensions, electrical connection and installed lamp-light. Confirmed application is documented for the Il-76; use on any other aircraft must be verified against the relevant parts catalogue or maintenance documentation.
Il-76 installation role
On the Il-76, FPR-14 lights belong to the equipment used for inspection of external surfaces. They are switched on briefly when the crew needs to illuminate the stabilizer or engine nacelles and assess visible ice formation. Describing the unit only as a conventional runway light would therefore be incomplete and misleading.
The assembly is secured by four M5 countersunk screws. Incoming inspection should cover the housing and light window, mounting holes, contacts and wiring, together with confirmation that the installed lamp-light is the specified LFSM 27-450+250.
Related lamp-light
The FPR-14 uses the LFSM 27-450+250 (LFL 27-450+250). State separately whether the complete light or the replaceable lamp-light is required. General context is available in the Wikipedia article on aircraft lighting.
Supply
Aviamisto supplies the FPR-14 on a pre-order basis. State the quantity, aircraft type and modification, lamp-light requirement and required documents. Price, condition, completeness and lead time are confirmed separately.
Technical details
- Product type
- fixed aircraft external inspection light
- Purpose on the Il-76
- stabilizer and engine-nacelle illumination
- Additional function
- visual inspection for signs of icing
- Supply voltage
- 27 V
- Light source
- LFSM 27-450+250
All specificationsCollapse specifications
- Lamp-light filament ratings
- 450 + 250 W
- Nominal luminous intensity, second mode
- 30,000 cd
- Dimensions
- 170 × 120 mm
- Weight
- not more than 1.5 kg
- Mounting
- four M5 countersunk screws
- Confirmed application
- Il-76
- Designation variants
- FPR-14, ФПР-14
- Application check
- by aircraft-specific documentation
