BANO-7M green
Green aircraft navigation position light
Description

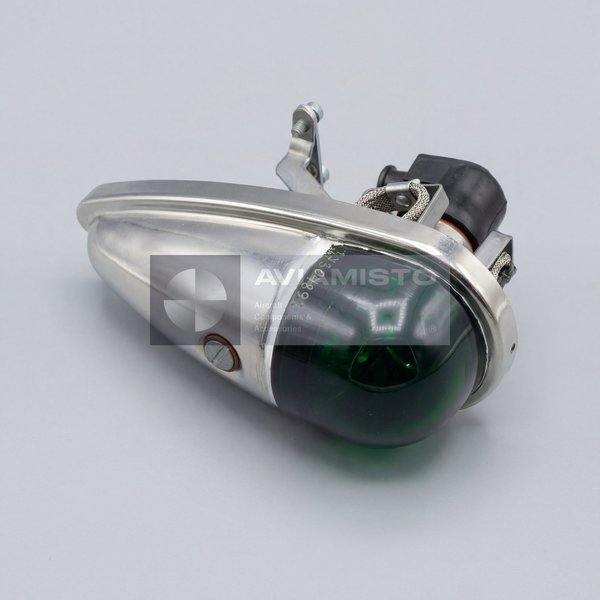

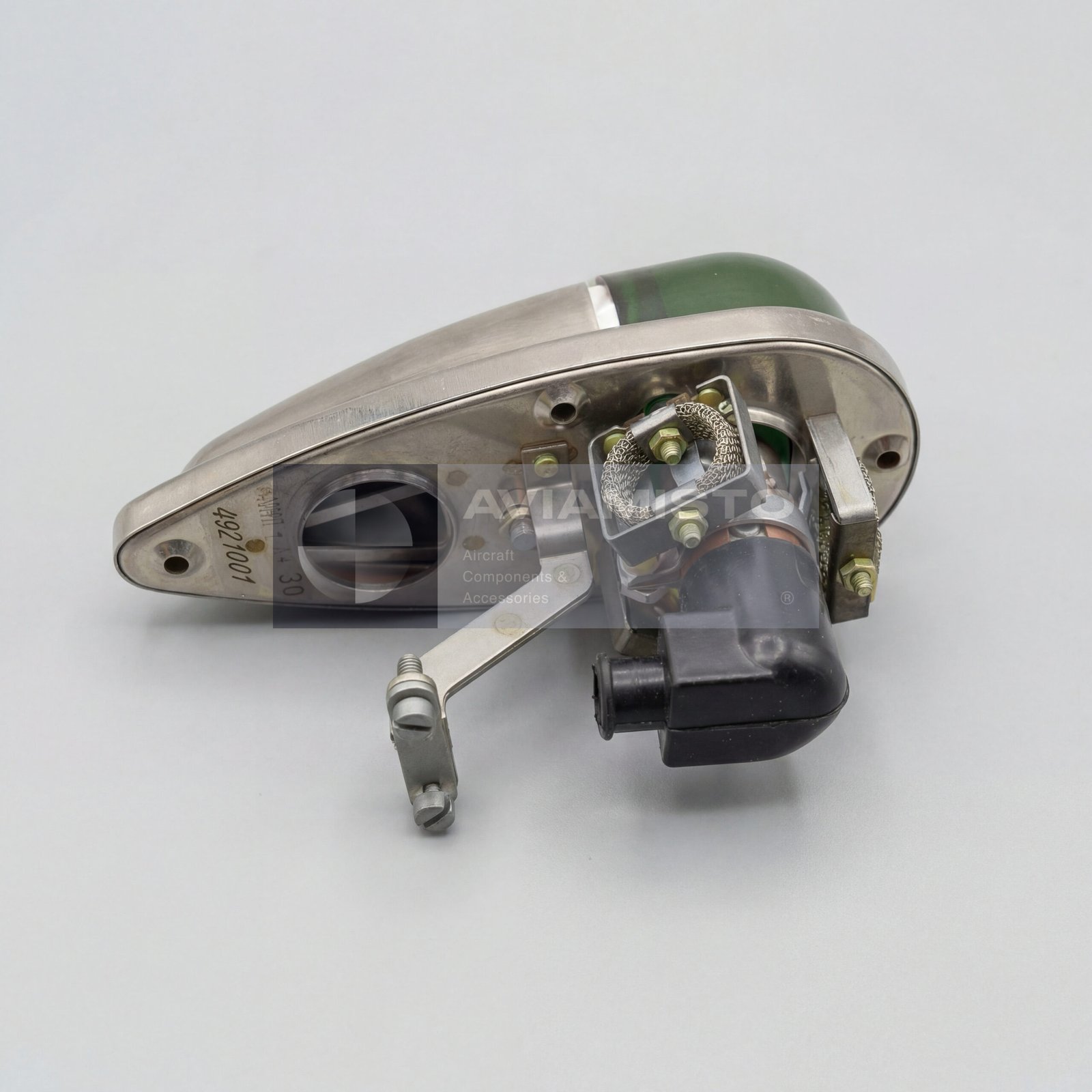

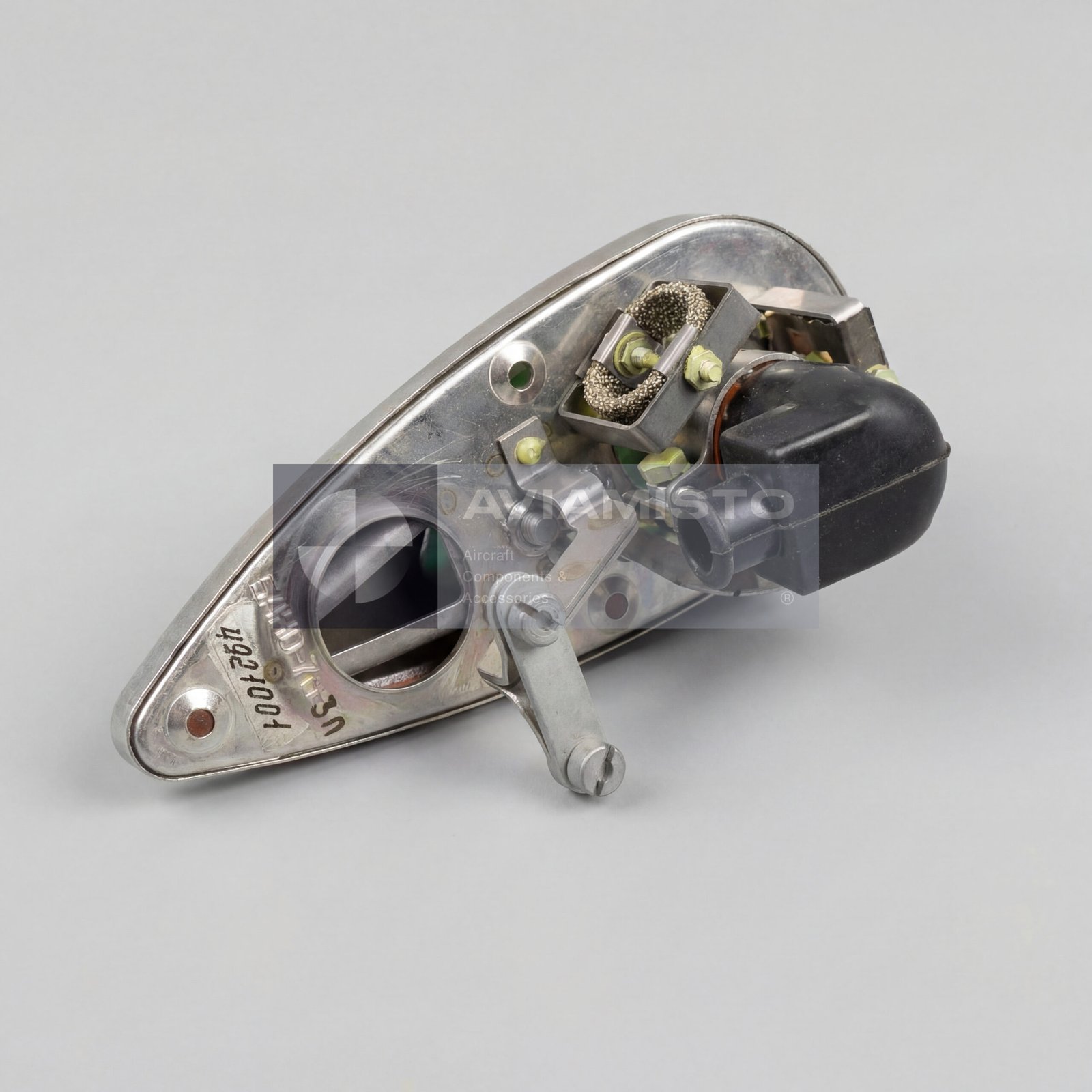

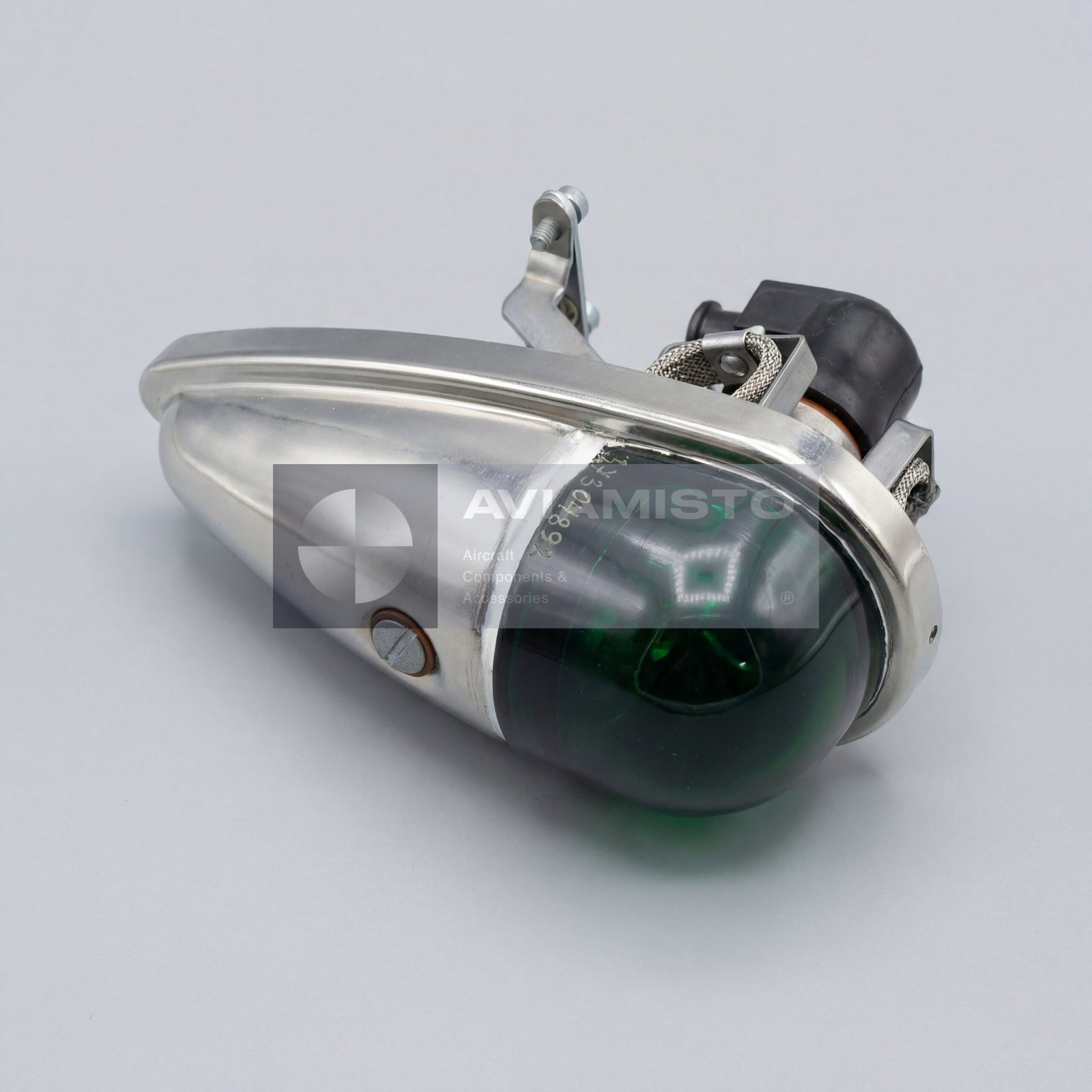

BANO-7M green aircraft navigation light
The BANO-7M green is an aircraft position light used in the external lighting system of an aeroplane or helicopter. It marks the aircraft position and direction of movement at night, in reduced visibility and during ground operations. The green light is installed on the right side so that another crew or ground observer can identify the aircraft orientation.
Full descriptionCollapse description
Function of the BANO-7M
The unit produces a steady coloured signal within its specified viewing sector. Its filter determines the signal colour, while the housing and base provide mounting on the outer aircraft structure. In a complete navigation-light arrangement, the BANO-7M operates with the corresponding red side light and a white tail light.
Electrical and optical data
The light is intended for a 27 V DC aircraft electrical system. Colour, supply voltage, power consumption, luminous intensity, emission angles, dimensions and weight are the main selection parameters. The recorded values are listed in Technical Details and should be checked against the product passport and the applicable aircraft documentation.
Installation and inspection
Before installation, check the full marking, filter colour, housing, mounting points, electrical contacts and seals. After connection, verify stable illumination and correct orientation of the light sector. Red and green executions serve different sides of the aircraft and must not be assigned to the opposite side without confirmation from the installation documentation.
Ordering the BANO-7M
An enquiry should state the complete designation, colour, aircraft type, quantity and required documentation. Other products are listed in Aircraft Navigation Lights and Beacons. The BANO-7M red page provides the corresponding colour execution. A general explanation of the external-light arrangement is available in the reference article about navigation lights. Related products are provided for catalogue navigation and do not establish interchangeability.
Technical details
- Product Type
- Aircraft navigation position light
- Function
- Visual position and direction indication
- Application / Where Used
- Aircraft external navigation lighting systems
- System / Installation Area
- Right-side (starboard) navigation light
- Operating Voltage
- 27 V
All specificationsCollapse specifications
- Power Consumption
- Not more than 15 W
- Luminous Intensity
- Not less than 20 cd
- Emission Angle (Horizontal)
- 110°
- Emission Angle (Vertical)
- 90°
- Operating Temperature Range
- −60 °C to +60 °C
- Weight
- Not more than 0.5 kg
- Compatible Aircraft / Equipment
- Il-96-300, Yak-130, M-101T, Mi-28, Ka-226T
- Technical Documentation
- Product passport / manufacturer documentation
