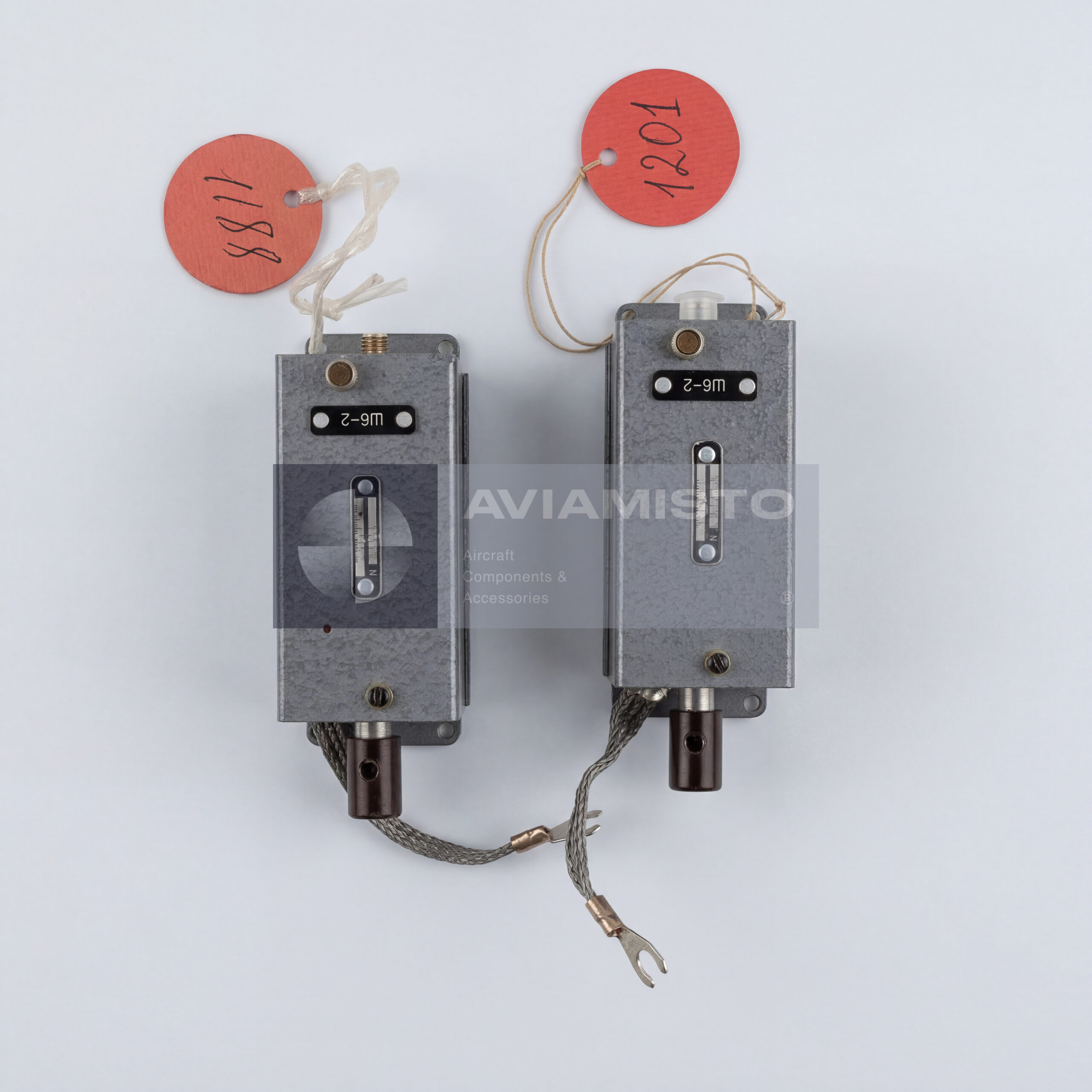

Antenna matching unit
2.240.000-1 ARK-15
Price on request
Antenna matching unit
Available on back-order
Description
2.240.000-1 Antenna Matching Unit Overview
The 2.240.000-1 antenna matching unit is a key component of the ARK-15 and ARK-15M automatic radio compass systems. It is designed to match the electrical parameters of the non-directional aircraft antenna with the receiver input. The unit ensures stable signal transmission and minimizes losses in the antenna-feeder system, enabling reliable radio navigation performance.
2.240.000-1 Operating Function
The unit transforms the high impedance of the external non-directional antenna into a level suitable for the receiver input circuits. Using inductive and capacitive elements, it performs impedance and phase matching of the signal. This ensures correct interaction between loop and non-directional antenna channels, eliminating bearing ambiguity and improving accuracy.
2.240.000-1 Aviation Applications
The unit is used in aircraft and helicopter navigation systems equipped with ARK-15 or ARK-15M radio compasses. It is installed on platforms such as Mi-8, Mi-17, Tu-154, Il-76, An-24/26 and Yak series aircraft. Within the system, it plays a critical role in maintaining signal quality and ensuring correct operation of direction finding modes.
2.240.000-1 Installation Context
The antenna matching unit is installed close to the antenna feeder entry point to minimize cable influence on signal characteristics. It operates in all system modes including Compass, Antenna and Loop modes. The product is also known under designation 2.240.000-1, referring to the same antenna matching unit used in ARK-15 family systems.
Details
Product Type: Antenna matching unit (AMU)
Application / Where Used: ARK-15 / ARK-15M airborne radio compass system
Function: Impedance and phase matching between antenna and receiver
Frequency Range: 150 – 1799.5 kHz
Antenna Type: Non-directional external antenna (wire or rod type)
Power Supply: 27 V DC (aircraft onboard network)
Operating Modes: Compass / Antenna / Loop
Installation: near antenna feeder input point
Working Principle: inductive-capacitive impedance and phase matching network
System Components: operates with receiver 2.003.013-01, loop antenna 2.090.020, control panel 3.624.049
Technical Documentation: ARK-15 / ARK-15M system documentation
