56-1400-00 (56.1400.00)

Controlled rotor deceleration through 56-1400-00

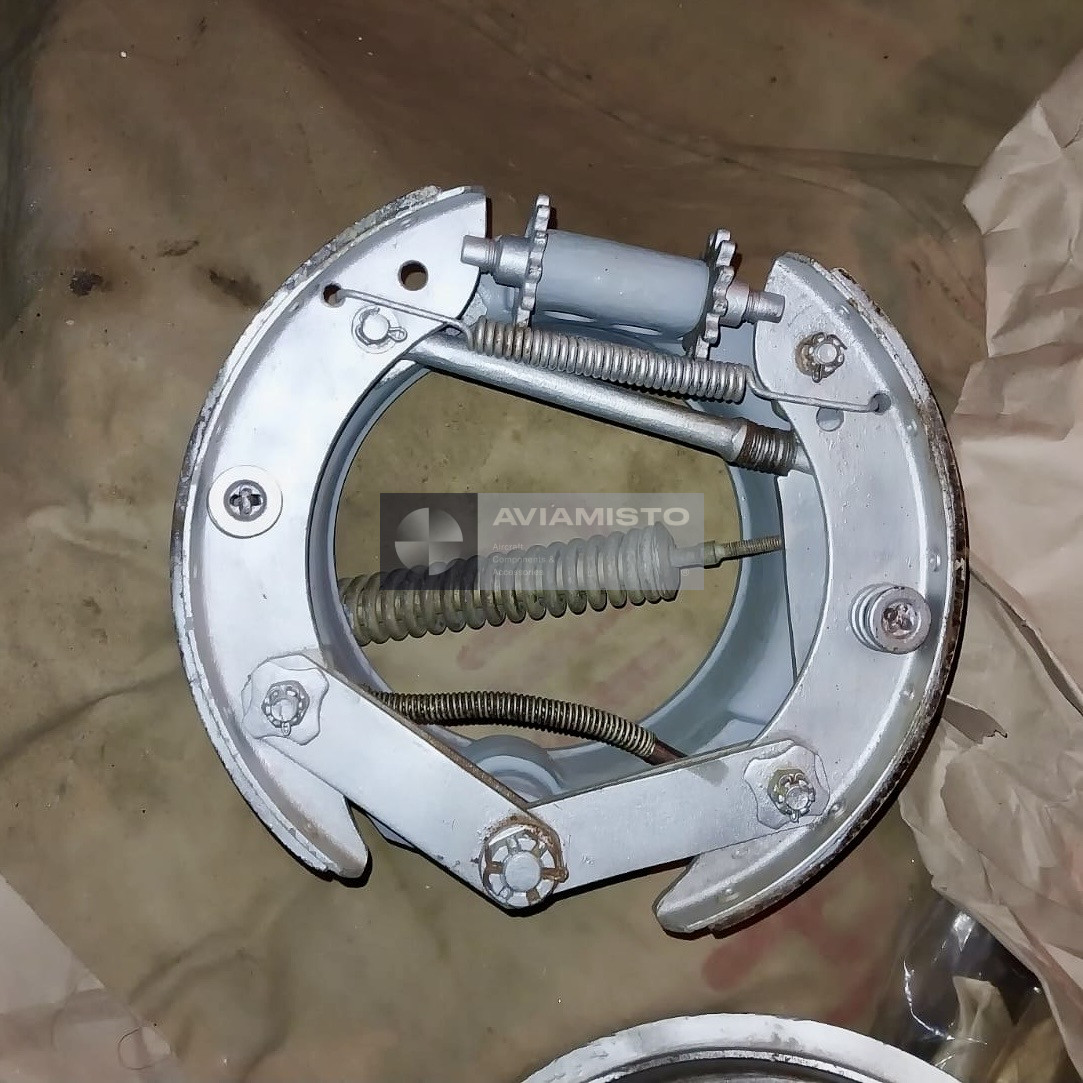

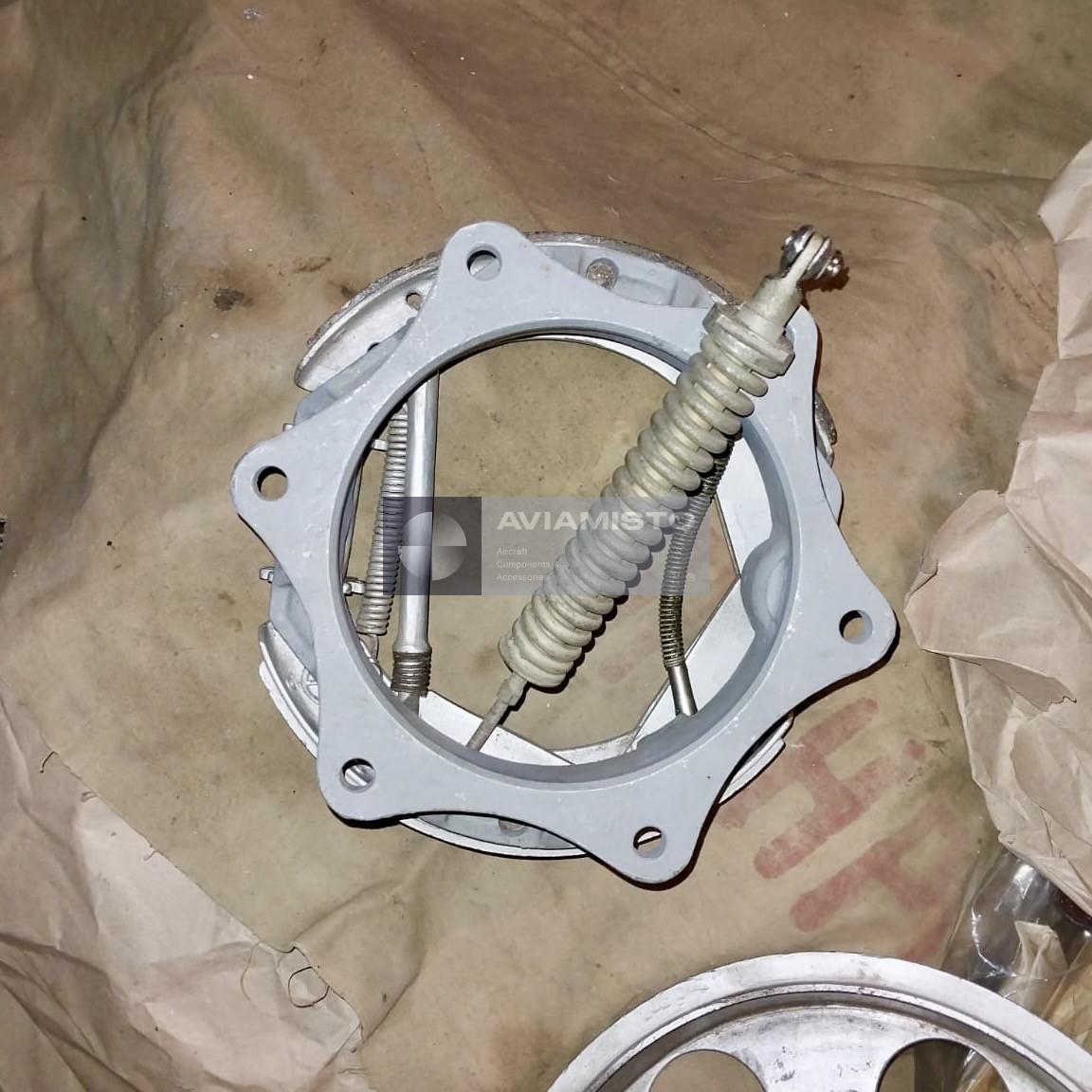

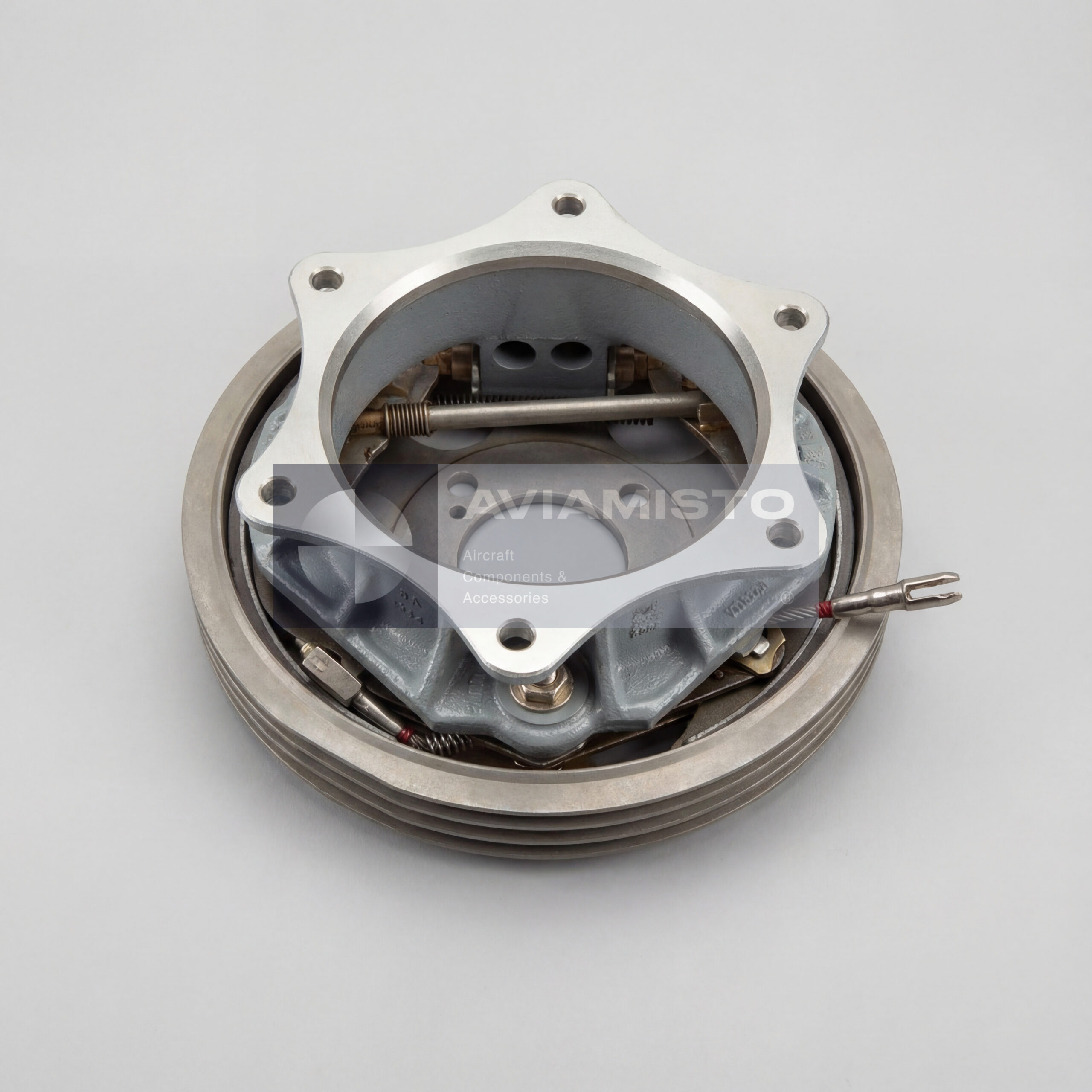

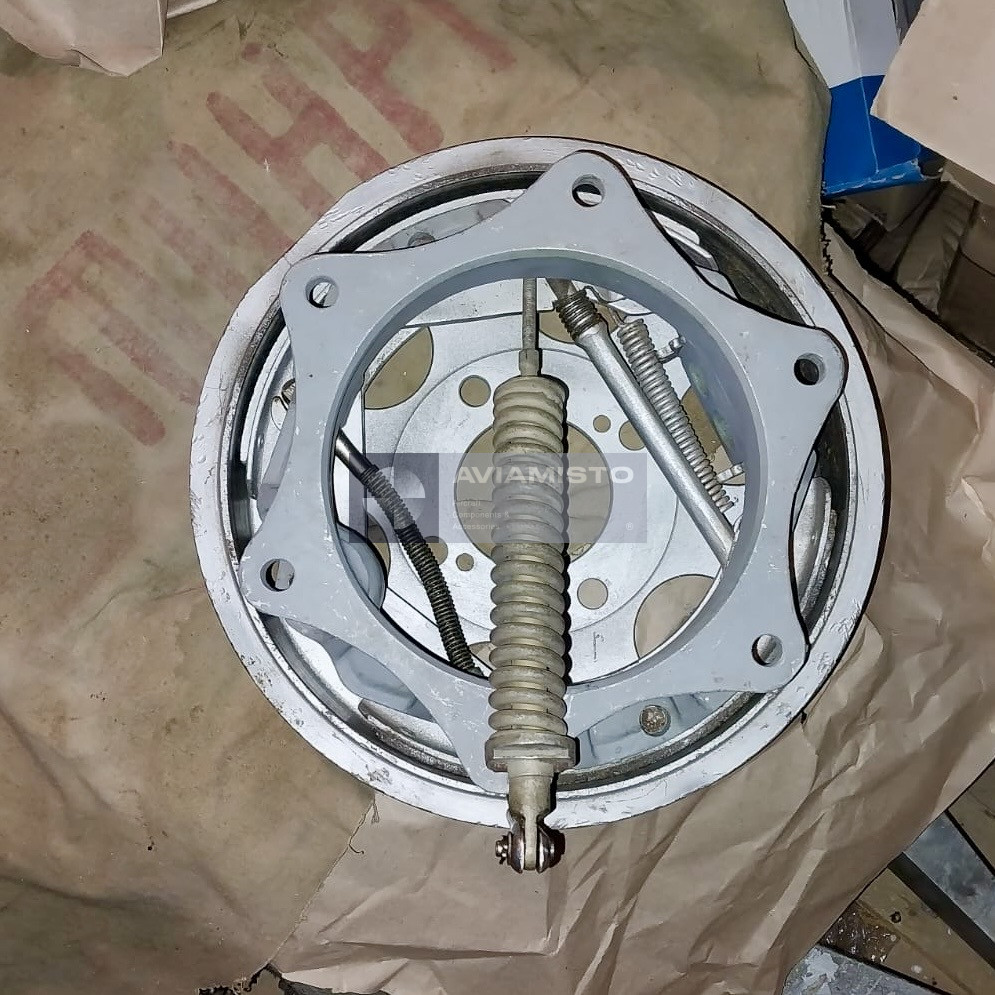

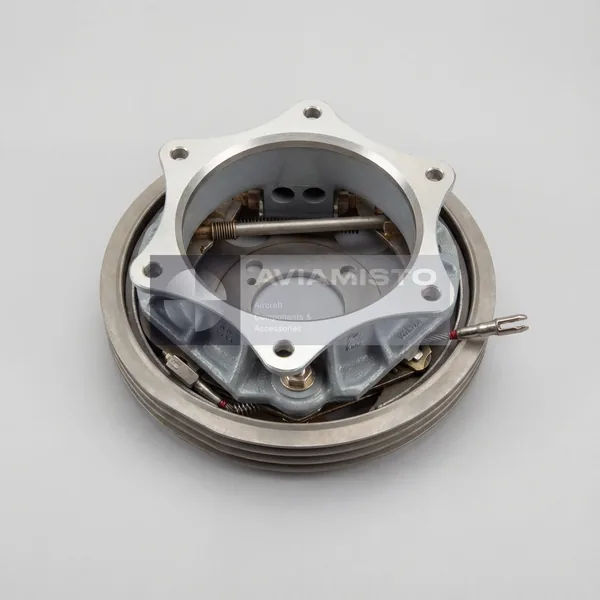

The 56-1400-00 brake performs controlled deceleration of the main rotor system. Its function is not to stop the rotor during normal powered flight, but to brake the rotor after the engines have been shut down and the transmission is no longer driving the rotor in flight mode. The brake must operate against high rotating mass and absorb mechanical energy during the stopping process. Because the rotor system has significant inertia, braking must be stable and predictable. Excessive wear, incorrect adjustment or damage inside the brake mechanism can affect stopping performance and may lead to abnormal vibration, noise or overheating.

56-1400-00 in Mi-8 / Mi-17 / Mi-171 applications

The 56-1400-00 main rotor brake is applied on Mi-8, Mi-17 and Mi-171 helicopters, where it works as part of the transmission and rotor braking system. These helicopters use a large main rotor with considerable stored rotational energy, so a dedicated braking unit is required for post-flight operations. Applicability still needs to be checked against the aircraft parts catalog and the installed transmission configuration. This is especially important for aircraft after overhaul, modernization or replacement of transmission-related assemblies, where the actual configuration may differ from a basic model reference.

Integration of 56-1400-00 with rotor brake mechanisms

The 56-1400-00 is integrated into the helicopter rotor brake mechanism and operates in the transmission area. It works with the mechanical linkage, control elements, mounting points and related transmission interfaces specified by aircraft documentation. The brake must remain secure under vibration, shock loads and changing ground operating conditions. During maintenance, the unit is normally inspected together with its attachment points, friction surfaces, actuation components, adjustment condition and signs of overheating or mechanical damage. Correct installation and adjustment are important because the brake works directly with a high-inertia rotating system.

Operating environment of the 56-1400-00 brake unit

The 56-1400-00 operates in a helicopter environment where vibration, shock, temperature variation and cyclic mechanical loads are expected. The unit must withstand repeated braking cycles after flight and ground operation. Its condition affects not only rotor stopping time, but also the practical safety of servicing around the helicopter. Wear of friction elements, contamination, incorrect clearance, damaged hardware or poor actuation can reduce braking efficiency. For this reason, the rotor brake should be checked according to the maintenance schedule and after any abnormal braking event or unusual noise during rotor stopping.

Identification and supply of 56-1400-00

Before ordering 56-1400-00, the designation should be confirmed against the aircraft documentation, transmission system configuration and required condition. The unit may be supplied as new, overhauled or repaired, depending on availability and customer requirements. Documentation, warranty terms and service status should be clarified before shipment, especially for operators and MRO organizations that need traceable components. For correct supply, it is useful to specify the helicopter type, required condition, documentation set, warranty requirement and whether the brake is needed for operational replacement, overhaul stock or repair support.
