ECN-40

Booster fuel supply function of ECN-40

The ECN-40 provides pressure and flow for the fuel line between the service tank and the engine fuel pump-regulator. This is important because the engine fuel control unit must receive fuel without interruption, pressure loss or cavitation. If the supply pressure becomes unstable, the fuel control system may not receive the proper inlet conditions. The ECN-40 helps prevent such problems by maintaining fuel movement from the service tank toward the engine fuel equipment during normal helicopter operation.

Dual-pump installation of ECN-40

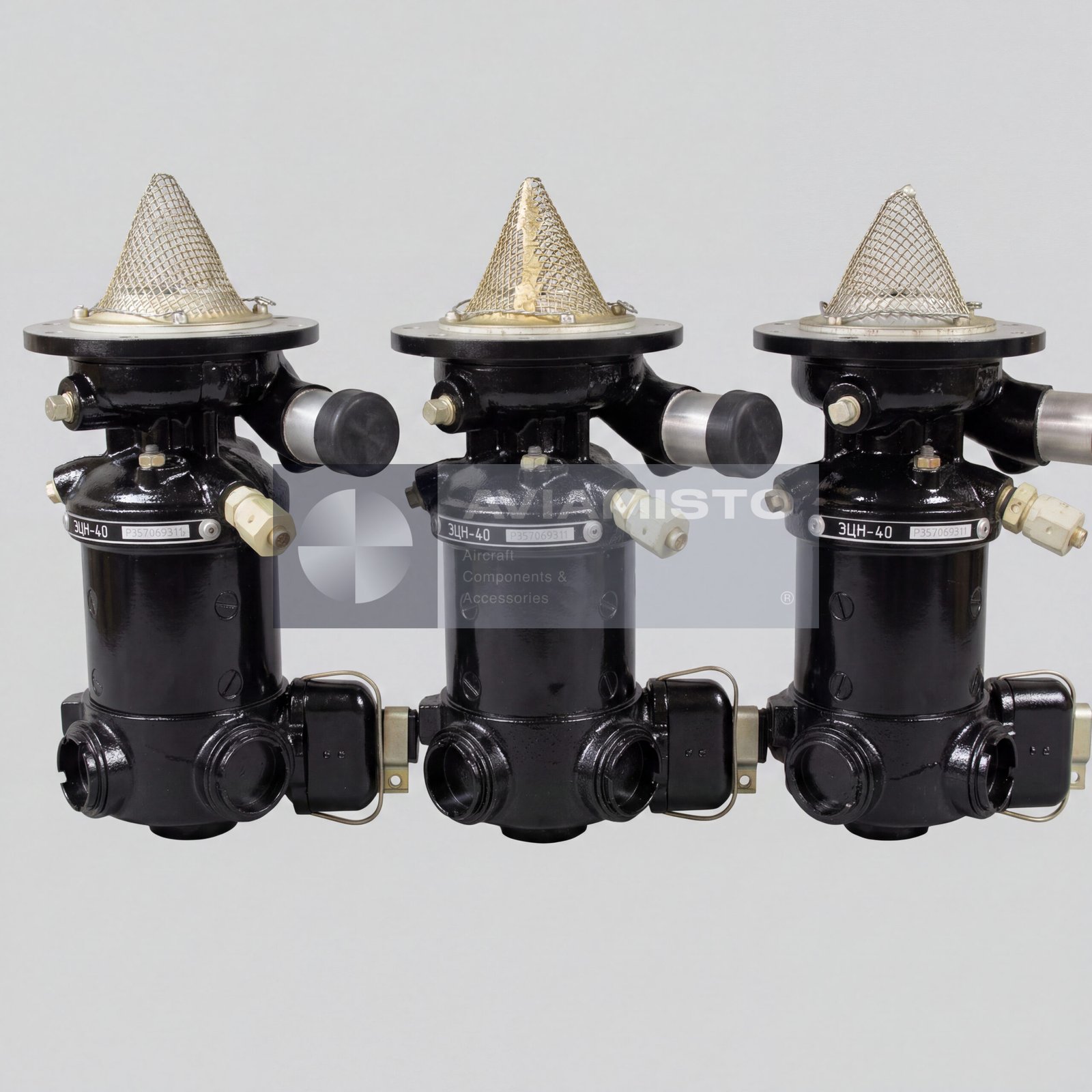

In the Mi-8 fuel system, two ECN-40 pumps are typically installed in parallel. This arrangement improves reliability: if one pump fails, the second pump can continue supplying fuel to the engine system. For helicopters, this redundancy is important because fuel feed stability directly affects engine operation. The ECN-40 also replaced earlier pump types such as PCR-1V in relevant configurations. When ordering or replacing the unit, the aircraft modification and fuel system layout should always be checked against the maintenance documentation.

ECN-40 design and electric drive

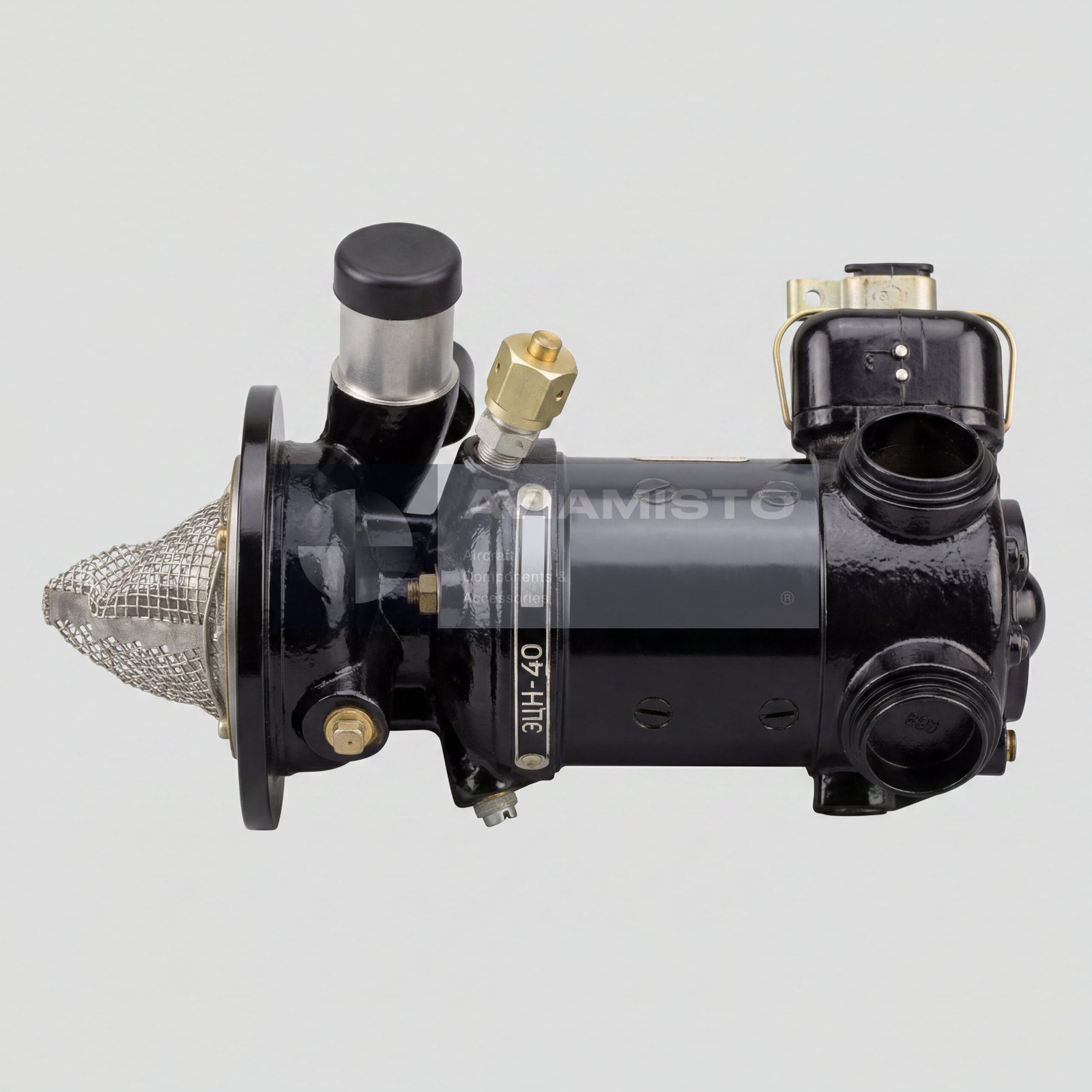

The ECN-40 is supplied as a pump unit with a DC electric motor, commonly the MP-100B1-2S. The pump is compact but designed for continuous aircraft fuel-system operation. It uses a centrifugal pumping stage to create flow and head, while the electric motor provides independent drive from the aircraft DC electrical system. The pump operates as a dedicated booster unit in the fuel supply circuit, where stable rotation speed and clean fuel flow are essential for correct performance.

Two-stage impeller arrangement of ECN-40

The ECN-40 has a two-stage pumping layout. The shaft carries a main centrifugal impeller and a smaller impeller-type stage that performs an anti-cavitation function. This helps improve fuel flow stability and reduces the risk of vapor formation or unstable pump operation under demanding fuel-system conditions. The design is especially important in aviation fuel circuits where pressure, flow and temperature conditions can change during operation. Clean fuel and unobstructed inlet flow remain critical for proper pump function.

Drainage and sealing protection in ECN-40

The pump includes a drainage cavity between two shaft seals. This cavity has an outlet fitting that helps prevent aviation fuel from entering the electric motor section if sealing wear or leakage appears. This is an important safety and reliability feature because the pump combines a fuel hydraulic part and an electrical drive in one assembly. During maintenance, technicians should check the drain line, signs of fuel leakage, seal condition, motor insulation, connector condition and any traces of contamination or corrosion.

ECN-40 replacement and system compatibility

The ECN-40 should be identified by its full aviation designation. In aviation spare parts, ECN-40 refers to the helicopter fuel booster pump used in Mi-8 family fuel systems. Before installation, compatibility should be checked by the aircraft parts catalog, fuel system diagram and maintenance manual. It is also important to confirm the motor version, condition, documentation and test results before accepting the pump for aircraft use.
