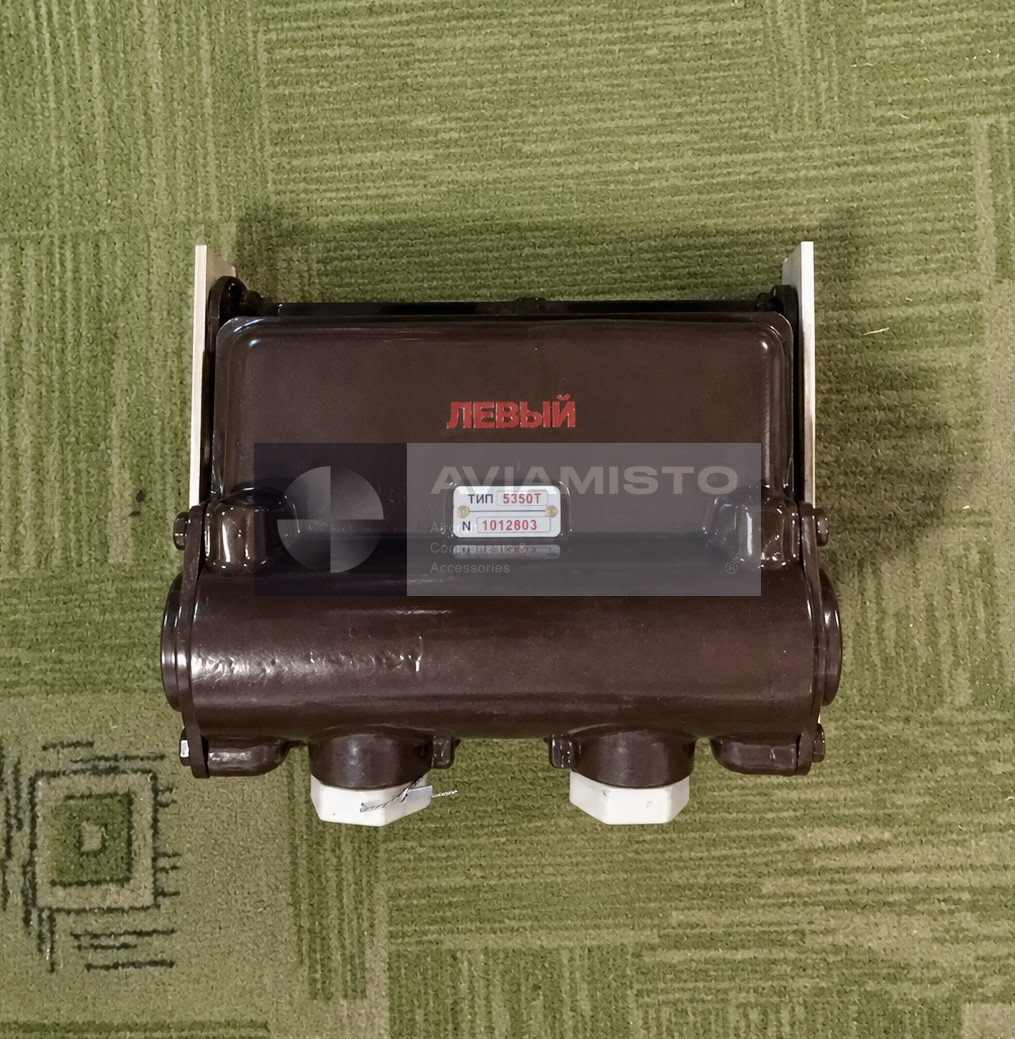

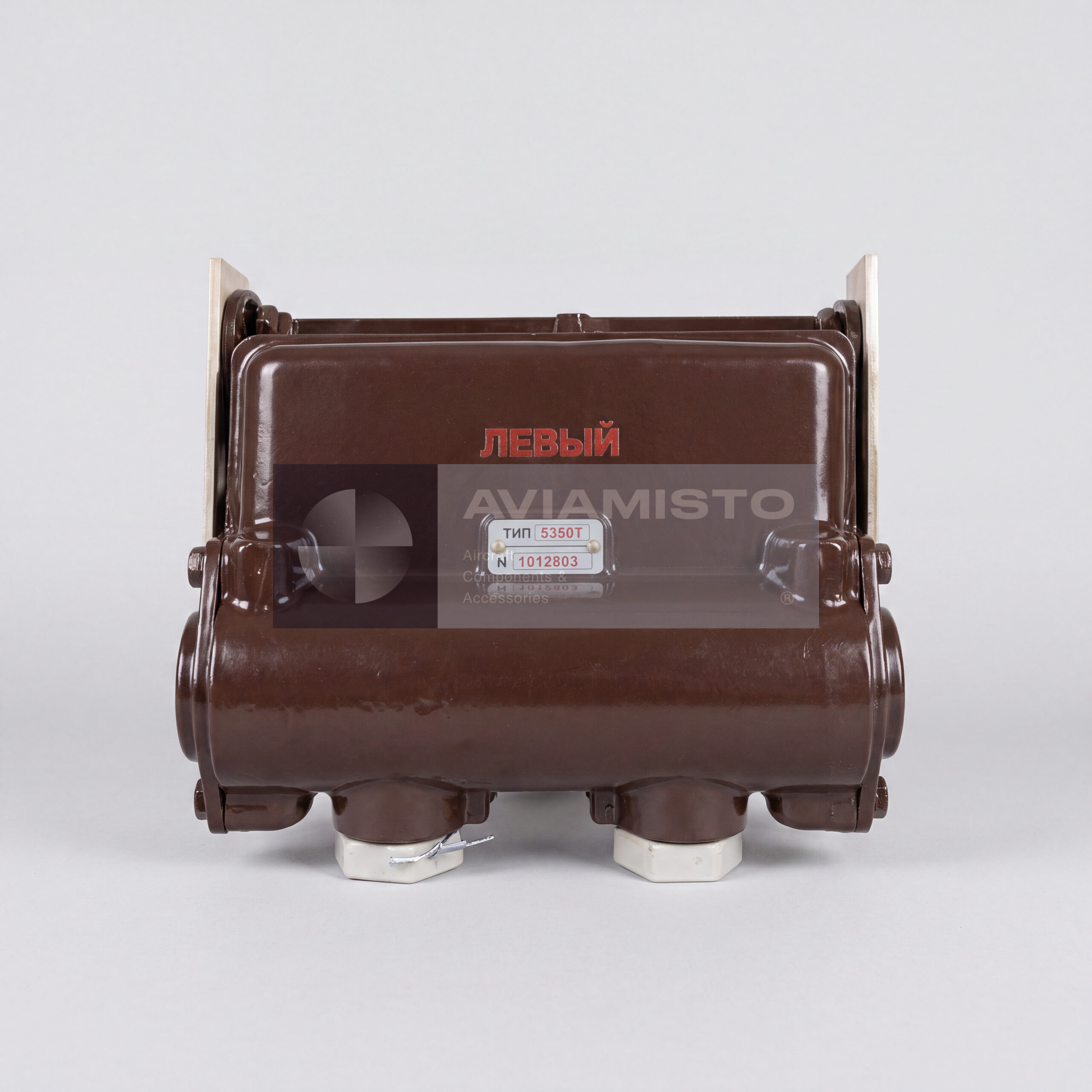

5350T

5350T radiator in the 5349T oil cooling assembly

The 5350T is an aircraft air-oil radiator used in the oil cooling system of Mi-8 family helicopters and related modifications. This item is installed as part of the larger 5349T radiator configuration, which consists of separate radiator sections. In this arrangement, the 5350T represents the lower radiator section, while the 5351T is associated with the upper section. For catalog, supply, and maintenance purposes, the product is normally identified simply as radiator 5350T, without adding “lower part” to the product name. The radiator may be supplied in left-hand or right-hand execution, depending on the required installation side.

Oil cooling function of the 5350T radiator

The 5350T supports heat exchange in helicopter lubrication systems by transferring excess heat from oil to the airflow passing through the radiator core. During flight and ground operation, lubricating oil must remain within the required temperature range to preserve its viscosity and protect loaded assemblies. The radiator helps maintain the thermal balance of the oil cooling system and supports stable operation of engine and transmission components. On Mi-8 type helicopters, this function is important during start-up, ground running, hover, climb, cruise flight, and operation in high ambient temperature conditions.

5350T as a section of the 5349T radiator configuration

The 5350T should be understood as one radiator section within the complete 5349T cooling configuration. The full 5349T radiator arrangement includes upper and lower radiator elements that together provide the required cooling surface and oil flow capacity for the helicopter system. The 5350T is therefore selected not as an isolated generic heat exchanger, but as a component of the specific 5349T radiator layout. When ordering the part, it is important to confirm whether the requirement is for the 5350T radiator only, the related 5351T section, or a complete 5349T radiator set.

Left and right executions of the 5350T radiator

The 5350T radiator may be supplied in left-hand and right-hand versions. These executions are normally mirror-type parts intended for installation on opposite sides of the aircraft cooling system. The left and right radiators may differ in connection layout, mounting geometry, fitting orientation, airflow path, and installation arrangement. For this reason, the required side must be confirmed before procurement. In technical requests and commercial offers, it is better to specify the execution directly: 5350T left-hand or 5350T right-hand, depending on the aircraft configuration and the customer’s installation requirement.

System integration of 5350T in Mi-8 oil circuits

In the helicopter system, the 5350T works together with oil lines, mounting elements, airflow ducts, thermostatic or bypass components, and the upper section of the 5349T radiator arrangement. The radiator must provide stable oil passage and effective heat transfer while remaining leak-tight under vibration, pressure variation, and temperature changes. Before installation, the core and collectors should be checked for contamination, corrosion, deformation, blocked passages, damaged fins, and signs of previous leakage. Since the 5350T forms part of a larger cooling system, its technical condition affects the total cooling efficiency of the engine and gearbox oil circuits.

Identification and supply of radiator 5350T

The product is identified by the designation 5350T. In Russian-language documentation and supply requests, the designation may also appear as 5350Т or 53-50Т. It should not be confused with other similarly numbered components, such as 5350T.010 thermostatic valve elements used in oil cooling systems. The radiator should be verified against the aircraft documentation before supply or installation, especially where left and right executions are involved. Depending on availability and customer requirements, the item may be supplied as new, serviceable, overhauled, or from storage, with the required passport and operational documentation.

Product Type: Aircraft air-oil radiator / radiator section
Designation: 5350T
Alternative Designations: 5350Т, 53-50Т
Function: Cooling of lubricating oil in helicopter oil cooling systems
Application / Where Used: Helicopter engine and main gearbox oil cooling systems
System / Installation Area: Part of the 5349T air-oil radiator configuration
Compatible Aircraft / Equipment: Mi-8, Mi-17, Mi-171, Mi-172 helicopters depending on configuration
Available Executions: Left-hand and right-hand versions
Execution Type: Mirror-type left / right configuration depending on installation side
Radiator Arrangement: Lower section of the 5349T radiator assembly
Associated Upper Section: 5351T
Associated Complete Assembly: 5349T / VMR 5349T
Working Fluid: Lubricating oil
Cooling Principle: Heat exchange between lubricating oil and ambient airflow
Material: Aluminum collectors and core
Estimated Weight: Approx. 6.2 kg per unit
Weight Basis: Approx. 40% of complete 5349T radiator weight of 15.4 kg
Interchangeability / Compatibility: To be confirmed by aircraft parts catalog and radiator assembly documentation
Technical Documentation: Product passport and operational documentation
