M11A

M11A module in onboard aircraft equipment

The M11A is an aircraft electronic module used in onboard aviation equipment installed on helicopters and other aircraft. It operates as a signal matching and conversion unit in flight data recording systems. The module is not a standalone recorder and does not store flight data by itself. Its task is to prepare weak sensor signals for further processing and recording by onboard flight data acquisition equipment.

Function of the M11A DC amplifier

The M11A is a DC amplifier / signal conditioning module. It amplifies low-level electrical signals coming from temperature sensors, mainly chromel-alumel thermocouples used for measuring turbine gas temperature. The module brings the thermocouple signal to the level required by the flight data acquisition unit. This allows the aircraft recorder system to receive a stable, normalized signal instead of a weak raw thermoelectric voltage from the sensor.

Cold-junction compensation and signal matching

A key function of the M11A module is compensation of the thermocouple cold junction. Thermocouple signals depend not only on the measured gas temperature, but also on the temperature at the reference junction. The M11A corrects this effect and helps provide a usable signal for the onboard recording system. It also matches signal levels between temperature sensors and data acquisition units, reducing the risk of incorrect recording caused by signal mismatch.

Use of M11A in flight data recording systems

The M11A is used in onboard flight data recording systems such as BUR-1-2Zh, BUR-SL-1, Tester-M and related equipment configurations. The amplified and normalized signal is sent to flight information acquisition and conversion units, such as BSPI-type blocks, where it can be processed and then recorded by protected onboard memory units. In this signal chain, the M11A works between the primary temperature sensor and the aircraft recorder electronics.

Aircraft and helicopter application

The M11A module is applied on helicopters of the Mi-8 family, including Mi-8 and Mi-171 configurations, and may also be used on other aircraft types such as Mi-26, An-124 and M-101T depending on equipment fit. On helicopters, the module is typically installed in equipment bays, instrument compartments or cargo cabin areas according to the aircraft installation documentation. In many systems, two modules may be installed — one for each engine channel.

Construction and installation of the M11A

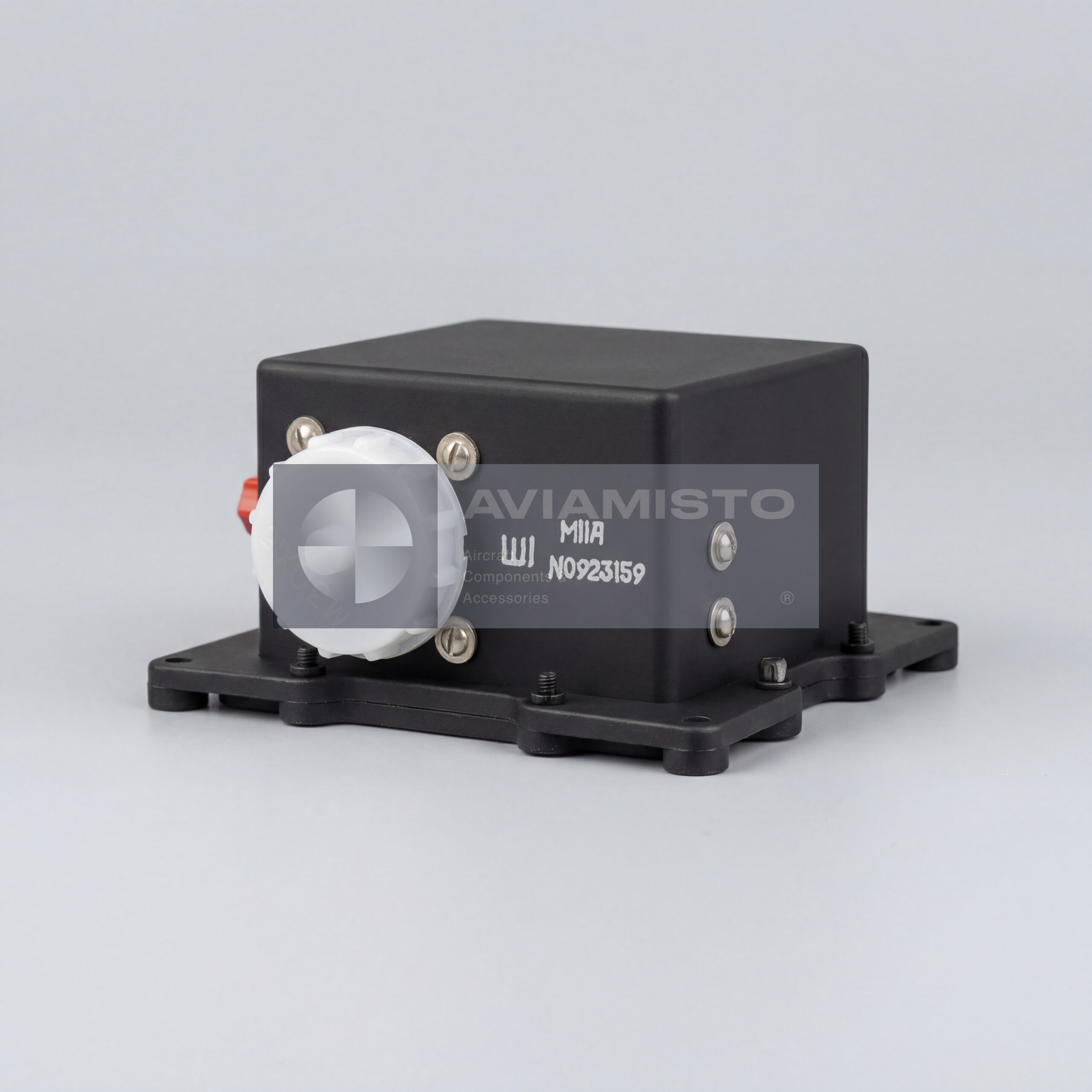

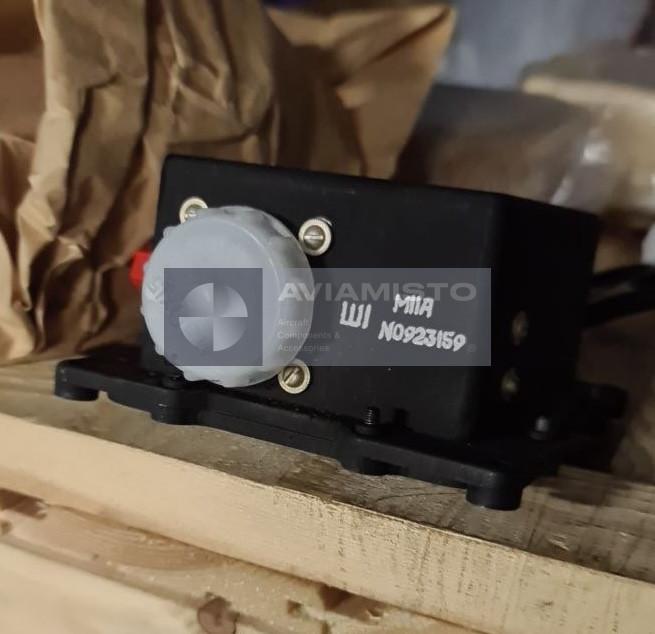

Structurally, the M11A is manufactured as a compact electronic module in a metal shielded housing. The housing protects the signal-conditioning circuits from electromagnetic interference and mechanical influence. The module is designed for operation from the aircraft 27 V DC power network and uses a small cylindrical connector, commonly of the RM27 type, depending on configuration. During maintenance, connector condition, housing integrity, mounting security and wiring compatibility should be checked.

Identification and supply of M11A

For procurement, the designation M11A should be clearly specified. In Russian documentation, the same product may be written as М11А. The module may also be described as a two-channel aircraft DC normalizing amplifier for thermocouple signals. Before supply or replacement, it is important to confirm the technical specification, aircraft type, flight data recording system, connected sensors, output signal range and required documentation. Applicability should always be checked against aircraft and recorder-system documentation.

Product Name: Aircraft DC Signal Amplifier Module
Part Number: M11A
Product Type: Aircraft electronic module / two-channel DC normalizing amplifier
Function: Signal conversion, amplification and processing
Main Function: Amplification and normalization of thermocouple signals
Cold Junction Compensation: Provided for thermocouple signal correction
Application / Where Used: Onboard flight data recording and signal acquisition systems
System Application: BUR-1-2Zh; BUR-SL-1; Tester-M and related aircraft recording equipment
Compatible Acquisition Units: BSPI-4-2; BSPI-4-1; BSPI-SL-1; BSPI-1; BSPI-2, depending on system configuration
Associated Storage Units: ZBN-1-3; ZBN-1-2Zh; ZBN-M, through the recording system
Input Sensors: Chromel-alumel thermocouples such as T-80T, T-64, T-99 and equivalents
Compatible Aircraft / Equipment: Mi-8 family helicopters; Mi-171; Mi-26; An-124; M-101T, depending on aircraft documentation
Installation Location: Avionics / equipment compartments or cargo cabin frame locations, depending on aircraft layout
Number of Channels: 2 independent measurement channels
Working Voltage: 27 ±2.7 V DC
Permitted Supply Range: 18–31 V DC, depending on system documentation
Input Signal: Thermoelectric voltage from chromel-alumel temperature sensors
Output Signal: Normalized DC voltage, typically 0–6.3 V or 0–5 V depending on connected BSPI modification
Measurement Range: 0–50
Absolute Conversion Error: ±90 mV
Relative Conversion Error: ±0.5%
Connector Type: Small cylindrical RM27-type plug connector, depending on execution
Operating Temperature Range: −60 °C to +60 °C, according to operating conditions
Mass: Not more than 0.53 kg
Design: Compact shielded metal housing
Environmental Resistance: Vibration-resistant, moisture-resistant and suitable for aircraft operating conditions
Alternate Designations: M11A; М11А
Technical Documentation: M11A passport; Technical Conditions 8I3.036.027TU
