FPP-9

Landing and surface illumination by FPP-9

During takeoff, approach and landing, the FPP-9 helps illuminate the runway, landing zone or operating surface ahead of or below the aircraft. This is especially useful when the aircraft operates from poorly lit airfields, temporary landing sites, remote areas or locations without sufficient ground lighting. The light supports visual assessment of the surface, obstacles, terrain and approach area before touchdown or during ground maneuvering.

Search and rescue role of the FPP-9 light

The FPP-9 can also be used as a search and operation-area light. It helps illuminate terrain, water surface, rescue zones, people, cargo, vehicles and other objects during night or low-visibility missions. On helicopters, this function is useful during evacuation, external load operations and monitoring of the area beneath the aircraft. The light gives the crew and ground team an additional visual reference when working outside normal airfield infrastructure.

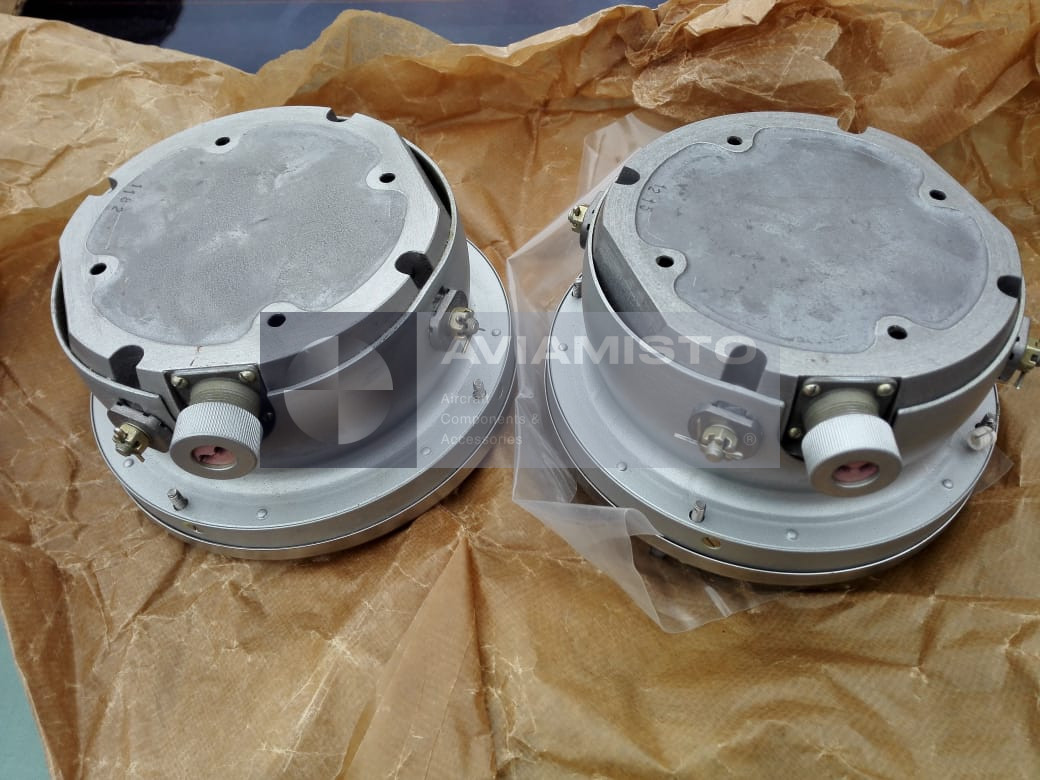

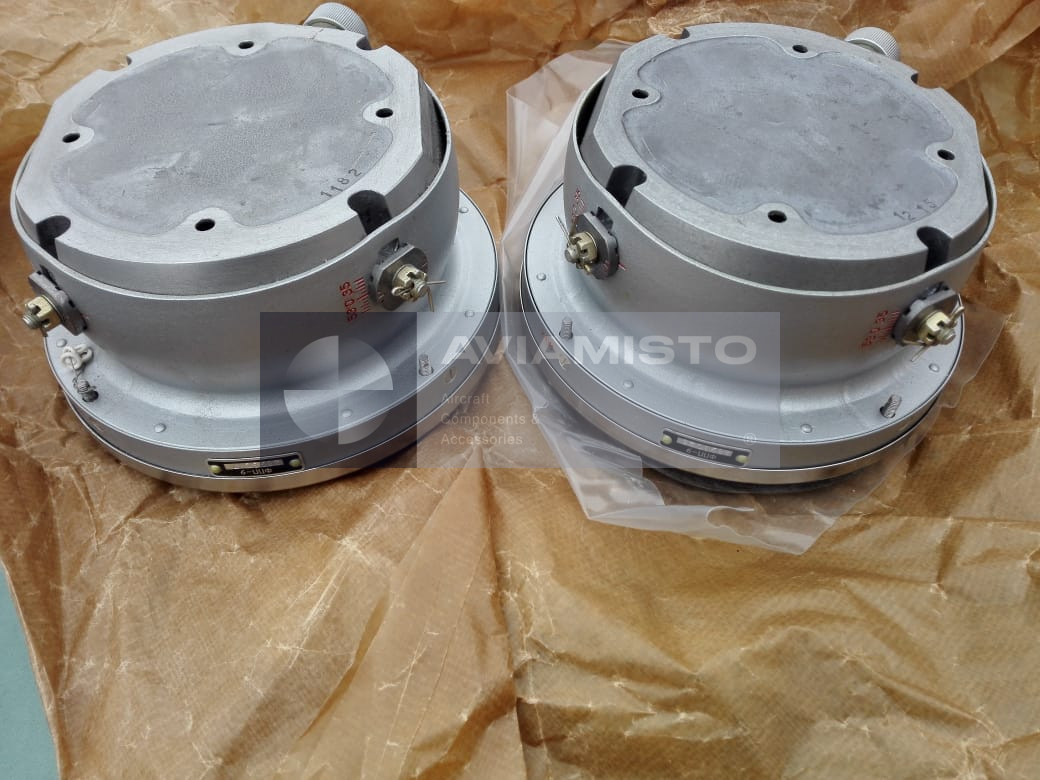

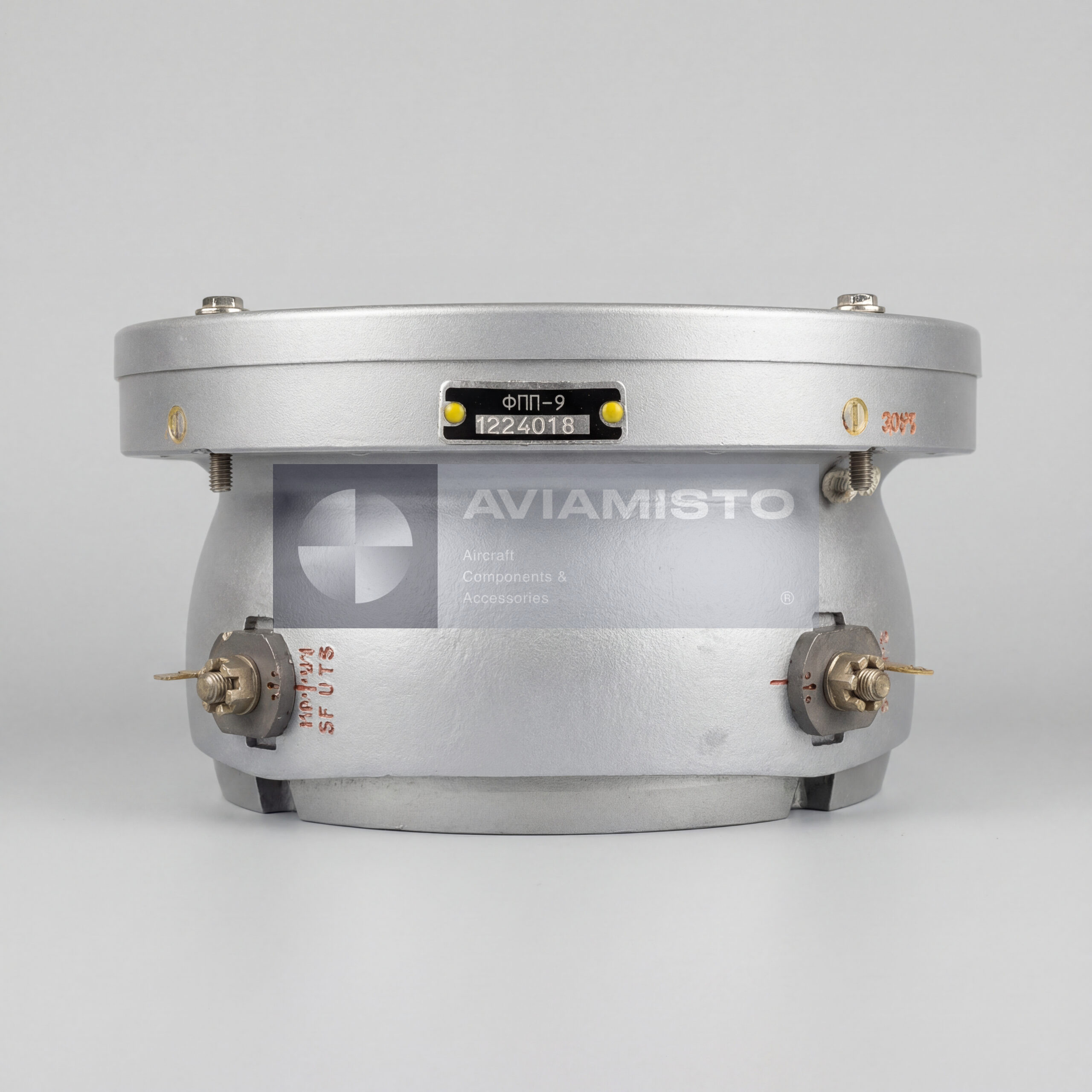

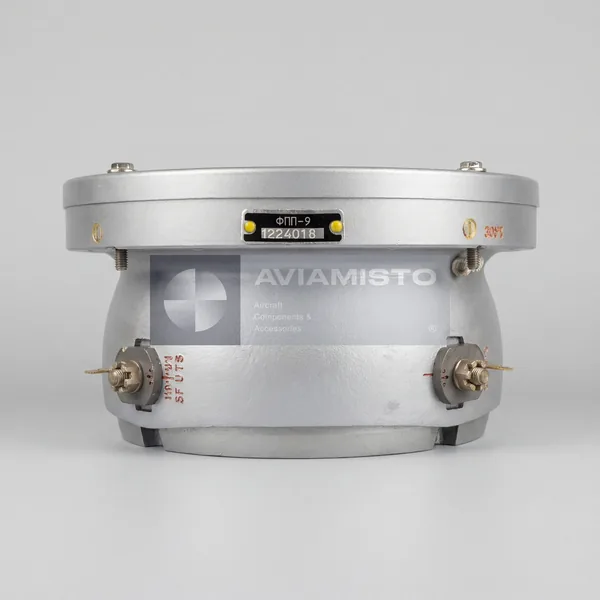

Fixed construction of the FPP-9

The FPP-9 is a fixed-type landing and search light. Unlike retractable lights such as the FPP-7 family, it does not include a built-in automatic extension and retraction mechanism. The unit is mounted rigidly in the aircraft structure, fairing, lower fuselage area, nose section or side installation point, depending on the aircraft configuration. Its beam direction is determined by the installation position and mounting arrangement specified in the aircraft documentation.

LFL 27-450-5 lamp in the FPP-9

The light source used in the FPP-9 is the LFL 27-450-5 aircraft lamp-light. This lamp operates from the standard 27 V DC aircraft electrical system and has a rated power of 450 W. Because the lamp consumes a relatively high current, the condition of wiring, switches, connectors and power supply circuit is important. Weak light output, unstable operation or overheating may be related not only to the lamp itself, but also to contacts, voltage drop or poor circuit condition.

Installation areas for FPP-9 on aircraft

The FPP-9 may be installed in different external positions depending on aircraft type and operational purpose. On helicopters, it may be mounted in the lower fuselage area for surface illumination during hovering or external load monitoring. On some aircraft, it may be placed in the nose fairing or side pylon area for directional forward lighting during taxiing, approach and landing. Exact installation must be confirmed by the aircraft parts catalog and external lighting system documentation.

Use on Soviet and Russian aircraft

The FPP-9 is used on Soviet and Russian fixed-wing and rotary-wing aircraft with compatible mounting and electrical interfaces. It is commonly associated with domestic helicopter and light aircraft applications, including various Mi and Ka family aircraft depending on configuration. Many available units may come from preserved storage stock, often referred to as new old stock. For aircraft use, condition and documentation should be checked carefully before installation.

Reference information

General principles of landing, taxi and search lights are described in the Wikipedia article on aircraft lighting. Confirm the specific FPP-9 aircraft application against the applicable aircraft documentation.

Supply and documentation for FPP-9

For procurement, the full designation FPP-9 should be stated together with the required condition, aircraft type and documentation requirements. The light may be supplied as a standalone unit, with lamp, or according to the delivery set specified in the passport. Manufacturer passport or certificate of conformity may be available depending on stock and batch. Before installation, the unit should be inspected for housing condition, lens cleanliness, lamp compatibility, contact condition and compliance with the aircraft external lighting system.
