PP-5M1D1

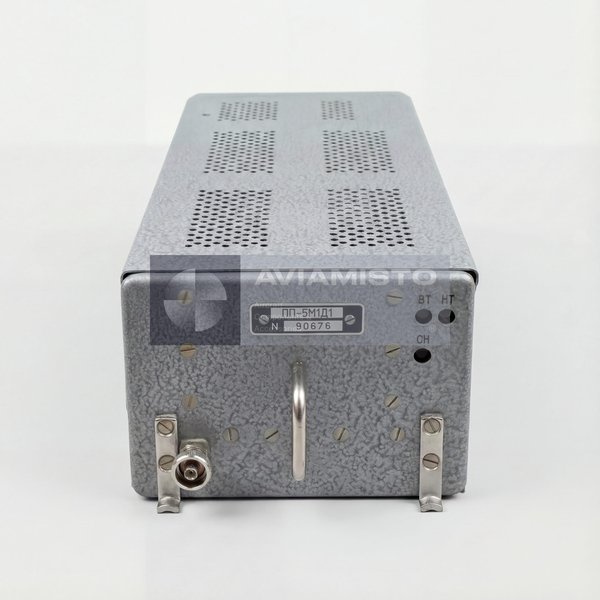

PP-5M1D1 transceiver in the RV-5M1D1 radio altimeter

The PP-5M1D1 is the transmitter–receiver unit of the modernized RV-5M1D1 radio altimeter system. It is designed for continuous measurement of true aircraft height above terrain, water or uneven surface during flight. The unit is the central electronic element of the system: it generates, transmits, receives and processes microwave radar signals and supplies real-time altitude data to cockpit displays and connected onboard avionics.

Role of PP-5M1D1 in altitude measurement

In operation, the PP-5M1D1 transmits the radar probing signal through the antenna system, receives the reflected return from the underlying surface and processes this signal to determine actual aircraft height. The calculated radio-height data is then supplied to the cockpit indicator and other connected systems. The unit works in the 4200–4400 MHz frequency band, which is typical for this class of airborne radio altimeters.

Modernized interface capability of PP-5M1D1

Compared with the standard PP-5M, the PP-5M1D1 is intended for upgraded RV-5M1D1 configurations where radio-height information may be required not only for the internal indicator loop, but also for external avionics. The unit supports output compatibility with TCAS / external avionics interfaces, depending on the aircraft configuration and installation documentation. This makes the PP-5M1D1 suitable for systems where radio-altitude data must be shared with modern onboard equipment.

System functions of PP-5M1D1

The PP-5M1D1 performs the main radio altimeter functions inside the RV-5M1D1 system. These include transmission of the microwave probing signal, reception and filtering of the reflected return, calculation of actual aircraft altitude, output of dangerous-height alarms, Failure / OK status signaling and test verification. The unit also distributes altitude data to cockpit and external systems where required by the installation.

Connection with UV-5M indicator and AR5-1 antennas

A standard RV-5M1D1 installation typically includes the PP-5M1D1 transceiver, two AR5-1 antennas, UV-5M altitude indicator, RA-5 shock-mount frame and interconnecting cables. The antennas provide transmission and reception of microwave energy, the PP-5M1D1 processes the reflected signal, and the UV-5M indicator displays radio height in the cockpit. The transceiver is installed on the RA-5 shock-mount frame and connected through aircraft system wiring.

Danger Height and Failure / OK outputs

The PP-5M1D1 provides Danger Height output for warning when the aircraft descends below the selected threshold. It also forms Failure / OK status signals for cockpit and onboard systems. These outputs are important because radio altitude is often used during approach, landing, hover and low-altitude flight. If the system loses valid reflected signal or fails internal verification, the crew and connected equipment must know that the radio-height data should not be relied on until the system is checked.

Identification and supply of PP-5M1D1

For procurement, the full designation PP-5M1D1 should be used. Alternative references such as PP5M1D1, 5M1D1 transceiver or RV-5M1D1 TxRx unit can help identify the item in correspondence, but the exact designation remains the main reference. Before supply, it is important to confirm condition, documentation, connector compatibility, mounting frame availability, indicator type, antenna set, cable configuration and whether TCAS / external avionics outputs are required for the aircraft.

Product Name: Radio Altimeter Transceiver
Designation: PP-5M1D1
System Type: RV-5M1D1 radio altimeter
Product Type: Microwave transmitter–receiver unit
Primary Function: Transmission, reception and processing of microwave radar signals
Application / Where Used: Aircraft and helicopters for low-altitude flight operations
Role in System: Central electronic unit of the RV-5M1D1 radio altimeter
Special Feature: Output compatibility with TCAS / external avionics, depending on configuration
Altitude Range Capability: 0–300 m / 0–750 m / 0–1000 m, with corresponding indicator
Operating Frequency Band: 4200–4400 MHz
Residual Height H₀: Approx. 5.3 m
Accuracy, 0–10 m: ±0.6 m
Accuracy Above 10 m: ±0.6H
Danger Height Output: Available
Failure / OK Signaling: Available
Pulse Outputs: 10–700 m and 10–1000 m
Power Supply: 27 V DC + 115 V AC, 400 Hz
Mounting Method: RA-5 shock-mount frame
Interfacing Equipment: UV-5M indicator, AR5-1 antennas and system wiring
Typical Complete Set: PP-5M1D1 transceiver; two AR5-1 antennas; UV-5M indicator; RA-5 frame; interconnecting cables
Condition: As applicable
Alternate Designations: PP-5M1D1; PP5M1D1; 5M1D1 transceiver; RV-5M1D1 TxRx unit
Documentation: Product passport and maintenance manual on request
