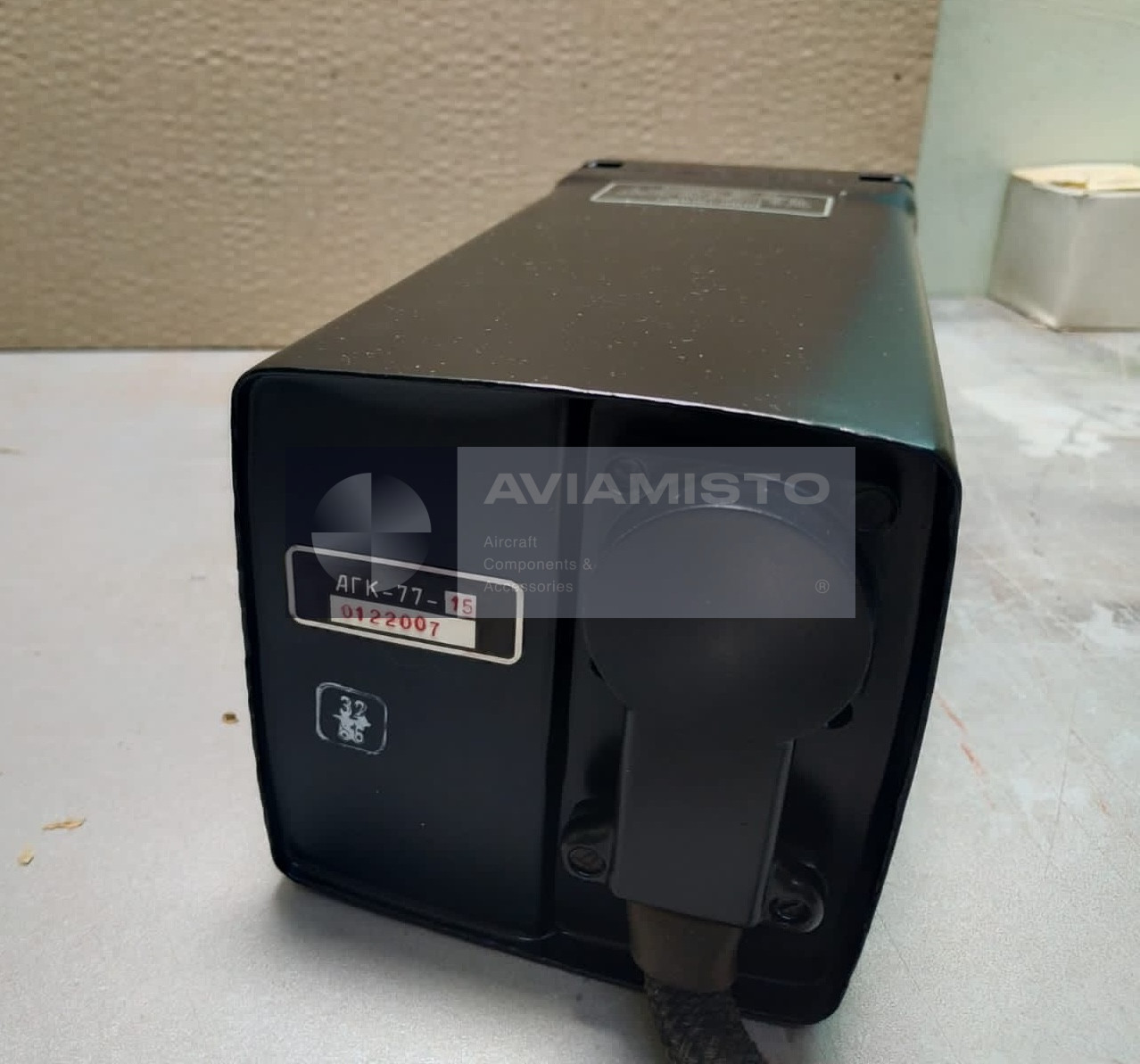

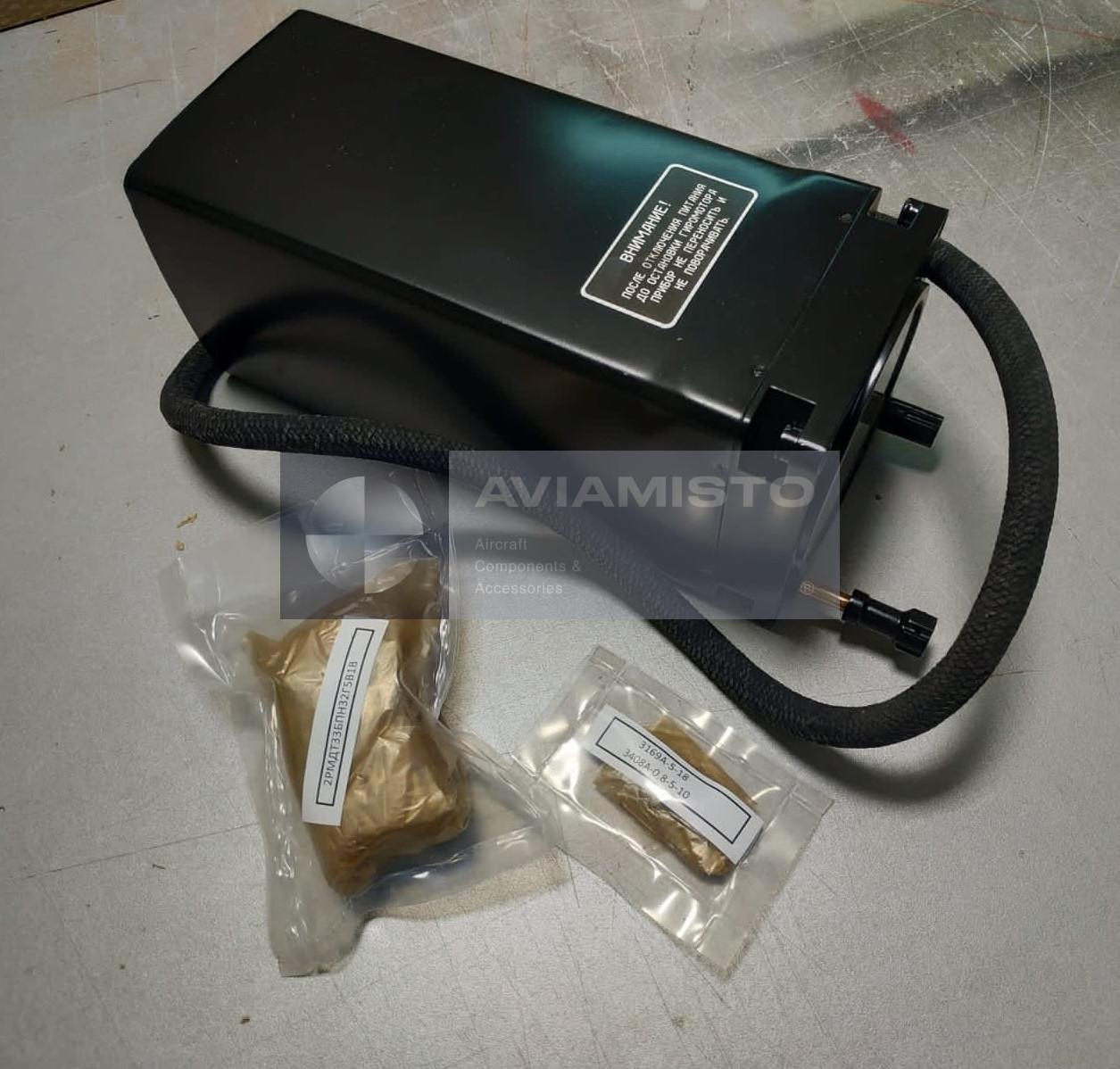

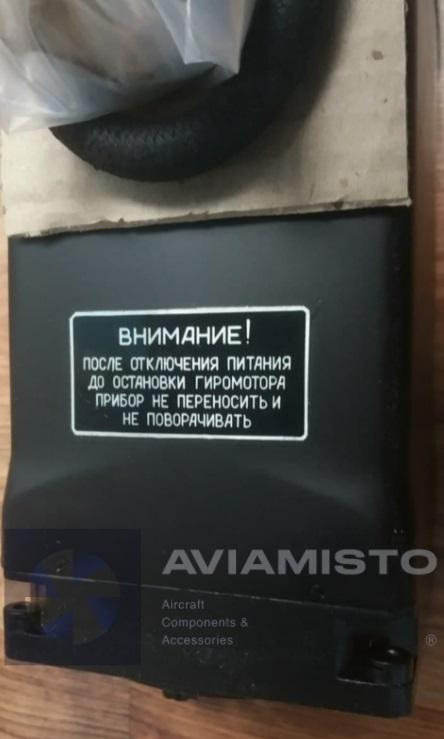

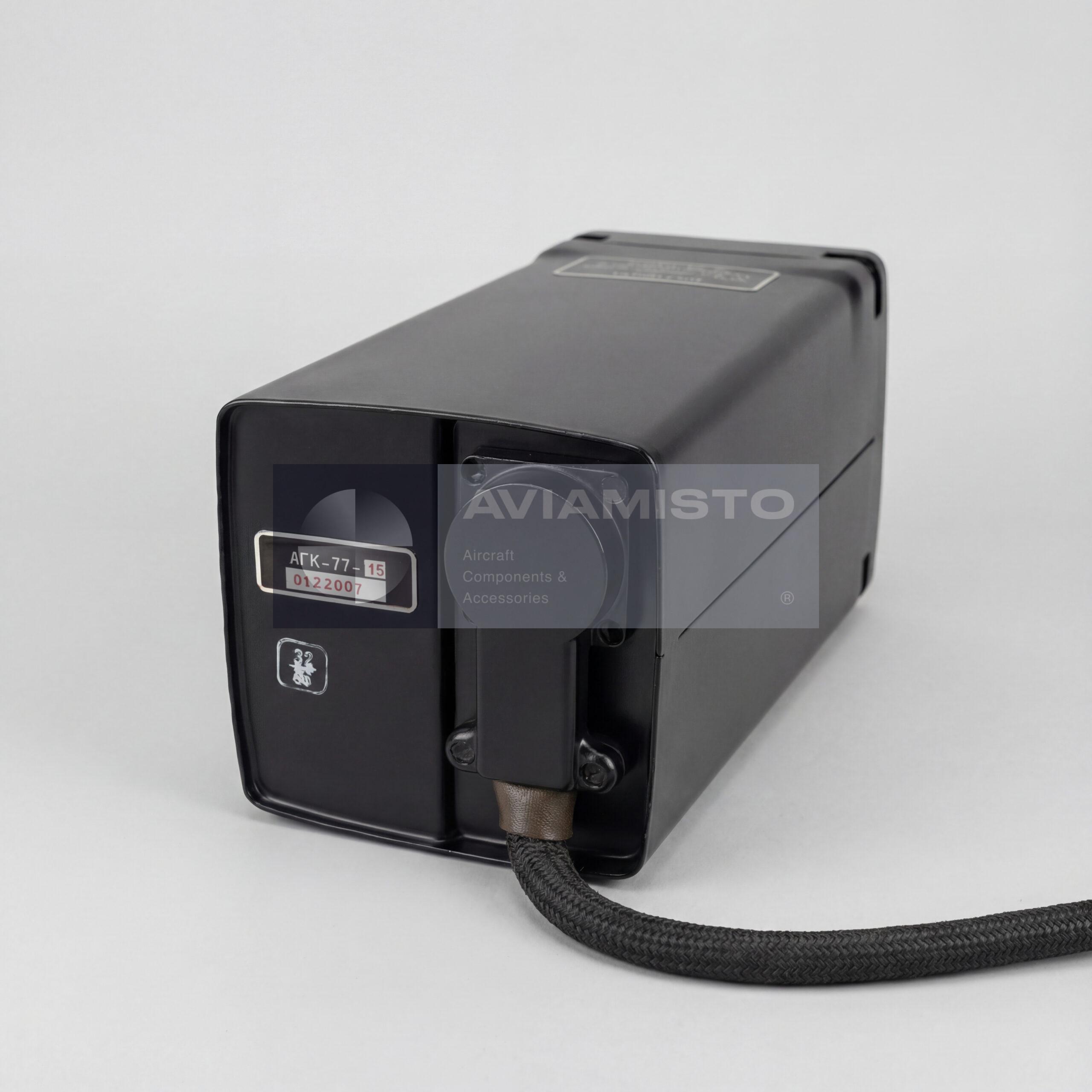

AGK-77-15

AGK-77-15 attitude indicator in flight instrument systems

The AGK-77-15 is a gyroscopic aircraft attitude indicator used in flight and navigation instrument systems of aircraft and helicopters. It provides the pilot with visual information about aircraft attitude relative to the true horizon, showing roll and pitch angles during different flight regimes. The instrument also includes sideslip indication and can generate electrical roll and pitch signals for external onboard systems. This makes the AGK-77-15 both a cockpit attitude display and a signal source for connected flight equipment.

Roll, pitch and sideslip indication

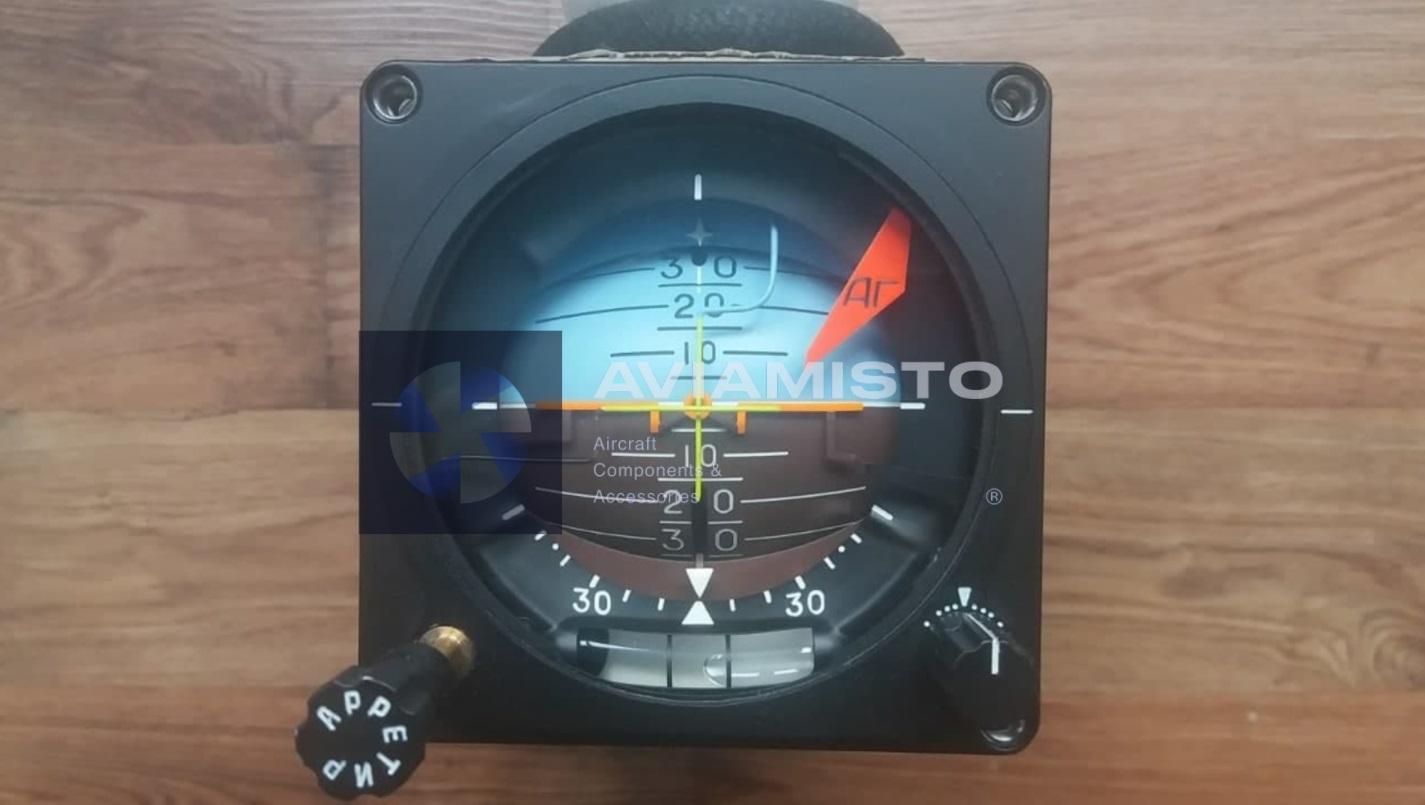

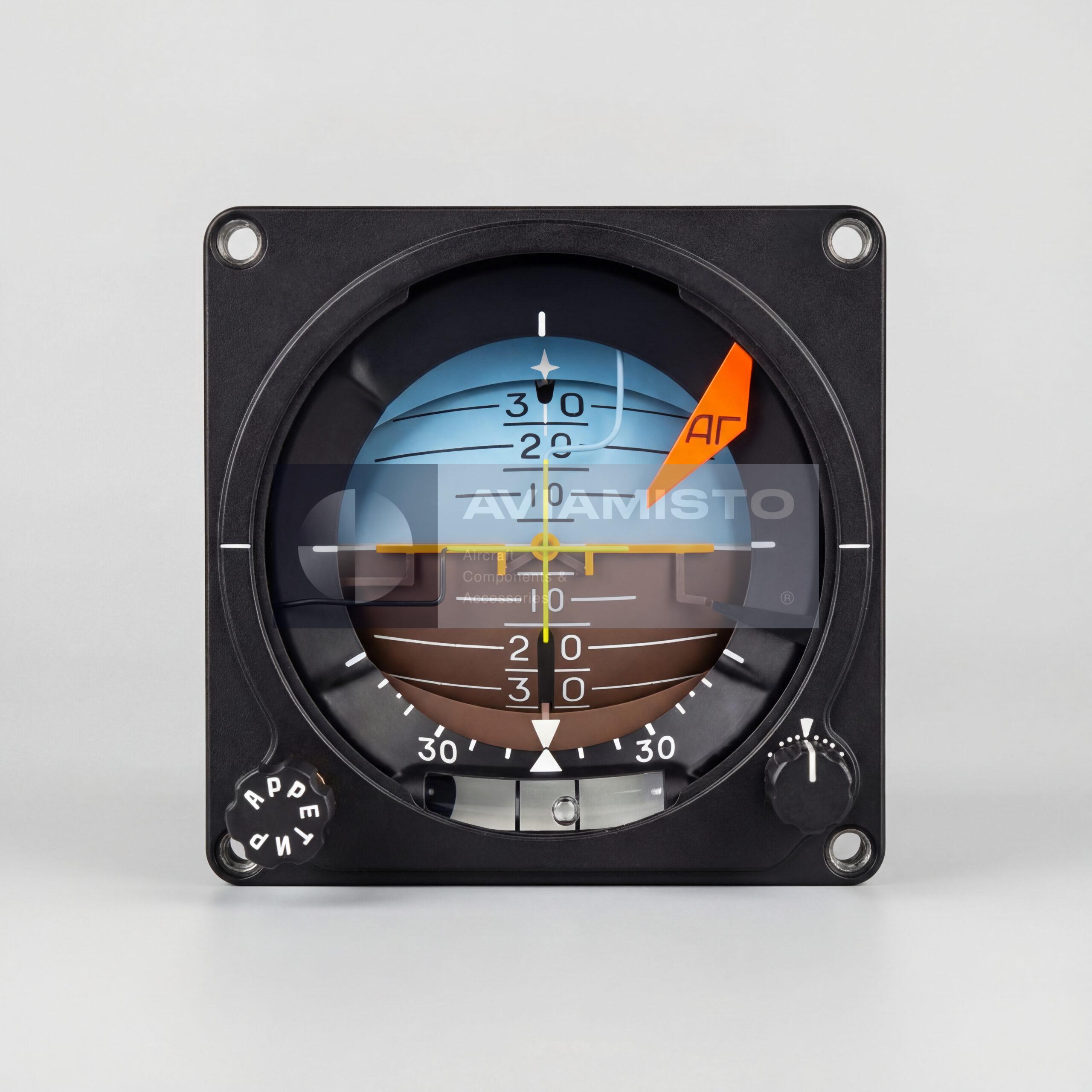

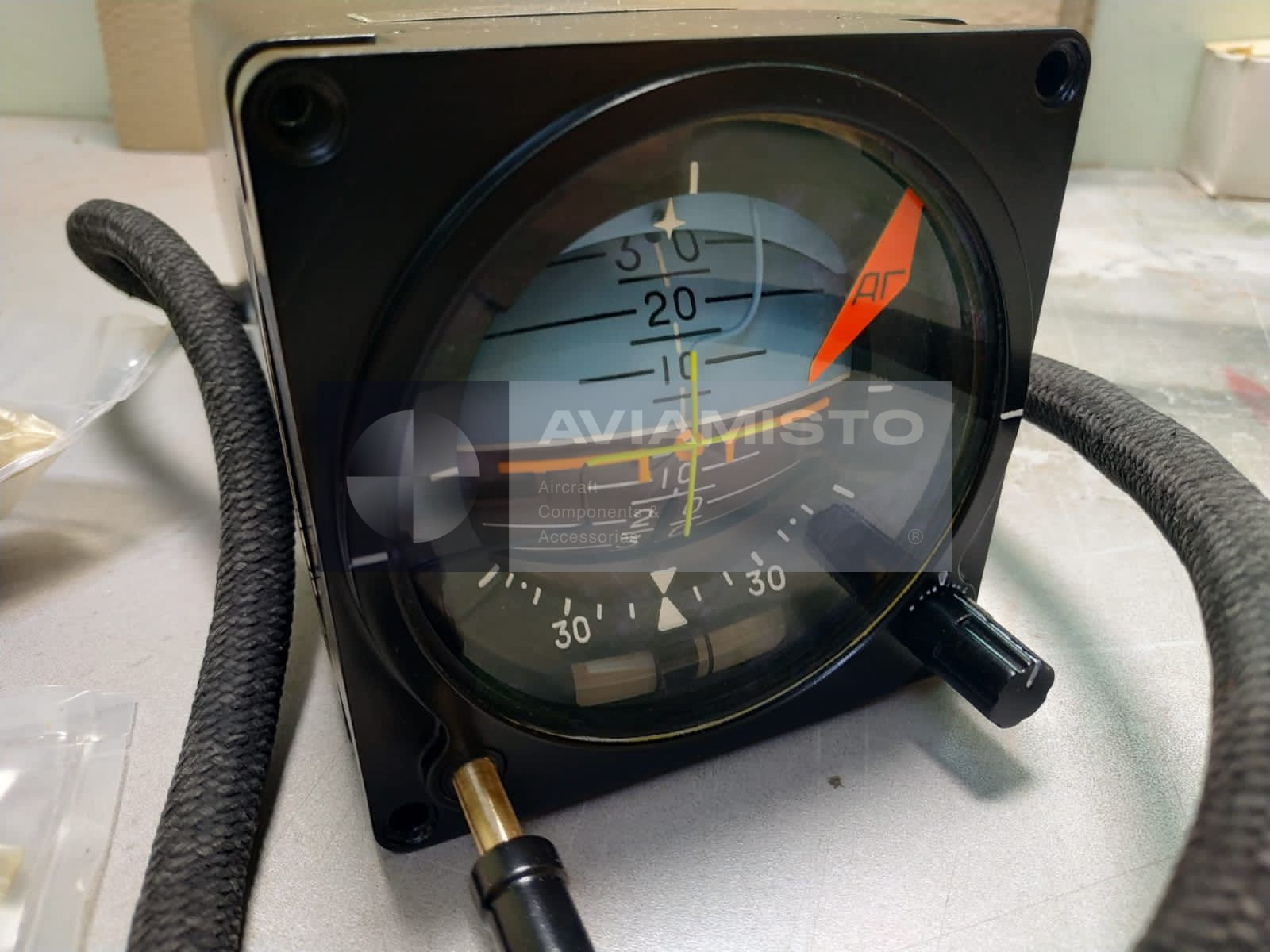

The AGK-77-15 gives the crew a clear visual reference for aircraft position in space. Roll indication covers the full bank range, while pitch indication allows the pilot to monitor nose-up and nose-down attitude within the specified limits. Sideslip indication helps assess whether the aircraft or helicopter is flying in a coordinated condition. These functions are important during turns, climb, descent, maneuvering, instrument flight and operation in adverse weather, where outside visual reference may be limited or unavailable.

Electrical output signals from AGK-77-15

In addition to cockpit indication, the AGK-77-15 generates electrical signals proportional to roll and pitch. These signals may be transmitted to external onboard systems, depending on aircraft configuration. Connected systems can use them for monitoring, stabilization, recording or other attitude-related functions. Because of this, the instrument should not be checked only by visual movement of the display. If the aircraft installation uses the electrical outputs, signal accuracy, wiring, connectors and compatibility with the receiving equipment should also be verified.

AGK-77-15 under dynamic flight conditions

The AGK-77-15 is designed to maintain specified accuracy under dynamic operating conditions. The instrument is rated for use on oscillating and vibrating bases, and its error limits are defined for vibration, motion and post-turn conditions. This matters in real aircraft operation, where the instrument is exposed to vibration, maneuvering loads and continuous attitude changes. During maintenance, the unit should be checked not only in a static position, but also with attention to behavior after turns, vibration exposure and warm-up.

Bank angle warning function

The AGK-77-15 includes bank angle warning activation at preset roll angle thresholds. This warning function helps alert the crew when bank angle reaches defined limits. It is an additional safety-related feature, especially during instrument flight, maneuvering or low-visibility operation. The warning system must correspond to the specified activation angles and should be checked as part of functional testing. Incorrect warning activation can mislead the crew or reduce the usefulness of the instrument during critical flight phases.

Aircraft application of AGK-77-15

The AGK-77-15 is used on fixed-wing aircraft and helicopters, including An-28, An-140, Mi-8AMT, Mi-17 and B-3 platforms depending on the installed instrument system. Its exact installation depends on cockpit layout, power supply configuration and aircraft documentation. Before replacement, the instrument should be checked against the aircraft parts catalog and technical documentation. Similar gyroscopic attitude indicators may look close in panel format, but can differ by power supply, output signals, warning functions and system interface.

Supply and documentation for AGK-77-15

The AGK-77-15 may be supplied new, from storage, repaired, overhauled or serviceable depending on availability. For aircraft use, technical condition and documentation are important. Before shipment, the unit should be checked for markings, completeness, mounting condition, connector condition, operating readiness, accuracy and warning operation where applicable. Technical documentation may be provided on request. For procurement, it is useful to specify the exact designation, aircraft type, required condition and required document package.

Product Type: Gyroscopic attitude indicator
Designation: AGK-77-15
Cyrillic Designation: АГК-77-15
Function: Visual indication of roll and pitch angles, sideslip indication, and generation of roll and pitch output signals for external systems
Application / Where Used: Flight and navigation instrument systems
Compatible Aircraft / Equipment: An-28, An-140 aircraft; Mi-8AMT, Mi-17 and B-3 helicopters
System Role: Attitude indication and output of roll / pitch signals to connected onboard systems
Roll Range: ±360°
Pitch Range: ±85°
Sideslip Indication: Provided
Warm-Up Time: Not more than 3 minutes
AC Power Supply: Three-phase AC, 36 V, 400 ±20 Hz
AC Voltage Tolerance: +1.8 / −3.6 V
DC Power Supply: 27 V DC
DC Voltage Tolerance: +2.4 / −3.0 V
AC Current Consumption, Phases A / B / C: Not more than 0.45 A
Indication Error at Bank Angles Less Than 8°: Not more than ±1.4°
Indication Error at Bank Angles More Than 8°: Not more than ±0.3°
Error on Oscillating Base: Not more than ±1.5°
Error on Vibrating Base: Not more than ±2.5°
Error After 180° Turns, 3 min: Not more than ±4°
Bank Angle Warning Activation Angles: ±(15 ±1.5)° and ±(32 ±2)°
Pitch Indication Limits: Upward 7°, downward 10°
Overall Dimensions: 107 × 107 × 250 mm
Weight: Not more than 4 kg
Condition: As applicable
Technical Documentation: Technical documentation available upon request
