IP21-15

IP21-15 position indicator for aircraft systems

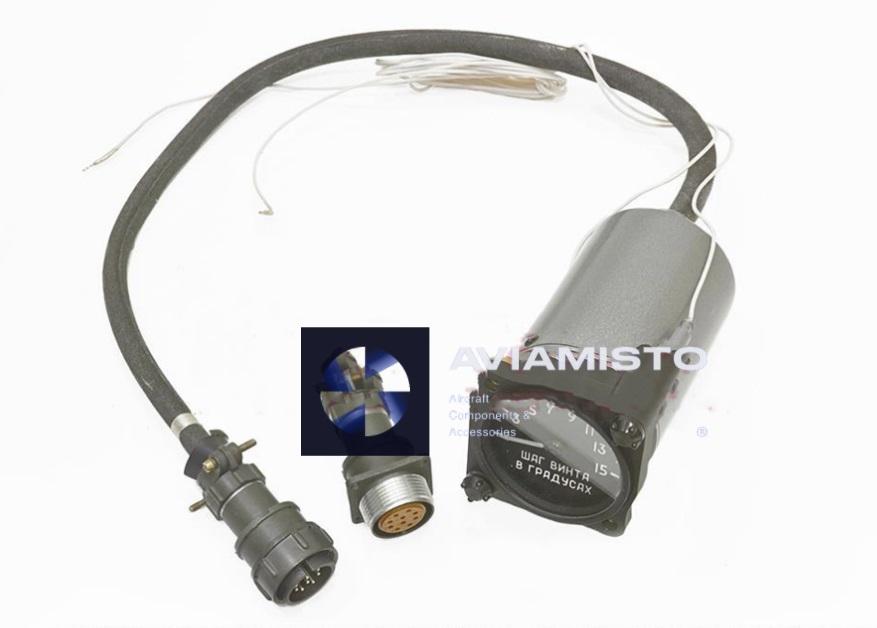

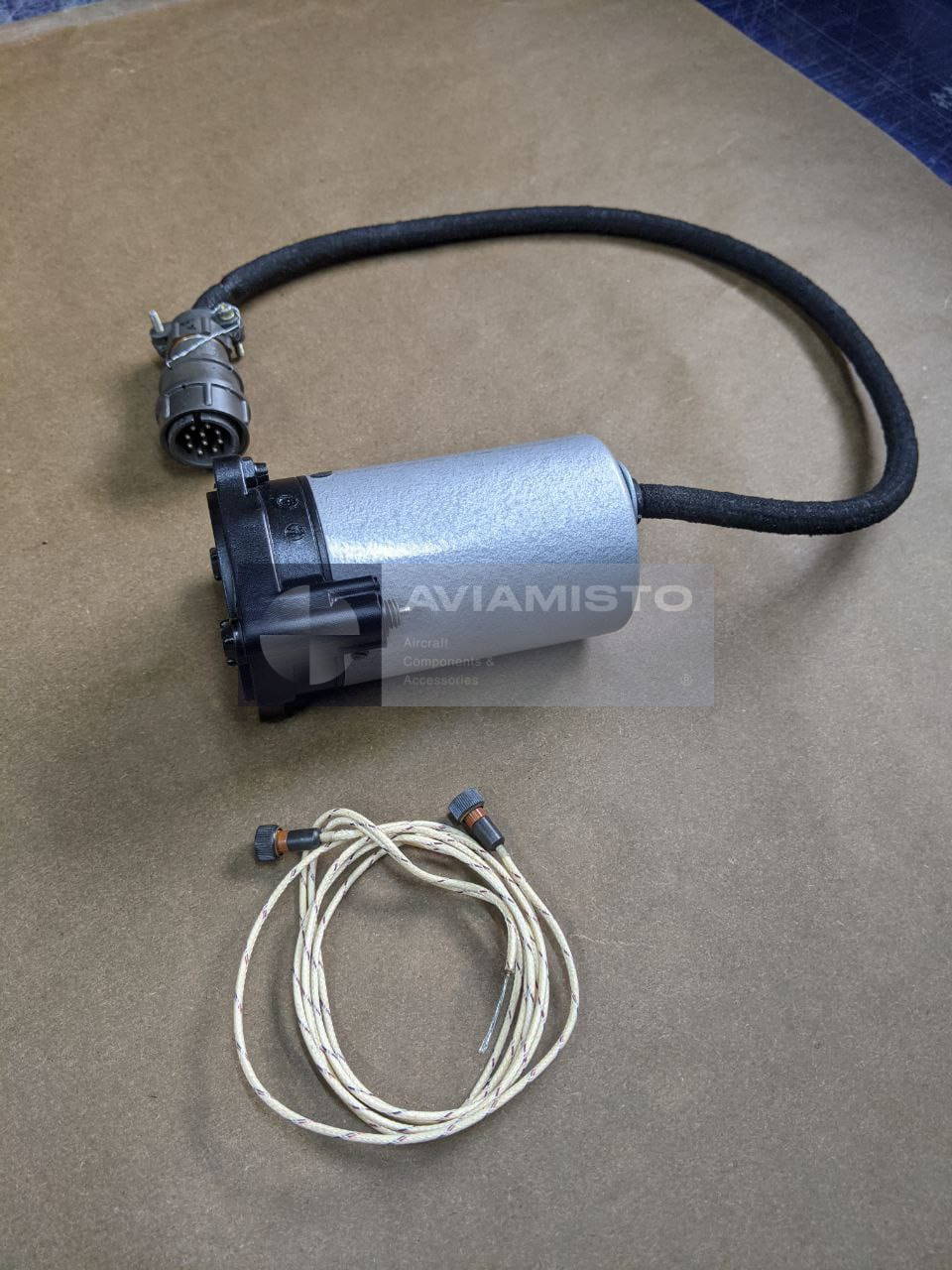

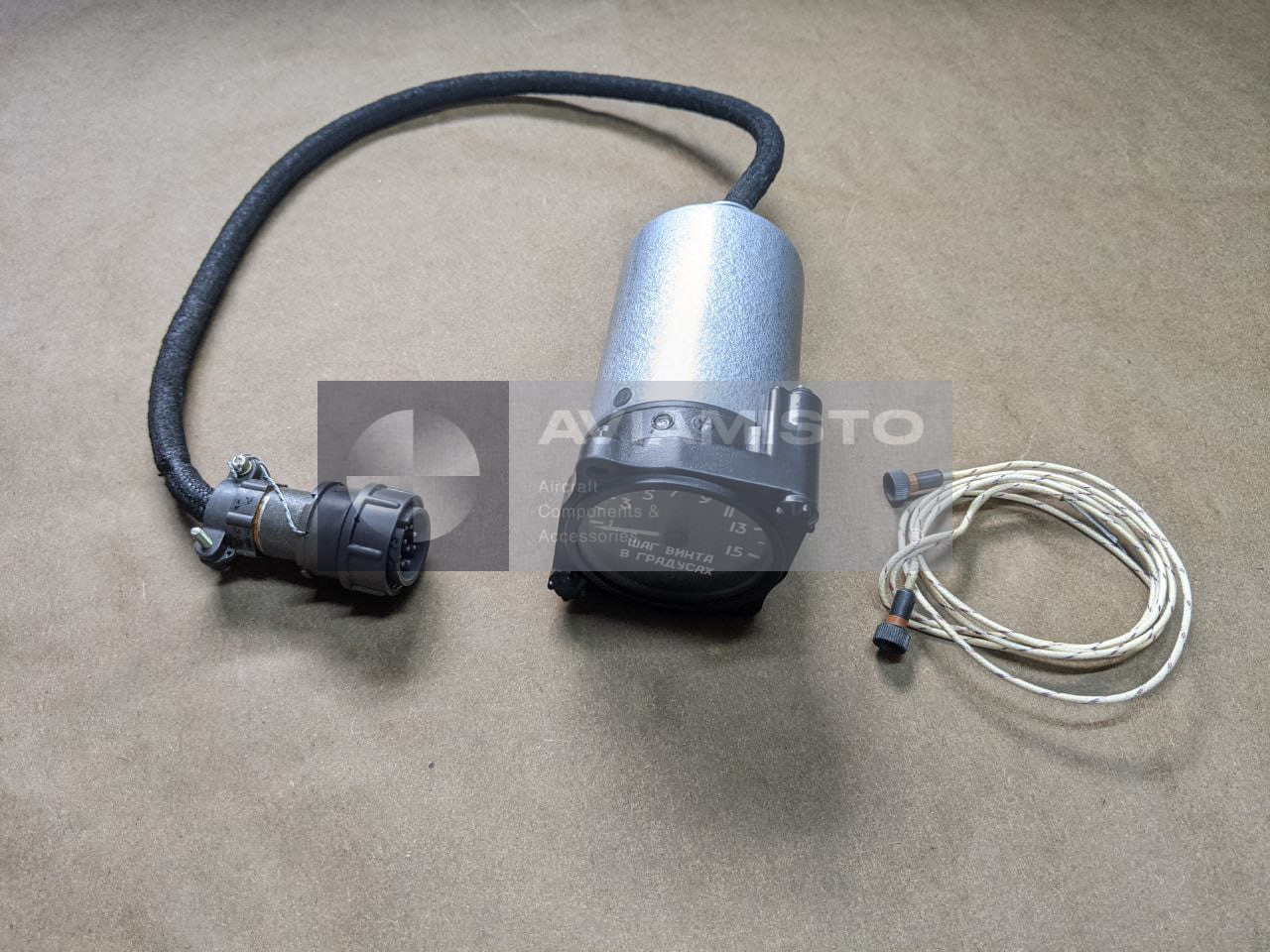

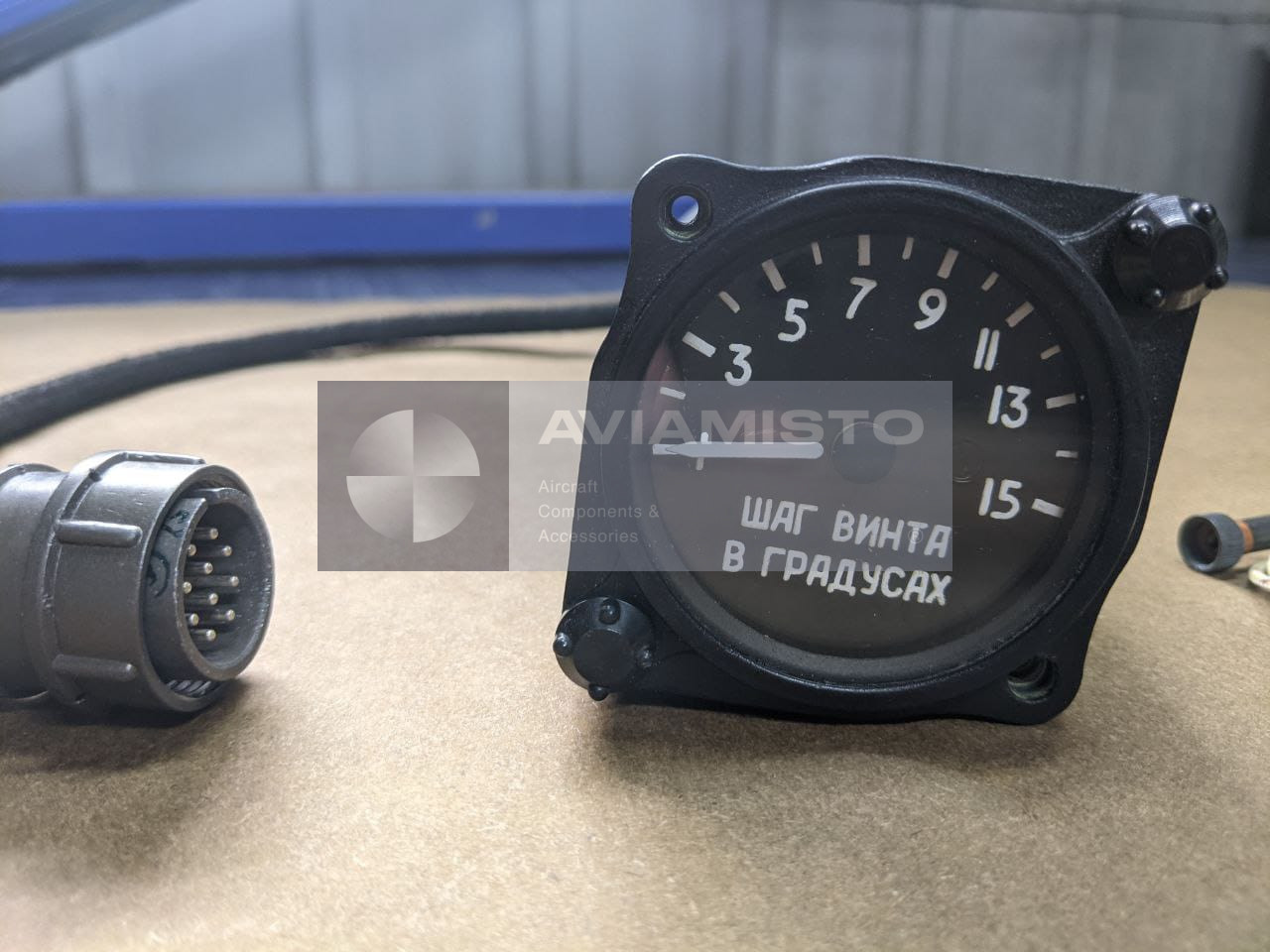

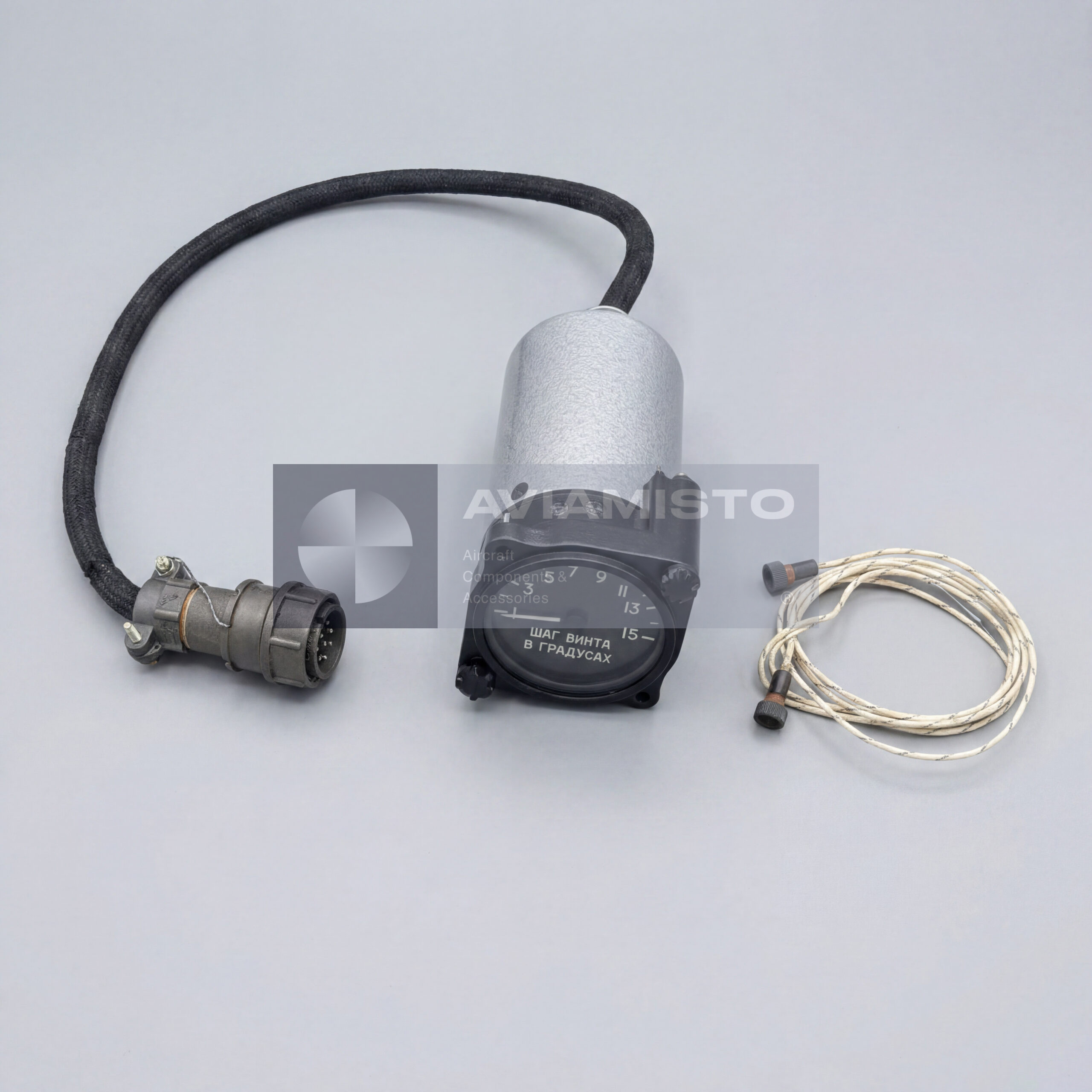

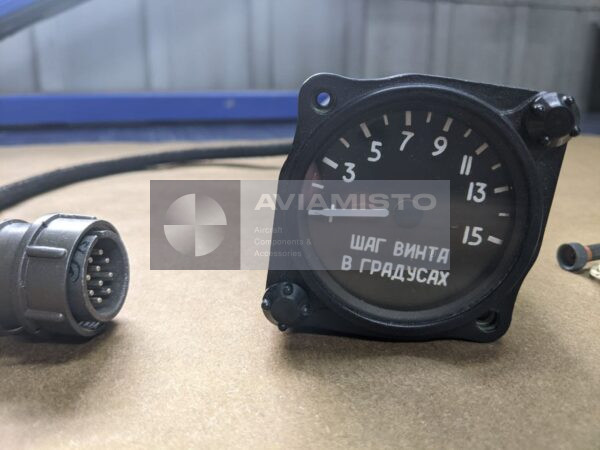

IP21-15 is an aircraft position indicator used for visual monitoring of movable mechanical elements. The instrument receives a remote position signal and displays the position or angular displacement on a cockpit scale. It is used in onboard indication systems where the crew needs a direct visual reference for the condition of controlled aircraft mechanisms. Depending on the installed stencil and system configuration, the indicator may be used for rotor pitch indication or for other position-control circuits.

Remote indication through IP21-15

The instrument operates as part of a remote selsyn-type measuring system. In this arrangement, a transmitter installed near the monitored mechanism sends position data electrically to the cockpit indicator. The indicator then converts the received signal into pointer movement on the scale. This allows the crew or maintenance personnel to monitor the position of a mechanism without direct mechanical linkage to the cockpit. The unit is an indicating instrument, not an actuator or control drive.

IP21-15 with DS-type position transmitters

The indicator is used together with specialized selsyn transmitters, including DS-type units such as DS-11 or DS-P depending on the aircraft configuration. The transmitter and indicator must be matched according to the system documentation. A mismatch in transmitter type, scale stencil or wiring can lead to incorrect readings. During troubleshooting, the check should include the indicator, transmitter, aircraft wiring, power supply and mechanical linkage at the monitored unit.

Aircraft application of IP21-15

IP21-15 is used on civil and military aircraft equipment, including Mi-8, Mi-17 and Mi-171E family helicopters. In helicopter applications, it may be associated with the UP21-15 position or rotor pitch indication system. Exact use depends on the aircraft modification and installed cockpit panel layout. Similar instruments may have different scales, lighting arrangements or connection schemes, so applicability should be confirmed through the aircraft parts catalog or technical documentation.

Identification and ordering of IP21-15

Before ordering, the full marking and documentation reference should be checked. IP21-15 is linked with design documentation 6Zh2.511.014-15 and technical specification 6Zh2.511.014TU. It is important to confirm the required scale, lighting voltage, associated transmitter type and cockpit installation position. For correct selection, provide the aircraft type, system designation, existing instrument marking and a photo of the data plate or front scale. The product is also known under alternative designations IP21-15 and ИП21-15.

Product Type: Aircraft position indicator / measuring indicator
Function: Visual indication of position or angular displacement of movable aircraft elements
Application / Where Used: Aircraft and helicopter mechanical system indication circuits
System / Installation Area: Cockpit instrument panel / remote position indication system
Compatible Aircraft / Equipment: Mi-8, Mi-17, Mi-171E and related helicopter configurations
Associated System: UP21-15 position / rotor pitch indication system, depending on installation
Measuring System Type: Remote selsyn-type indication system
Compatible Transmitters: DS-type selsyn transmitters, including DS-11 or DS-P depending on configuration
Power Supply for Selsyn Circuit: 36 V AC, 400 Hz
Lighting Supply: 5.5 V DC or 27 V DC, depending on cockpit panel version
Display Type: Pointer indication on graduated scale
Scale Function: Rotor pitch or position of monitored aircraft mechanism, depending on stencil version
Operating Temperature Range: −60 to +60 °C
Housing: Round metal housing for recessed panel mounting
Protection: Dust- and splash-protected aircraft execution
Mounting: Flange mounting with screws
Technical Specification: 6Zh2.511.014TU
Design Documentation Code: 6Zh2.511.014-15
Technical Documentation: Product passport and aircraft system documentation

All shipments are carried out from our international warehouse in Dubai (UAE), as well as from our partners’ remote warehouses.

In Stock — items available in stock at the Dubai warehouse are dispatched within 5–10 business days after receiving 100% prepayment.

Remote Stock — items available at our partners’ remote warehouses are supplied within an average of 30–45 business days after receiving 100% prepayment.

Pre-Order — made-to-order products are manufactured and delivered within an average of 45–60 business days. Payment terms: 50% advance payment to start production, with the remaining 50% paid before dispatch from the Dubai warehouse after full readiness for shipment.

Returns & Changes (Restocking Fee)
For selected items, a RESTOCKING FEE of 10% may apply in case of return, order cancellation, or changes to the order specifications. This condition applies only to certain products and is confirmed at the order approval stage.

Warranty
All products are covered by a standard 6-month warranty.
Extended warranty is available upon request and is agreed individually; it may affect the final product price.
