AZP-A2

Generator protection logic through AZP-A2

In operation, the unit monitors generator voltage in the DC power system. If the voltage exceeds the protection threshold and remains in the dangerous zone long enough to confirm a fault, the AZP-A2 sends a command to disconnect the generator. The trip delay is needed so the unit does not react to every short transient in the network. This is important in aircraft power systems, where short voltage jumps may appear during switching, load changes, or generator transition modes. The unit acts only when the condition matches the protection logic.

Aircraft power system operation with AZP-A2

The AZP-A2 works together with the generator, voltage regulator, excitation circuit, contactor equipment, DC busbars, warning circuits, and cockpit controls. When the protection operates, the generator excitation circuit is interrupted and the generator is removed from the onboard network. From the cockpit this may look like a generator failure, but the reason can be different: regulator fault, wiring issue, contactor malfunction, generator problem, or incorrect network behavior. Maintenance checks should therefore follow the aircraft electrical diagram, not only the protection unit itself.

Manual reset and testing of AZP-A2

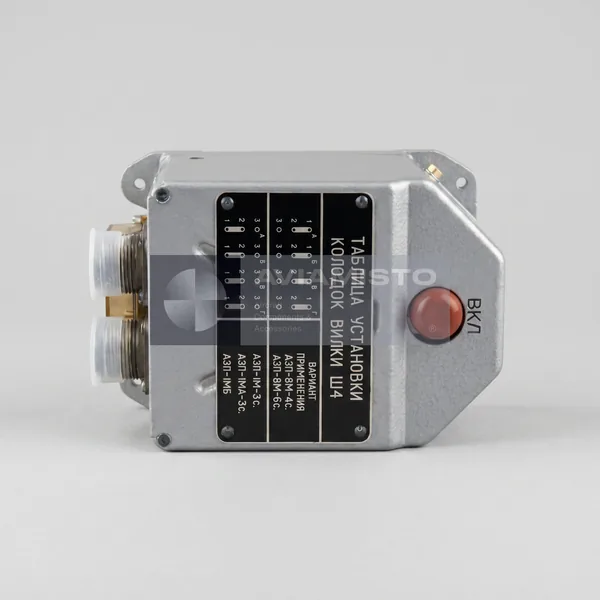

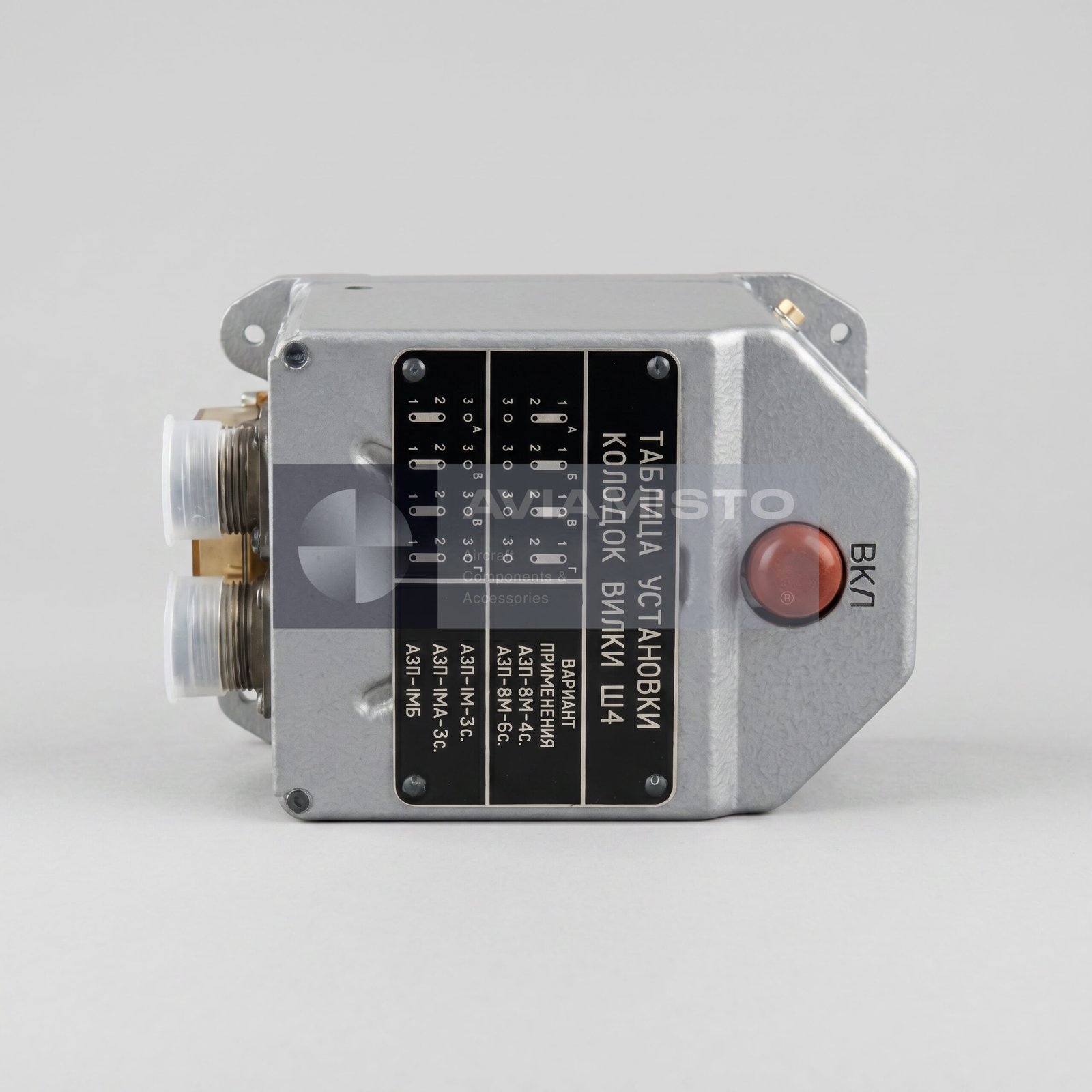

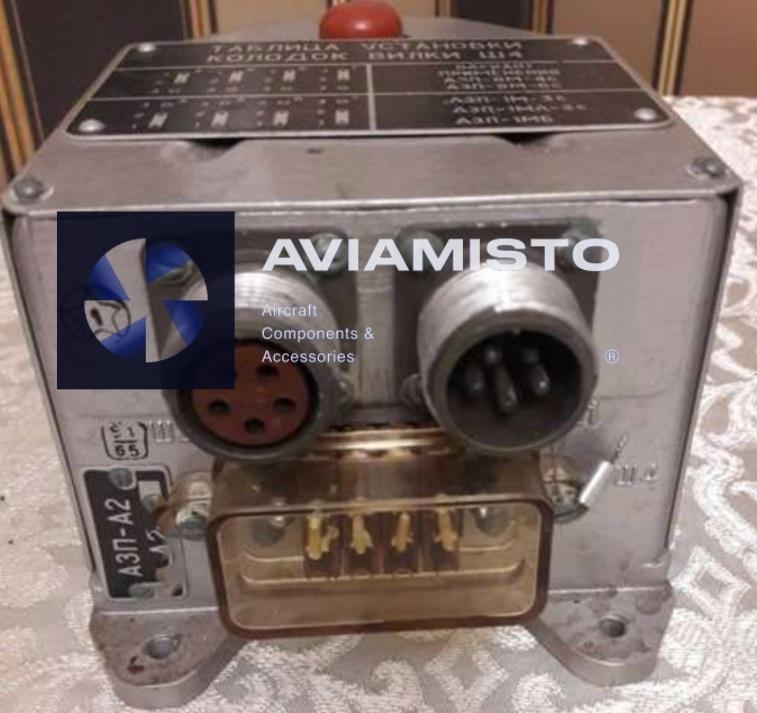

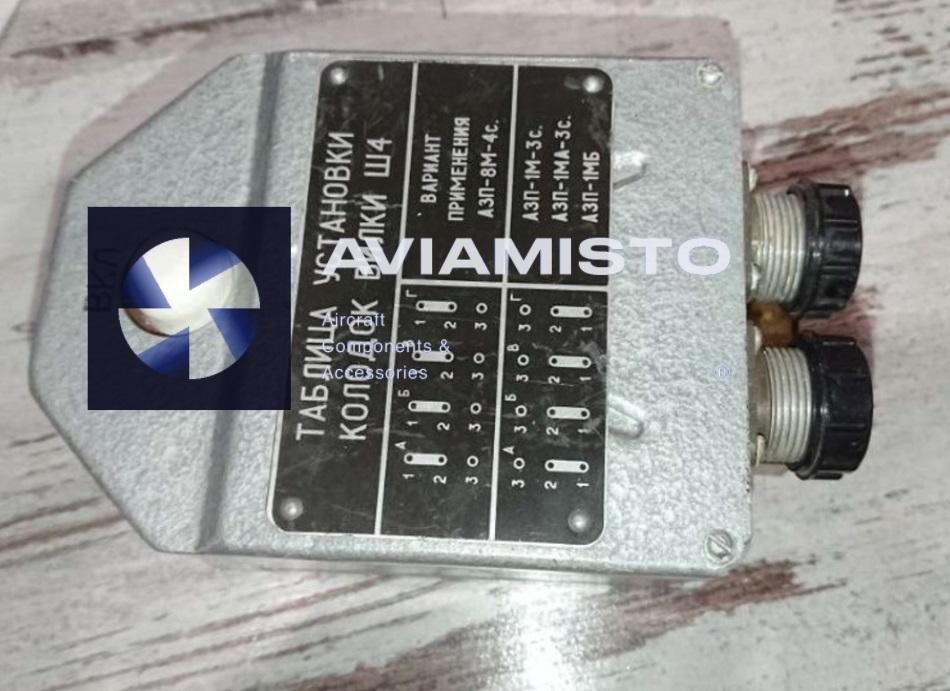

The AZP-A2 is a single-action protection device in the sense that after operation it needs to be returned manually. The reset is made by pressing the button on the unit cover. On many aircraft, a ground test button is also provided to check the serviceability of the protection circuit. This test is useful because the protection must trip reliably, but it also must avoid false operation during normal short voltage changes. The measuring part of the unit is electronic and uses a time delay for more selective operation.

Identification and ordering checks for AZP-A2

The AZP-A2 is used in aircraft and helicopter DC power systems, including applications associated with Mi-8 / Mi-17 / Mi-171 and An-24 type electrical systems where this equipment is specified by documentation. Before ordering, the installed unit marking should be checked against the aircraft parts catalog, wiring diagram, or maintenance documentation. The designation may be written as AZP-A2 in export requests and as АЗП-А2 in Russian documentation. The product is also known under alternative designation АЗП-А2.

Confirmed installation context includes Mi-8 / Mi-17 family helicopters. Exact applicability of the specific execution must be verified against the aircraft technical documentation.
