PG-1V-11

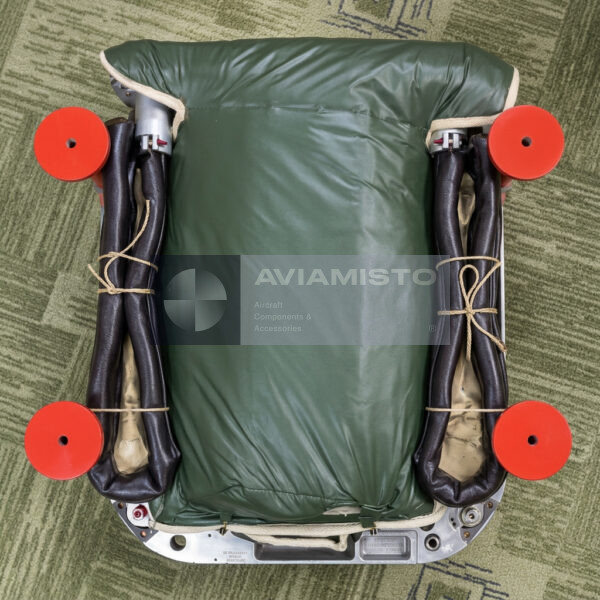

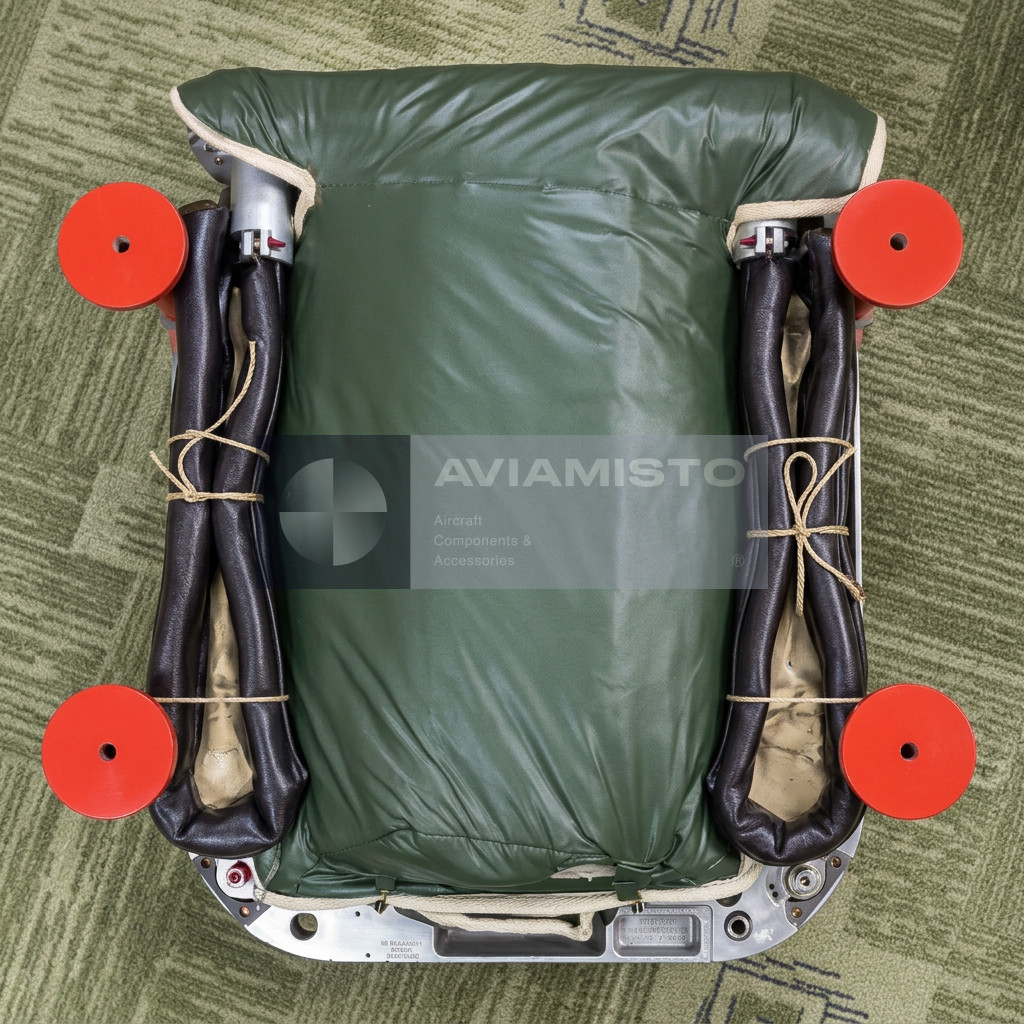

PG-1V-11 stabilized gyro platform for inertial systems

PG-1V-11 is an aircraft stabilized gyro platform used in navigation and flight systems of Il-76 family aircraft and related modifications, including Il-78 according to the source context. The platform is associated with inertial and damping-type navigation complexes, including systems of the I-11-76 type. It provides a stabilized base for inertial sensors and supports the generation of aircraft attitude and navigation data.

Function of the PG-1V-11 gyro platform

The main function of PG-1V-11 is physical stabilization of measuring elements relative to the true horizon. The platform keeps gyroscopes and linear accelerometers in a controlled spatial position while the aircraft maneuvers. This allows the system to determine aircraft orientation parameters, including roll, pitch and heading, and to support autonomous inertial navigation calculations. In the aircraft system, the platform works together with external electronic, control and signal-processing units.

PG-1V-11 in Il-76 navigation equipment

PG-1V-11 is used as part of onboard navigation and flight complexes installed on heavy military transport aircraft. The source context links the unit to Il-76 and Il-78 aircraft, where inertial equipment is used for flight parameter measurement, damping functions and autonomous navigation support. The platform may be connected with gyroscopes, accelerometers, frame drive circuits and control electronics that process signals for aircraft navigation and flight-control consumers.

Gimbal stabilization principle

The PG-1V-11 platform is based on a classical gimbal suspension arrangement. Signals from gyro angle sensors are transmitted to stabilization drive motors, which maintain the internal frame in a horizontal reference position. As the aircraft changes attitude, the platform control system compensates motion of the aircraft body and keeps the measuring frame aligned with the required reference. This principle allows inertial sensors to operate from a stabilized base instead of following every aircraft movement directly.

Sensor set and internal construction

According to the source context, a PG-1V-type platform may include three two-degree floated gyroscopes of the GPA-20 type or similar, and two DA-1 linear pendulum accelerometers. The platform is described as a sealed monoblock with a cylindrical-spherical housing and an internal multi-frame gimbal suspension. The internal volume may be filled with dried air or nitrogen to reduce moisture and condensation risk. Exact internal drawings and detailed parameters are normally defined in specialized manufacturer and aircraft maintenance documentation.

Ordering and maintenance of PG-1V-11

PG-1V-11 is a specialized aircraft inertial unit, so procurement should be based on the exact aircraft system configuration and documentation. The buyer should confirm whether the requirement is for the platform only, a platform with mounting frame, or a wider set with external electronic blocks and coordinate conversion equipment. Required condition, passport availability, storage records, repair certificate, test results and compatibility with the installed Il-76 / Il-78 navigation system should be checked before supply.

Product Type: Stabilized gyro platform / aircraft inertial navigation platform
Designation: PG-1V-11
Alternative Designations: PG-1V 11, PG1V-11, ПГ-1В-11, ПГ1В-11
Function: Stabilization of inertial sensors and generation of aircraft attitude / navigation reference data
System Role: Stabilized base for gyroscopes and accelerometers in inertial navigation equipment
Application / Where Used: Navigation systems, flight complexes, damping systems and inertial systems
Compatible Aircraft / Equipment: Il-76, Il-76 modifications, Il-78 and I-11-76 type systems according to source context
Measured / Supported Parameters: Roll, pitch, heading, aircraft orientation and navigation parameters depending on system configuration
Stabilization Principle: Classical gimbal suspension with stabilization drive motors
Sensor Set Reference: Three two-degree floated gyroscopes GPA-20 or similar and two DA-1 linear pendulum accelerometers, according to source context
Operating Mode: Continuous operation with automatic caging / alignment during initial setup or parking, according to source context
Readiness Time: Up to 15–20 minutes, according to source context
Thermostat Reference: Warm-up to approximately +60 °C, according to source context
AC Power Supply: Three-phase 36 V, 400 Hz
DC Power Supply: 27 V DC
DC Circuits: Control circuits, thermostat heating and gimbal drive motors, according to source context
Approximate Weight: About 18–25 kg without external damping blocks, coordinate converters and electronic units

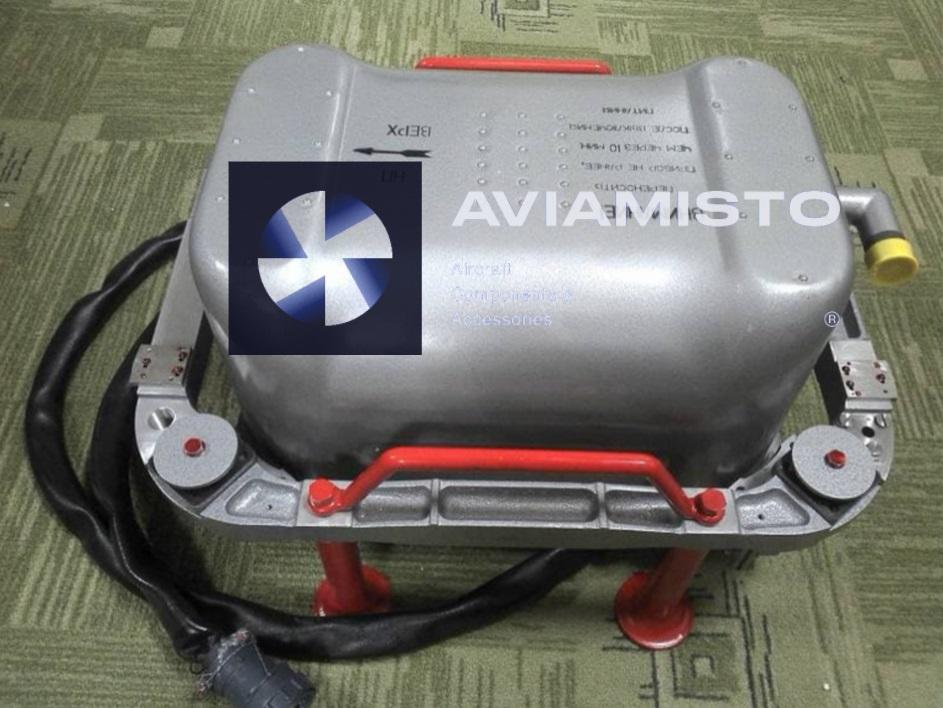

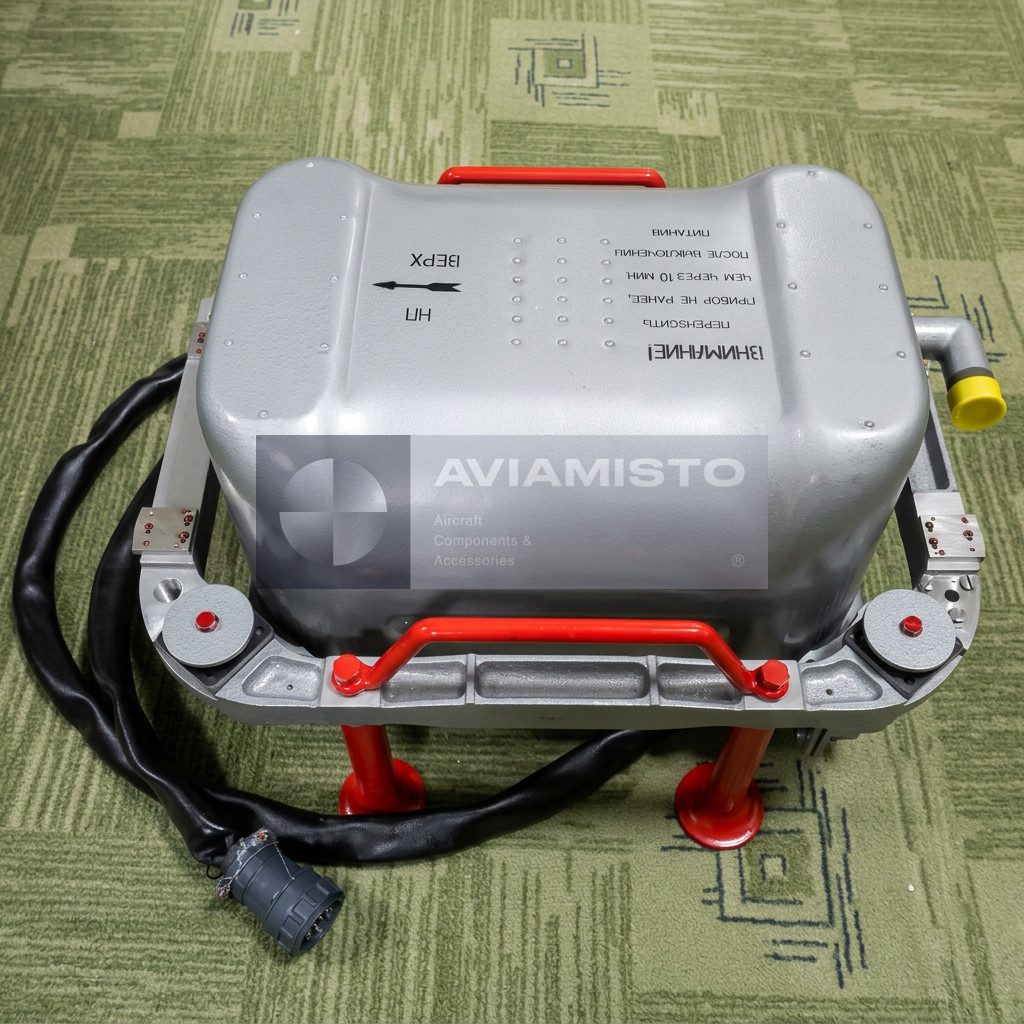

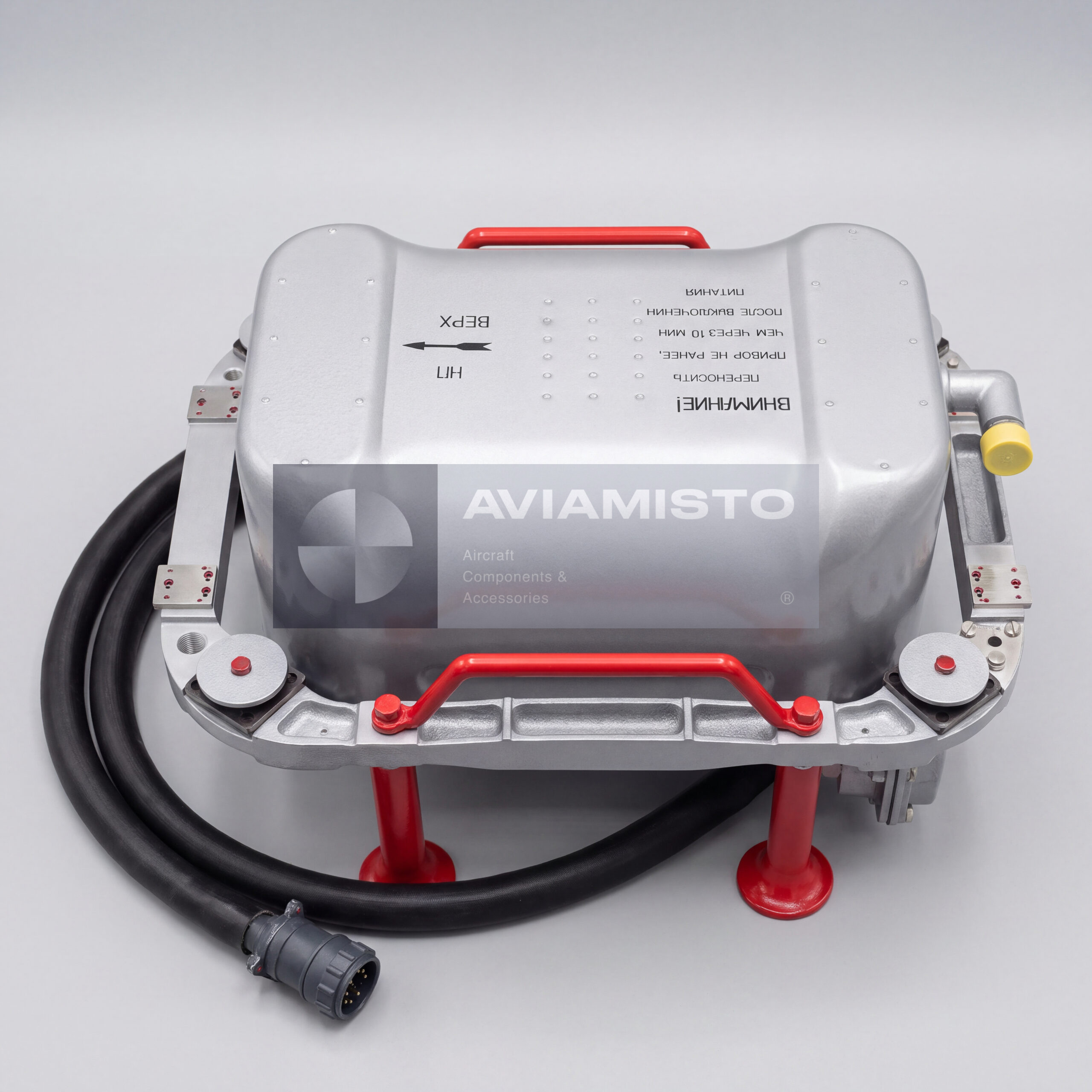

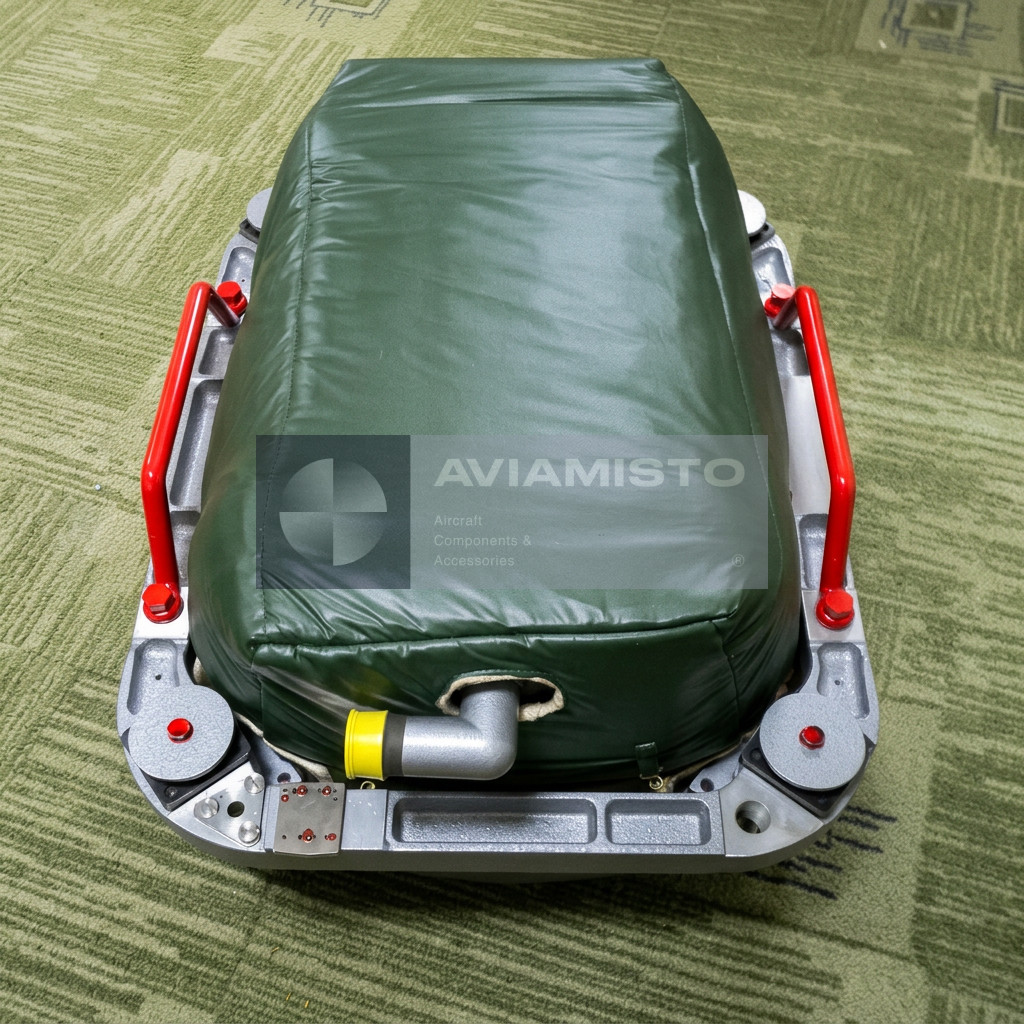

Construction: Sealed monoblock with cylindrical-spherical housing
Internal Arrangement: Multi-frame gimbal suspension, according to source context
Internal Atmosphere: Dried air or nitrogen, according to source context

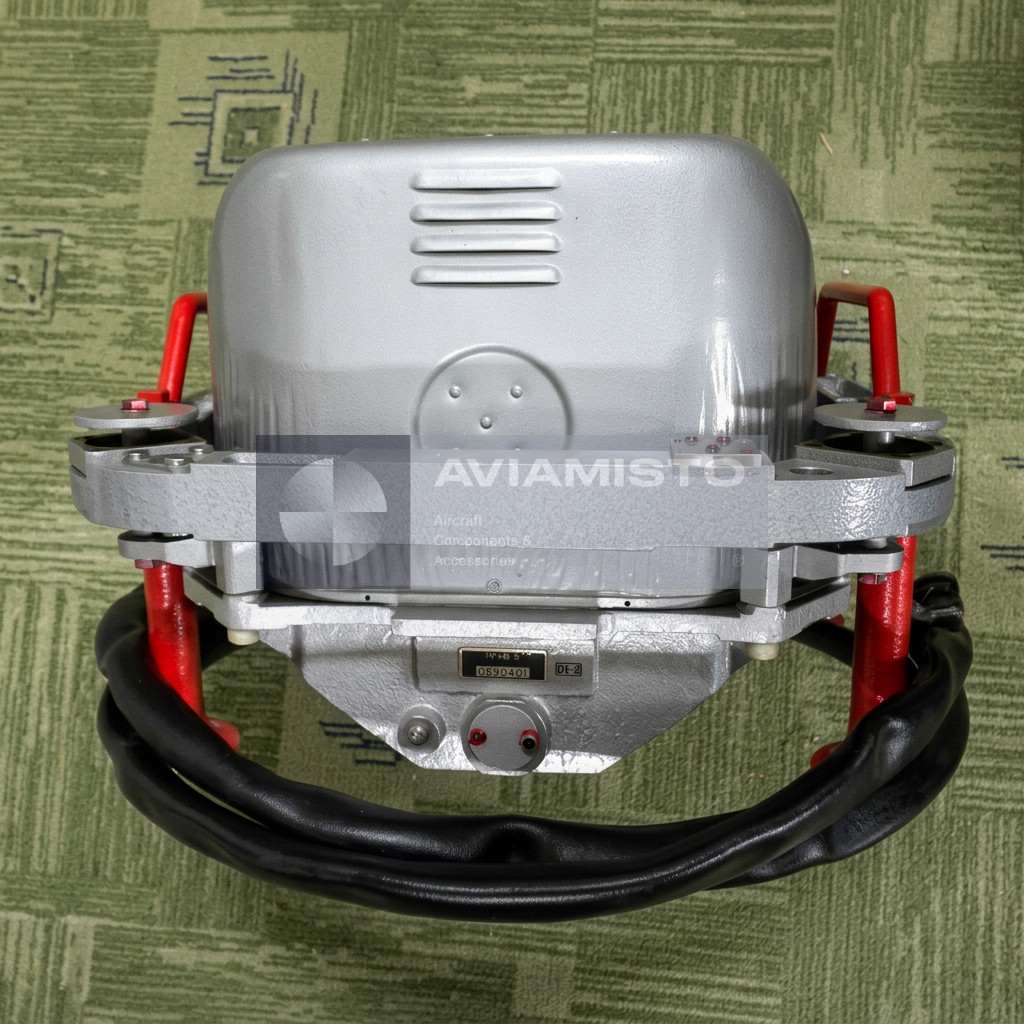

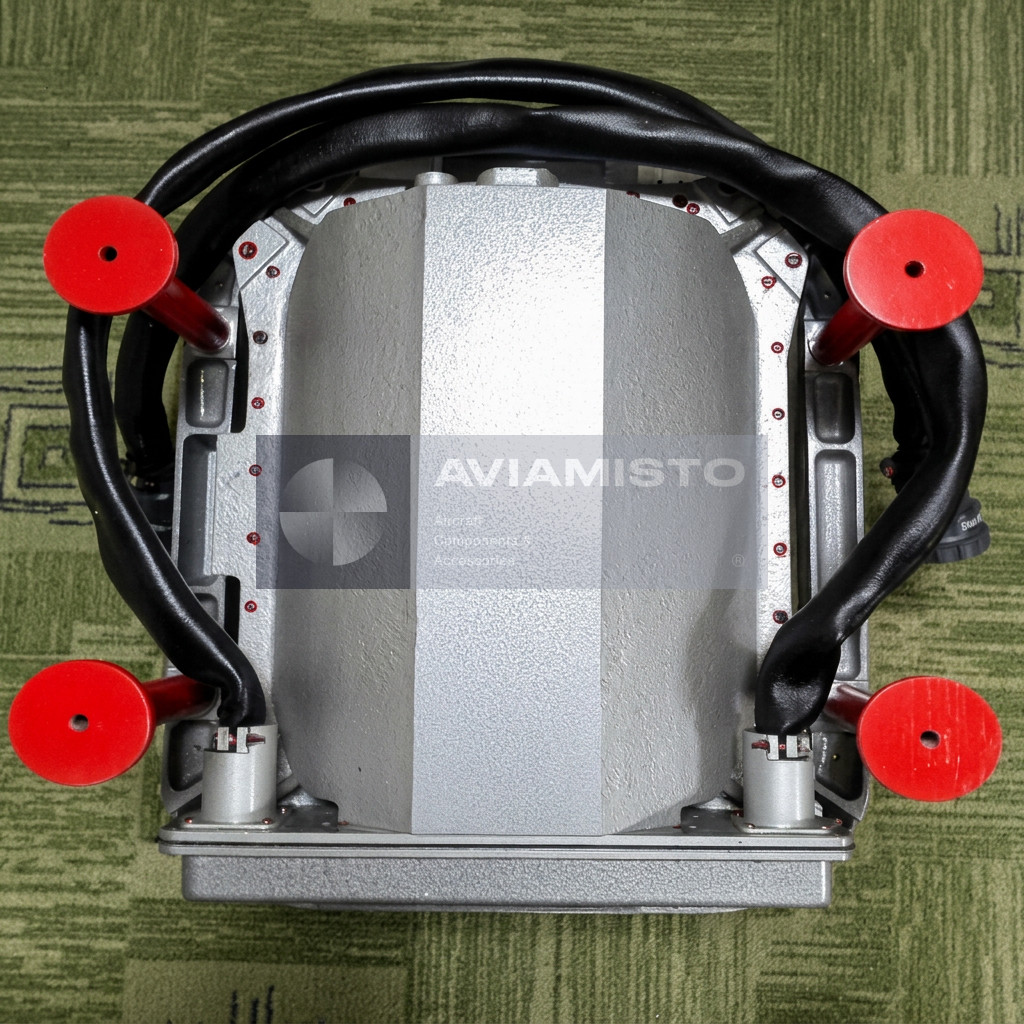

Mounting: External housing with flanges for attachment to aircraft shock-mounted frame
Related Components: GPA-20 gyroscopes, DA-1 accelerometers, BUP-type electronics blocks, coordinate converters and aircraft inertial system equipment depending on configuration
Condition: New / As-Stored / Overhauled / Serviceable, depending on availability
Technical Documentation: Product passport, repair certificate, test report, storage records and aircraft inertial system documentation if available
