MGTU-05

MGTU-05 three-degree gyroscope for gyro verticals and stabilizers

MGTU-05, including the MGTU-05M version, is a compact three-degree astatic gyroscope used as a sensitive element in gyro verticals, gyro stabilizers and special stabilization systems. The unit reacts to changes in the angular orientation of the object on which it is installed and provides a gyroscopic reference for systems that measure roll, pitch or platform displacement. It is used as an internal component of larger flight, stabilization or optical equipment systems rather than as a standalone cockpit instrument.

Function of the MGTU-05 gyro sensor

The main function of MGTU-05 is to sense changes in spatial orientation and support the measurement of angular deviations relative to an inertial reference. In gyro vertical systems, it can be used as a reference element for determining roll and pitch. In gyro-stabilized platforms, it helps detect angular motion so that the platform drive system can compensate movement and keep the payload or reference axis stable. The exact output use depends on the host system and its signal-processing circuits.

Use of MGTU-05 in gyro vertical systems

In aviation and special-purpose equipment, MGTU-05 can be installed inside compact gyro verticals and onboard control units where a small mechanical gyro is required. In this role, the gyroscope is part of a closed instrument block that determines aircraft or platform attitude. It may support roll and pitch channels in flight-control or navigation-related equipment, especially where low weight and compact dimensions are important. Actual aircraft applicability must be confirmed by the documentation of the installed instrument.

MGTU-05 in gyro-stabilized optical platforms

MGTU-05 is also associated with two-axis and three-axis indicator gyro-stabilized platforms used for optical, film, television or observation equipment. The source context mentions systems such as 1GSP and 2GSP. In these assemblies, the gyroscope is mounted inside the internal gimbal frame and provides the sensing reference for stabilization. Such platforms can be used on aircraft, helicopters, marine vessels or other moving objects where cameras or optical devices must remain stable despite vibration, roll or pitch.

Construction and operating features of MGTU-05

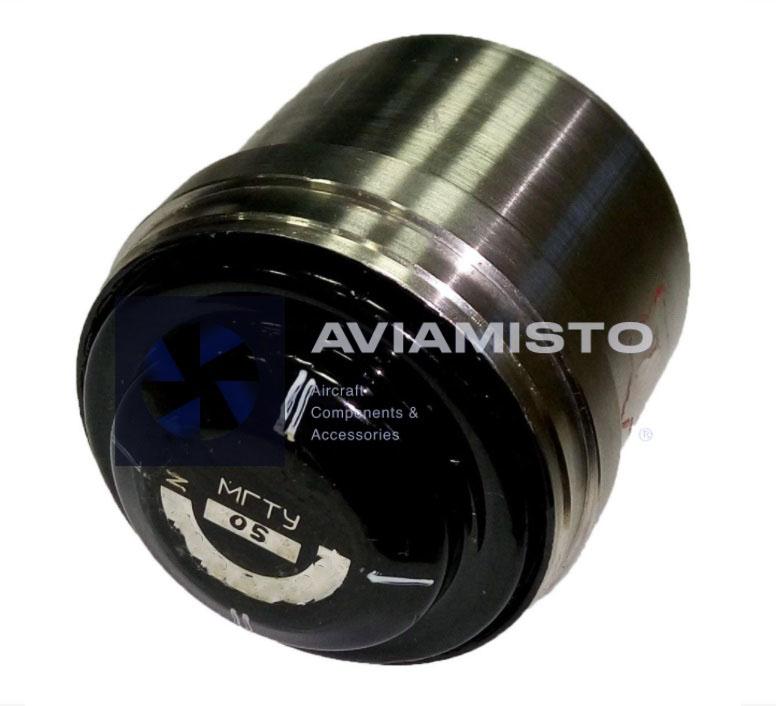

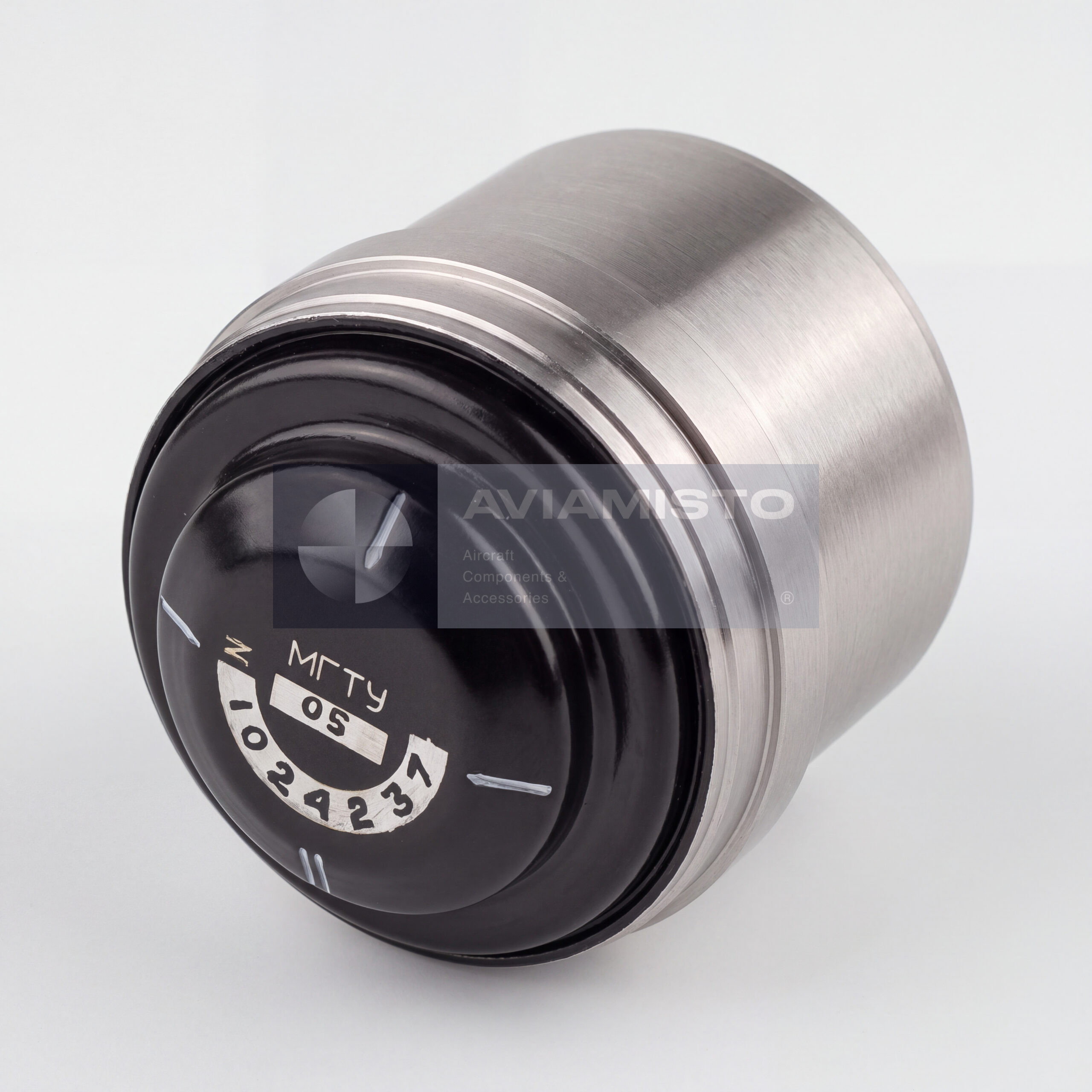

MGTU-05 is a compact electromechanical gyroscope with a small cylindrical body. Its main advantage is the combination of low weight, compact size and resistance to vibration and shock loads. The device is designed for limited continuous operation and requires a readiness period before use. It is not normally visible from outside the aircraft or platform because it is installed inside a host instrument, gyro platform, stabilization unit or equipment block.

Ordering and replacement of MGTU-05

When ordering MGTU-05 or MGTU-05M, the buyer should specify the exact designation, application system and required condition. The unit may be needed for a gyro vertical, gyro stabilizer, optical platform, test bench or special-purpose system. Since the gyroscope is only one sensitive element inside a larger assembly, replacement should be checked against the host equipment documentation. Product passport, storage records, test status and compatibility with the installed system should be confirmed before supply.

Product Type: Three-degree astatic gyroscope / gyro sensor
Designation: MGTU-05
Alternative Designations: MGTU-05M, MGTU 05, MGTU-05 gyroscope, МГТУ-05, МГТУ-05М, гироскоп МГТУ-05
Function: Sensing changes in angular orientation and supporting roll / pitch measurement
System Role: Sensitive gyro element for gyro verticals, gyro stabilizers and orientation systems
Application / Where Used: Gyro verticals, indicator gyro-stabilizers, optical stabilization platforms and special equipment
Associated Systems: 1GSP, 2GSP, 4GSP gyro-stabilized platforms according to source context
Measured / Supported Parameters: Roll, pitch and angular orientation depending on host system
Gyro Type: Compact three-degree astatic gyroscope
Maximum Measured Angular Rate: 40°/s, according to source context
Gyro Drift: 160°/h, according to source context
Readiness Time: 120 seconds
Continuous Operating Time: 3 hours
Current Consumption: 0.3 A
Dimensions: 59 × 50.5 mm
Weight: Not more than 300 g
Operating Temperature Range: −50 °C to +60 °C
Shock Resistance: 400 m/s²
Installation: Internal mounting inside gyro verticals, gyro-stabilized platforms, stabilization units or instrument blocks
Compatible Equipment Context: Aviation and special-purpose stabilization systems, moving platforms, optical equipment and onboard control systems depending on documentation
Condition: New / As-Stored / Overhauled / Serviceable, depending on availability
Technical Documentation: Product passport, test report, storage records, wiring data and host system documentation if available
