GT40PCH8B

Power generation function of GT40PCH8B

The GT40PCH8B generates three-phase AC power for aircraft bus systems. Stable output frequency is achieved through constant rotor speed, usually provided by the constant-speed drive. The generator itself supplies the electrical output, while voltage control and network protection are handled by external equipment. In a normal installation, the generator works with voltage regulation units such as BRN-120T5A or related regulator blocks, and with protection equipment such as BZU-376 type units depending on the aircraft configuration. If output voltage is unstable, the cause may be in the generator, but also in the regulator, feedback wiring, protection block, or connected load.

GT40PCH8B construction and cooling arrangement

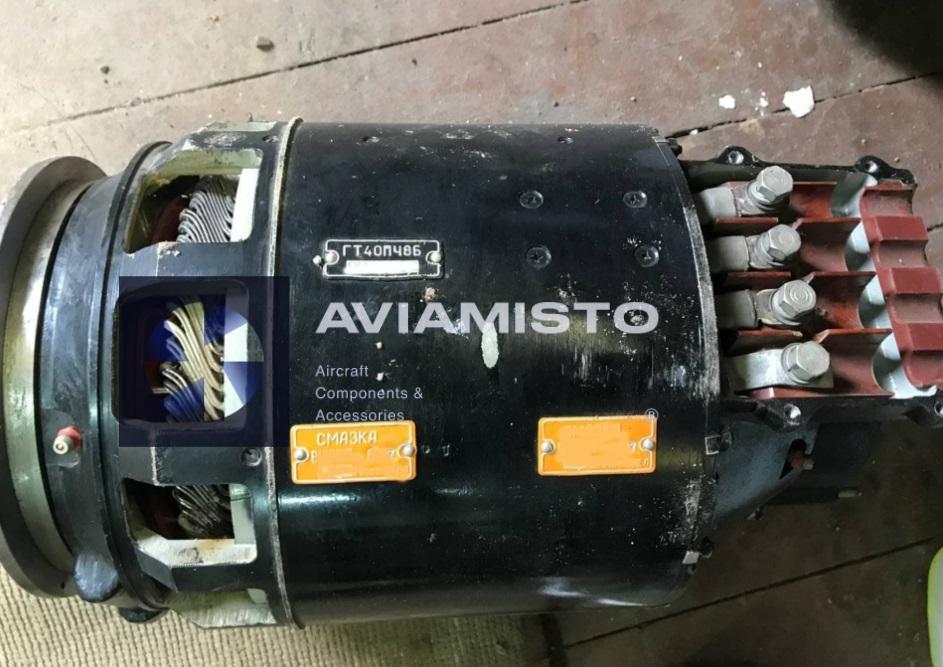

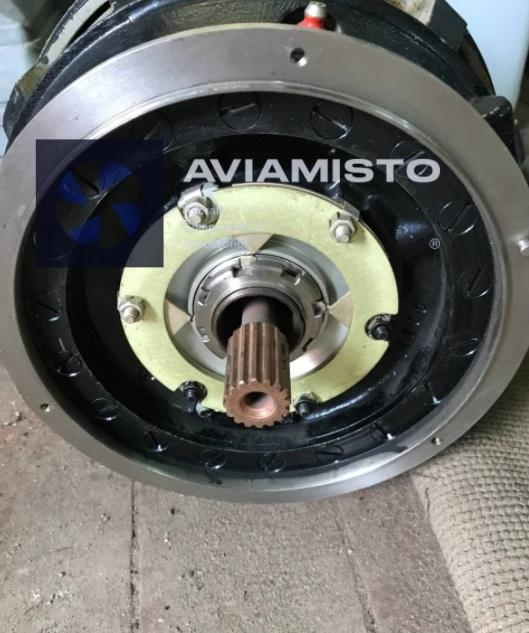

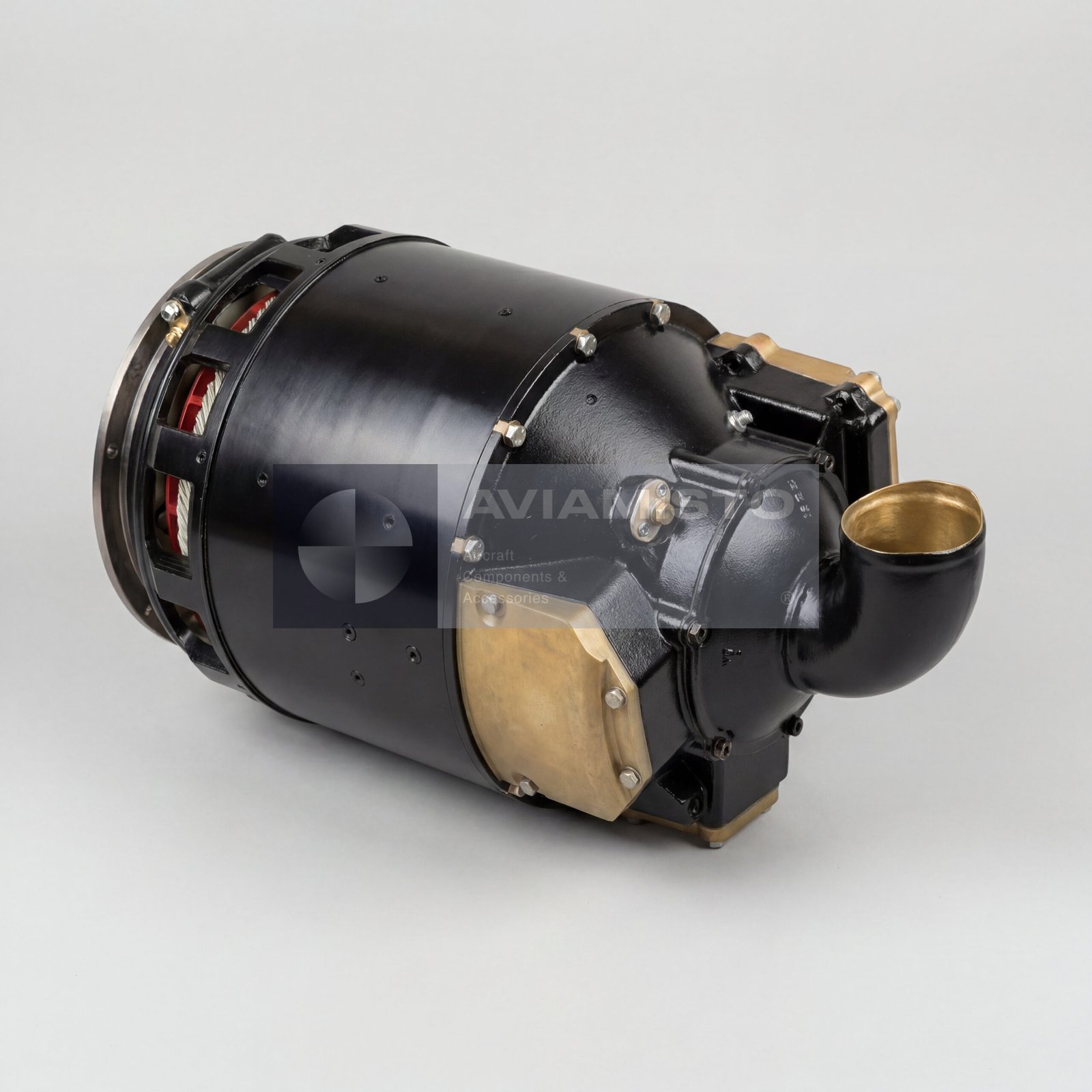

The generator uses a brushless design. The main generator, six-phase exciter, and rotating rectifier block are arranged on one shaft. This removes the brush and commutator section from the excitation circuit and reduces typical brush-related faults. The GT40PCH8B modification has a cooling air outlet duct connection and a standard round mounting flange. This is one of the practical differences from the GT40PCH8V version, which has a different flange arrangement and no external cooling outlet duct in the same form. For replacement, the cooling connection and flange geometry must be checked before shipment.

Protection circuit around GT40PCH8B

The GT40PCH8B includes a current transformer block used for differential protection of the generator system. This protection circuit helps detect abnormal current conditions, including short circuits and phase-related faults in the generator feeder. In the aircraft, the generator is not assessed alone. The connected regulator, protection unit, current sensing lines, connector contacts, and AC feeder condition all affect system behavior. For this reason, maintenance work normally includes insulation checks, output voltage balance, connector inspection, cooling duct condition, and assessment of rotor bearing noise or vibration during ground runs.

Identification and ordering of GT40PCH8B

Before ordering GT40PCH8B, the data plate marking should be compared with the aircraft parts catalog, electrical system documentation, and generator installation drawing. This is especially important when selecting between GT40PCH8B and GT40PCH8V, since the letter version affects the cooling duct and mounting interface. Aircraft such as Mi-28, Ka-32 and Ka-52 may use related generator installations, but the exact match depends on the airframe documentation, regulator set, protection block, and drive configuration. The product is also known under alternative designations GT40PCH8B and ГТ40ПЧ8Б.
