GT40PCH6-2S
AC generator

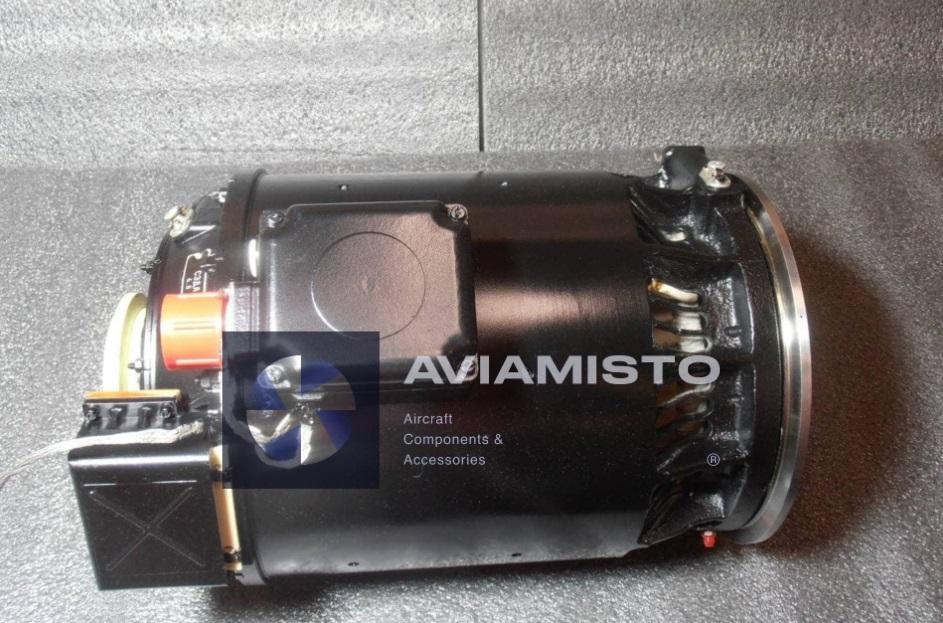

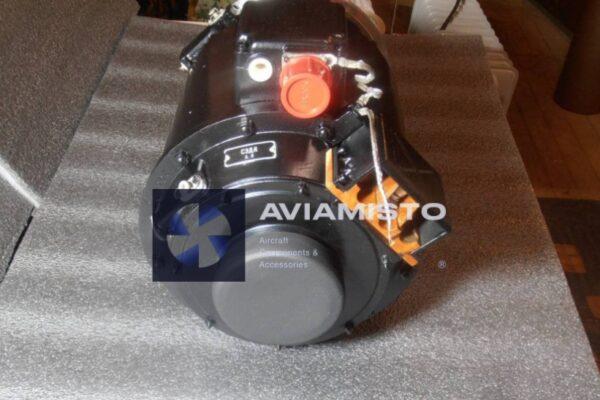

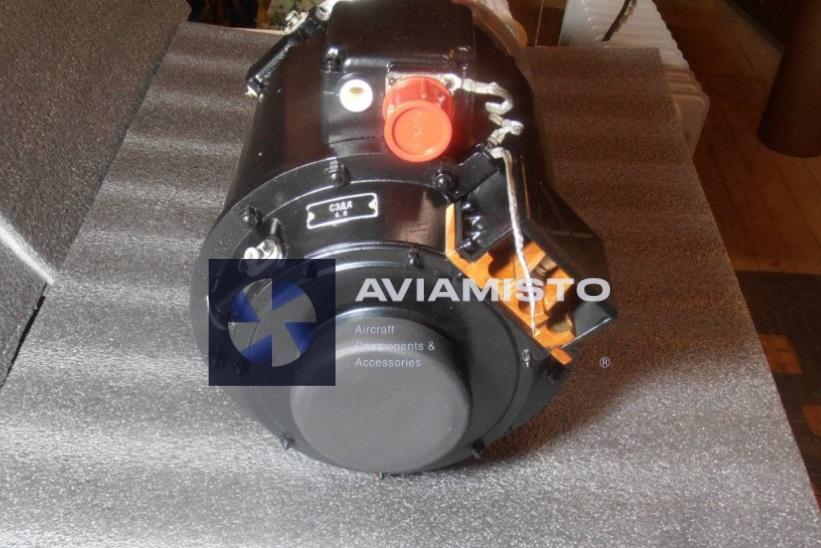

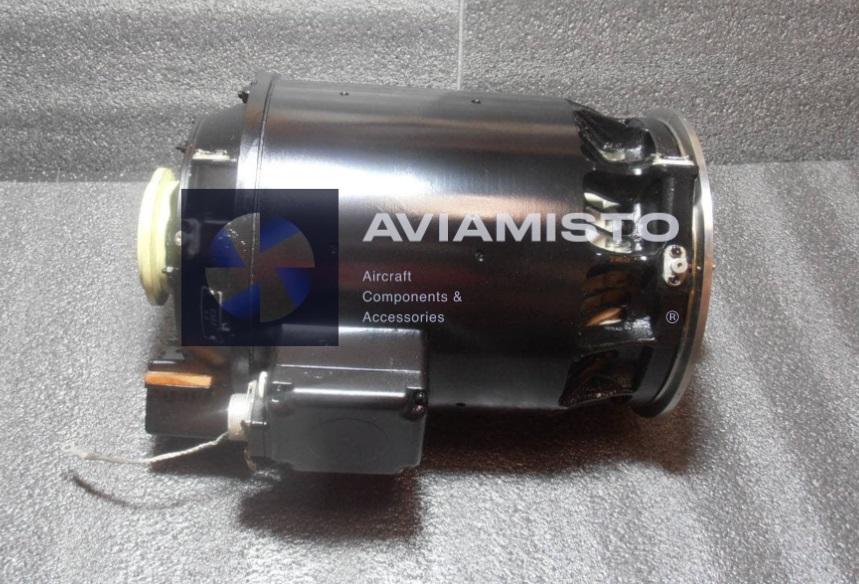

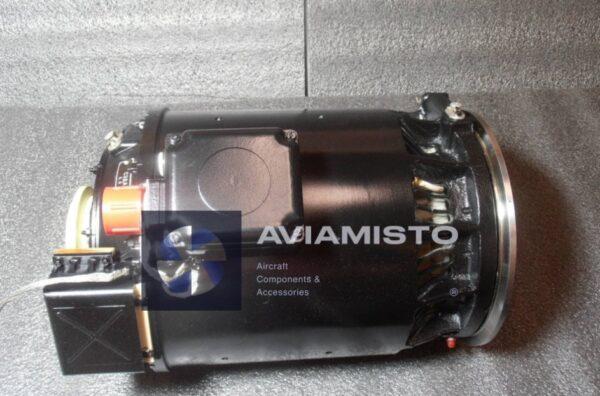

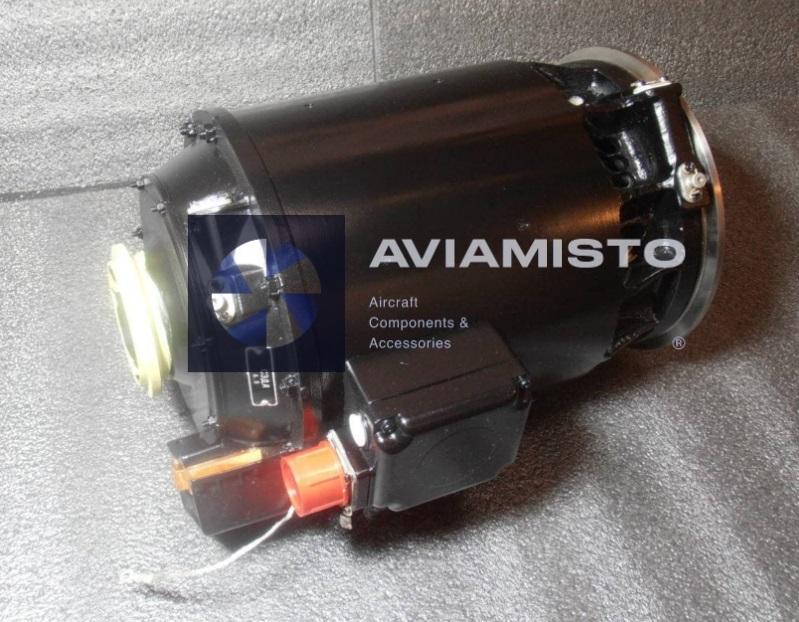

Description
GT40PCH6-2S series-2 generator
GT40PCH6-2S is a three-phase synchronous AC generator with a rated apparent power of 40 kVA. The 2S suffix identifies the series-2 execution of the GT40PCH6 family. It is retained in the product designation because the series belongs to the equipment identity. The generator supplies electrical power from a mechanical drive; it is not a starter motor and does not convert a DC input into AC output.
Full descriptionCollapse description
Documented ground and helicopter applications
The manufacturer specification for APA-5D variant 1 lists two GT40PCH6-2S generators in the ground power unit. Each machine is specified at 40 kVA, 111 A and 6,000 rpm, with an AC output of 208–200 V in that installation. This is ground-service equipment supplying an aircraft externally. The exact series-2 designation also appears in the LOM Praha electrical-equipment spare-parts specification for Mi-24/35 helicopters, a distinct application from the ground power installation.

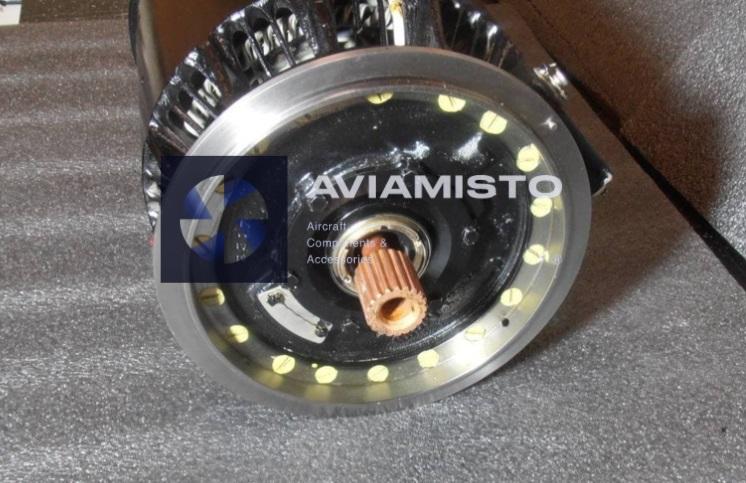

GT40PCH6-2S construction and excitation
The GT40PCH6 family uses a brushless synchronous arrangement with a main generator, an exciter, a permanent-magnet subexciter and a rotating rectifier. Rectified exciter output supplies the rotor field while the main stator provides the three-phase power output. A separate voltage regulator acts on the excitation circuit. Shaft-speed control establishes electrical frequency, so regulation of voltage and regulation of frequency are separate functions of the complete generating system.
Electrical and mechanical characteristics
The catalogue ratings are 208 V, 111 A, 400 Hz and 6,000 rpm, with a power factor of 0.85. The stator connection is star with an accessible neutral. Continuous operation uses forced-air cooling. Recorded mechanical data give a maximum mass of 38.8 kg and dimensions of 412.5 × 292 × 230 mm. These dimensions describe this listed execution and should not be transferred to the larger 60 kVA family.
Associated electrical equipment
Related catalogue entries include the BRN-208M7A voltage regulator, BZU-376SB protection/control unit and BTT-40B current-transformer block. The installed generating-system configuration determines their combination. Other executions are listed in the generator category. General background on external aircraft electrical supply is available in the neutral ground support equipment reference.
Technical details
- Machine type
- Three-phase synchronous brushless AC generator
- Series
- 2
- Documented ground installation
- APA-5D, variant 1; 2 generators
- Helicopter parts-list reference
- Mi-24/35 electrical-equipment specification, LOM Praha
- Rated apparent power
- 40 kVA
All specificationsCollapse specifications
- Rated line voltage
- 208 V
- Output voltage in APA-5D variant 1 specification
- 208–200 V
- Rated load current
- 111 A
- Rated frequency
- 400 Hz
- Rated shaft speed
- 6,000 rpm
- Power factor
- 0.85
- Stator connection
- Star with accessible neutral
- Duty
- Continuous
- Cooling
- Forced air
- Cooling-air pressure
- 450–600 mm water column
- Maximum mass
- 38.8 kg
- Overall dimensions
- 412.5 × 292 × 230 mm
