BRN-208M7A

BRN-208M7A voltage regulator in aircraft AC systems

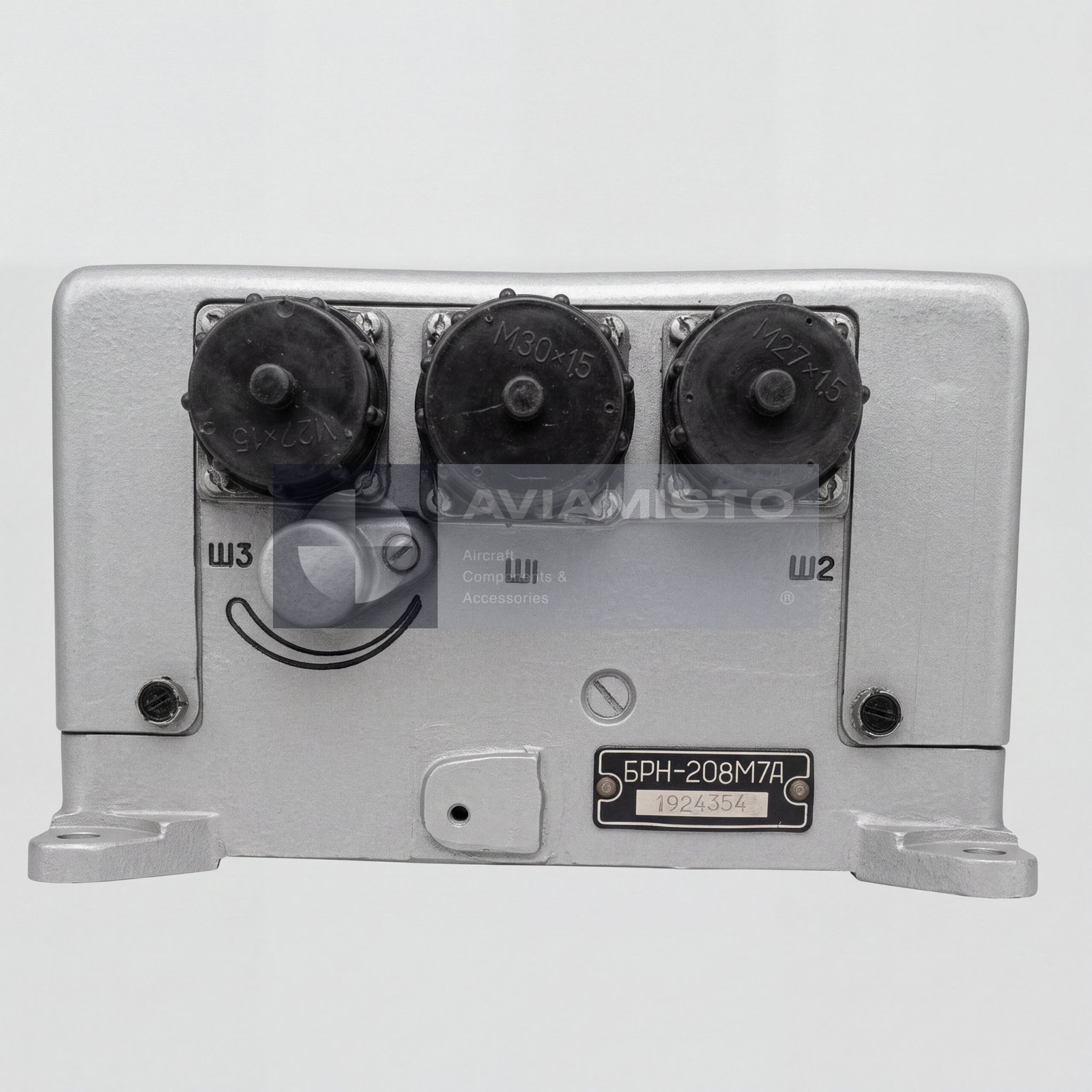

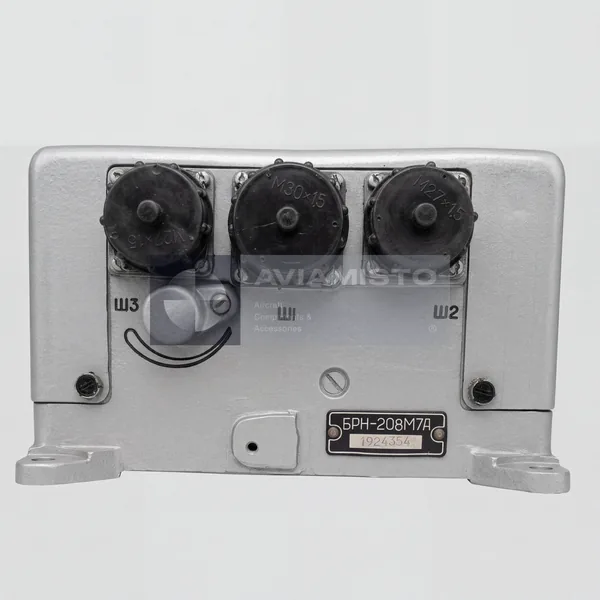

The BRN-208M7A is an aircraft voltage regulation unit used in AC power generation systems of aircraft and selected airfield ground power equipment. Its main task is to keep generator voltage within the required operating limits while the generator is feeding the onboard or service power network. The block works with brushless synchronous aircraft generators, especially GT40PCh-6 family units, and controls generator excitation so that the output voltage remains stable under changing load conditions. In a complete generator channel, the BRN is one of the main regulation blocks, working together with protection, frequency regulation and current-measuring equipment.

Voltage stabilization by the BRN-208M7A

During generator operation, the BRN-208M7A monitors the AC voltage level and corrects the excitation circuit of the generator. If the connected load changes, the generator output tends to rise or fall, and the regulator compensates for this through its control circuit. This is especially important in aircraft systems where consumers are designed for stable 200/115 V, 400 Hz power. Poor voltage regulation can cause unstable operation of instruments, converters, motors and other AC equipment. For this reason, the BRN-208M7A is checked not only as a separate block, but as part of the complete generator channel.

BRN-208M7A with GT40PCh-6 generators

The BRN-208M7A is commonly used with GT40PCh-6 brushless synchronous generators and related modifications such as GT40PCh-6-2S, GT40PCh-6P and GT40PCh-6L, depending on aircraft or ground equipment configuration. The generator produces three-phase AC power, while the BRN controls excitation and stabilizes voltage. The unit may also be used in airfield power equipment such as APA-80 / APA-100 type ground power units, where stable aircraft-standard AC power is required. Exact compatibility must always be confirmed by the generator channel documentation and the installed equipment list.

Parallel operation and reactive load sharing with BRN-208M7A

In systems with several generators operating in parallel, the BRN-208M7A also participates in reactive load sharing. This is important because parallel generator channels must not only produce the same voltage and frequency, but also divide load correctly between them. If one generator takes too much reactive load, the system becomes unbalanced and the generator channel may run outside its intended operating mode. The BRN works with current-transformer signals and related regulation circuits to keep the load distribution closer to normal. This function is especially relevant in aircraft with multiple AC generator channels.

Construction of the BRN-208M7A regulator

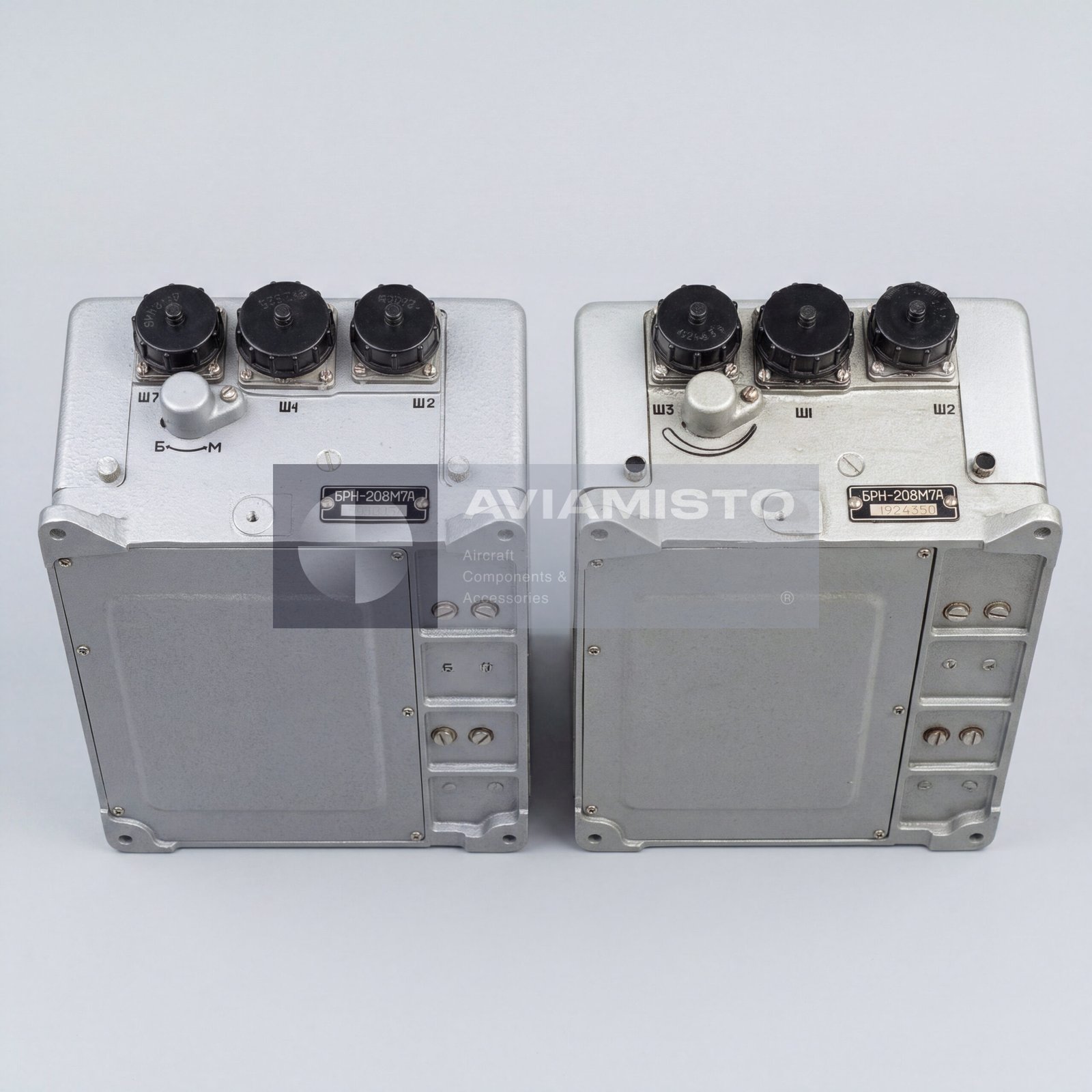

The BRN-208M7A is a static, contactless voltage regulator. Its design is based on magnetic amplifiers and semiconductor measuring elements rather than mechanical contact regulation. This type of construction is suitable for aircraft power systems because it provides fast correction and avoids mechanical switching wear in the main regulation process. The block is installed as an avionics / electrical-system unit with plug-type connection. During inspection, technicians normally check the housing, connector, markings, sealing, mounting condition and visible signs of overheating or long-term storage.

BRN-208M7A with BZU-376 and BTT-40B units

The BRN-208M7A does not work alone in the generator channel. It is normally connected with BZU-376 protection and control blocks, BTT-40B current transformer blocks, BRCh-62BM frequency regulation blocks and other equipment in the AC power system. The BZU decides when the generator may be connected or must be disconnected, the BTT provides current signals for protection and load sharing, the BRCh works with frequency control, and the BRN keeps the voltage stable. If voltage is unstable, the fault may be in the BRN, but also in the generator, current transformers, wiring, excitation circuit or adjustment elements.

Adjustment and support equipment for BRN-208M7A

In some systems, the BRN-208M7A may work together with external adjustment elements such as a remote rectifier and regulating resistor, including RS-25 type equipment depending on the installation. These elements are used for setting or fine adjustment of the voltage reference in the measuring circuit. For maintenance or bench testing, it is important to reproduce the correct supply voltages, generator signals and load conditions. A regulator that appears serviceable on a simple continuity check may still fail to maintain voltage correctly under real generator-channel operation.

Supply and identification of BRN-208M7A

For ordering, repair or replacement, the full designation BRN-208M7A should be used. Similar BRN-208M7 versions may differ by execution, connector arrangement, adjustment data or compatibility with a particular generator channel. The unit may be supplied as new, from storage, repaired, overhauled or tested serviceable, depending on availability. For aircraft use, passport, repair or bench-test documentation should be confirmed before installation. It is also useful to state the generator type, aircraft or ground unit application, and whether the block must operate in a parallel generator system.

Product Type: Aircraft voltage regulation unit
Designation: BRN-208M7A
Function: Automatic regulation of aircraft AC generator voltage
Application / Where Used: Aircraft and airfield ground power AC generation systems
System / Installation Area: Generator excitation control and voltage regulation channel
Associated Generator: GT40PCh-6 and related modifications
Compatible Generator Versions: GT40PCh-6-2S, GT40PCh-6P, GT40PCh-6L depending on configuration
Associated Protection and Control Units: BZU-376SB, BZU-376SP and related BZU-376 series blocks
Associated Current Transformer Block: BTT-40B
Associated Frequency Regulation Unit: BRCh-62BM
Associated Adjustment Equipment: Remote rectifier and RS-25 type rheostat depending on system configuration
Compatible Aircraft / Equipment: Aircraft AC power systems and APA-80 / APA-100 airfield power units depending on configuration
Main Function in Generator Channel: Regulation of excitation current for voltage stabilization
Parallel Operation Function: Reactive load sharing between parallel operating generators
Design Type: Static contactless regulator with magnetic amplifiers and semiconductor measuring elements
DC Supply Voltage: 27 V nominal
Permissible DC Supply Range: 24.3–29.7 V
Three-Phase AC Supply at 400 Hz: 201.8–210 V
Three-Phase AC Supply at 800 Hz: Phase voltage 43–51 V
Dimensions: 225 × 178 × 114 mm
Weight: Not more than 3.7 kg
Weight with Mounting Frame / Certain Versions: Up to 4.4 kg depending on execution
Technical Documentation: Product passport, bench-test documentation and aircraft electrical system maintenance documentation as applicable
