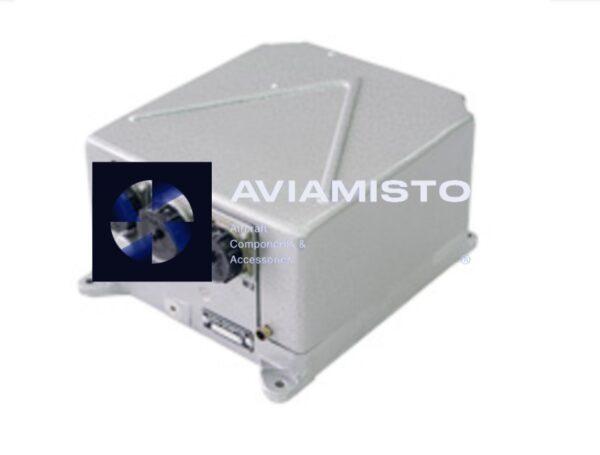

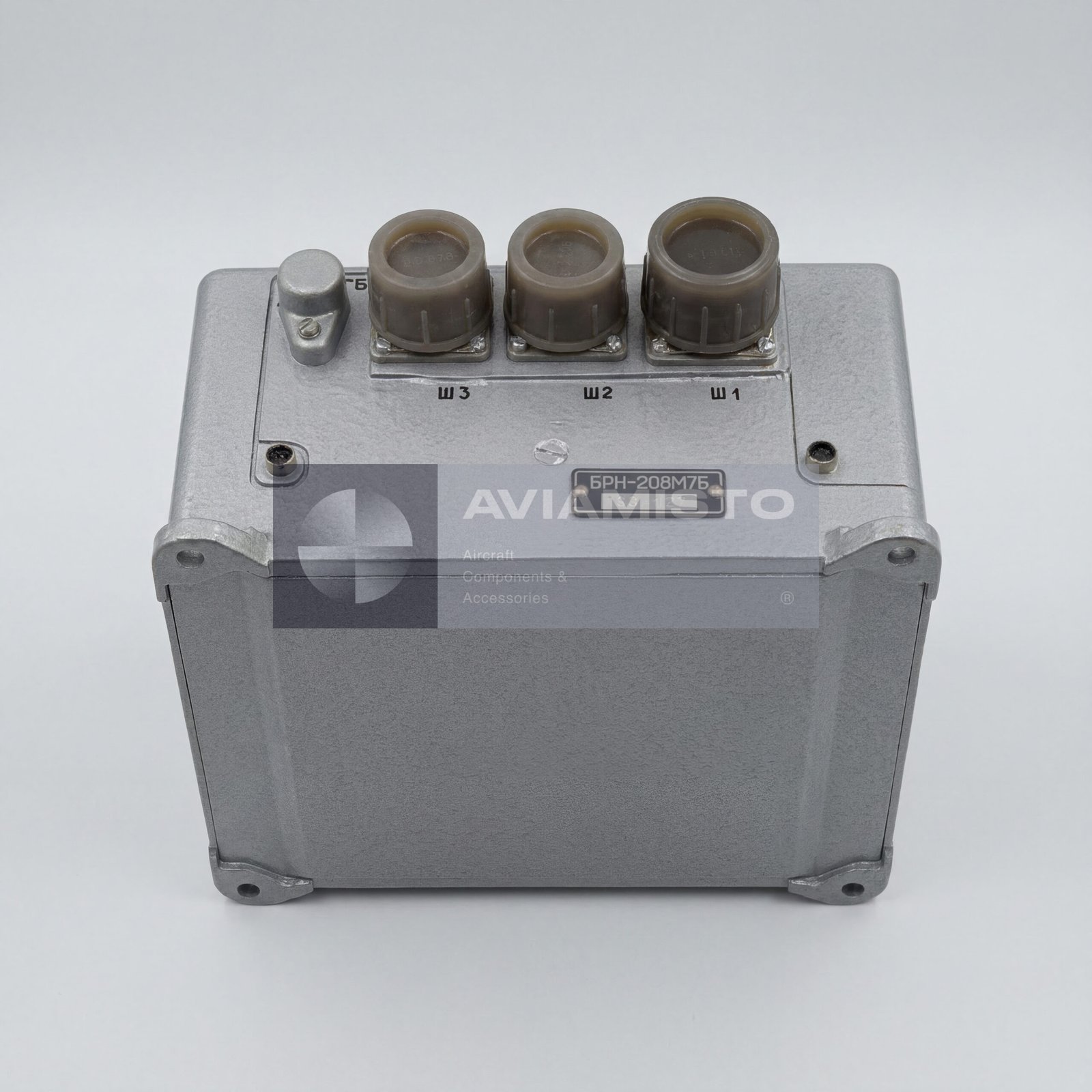

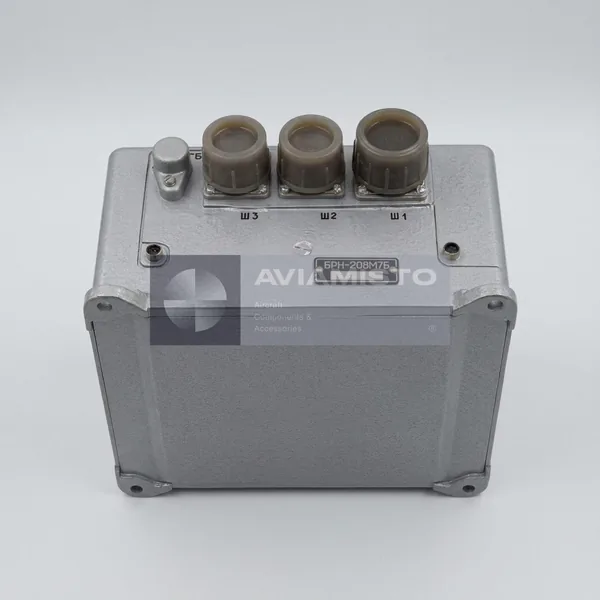

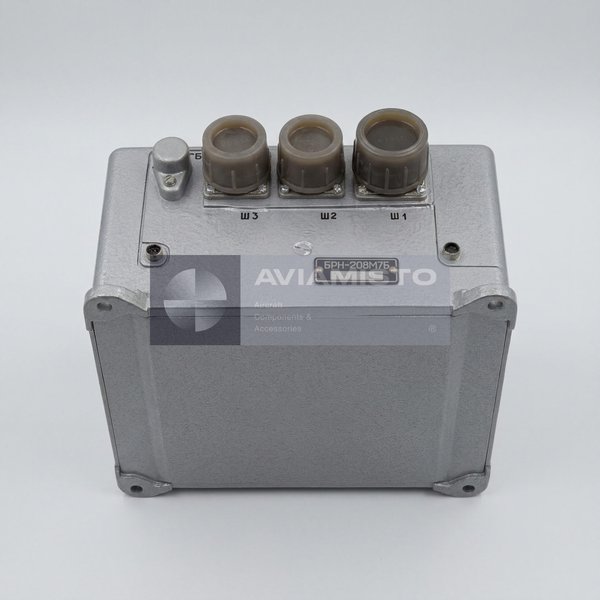

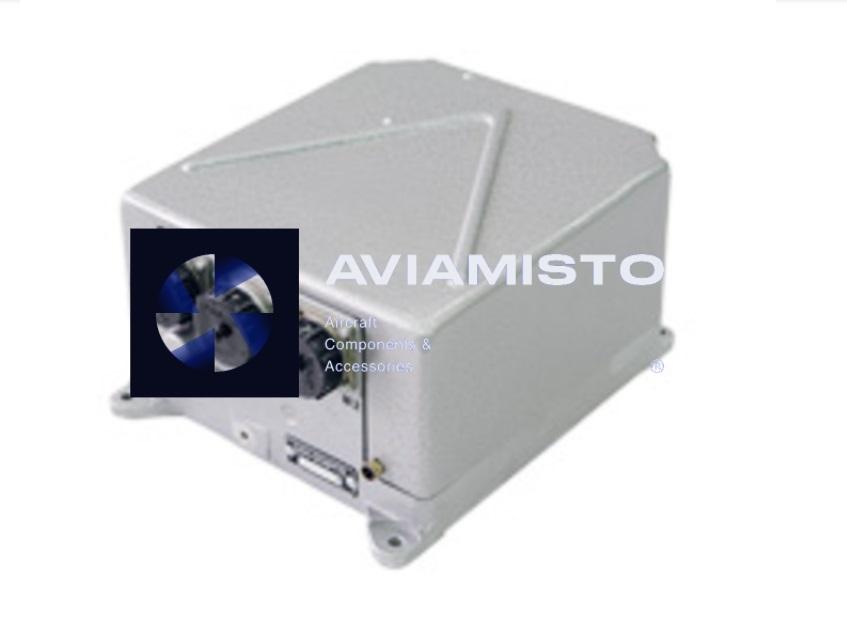

BRN-208M7B

BRN-208M7B in aircraft generator voltage regulation

The BRN-208M7B is an aircraft voltage regulation unit used in AC generator channels of onboard electrical power systems. Its main purpose is to keep generator output voltage within the required operating range while the load on the aircraft network changes. The block is used with GT40PCh-type three-phase brushless synchronous generators and works by controlling the excitation circuit. In the electrical system, BRN-208M7B is not an independent power source. It is a regulating block that keeps the generator channel stable during normal operation, load switching and parallel generator work.

Voltage stabilization by the BRN-208M7B unit

During operation, BRN-208M7B monitors the generator voltage and corrects excitation when the voltage starts to move away from the set level. The block keeps the output voltage in the required aircraft range and prevents excessive deviation under changing load. This is important for aircraft consumers powered by the 400 Hz AC network: instruments, motors, converters, control units and other equipment are sensitive to unstable voltage. If the voltage becomes unstable, the cause may be inside the BRN block, but also in the generator, excitation circuit, sensing lines, connectors or load-sharing system.

BRN-208M7B with GT40PCh generator channels

The BRN-208M7B is commonly associated with GT40PCh-6 and GT40PCh-6S generators. These are aircraft three-phase AC generators used in primary power systems. The generator produces power, while the BRN-208M7B regulates the excitation current and helps keep the voltage at the required level. In many installations, the block works in the same generator channel as BZU protection units, BTT current transformer blocks and BRCh frequency regulation equipment. For replacement, the exact generator version and aircraft electrical system configuration should be checked before confirming compatibility.

Parallel operation and reactive load sharing with BRN-208M7B

One of the important functions of BRN-208M7B is reactive load sharing during parallel operation of generators. When several generator channels feed the same AC network, the load must be distributed correctly. If one generator takes too much reactive load, it can be overloaded while another generator is underloaded. The BRN-208M7B uses signals from current transformer equipment and related circuits to support balanced operation. This function is especially important on aircraft with multiple generator channels and a common AC bus system.

Internal design of the BRN-208M7B regulator

The BRN-208M7B includes a voltage measuring unit and magnetic amplifier stages. The voltage measuring section monitors the controlled AC voltage, while the magnetic amplifiers form and strengthen the control signal for the excitation circuit. The design also includes an internal adjustment element that allows the base voltage level to be shifted within the specified range. This type of regulator is a static contactless aircraft unit, built for operation in generator control systems where fast correction and stable behavior are needed without mechanical switching in the main regulation process.

BRN-208M7B with protection and frequency regulation blocks

BRN-208M7B works together with several related units in the aircraft AC power system. BZU-376SP, BZU-376SB or BZU-376SP-4S blocks control generator connection, disconnection and protection logic. BRCh-62BM or BRCh-62MB blocks handle frequency regulation together with the MKCh-62TV correction mechanism. BTT-40B or BTT-60PM current transformer blocks provide load-current signals used for protection and load sharing. Because these units operate as one generator channel, troubleshooting should cover the whole system, not only the voltage regulator.

Aircraft application of the BRN-208M7B block

BRN-208M7B is used in aircraft electrical systems of Soviet and Russian-designed civil and military aircraft. Typical applications include Il-62M, Il-76, Tu-154, Yak-42, An-72, An-74 and Mi-26, depending on the installed generator system. The unit may also be found in related aircraft AC power systems using GT40PCh-type generators and BZU-series control blocks. Exact applicability must be confirmed by the aircraft parts catalog, electrical system manual and installed generator-channel configuration.

Supply, checking and replacement of BRN-208M7B

For procurement or replacement, the full designation BRN-208M7B should be used. It should not be confused with BRN-208M7A, because the dimensions, weight, installation details and execution may differ. Before installation, the block should be inspected for connector condition, housing damage, markings, sealing, storage condition and documentation. For aircraft use, bench testing is useful: the block must hold the voltage level, respond correctly to load changes and work properly with the excitation and load-sharing circuits. Passport, repair or test documents should be confirmed before installation.

Product Type: Aircraft voltage regulation unit
Designation: BRN-208M7B
Function: Automatic regulation of AC generator voltage and reactive load sharing during parallel generator operation
Application / Where Used: Aircraft AC power generation systems
System / Installation Area: Generator excitation control channel and voltage regulation system
Associated Generators: GT40PCh-6, GT40PCh-6S depending on configuration
Generator Type: Brushless three-phase synchronous AC generator
Associated Protection and Control Units: BZU-376SP, BZU-376SB, BZU-376SP-4S
Associated Frequency Regulation Units: BRCh-62BM, BRCh-62MB
Associated Frequency Correction Mechanism: MKCh-62TV
Associated Current Transformer Blocks: BTT-40B, BTT-60PM
Associated Generator Cut-Off Units: BOG-1, BOG-86 depending on aircraft system
Associated Switching Equipment: TKD / TKE series load contactors and generator bus switching equipment depending on configuration
Compatible Aircraft / Equipment: Il-62M, Il-76, Tu-154, Yak-42, An-72, An-74, Mi-26 depending on electrical system configuration
Controlled Voltage Range: 201.8–210 V AC
Nominal AC Frequency: 400 Hz
DC Supply Voltage: 27 ±2.7 V
Three-Phase AC Measuring Voltage: 201.8–210 V at 400 Hz
Auxiliary Three-Phase AC Supply: Phase voltage 43–51 V at 800 Hz
Manual Adjustment Range: ±6 V by built-in trimming potentiometer
Regulator Time Constant: Excitation current rise time 0.05 s
Internal Voltage Measuring Unit: BIN
Internal Magnetic Amplifier Stages: MU-1 and MU-2 connected in series
Design Type: Static contactless regulator with magnetic amplifiers and semiconductor measuring circuits
Dimensions: 234 × 203 × 113 mm
Weight: Not more than 4.4 kg
Comparison with BRN-208M7A: BRN-208M7A dimensions 225 × 178 × 114 mm; weight up to 3.7 kg depending on execution
Technical Documentation: Product passport, bench-test documents and aircraft electrical system maintenance documentation as applicable
