EV-2-3660

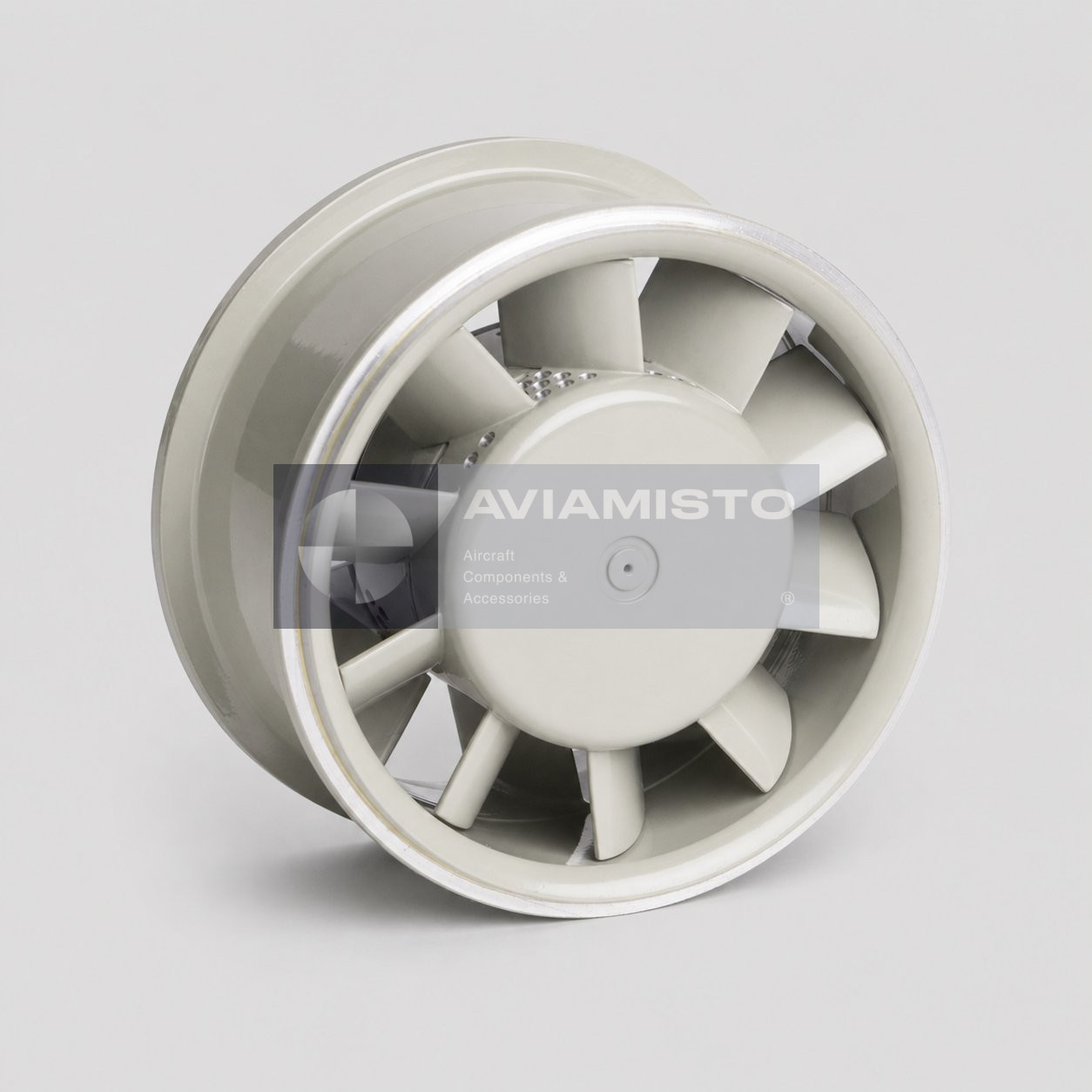

Function and construction of EV-2-3660

The metal housing and impeller form a compact airflow unit that can operate on suction or discharge in continuous duty and in any spatial position. Mounting geometry varies across the EV family: smaller executions use support flanges, while higher-capacity units may also have mounting lugs. The exact installation must follow the drawing and passport.

The fan is a component of the cooled equipment, not a self-contained ventilation system. Performance after installation depends on the resistance of the airflow path, unobstructed inlet and outlet, correct rotation and the electrical supply specified for the exact execution.

Electrical and airflow parameters

Nominal airflow is 200 m³/h at a total pressure of 500 Pa (50 kgf/m²). The fan uses a 200 ±10 V, 400 ±20 Hz, 3-phase supply. Power consumption is not more than 95 w, current consumption is not more than 0.37 a and rotational speed is not less than 10,200 rpm. The sound level is not more than 79 dba.

Free-air airflow, total pressure and static pressure describe different operating points. They must be interpreted together and checked against the equipment passport rather than compared by one number alone.

Operating conditions and inspection

The documented operating temperature is −60 to +100 °C, with relative humidity up to 98% at +35 °C. Continuous operation and intermittent duty with on-time up to 40% of the cycle are permitted within the documented limits. The minimum operating-time figure for this execution is 3,000 h; dimensions are Ø85 × 45.5 mm and weight is 0.43 kg.

Incoming inspection should cover the marking, housing, impeller, connector or leads, mounting points and free rotation. During operation, unusual noise, vibration, overheating, current deviation or reduced airflow requires investigation according to approved maintenance documentation.

Related cooling fans and selection

Functionally related products include EV-0.2-1540 and EV-2.8-3660. These links are provided for navigation within the cooling family and do not establish electrical, mechanical or installation interchangeability.

Application to a particular aircraft, helicopter, ground unit or electronic block must be confirmed by its illustrated parts catalogue, wiring diagram or approved maintenance documentation. Category placement alone is not evidence of installation on a specific platform.

Identification and ordering

The designation may be encountered as EV-2-3660; EV23660; EV 2 3660; ЭВ-2-3660; ЭВ23660. These are writing and search variants; any suffix, acceptance mark or execution code visible on the nameplate remains significant.

An inquiry should state the complete marking, quantity, required condition, delivery set and documentation requirements. Other models are listed in the Cooling & Ventilation Fans category. Availability and the presence of a passport or test record are confirmed for the offered item.
