EV-0.2-1540
Price on request
FANS
Available on back-order
Description

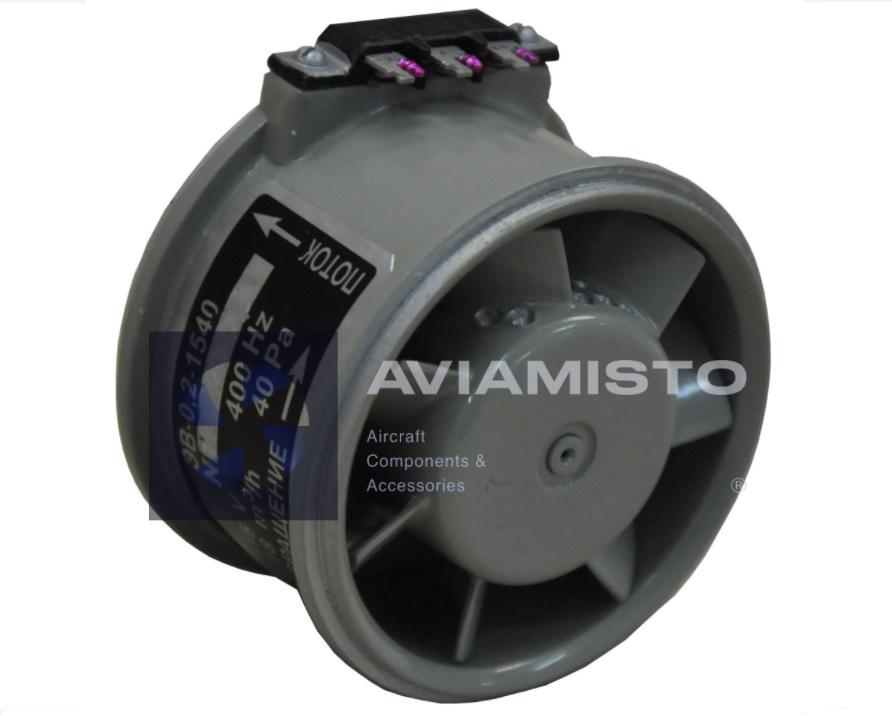

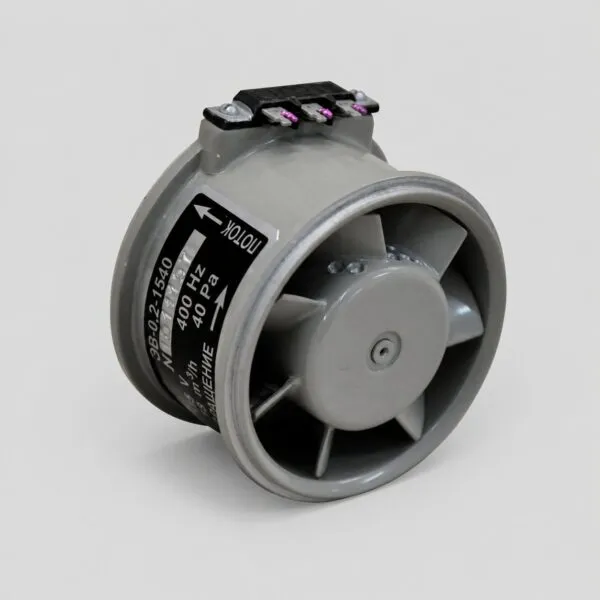

Fans EV-0.2-1540 are designed for cooling radio-electronic equipment. EVs are designed for power supply from a three-phase alternating current with a frequency of 400 Hz.
- Operating mode - continuous (S1) at any position in space.
- It is possible to modify the fans for the customer's supply voltage.
Details
1. Supply voltage 115 V;
2. The frequency of the supply voltage is 400 Hz;
3. Nominal capacity 18 m3 / h;
4. Coefficient of efficiency 70%;
5. The consumed current is 0.08 A;
6. Rotation frequency 7000 rpm;
7. Total pressure at rated performance 40 (4) kgf / m2;
8. Minimum operating time 5000 hours;
9. Power consumption 10 W;
10. Ambient temperature during operation from -60 to +100 С;
10. Sound level, no more than 45 dBA;
11.Capacity 0.39 uF;
12. Weight 0.43 kg.
