DV-201
Ventilation Fan
Description

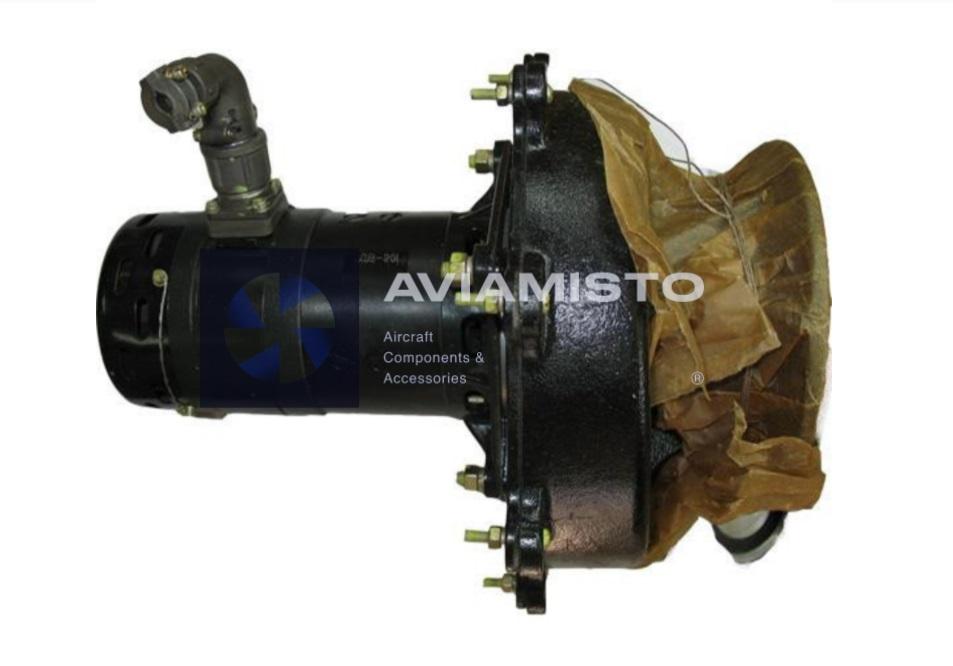

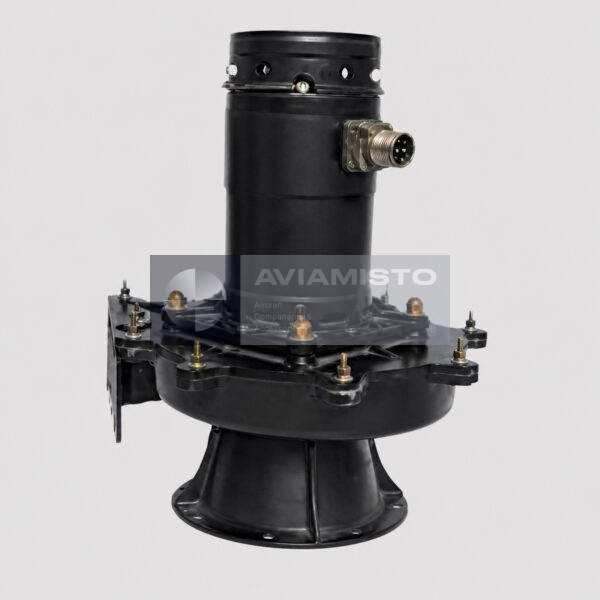

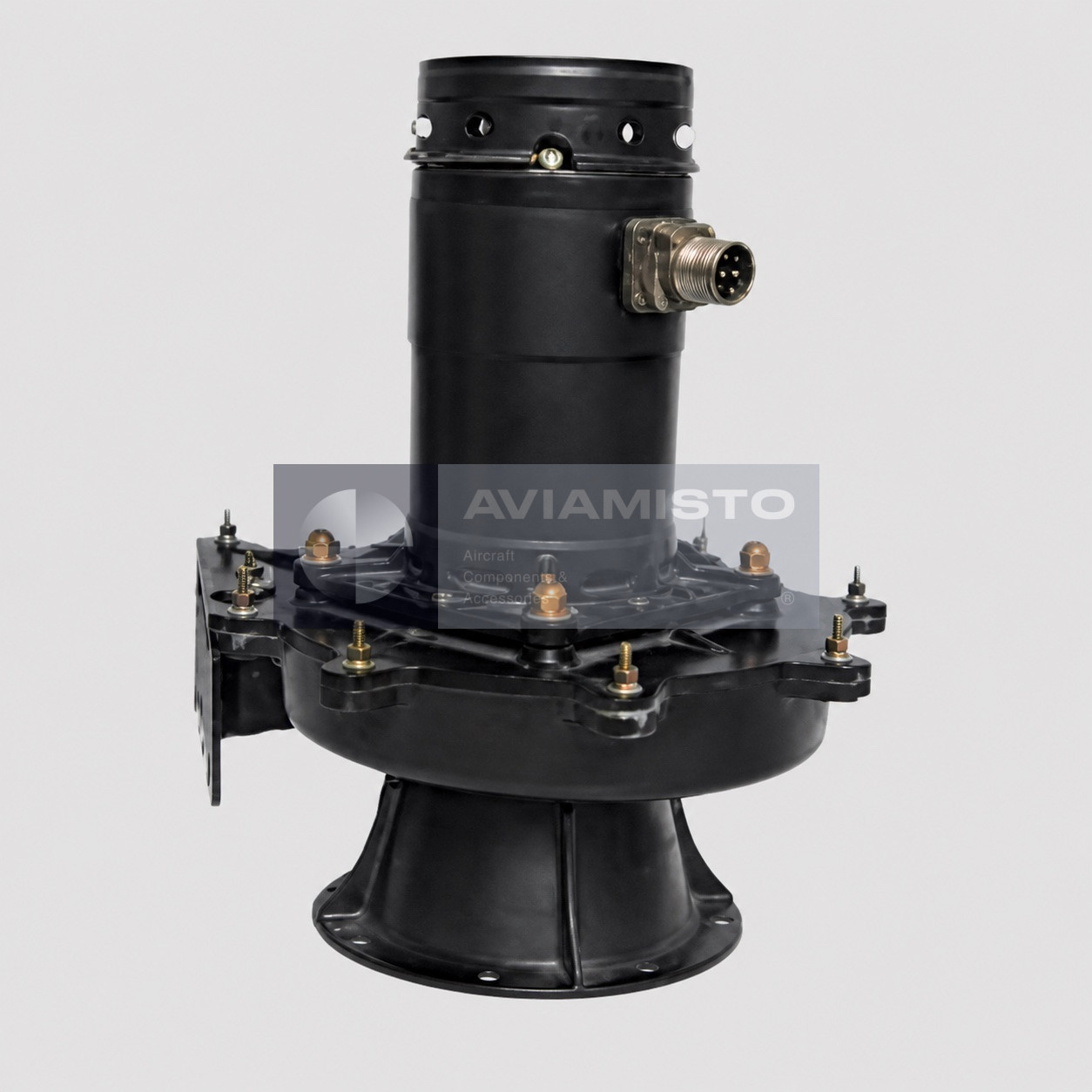

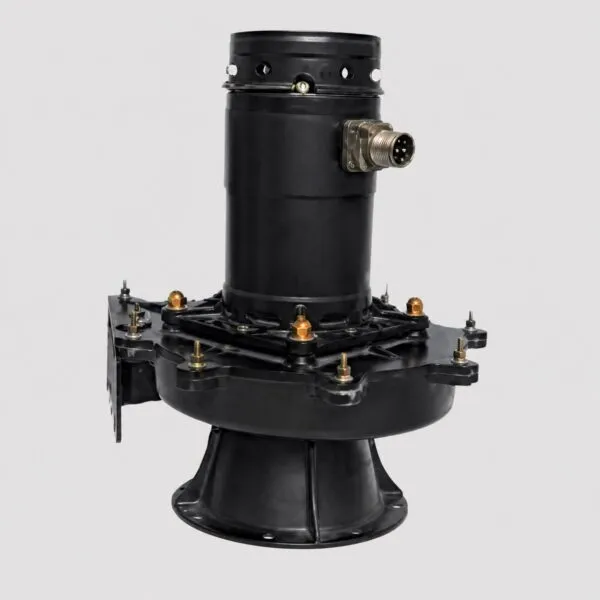

DV-201 DC ventilation-system fan
DV-201 is a DC ventilation-system fan intended for forced air circulation in an equipment ventilation system supplied from a nominal 27 V DC network.
A fan moves air through a rotating impeller. For this unit, the exact designation, electrical supply, airflow, pressure and mounting data remain decisive.
Full descriptionCollapse description
Function and construction of DV-201
DV-201 uses a protected, self-ventilated DC motor with mixed excitation. The complete assembly is an all-climate fan for continuous duty. Installation must preserve the airflow path and the mounting arrangement specified for the serviced system.
The fan is a component of the cooled equipment, not a complete ventilation installation. Air-path resistance, correct rotation, unobstructed inlet and outlet and the specified supply affect its installed performance.
Electrical and airflow parameters
The nominal supply is 27 V with a ±10% tolerance. Airflow is 250 m³/h, rated power is 180 W and current is not more than 15 A. The documented speed range is 6,700–8,200 rpm.
Airflow and pressure refer to documented operating points and should be checked together. A visually similar fan with another suffix, voltage or frequency is not automatically interchangeable.
Operating conditions and inspection
The fan is specified for continuous duty and all-climate service. Before installation, the housing, impeller, motor, terminals and mounting points should be inspected, and free rotation should be confirmed without energising the unit.
Incoming inspection should cover the marking, housing, impeller, connector or leads, mounting points and free rotation. Unusual noise, vibration, overheating, current deviation or reduced airflow requires investigation under approved maintenance documentation.
Related cooling fans and selection
Functionally related catalogue positions include DV-302T and DV-302TB. These links support navigation and do not establish electrical, mechanical or installation interchangeability.
Application to a specific aircraft, helicopter, ground unit or electronic block must be confirmed from its illustrated parts catalogue, wiring diagram or approved service documentation.
Identification and ordering
The designation may be encountered as DV-201; DV201; ДВ-201; ДВ201. These are writing and search variants; execution suffixes and nameplate marks remain significant.
An inquiry should state the complete marking, quantity, required condition, delivery set and documentation requirements. Other units are listed in the Cooling & Ventilation Fans category.
Technical details
- Product Type
- DC ventilation-system fan
- Primary Designation
- DV-201
- Original Cyrillic Designation
- ДВ-201
- Alternative Designations
- DV-201; DV201; ДВ-201; ДВ201
- Purpose
- forced air circulation in an equipment ventilation system supplied from a nominal 27 V DC network
All specificationsCollapse specifications
- Air-Moving Principle
- Axial impeller
- Duty / Installation
- Confirm exact execution and installation documentation
- Interchangeability
- Not established; verify electrical and mechanical interfaces
- Documentation
- Product passport and approved equipment documentation
- Motor Type
- DC motor, mixed excitation
- Motor Construction
- Protected, self-ventilated
- Climatic Version
- All-climate
- Supply Voltage
- 27 V DC ±10%
- Current Consumption
- Not more than 15 A
- Rated Power
- 180 W
- Rotational Speed
- 6,700–8,200 rpm
- Airflow
- 250 m³/h
- Dimensions
- 262 × 219 × 206 mm
- Weight
- Not more than 4 kg
