Axial Cooling Fan
242VO-14-2
Price on request
Axial Cooling Fan
Available on back-order
Description

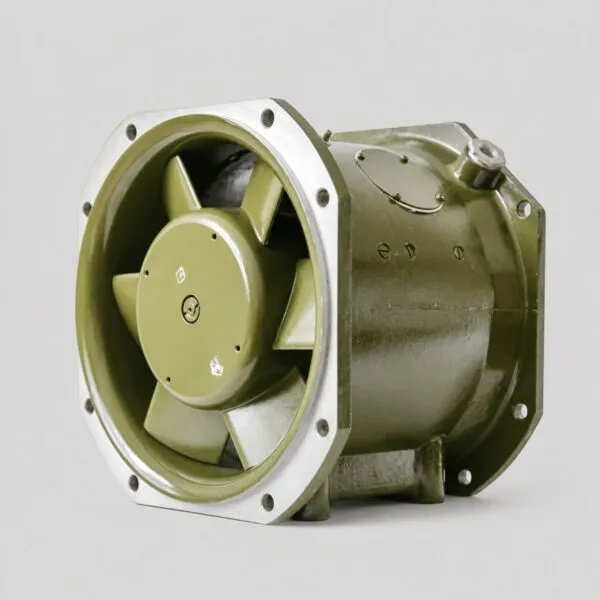

242VO-14-2 axial cooling fan
242VO-14-2 is an axial fan identified in the manufacturer catalogue under AMIV.630250.018 TU. It is intended for forced-air cooling of radio-electronic equipment. The product must be selected by its complete marking, electrical data and installation geometry; a visually similar fan or a neighbouring suffix is not automatic proof of interchangeability.
The original Cyrillic designation and practical Latin search variants are recorded in Technical Details. The stable product URL is retained. No aircraft type is assigned without a confirmed installation catalogue, because the same equipment-cooling family can be used in different assemblies.
Cooling function and operating principle
An axial fan moves air mainly parallel to the rotation axis. In an equipment installation, the airflow removes heat from electronic assemblies and passes it through the designed duct, enclosure or ventilation path. Actual system performance depends on intake and outlet resistance, mounting clearances, rotation direction and the condition of the impeller.
For 242VO-14-2, the confirmed catalogue airflow is 2,500 m³/h and full pressure is 155 kgf/m². These are model-specific values, not generic figures borrowed from another member of the VO family. The factory table lists 242VO-14-2 and 242VO-14-2GM with the same principal performance values. They remain separate executions because the suffix is part of the product identity and may correspond to construction or installation differences.
Electrical supply and rated performance
The documented supply is 220 ±11 V AC at 400 ±20 Hz. Rated power consumption is Not more than 1,350 W, current consumption is Not more than 4.6 A, and rotational speed is Not less than 7,200 rpm. The sound level is Not more than 90 dBA. The complete electrical circuit, phase sequence, protective devices and connector arrangement must be checked in the applicable passport or equipment documentation before power is applied.
The listed dimensions are 224 × 251 × 240 mm. They are included for exact identification and installation planning, but they do not replace a dimensional drawing. Reliability and storage limits must be confirmed from the passport for the supplied execution.
Installation and maintenance checks
Before installation, inspect the housing, impeller, mounting points, electrical terminals or connector, protective elements and all markings. Confirm free rotation without energising the unit and check that the intended airflow direction matches the equipment duct. Never apply the supply values of a similar-looking model when the full designation has not been verified.
During maintenance, typical checks include contamination, unusual noise, vibration, overheating, current consumption and reduced airflow. Acceptance limits and test methods are determined by the product passport and the documentation for the serviced equipment. Disassembly, lubrication or replacement of an internal component is performed only where the approved maintenance data permits it.
Identification and ordering
Search and identification forms include 242VO-14-2; 242VO14-2; 242 VO 14 2; 242ВО-14-2. Cyrillic and Latin letters can look identical, but they are different characters in databases and search systems. The nameplate should therefore be compared character by character, including suffixes, punctuation and the technical-standard reference.
An enquiry should state the exact execution, required condition, delivery set and documentation. If available, add photographs of the nameplate, connector and mounting face. This prevents selection based only on airflow, voltage or body size and helps distinguish related products that have similar ratings.
Related cooling equipment
Other equipment-cooling products are listed in the Cooling and Ventilation Fans category. Closely related catalogue positions include 242VO-14-2GM and 220VO-6-2. These links support navigation within the same functional group and do not claim that the products are interchangeable.
For a supply request, Aviamisto can confirm the offered unit’s marking, available documentation, delivery set and current commercial terms. Final suitability remains subject to the applicable equipment manual, installation drawing and product passport.
Technical Details
Product Name: Axial Cooling Fan
Part Number: 242VO-14-2
Original Designation: 242ВО-14-2
Product Type: Axial equipment-cooling fan
Function: Forced-air cooling of radio-electronic equipment
Technical Standard: AMIV.630250.018 TU
Current Type: Alternating current
Supply Voltage: 220 ±11 V AC
Supply Frequency: 400 ±20 Hz
Power Phases: Three-phase
Airflow: 2,500 m³/h
Full Pressure: 155 kgf/m²
Power Consumption: Not more than 1,350 W
Rotational Speed: Not less than 7,200 rpm
Current Consumption: Not more than 4.6 A
Weight: Not more than 12.50 kg
Sound Level: Not more than 90 dBA
Overall Dimensions: 224 × 251 × 240 mm
Alternate Designations: 242VO-14-2; 242VO14-2; 242 VO 14 2; 242ВО-14-2
Documentation: Product passport and applicable equipment documentation
Selection Note: Confirm complete marking, electrical data, dimensions and passport before installation.
