220VO-6-2

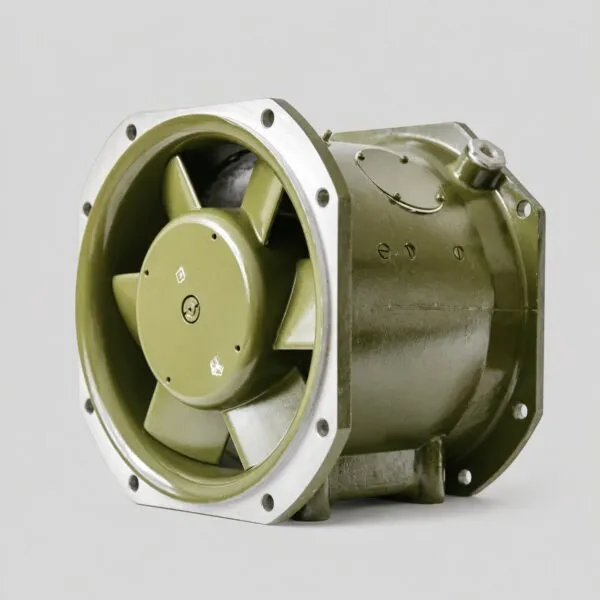

220VO-6-2 axial cooling fan

220VO-6-2 is an axial fan identified in the manufacturer catalogue under AMIV.630250.018 TU. It is intended for forced-air cooling of radio-electronic equipment. The product must be selected by its complete marking, electrical data and installation geometry; a visually similar fan or a neighbouring suffix is not automatic proof of interchangeability.

The original Cyrillic designation and practical Latin search variants are recorded in Technical Details. The stable product URL is retained. No aircraft type is assigned without a confirmed installation catalogue, because the same equipment-cooling family can be used in different assemblies.

Cooling function and operating principle

An axial fan moves air mainly parallel to the rotation axis. In an equipment installation, the airflow removes heat from electronic assemblies and passes it through the designed duct, enclosure or ventilation path. Actual system performance depends on intake and outlet resistance, mounting clearances, rotation direction and the condition of the impeller.

For 220VO-6-2, the confirmed catalogue airflow is 2,000 m³/h and full pressure is 84 kgf/m². These are model-specific values, not generic figures borrowed from another member of the VO family. Although 220VO-6-2 and 220VO-12-2A share a 2,000 m³/h airflow figure, their pressure, power, speed, dimensions and full designations differ; they must not be presented as interchangeable.

Electrical supply and rated performance

The documented supply is 220 ±11 V AC at 400 ±20 Hz. Rated power consumption is Not more than 650 W, current consumption is Not more than 2.50 A, and rotational speed is Not less than 7,300 rpm. The sound level is Not more than 84 dBA. The complete electrical circuit, phase sequence, protective devices and connector arrangement must be checked in the applicable passport or equipment documentation before power is applied.

The listed dimensions are 190 × 226 × 216 mm. They are included for exact identification and installation planning, but they do not replace a dimensional drawing. Reliability and storage limits must be confirmed from the passport for the supplied execution.

Installation and maintenance checks

Before installation, inspect the housing, impeller, mounting points, electrical terminals or connector, protective elements and all markings. Confirm free rotation without energising the unit and check that the intended airflow direction matches the equipment duct. Never apply the supply values of a similar-looking model when the full designation has not been verified.

During maintenance, typical checks include contamination, unusual noise, vibration, overheating, current consumption and reduced airflow. Acceptance limits and test methods are determined by the product passport and the documentation for the serviced equipment. Disassembly, lubrication or replacement of an internal component is performed only where the approved maintenance data permits it.

Identification and ordering

Search and identification forms include 220VO-6-2; 220VO6-2; 220 VO 6 2; 220ВО-6-2. Cyrillic and Latin letters can look identical, but they are different characters in databases and search systems. The nameplate should therefore be compared character by character, including suffixes, punctuation and the technical-standard reference.

An enquiry should state the exact execution, required condition, delivery set and documentation. If available, add photographs of the nameplate, connector and mounting face. This prevents selection based only on airflow, voltage or body size and helps distinguish related products that have similar ratings.

Related cooling equipment

Other equipment-cooling products are listed in the Cooling and Ventilation Fans category. Closely related catalogue positions include 220VO-12-2A and 123VO-9-2. These links support navigation within the same functional group and do not claim that the products are interchangeable.

For a supply request, Aviamisto can confirm the offered unit’s marking, available documentation, delivery set and current commercial terms. Final suitability remains subject to the applicable equipment manual, installation drawing and product passport.

Product Name: Axial Cooling Fan
Part Number: 220VO-6-2
Original Designation: 220ВО-6-2
Product Type: Axial equipment-cooling fan
Function: Forced-air cooling of radio-electronic equipment
Technical Standard: AMIV.630250.018 TU
Current Type: Alternating current
Supply Voltage: 220 ±11 V AC
Supply Frequency: 400 ±20 Hz
Power Phases: Three-phase
Airflow: 2,000 m³/h
Full Pressure: 84 kgf/m²
Power Consumption: Not more than 650 W
Rotational Speed: Not less than 7,300 rpm
Current Consumption: Not more than 2.50 A
Weight: Not more than 7.5 kg
Sound Level: Not more than 84 dBA
Overall Dimensions: 190 × 226 × 216 mm
Alternate Designations: 220VO-6-2; 220VO6-2; 220 VO 6 2; 220ВО-6-2
Documentation: Product passport and applicable equipment documentation
Selection Note: Confirm complete marking, electrical data, dimensions and passport before installation.
